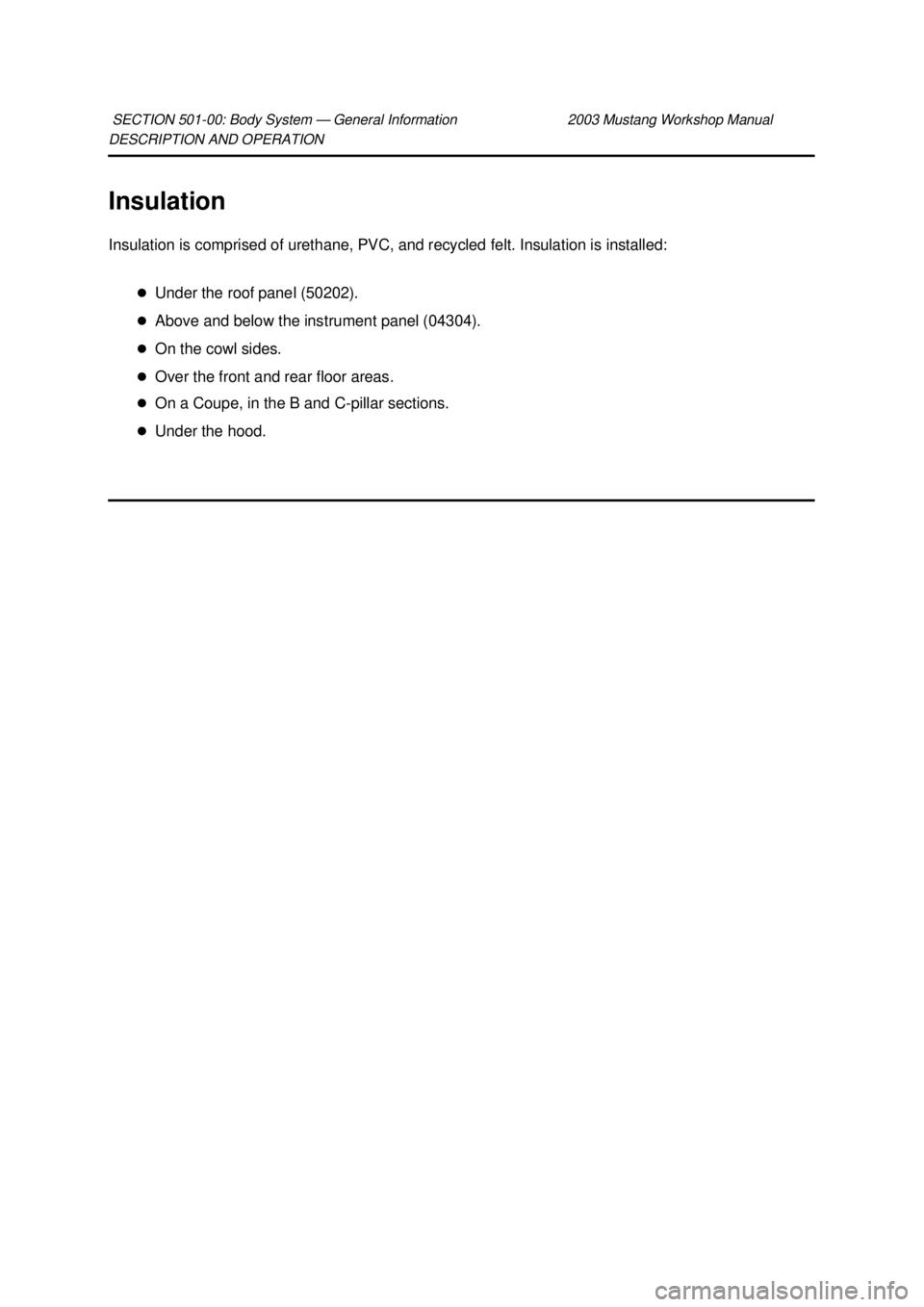

Page 3593 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Insulation Insulation is comprised of urethane, PVC, and recycled felt. Insulation is installed: �zUnder the roof panel (50202). �z Above and below the instrument panel (

Page 3594 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Body Sealer Types And Applications Liquid Butyl Sealer HB Fuller E709-19554- B or equivalent meeting Ford Specification ESB-M4G162- A: �z Does not run. �z Is fast drying

Page 3595 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3596 of 4378

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Body System Inspection and Verification Leaks NOTE: Trim will reveal the location of most leaks. 1. Remove any trim or carpet in the general area of the leak. 2. Road test

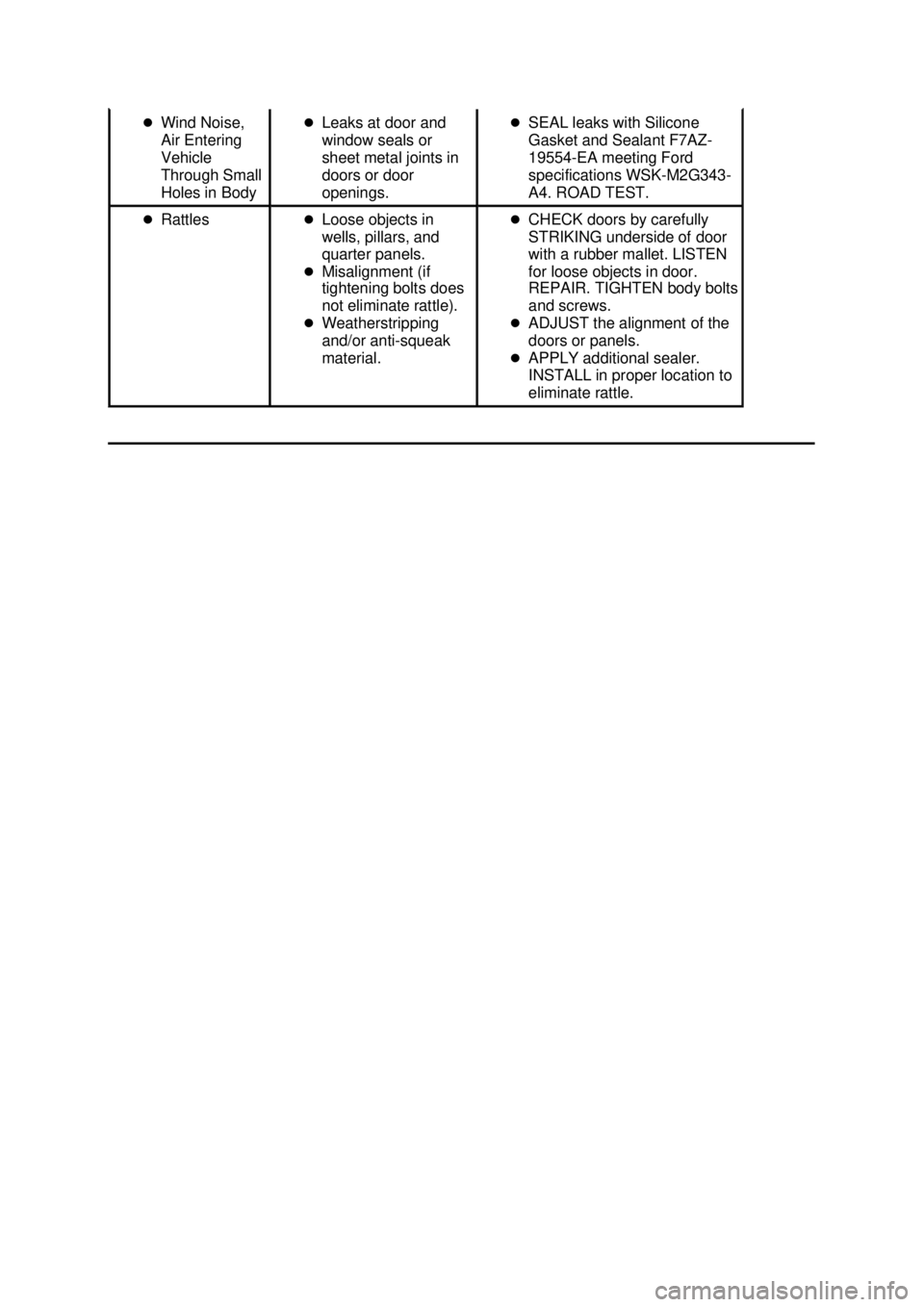

Page 3597 of 4378

FORD MUSTANG 2003 Workshop Manual �z Wind Noise, Air Entering Vehicle Through Small Holes in Body �z Leaks at door and window seals or sheet metal joints in doors or door openings. �z SEAL leaks with Silicone Gasket and Sea

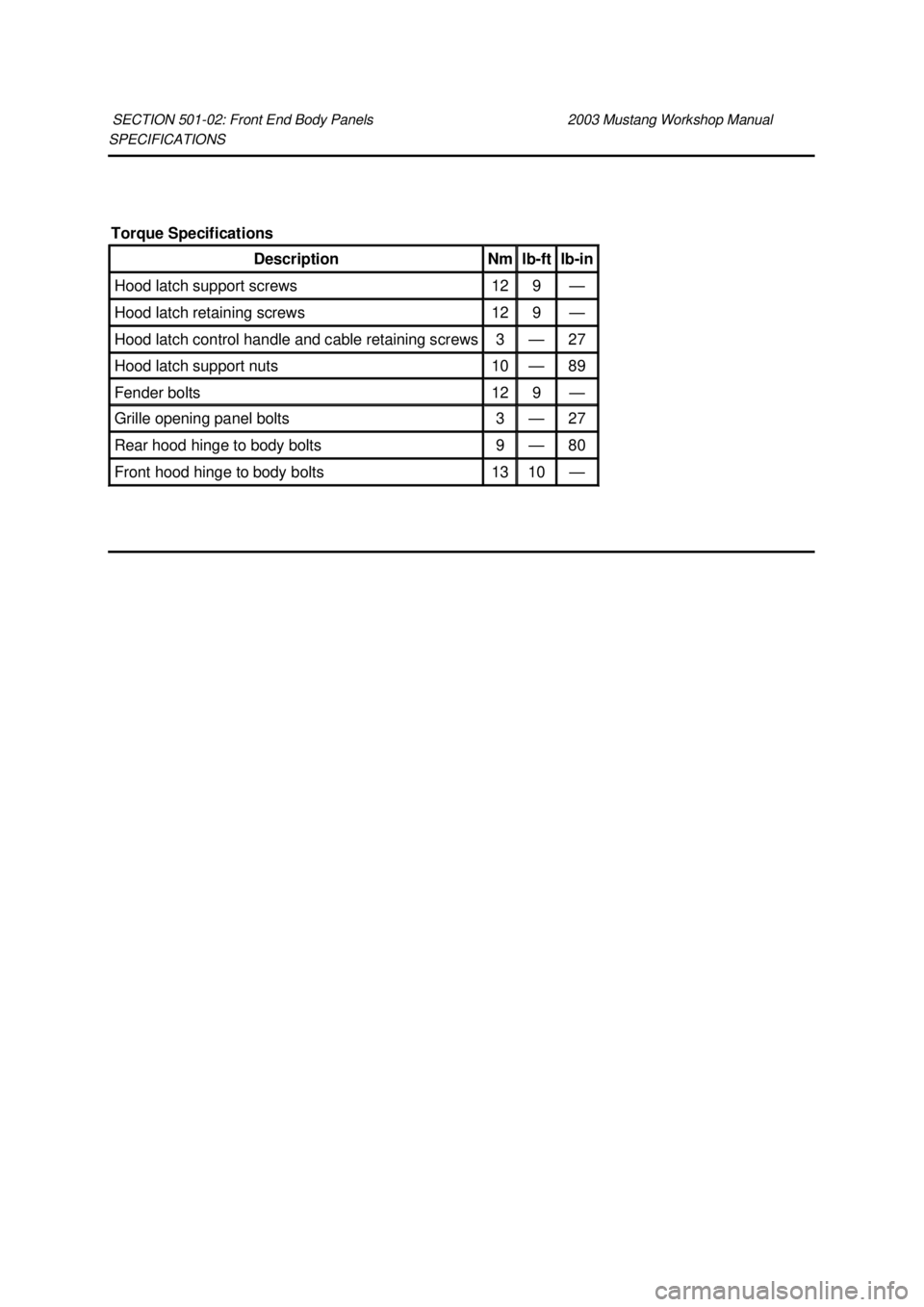

Page 3598 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 501- 02: Front End Body Panels 2003 Mustang Workshop Manual Torque Specifications Description Nm lb- ft lb- in Hood latch support screws 12 9 — Hood latch retaining

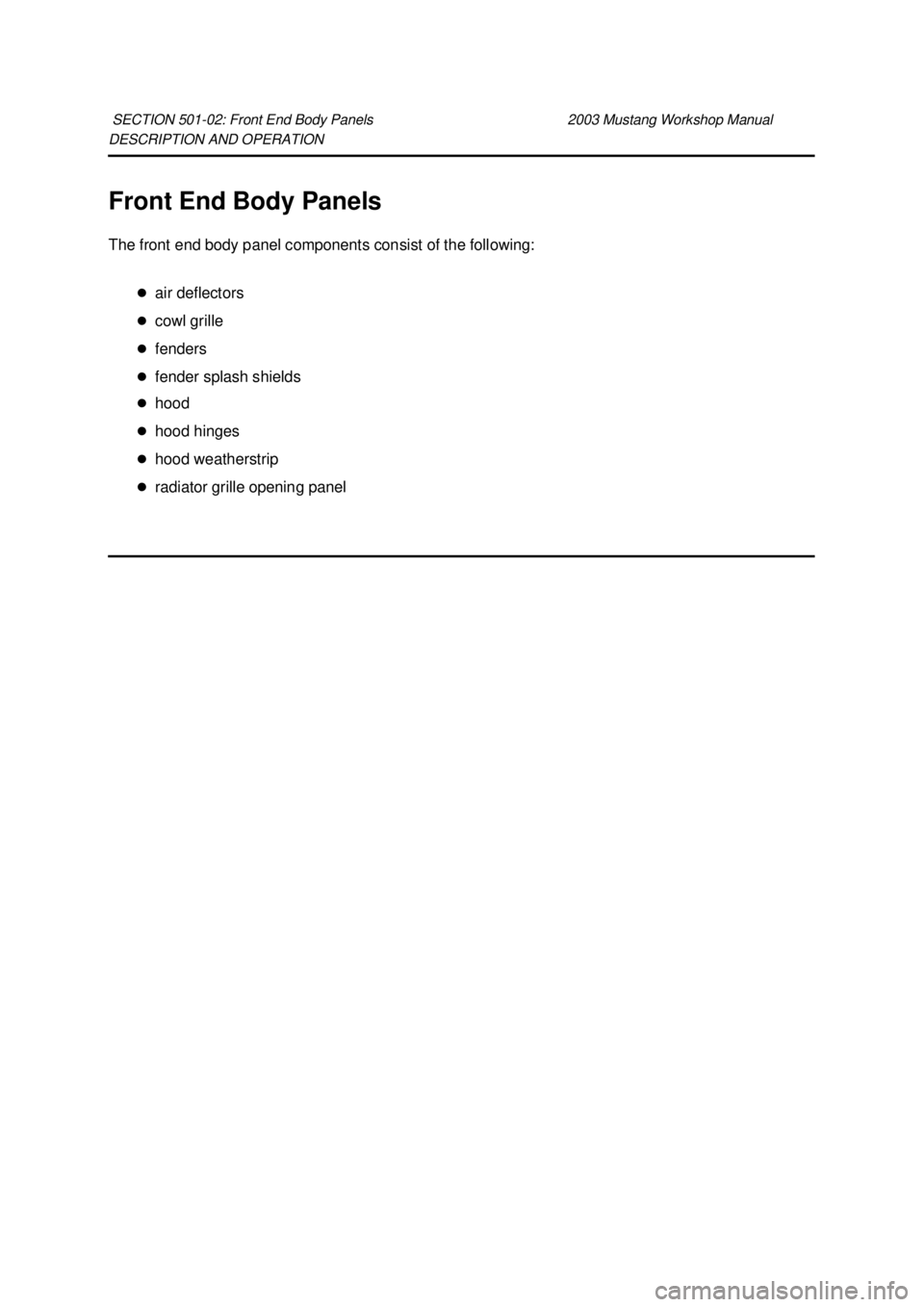

Page 3599 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Front End Body Panels The front end body panel components consist of the following: �zair deflectors �z cowl grille �z fenders �z fender splash shields �z hood �z hoo

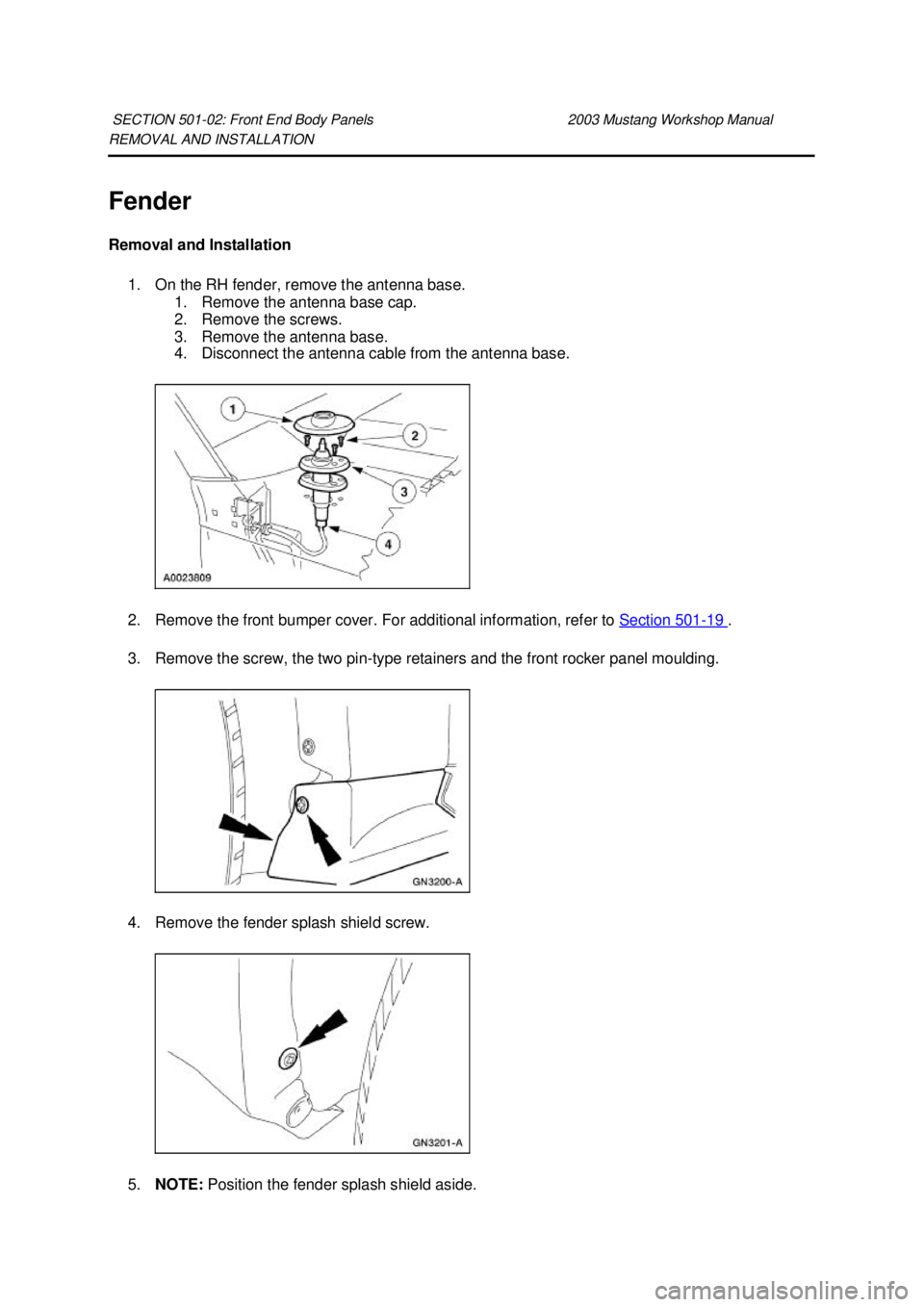

Page 3600 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Fender Removal and Installation 1. On the RH fender, remove the antenna base. 1. Remove the antenna base cap. 2. Remove the screws. 3. Remove the antenna base. 4. Disco
