Page 1337 of 4378

FORD MUSTANG 2003 Workshop Manual 94. Install the breather tube. 95. Install the engine control sensor wiring. Item Part Number Description 1 — To crankshaft position sensor 2 — To A/C compressor 3 — To radio ignition

Page 1338 of 4378

FORD MUSTANG 2003 Workshop Manual 96. Install the RH and LH special tools. 97. Using the special tool, remove the engine from the stand. 98. Using the special tool, install the crankshaft rear main seal. �zLubricate the oil seal us

Page 1339 of 4378

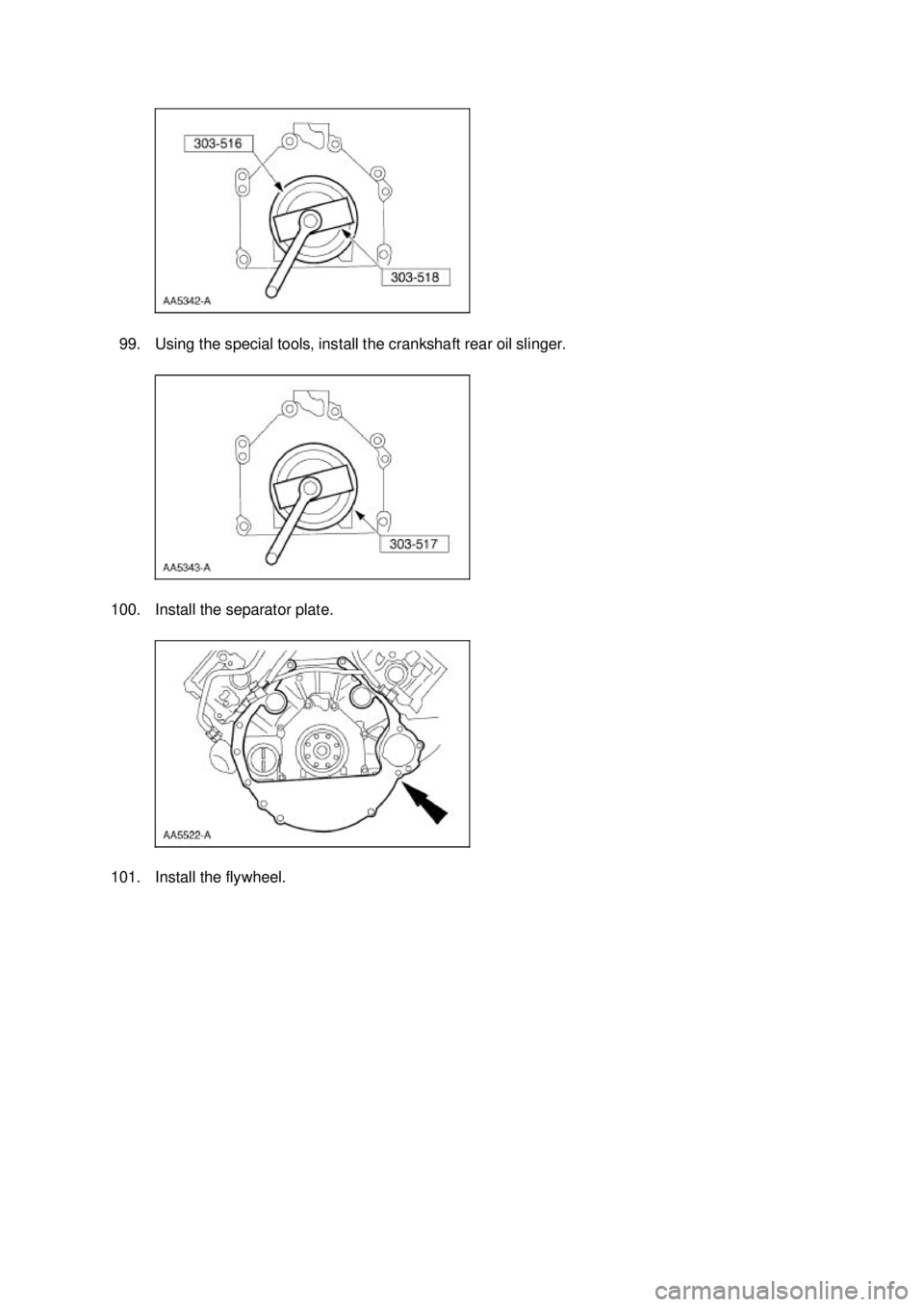

FORD MUSTANG 2003 Workshop Manual 99. Using the special tools, install the crankshaft rear oil slinger. 100. Install the separator plate. 101. Install the flywheel. Klj . 35 ba 362003 Mustang Workshop Manual 17. 11. 2011fil

Page 1340 of 4378

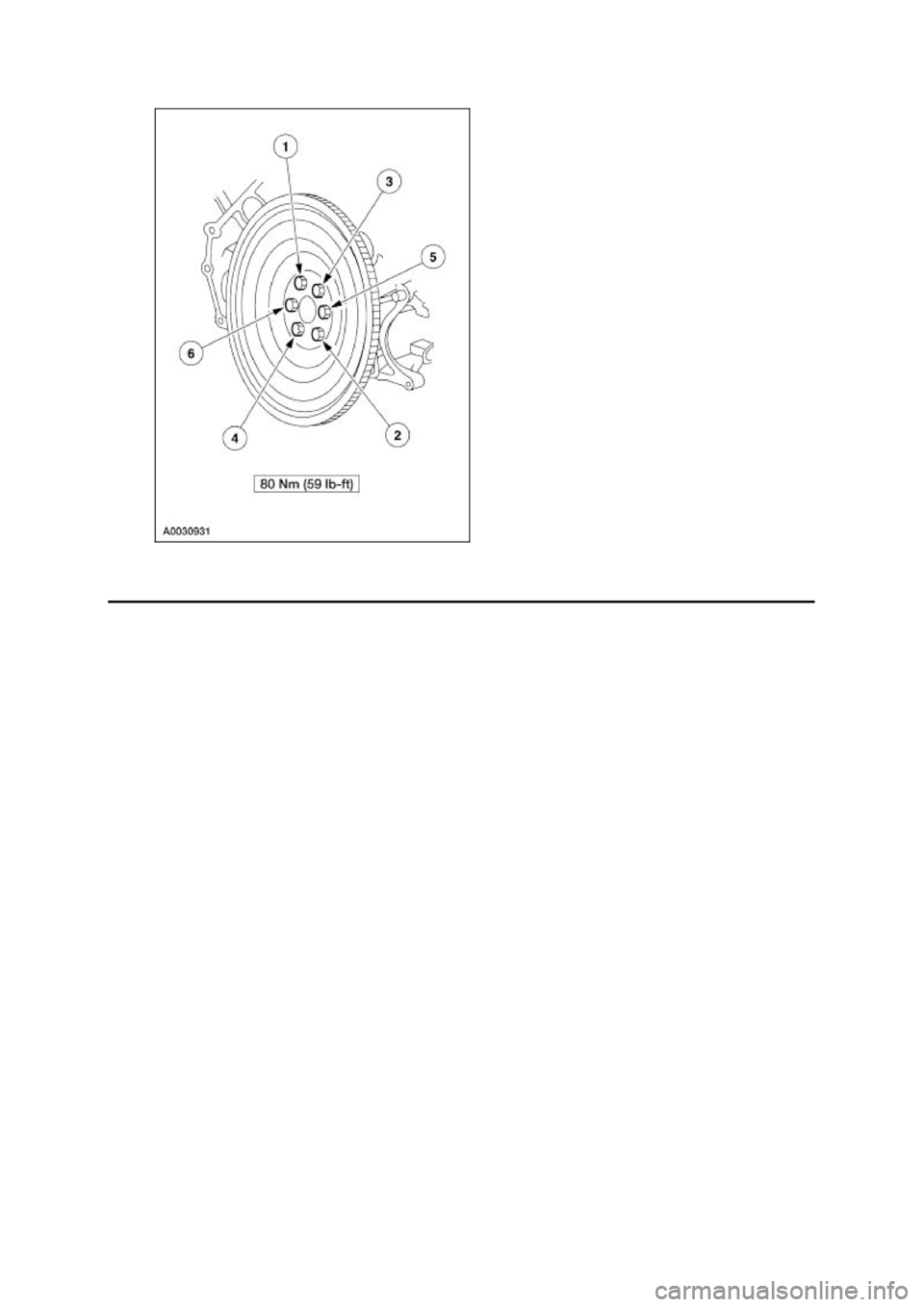

FORD MUSTANG 2003 Workshop Manual Klj . 36 ba 362003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1341 of 4378

FORD MUSTANG 2003 Workshop Manual INSTALLATION Cylinder Heads SECTION 303- 01B: Engine — 4.6L (2V) 2003 Mustang Workshop Manual Special Tool(s) Installer, Crankshaft Vibration Damper 303- 102 (T74P-6316- B) Installer, Front C

Page 1342 of 4378

FORD MUSTANG 2003 Workshop Manual Both cylinder heads 1. CAUTION: The gasket sealing surfaces on the cylinder head and cylinder block must be clean. For additional information, refer to Cylinder Heads in the Removal portion of t

Page 1343 of 4378

FORD MUSTANG 2003 Workshop Manual 2. CAUTION: Cylinder head machining or milling is not authorized by the Ford Motor Company. Cylinder head flatness must be within 0.0254 mm (0.001 in) across a 38.1 mm (1.5 in) square area. CAUTI

Page 1344 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Remove the special tools from both ends of the cylinder head. NOTE: Lubricate the hydraulic lash adjusters with clean engine oil. 5. Install the hydraulic lash adjusters in their original locati
