FORD MUSTANG 2003 Workshop Manual Fig. 54: Warning Systems Circuit WIPER/WASHER 2003 Ford Mustang GT 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:50:34Page 55 © 2006 Mitchell Repair Information

Page 4266 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 55: Wiper/Washer Circuit 2003 Ford Mustang GT 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:50:34Page 56 © 2006 Mitchell Repair Information Company, LLC.

Page 4267 of 4378

FORD MUSTANG 2003 Workshop Manual 2003 SYSTEM WIRING DIAGRAMSFord - Mustang USING WIRING DIAGRAMS For information on using these wiring diagrams, see USING SYSTEM WIRING DIAGRAMS article. AIR CONDITIONING 3.8L 2003 Ford Mus

Page 4268 of 4378

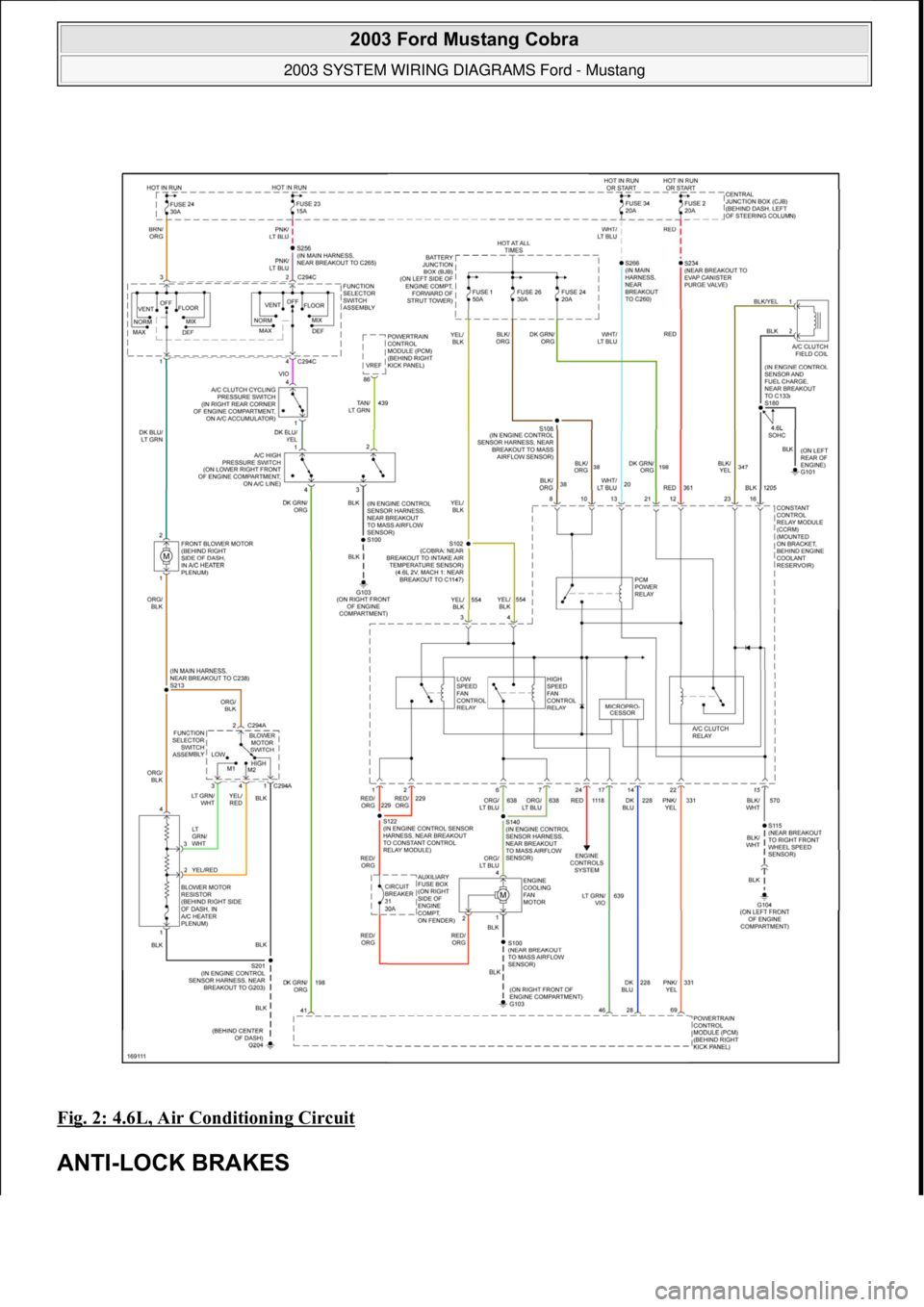

FORD MUSTANG 2003 Workshop Manual Fig. 1: 3.8L, Air Conditioning Circuit 4.6L 2003 Ford Mustang Cobra 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:47:06Page 2 © 2006 Mitchell Repair Informatio

Page 4269 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 2: 4.6L, Air Conditioning Circuit ANTI-LOCK BRAKES 2003 Ford Mustang Cobra 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:47:06Page 3 © 2006 Mitchell Repair

Page 4270 of 4378

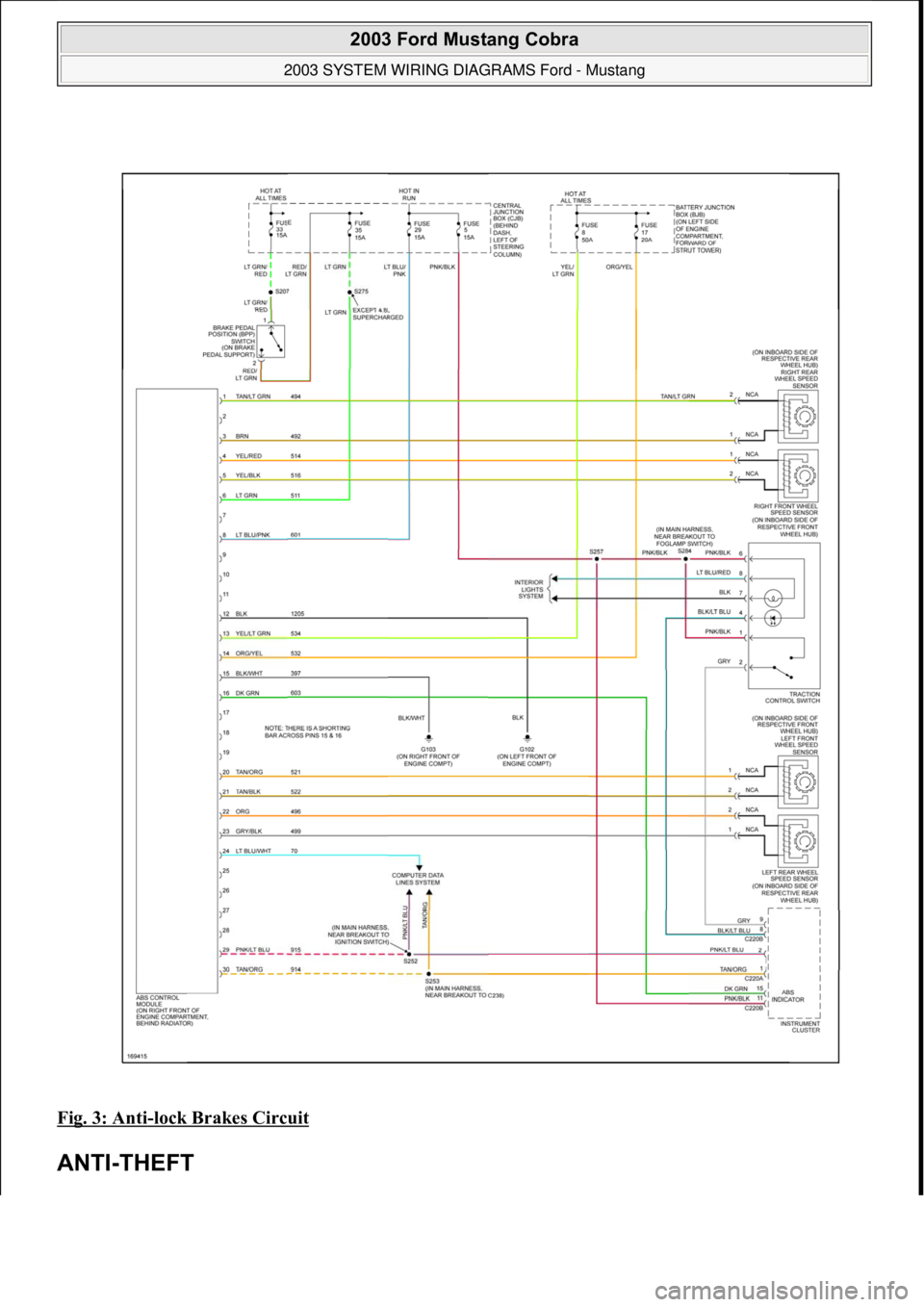

FORD MUSTANG 2003 Workshop Manual Fig. 3: Anti-lock Brakes Circuit ANTI-THEFT 2003 Ford Mustang Cobra 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:47:06Page 4 © 2006 Mitchell Repair Information

Page 4271 of 4378

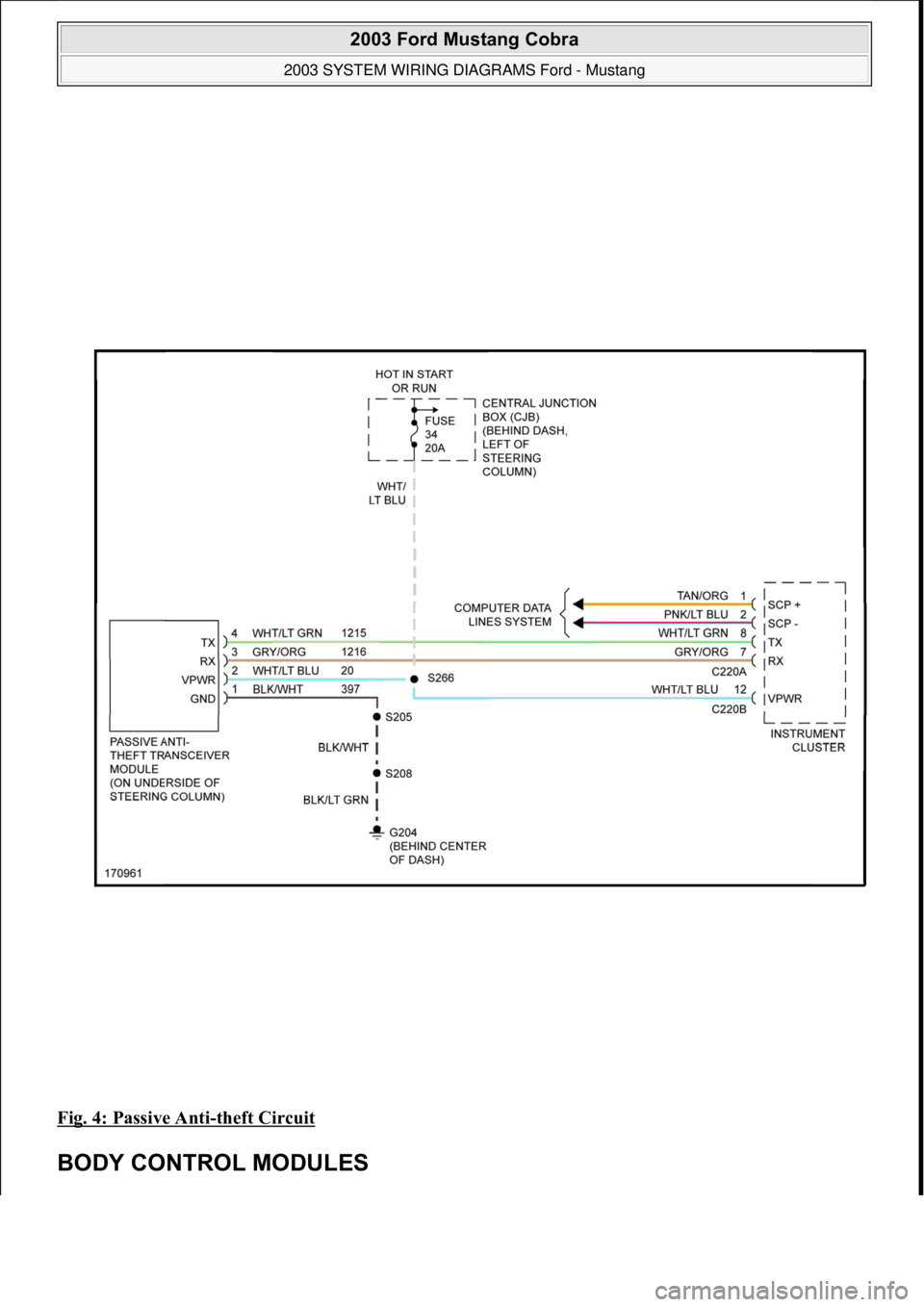

FORD MUSTANG 2003 Workshop Manual Fig. 4: Passive Anti-theft Circuit BODY CONTROL MODULES 2003 Ford Mustang Cobra 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:47:06Page 5 © 2006 Mitchell Repair

Page 4272 of 4378

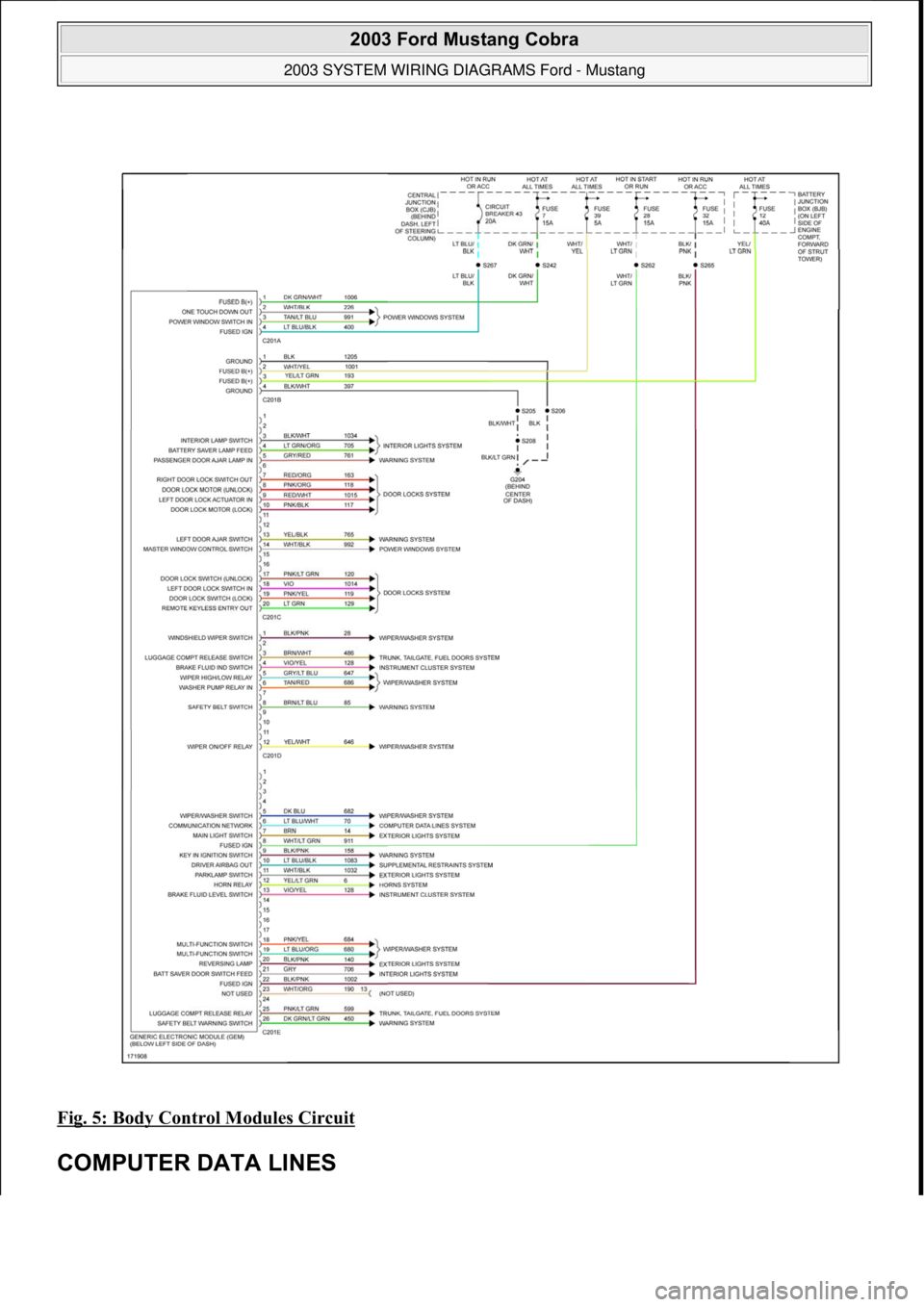

FORD MUSTANG 2003 Workshop Manual Fig. 5: Body Control Modules Circuit COMPUTER DATA LINES 2003 Ford Mustang Cobra 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:47:06Page 6 © 2006 Mitchell Repai
