Page 4185 of 4378

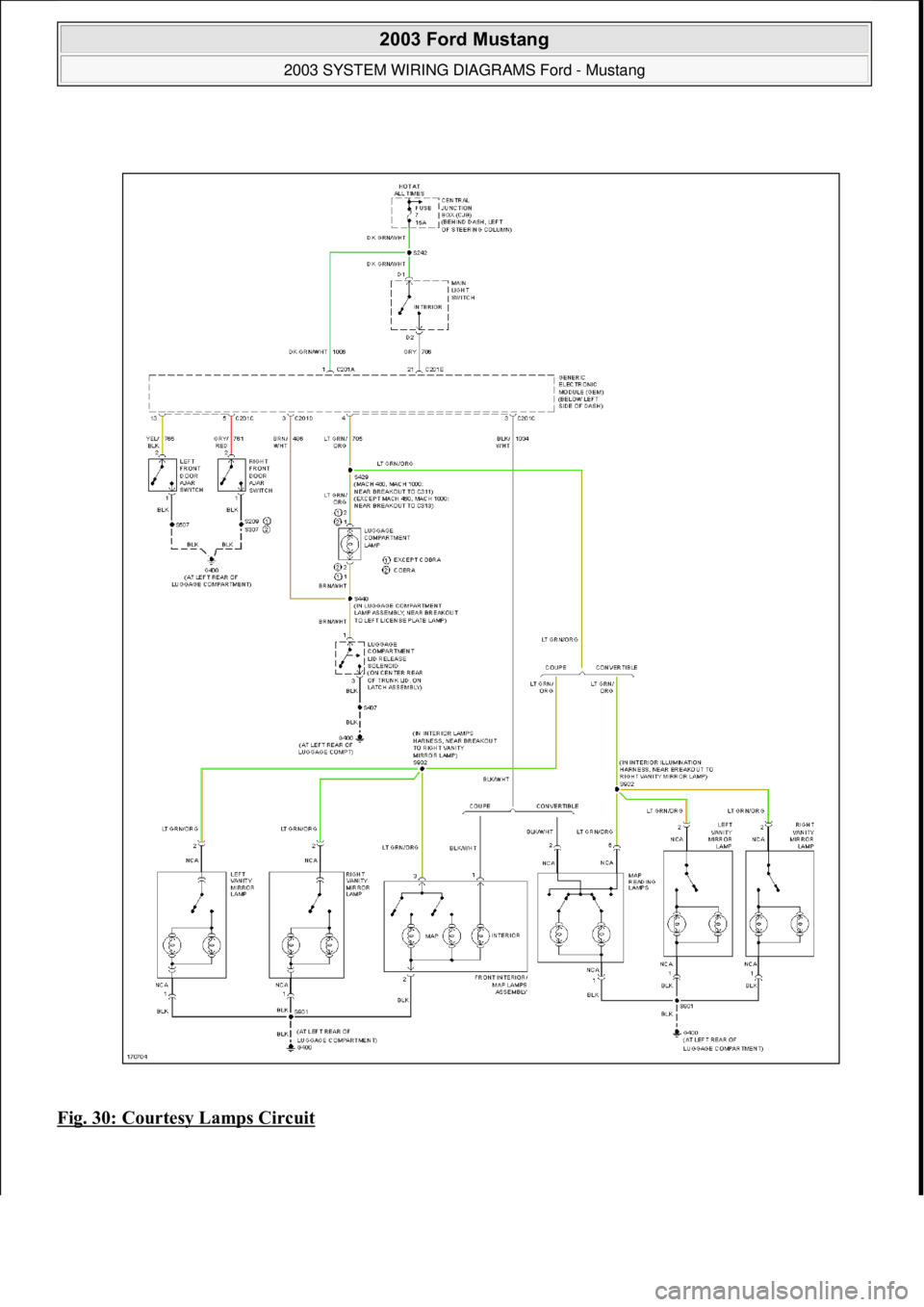

FORD MUSTANG 2003 Workshop Manual Fig. 30: Courtesy Lamps Circuit 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 31 © 2006 Mitchell Repair Information Company, LLC.

Page 4186 of 4378

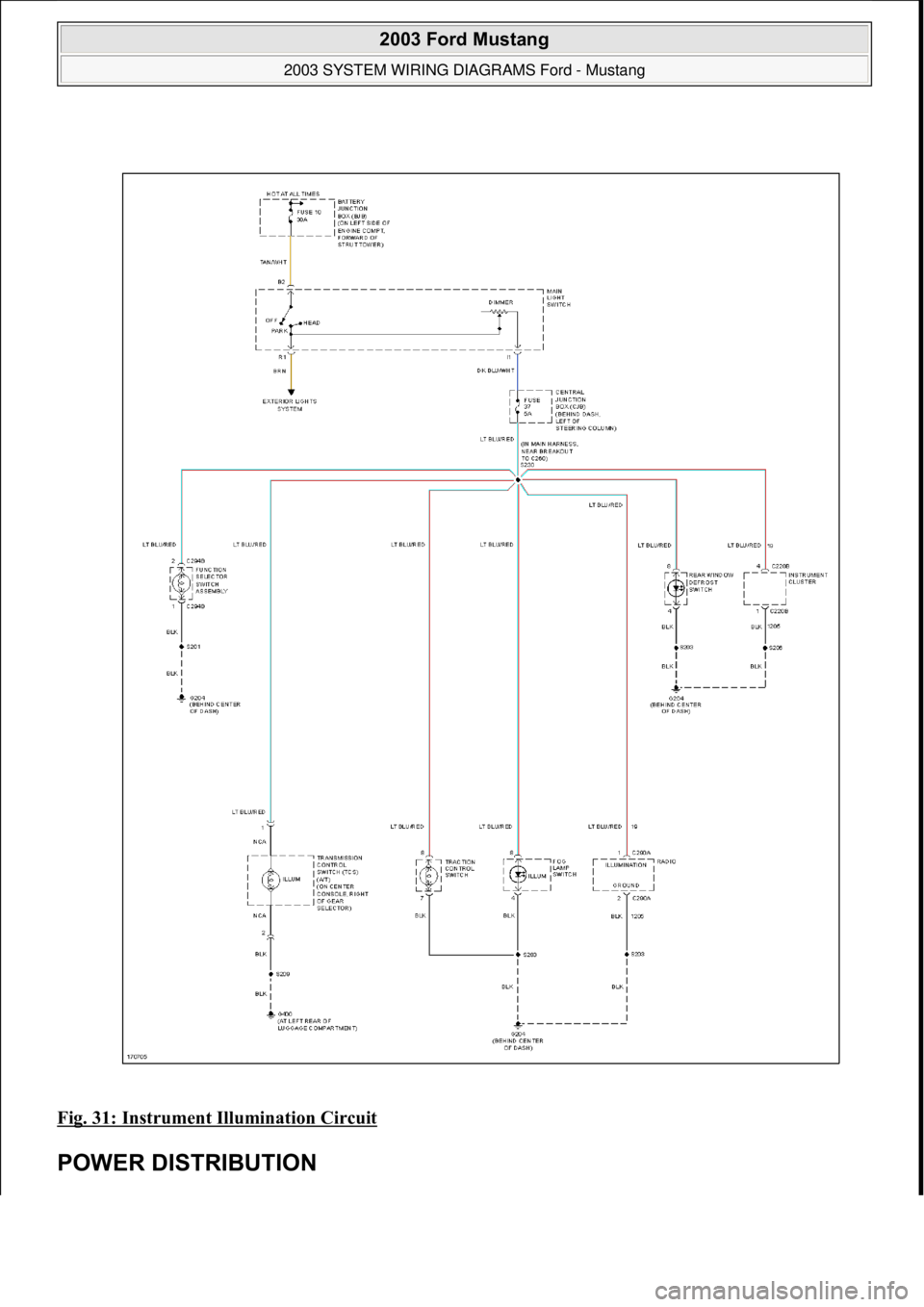

FORD MUSTANG 2003 Workshop Manual Fig. 31: Instrument Illumination Circuit POWER DISTRIBUTION 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 32 © 2006 Mitchell Repair

Page 4187 of 4378

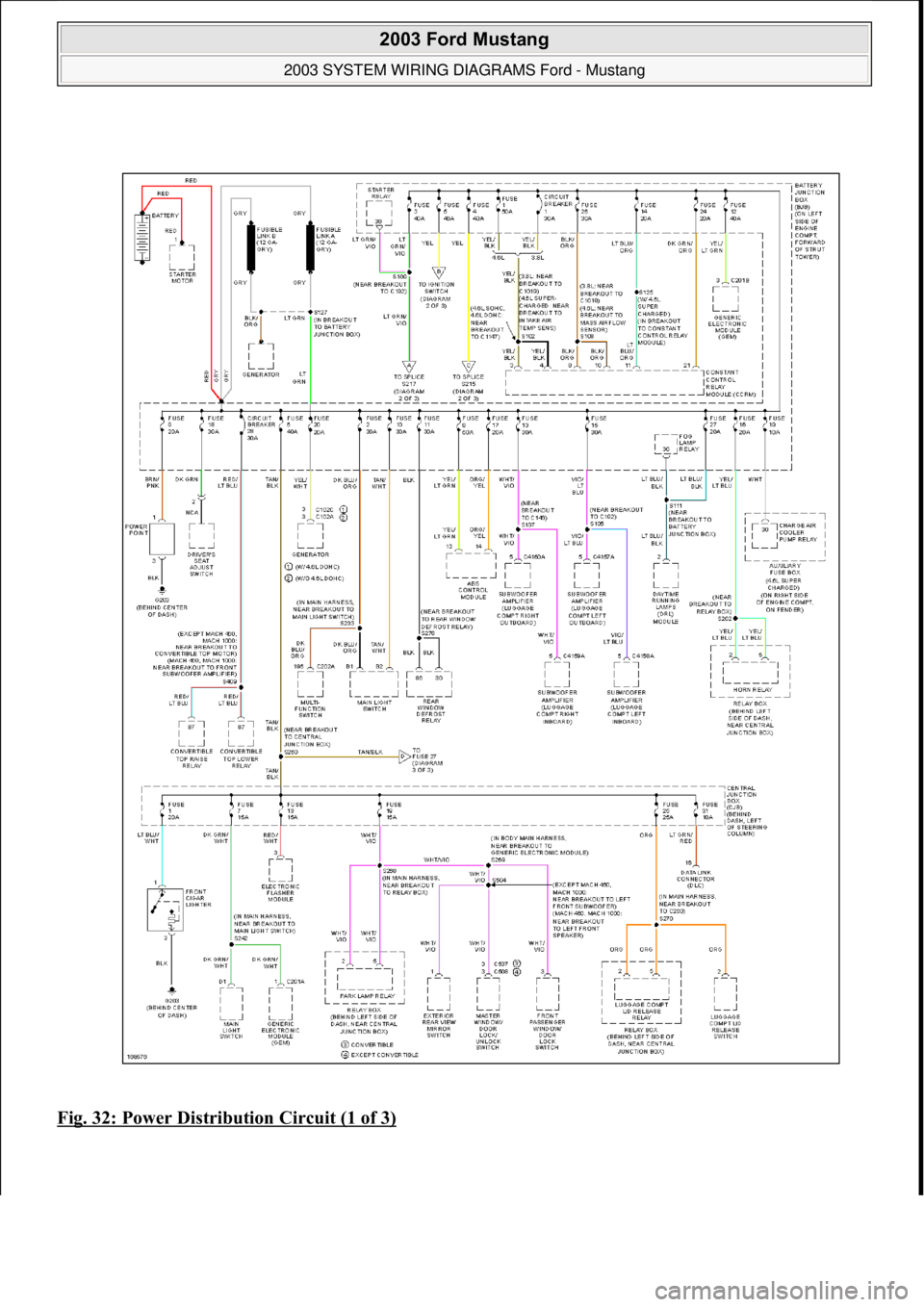

FORD MUSTANG 2003 Workshop Manual Fig. 32: Power Distribution Circuit (1 of 3) 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 33 © 2006 Mitchell Repair Information Compa

Page 4188 of 4378

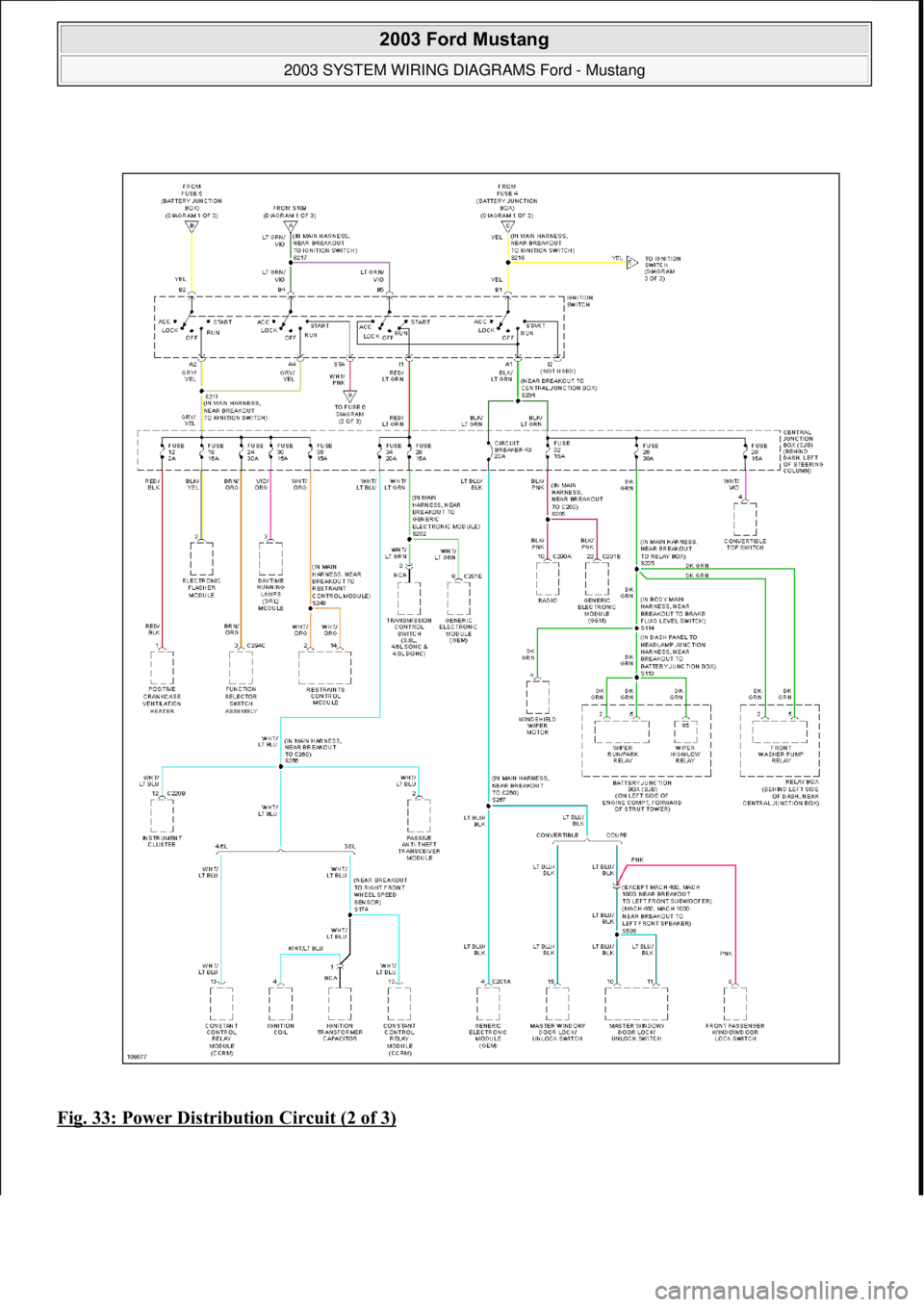

FORD MUSTANG 2003 Workshop Manual Fig. 33: Power Distribution Circuit (2 of 3) 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 34 © 2006 Mitchell Repair Information Compa

Page 4189 of 4378

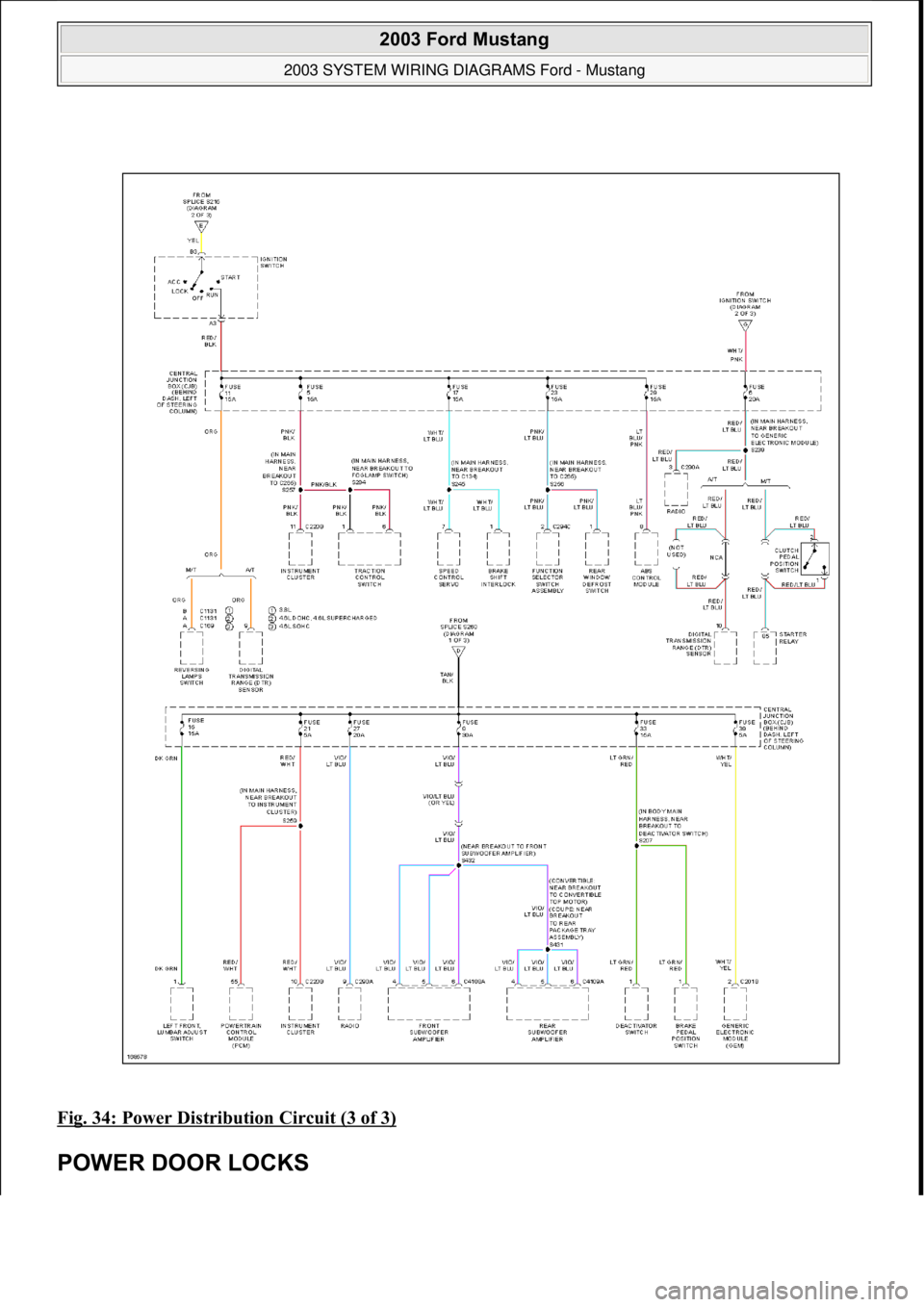

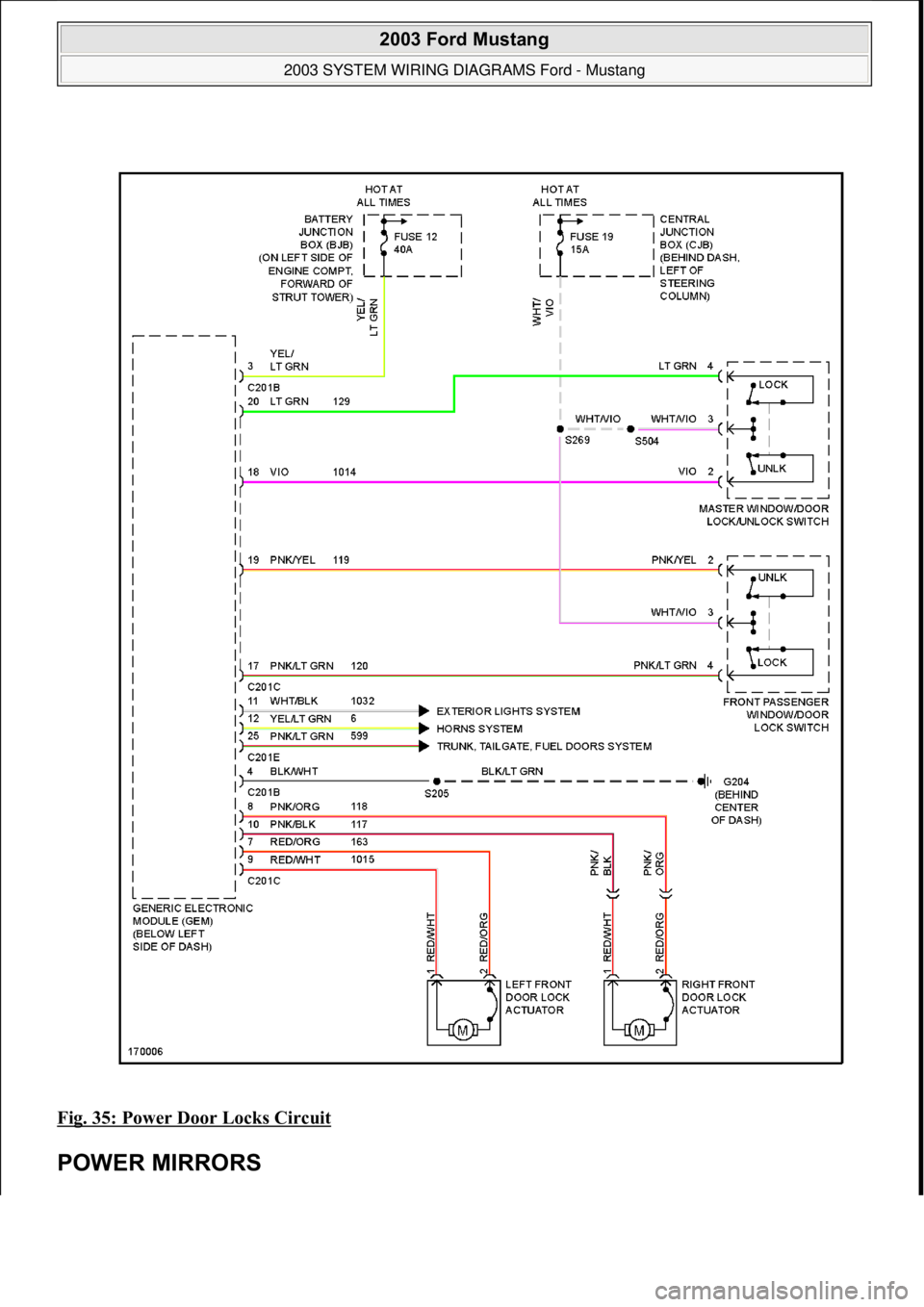

FORD MUSTANG 2003 Workshop Manual Fig. 34: Power Distribution Circuit (3 of 3) POWER DOOR LOCKS 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 35 © 2006 Mitchell Repai

Page 4190 of 4378

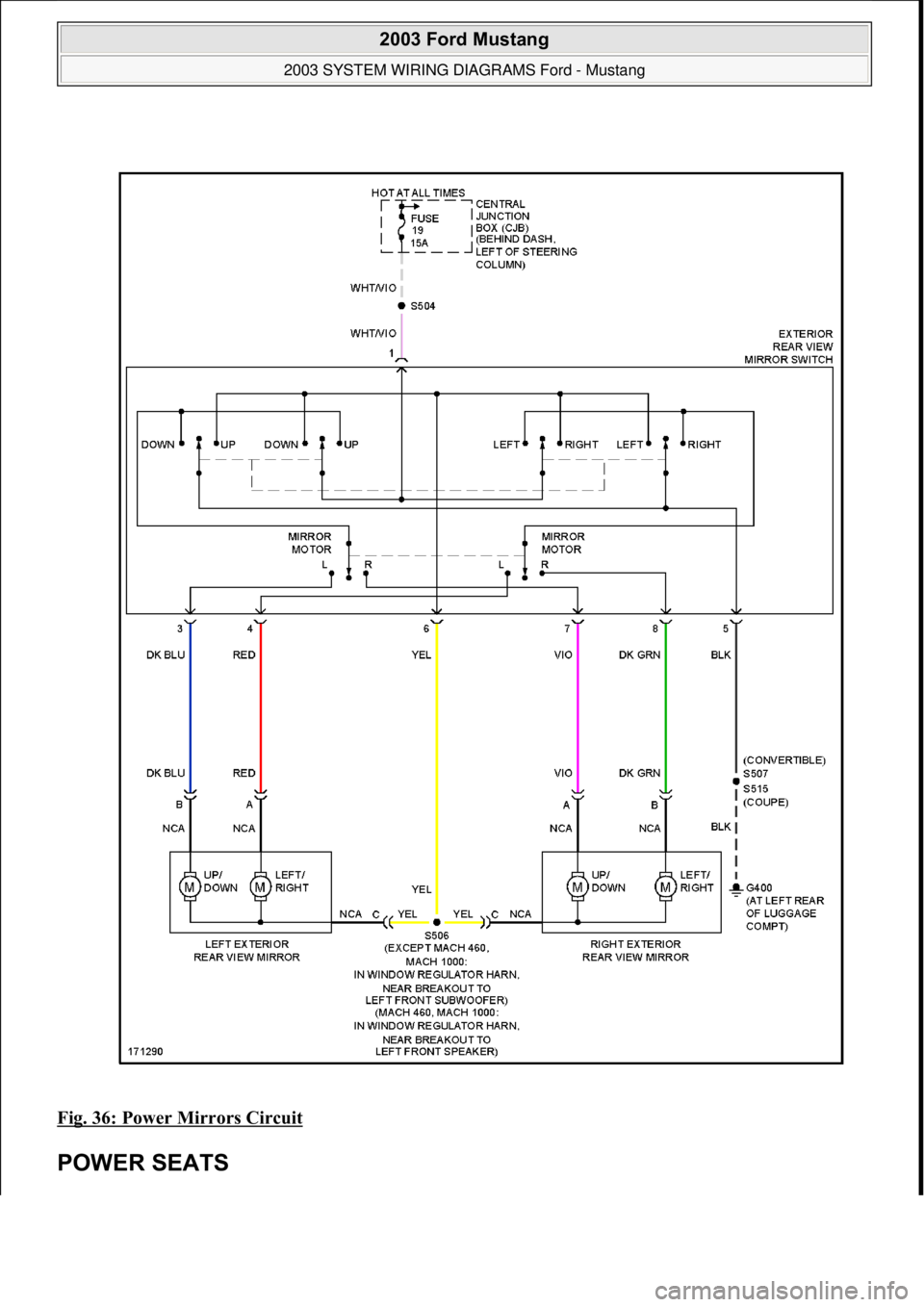

FORD MUSTANG 2003 Workshop Manual Fig. 35: Power Door Locks Circuit POWER MIRRORS 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 36 © 2006 Mitchell Repair Information

Page 4191 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 36: Power Mirrors Circuit POWER SEATS 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 37 © 2006 Mitchell Repair Information Compa

Page 4192 of 4378

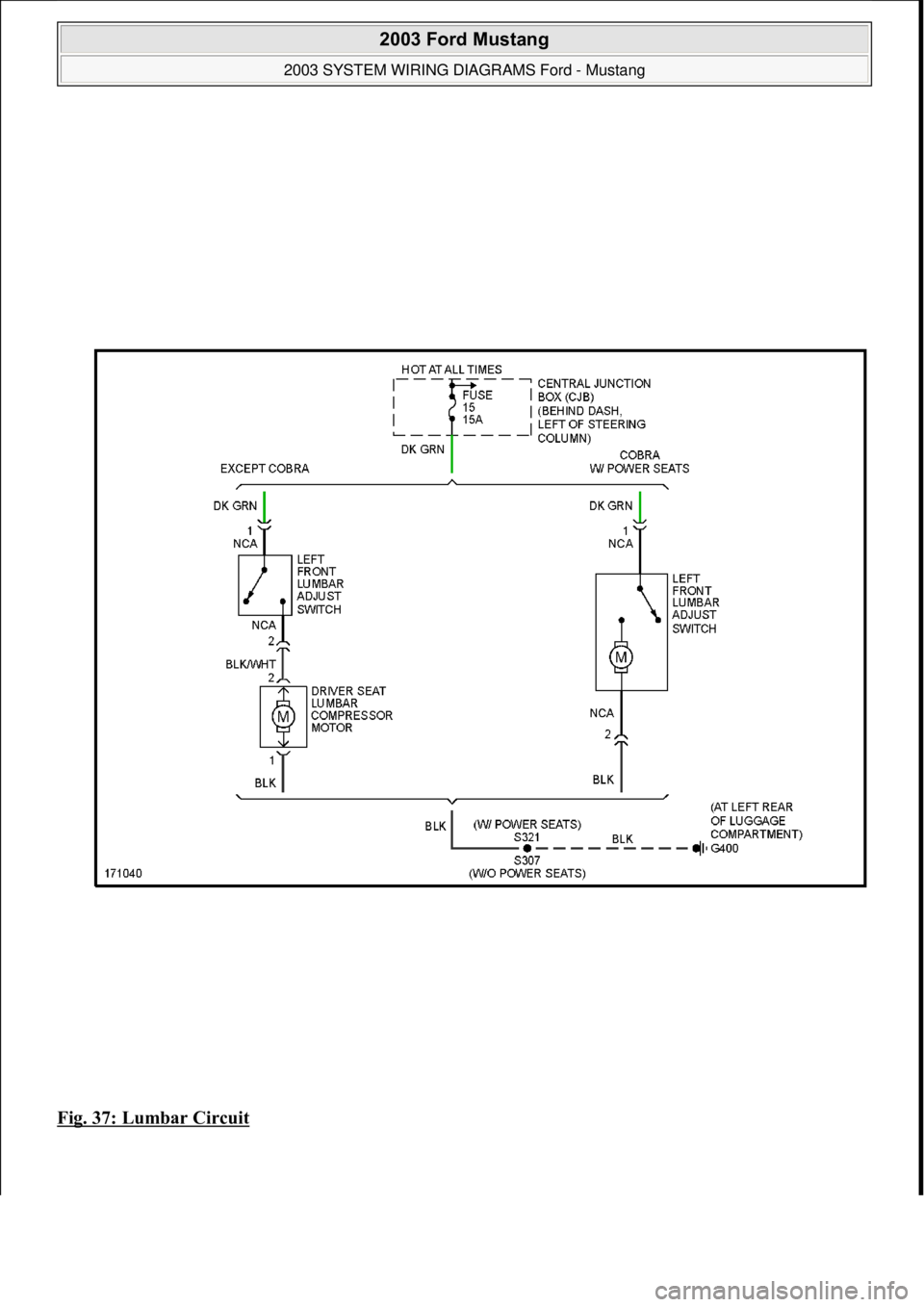

FORD MUSTANG 2003 Workshop Manual Fig. 37: Lumbar Circuit 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 38 © 2006 Mitchell Repair Information Company, LLC.
