Page 1009 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1010 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Exhaust Manifold RH Removal and Installation 1. Disconnect the battery negative cable. For additional information, refer to Section 414 - 01 . 2. Remove the air cleaner outlet

Page 1011 of 4378

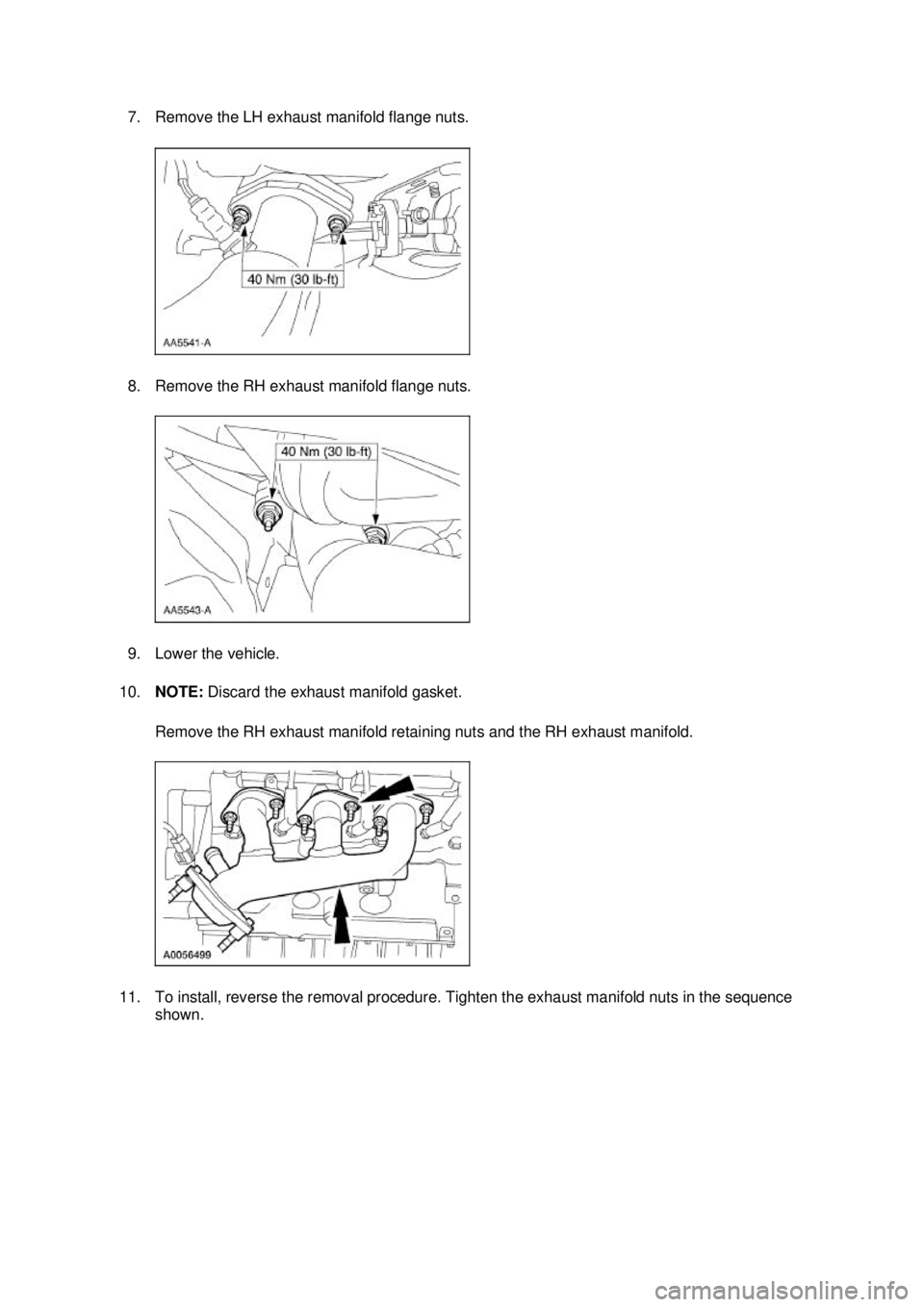

FORD MUSTANG 2003 Workshop Manual 7. Remove the LH exhaust manifold flange nuts. 8. Remove the RH exhaust manifold flange nuts. 9. Lower the vehicle. 10. NOTE: Discard the exhaust manifold gasket. Remove the RH exhaust manifold r

Page 1012 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1013 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Cylinder Head LH Removal 1. Disconnect the battery negative cable. For additional information, refer to Section 414 - 01 . 2. Drain the engine cooling system. For additional i

Page 1014 of 4378

FORD MUSTANG 2003 Workshop Manual 8. Remove the power steering pump bracket. 9. Remove the generator bracket. 10. Remove the three exhaust manifold studs. 11. NOTE: Discard the cylinder head gasket. NOTE: Record the location of

Page 1015 of 4378

FORD MUSTANG 2003 Workshop Manual Remove the cylinder head. Discard the cylinder head bolts. Installation NOTE: Do not use a fiber disc to clean the surfaces. Fibers from the disc can get into the oil pan and oil and clog the oil

Page 1016 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Tighten the bolts in three stages in the sequence shown. �zStage 1: Tighten the bolts to 20 Nm (15 lb- ft). �z Stage 2: Tighten the bolts to 40 Nm (30 lb- ft). �z Stage 3: Tighten the bolts to 5
