Page 1225 of 4378

FORD MUSTANG 2003 Workshop Manual 8. Install the two upper subframe bolts. 9. Install the two lower subframe bolts. 10. Install the engine mount bolts. 11. Position the safety stand aside. Klj . 7 ba 92003 Mustang Workshop

Page 1226 of 4378

FORD MUSTANG 2003 Workshop Manual 12. Using the special tool, release the tension from the front coil springs and remove the special tool. 13. Install the engine mount nuts. 14. Lower the vehicle. 15. Using the special tools, lowe

Page 1227 of 4378

FORD MUSTANG 2003 Workshop Manual 17. Fill the engine crankcase with clean engine oil. Klj . 9 ba 92003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1228 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Flywheel Removal 1. Remove the clutch components. For additional information, refer to Section 308 - 03A or Section 308 - 03B . 2. Remove the bolts and the flywheel. Instal

Page 1229 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1230 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Flexplate Removal and Installation 1. Remove the transmission. For additional information, refer to Section 307 - 01 . 2. Remove the six bolts retaining the flexplate to crank

Page 1231 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1232 of 4378

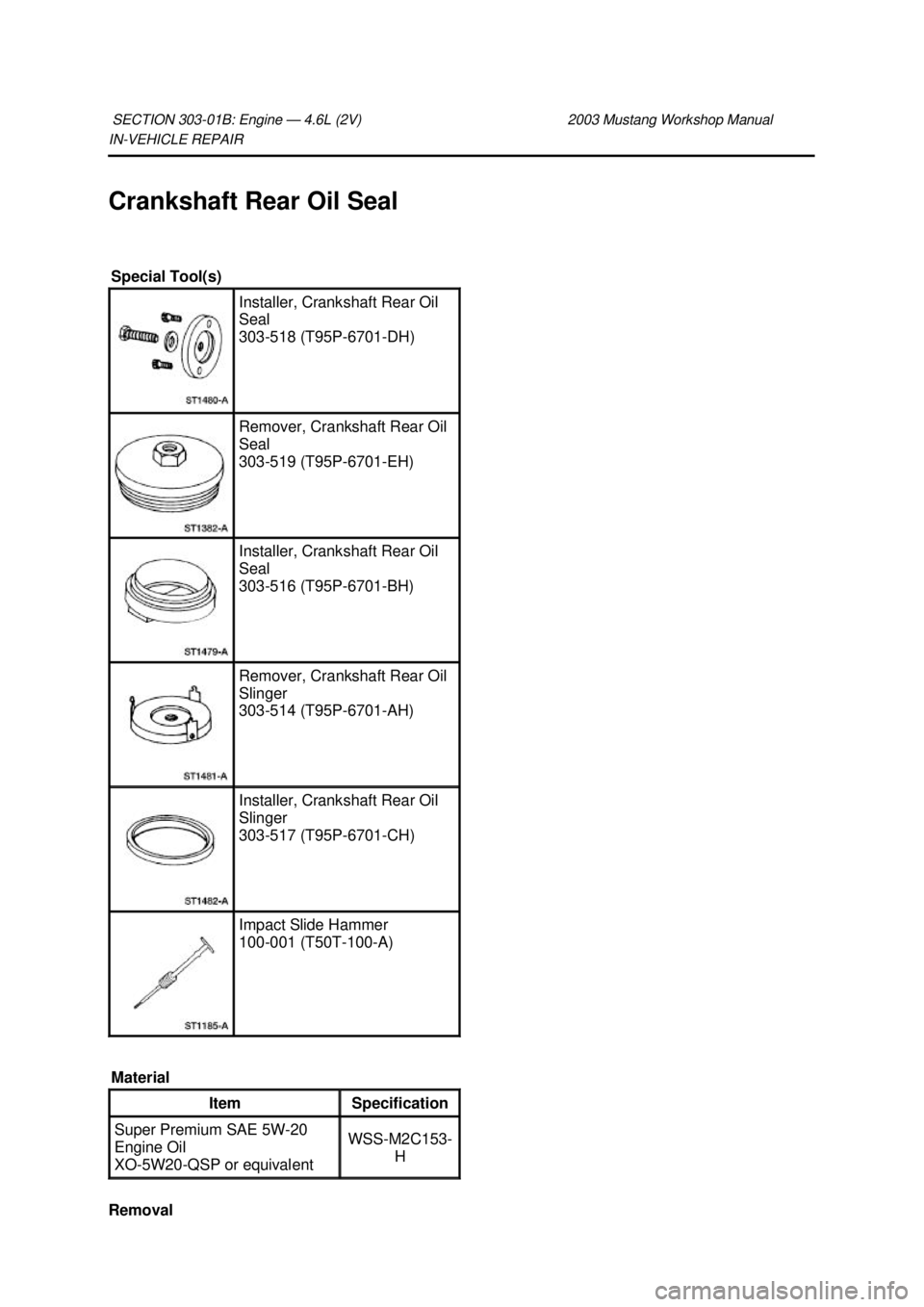

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Crankshaft Rear Oil Seal Removal SECTION 303- 01B: Engine — 4.6L (2V) 2003 Mustang Workshop Manual Special Tool(s) Installer, Crankshaft Rear Oil Seal 303- 518 (T95P-6701-
