FORD MUSTANG 2003 Workshop Manual 53. Separate the harness from the bracket. �zRaise the engine slightly to gain access to the transmission wiring support bracket. 54. NOTE: Adjust the transmission support jack as necessary to aid

Page 1274 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY Engine SECTION 303- 01B: Engine — 4.6L (2V) 2003 Mustang Workshop Manual Special Tool(s) Impact Slide Hammer 100- 001 (T50T-100- A) Remover, Crankshaft Rear Oil Slinger 303- 514

Page 1275 of 4378

FORD MUSTANG 2003 Workshop Manual 1. Remove the flywheel. 2. Remove the separator plate. 3. Using the special tools, remove the crankshaft rear oil slinger. Compressor, Valve Spring (Exhaust) 303- 567 (T97L-6565- AH) Remover/Ins

Page 1276 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Using the special tools, remove the rear main seal. 5. Remove the rear seal retainer plate. 6. Mount the engine on a work stand. 7. NOTE: RH shown, LH similar. Remove the RH and LH lifting eye

Page 1277 of 4378

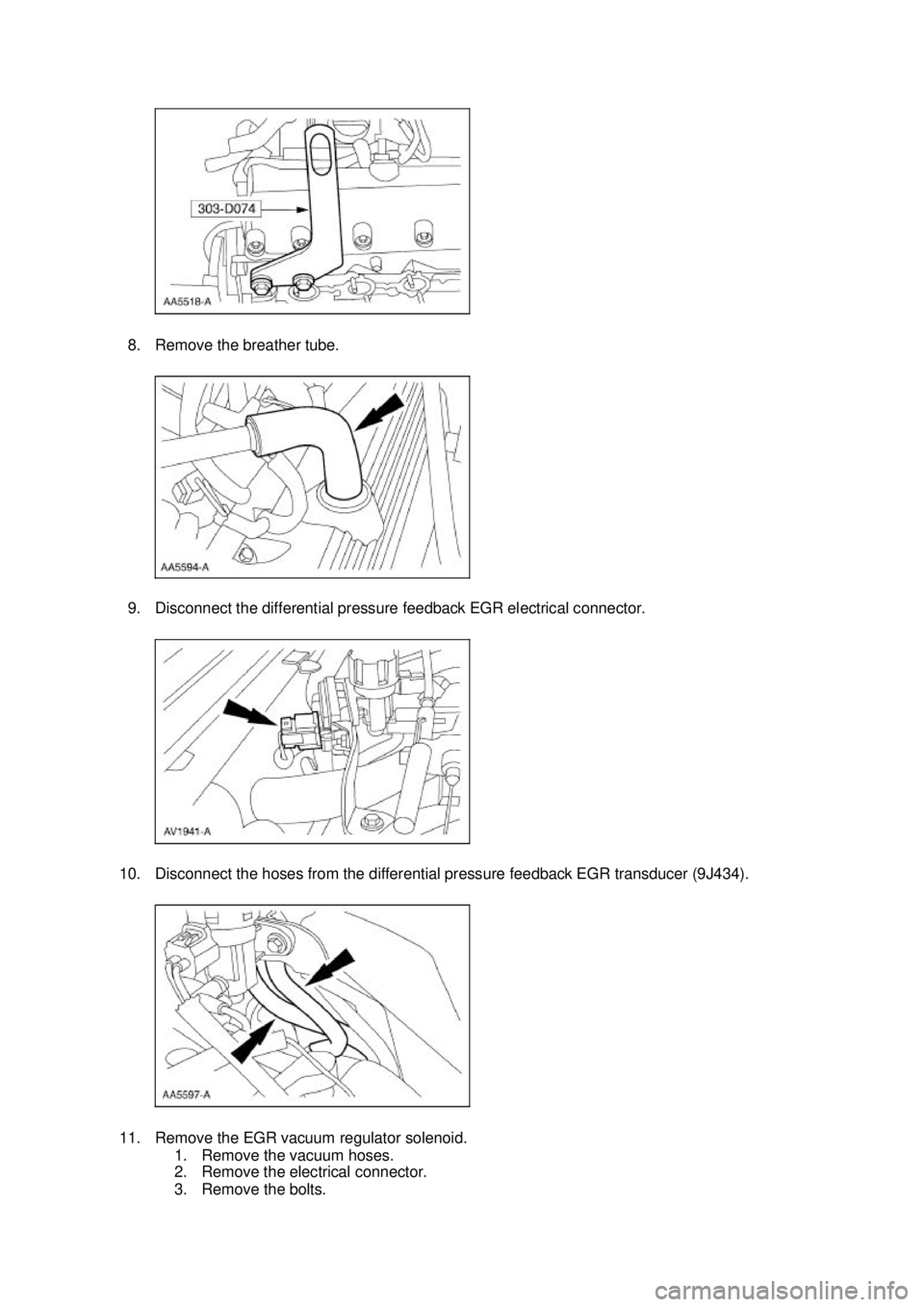

FORD MUSTANG 2003 Workshop Manual 8. Remove the breather tube. 9. Disconnect the differential pressure feedback EGR electrical connector. 10. Disconnect the hoses from the differential pressure feedback EGR transducer (9J434). 11.

Page 1278 of 4378

FORD MUSTANG 2003 Workshop Manual 12. Disconnect the exhaust gas recirculation (EGR) tube from the EGR valve. 13. Disconnect the positive crankcase ventilation (PCV) hose from the base of the throttle body. 14. Disconnect the PCV va

Page 1279 of 4378

FORD MUSTANG 2003 Workshop Manual 16. Disconnect the vacuum line to the fuel pressure sensor. Item Part Number Description 1 — To crankshaft position sensor 2 — To A/C compressor 3 — To radio ignition interference capac

Page 1280 of 4378

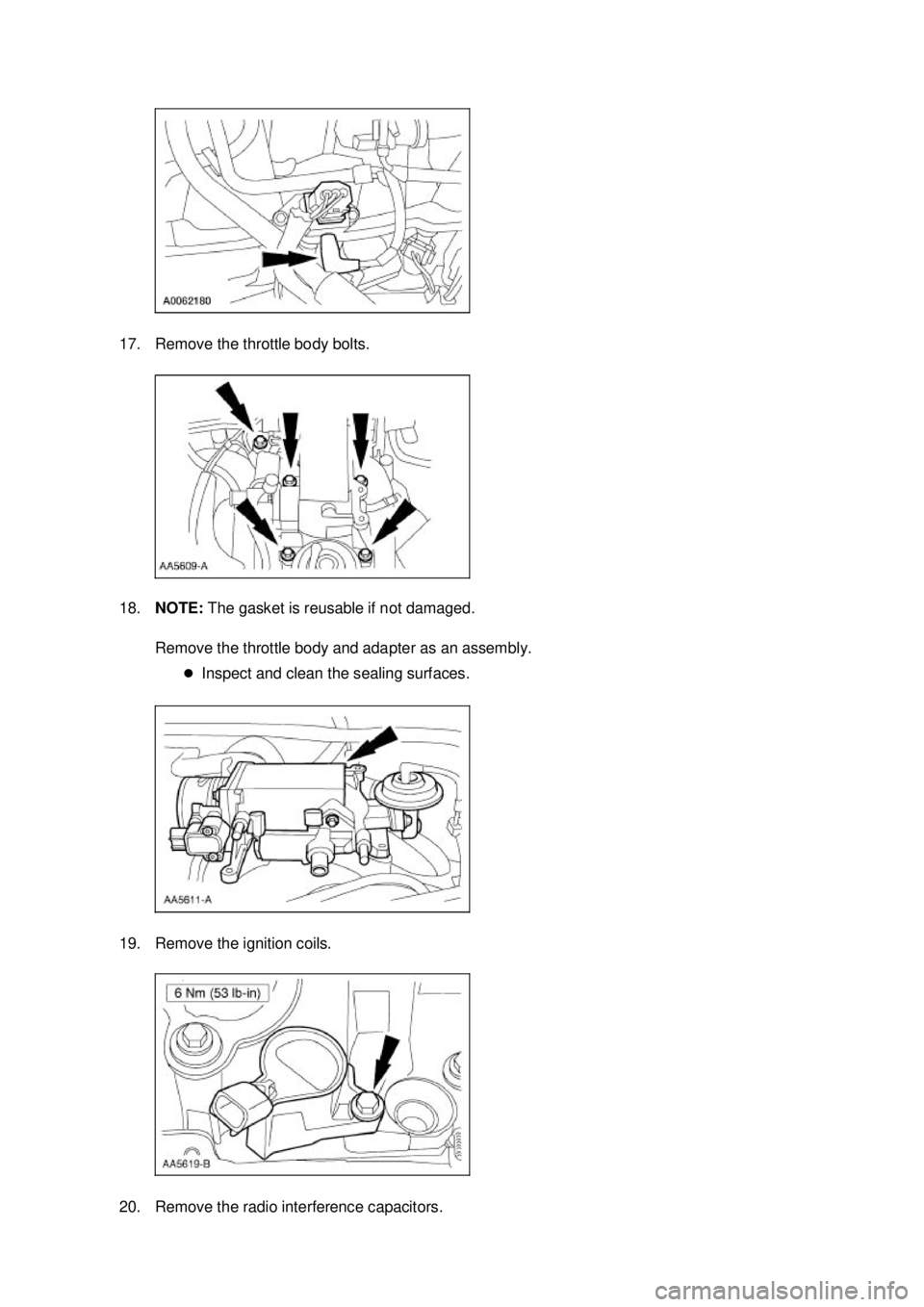

FORD MUSTANG 2003 Workshop Manual 17. Remove the throttle body bolts. 18. NOTE: The gasket is reusable if not damaged. Remove the throttle body and adapter as an assembly. �zInspect and clean the sealing surfaces. 19. Remove the
