Page 1657 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1658 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Engine Front Cover Removal All vehicles 1. Remove the air intake scoop bracket. For additional information, refer to Section 303 - 12 . 2. Remove the RH valve cover. For addi

Page 1659 of 4378

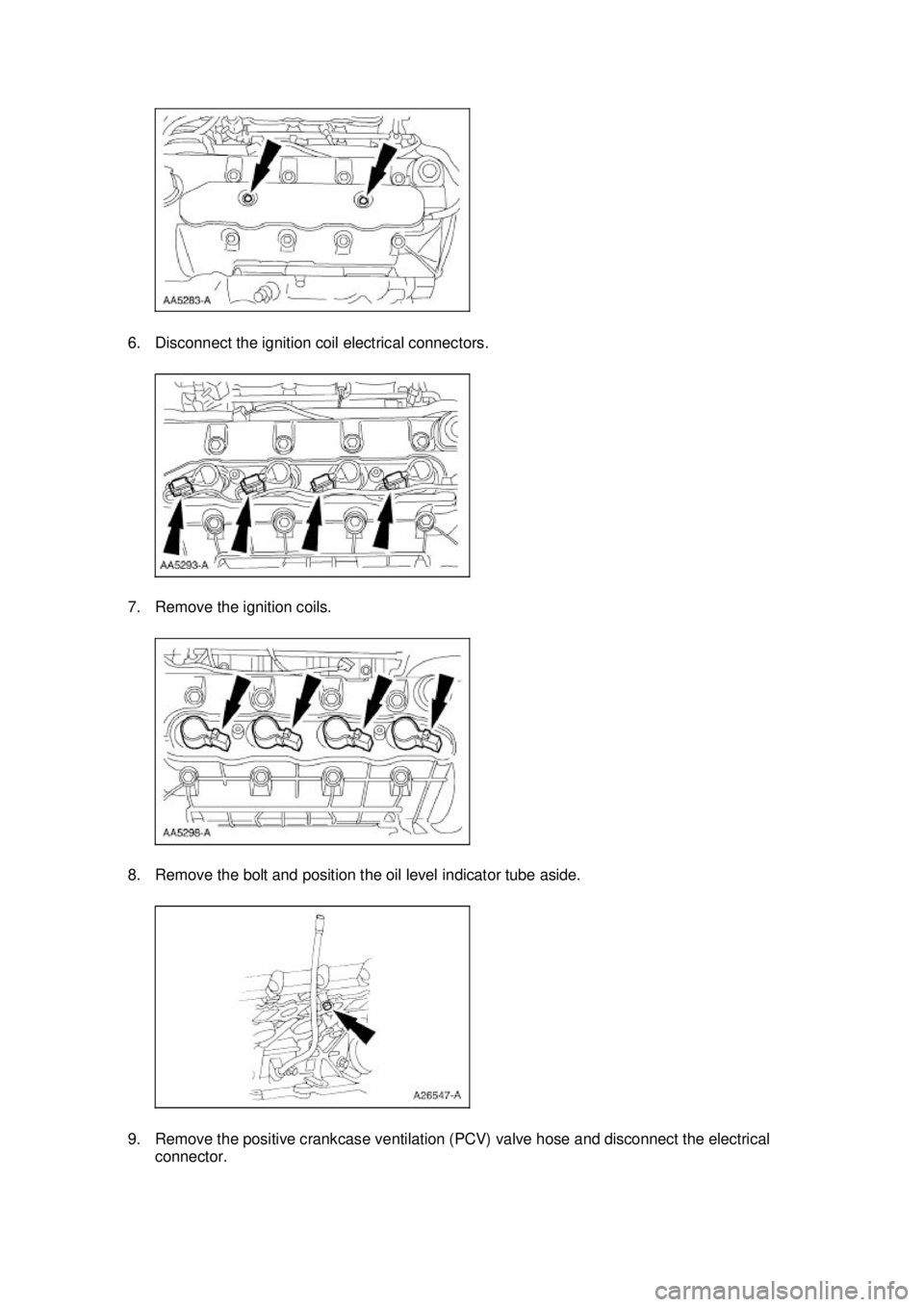

FORD MUSTANG 2003 Workshop Manual 6. Disconnect the ignition coil electrical connectors. 7. Remove the ignition coils. 8. Remove the bolt and position the oil level indicator tube aside. 9. Remove the positive crankcase ventilation

Page 1660 of 4378

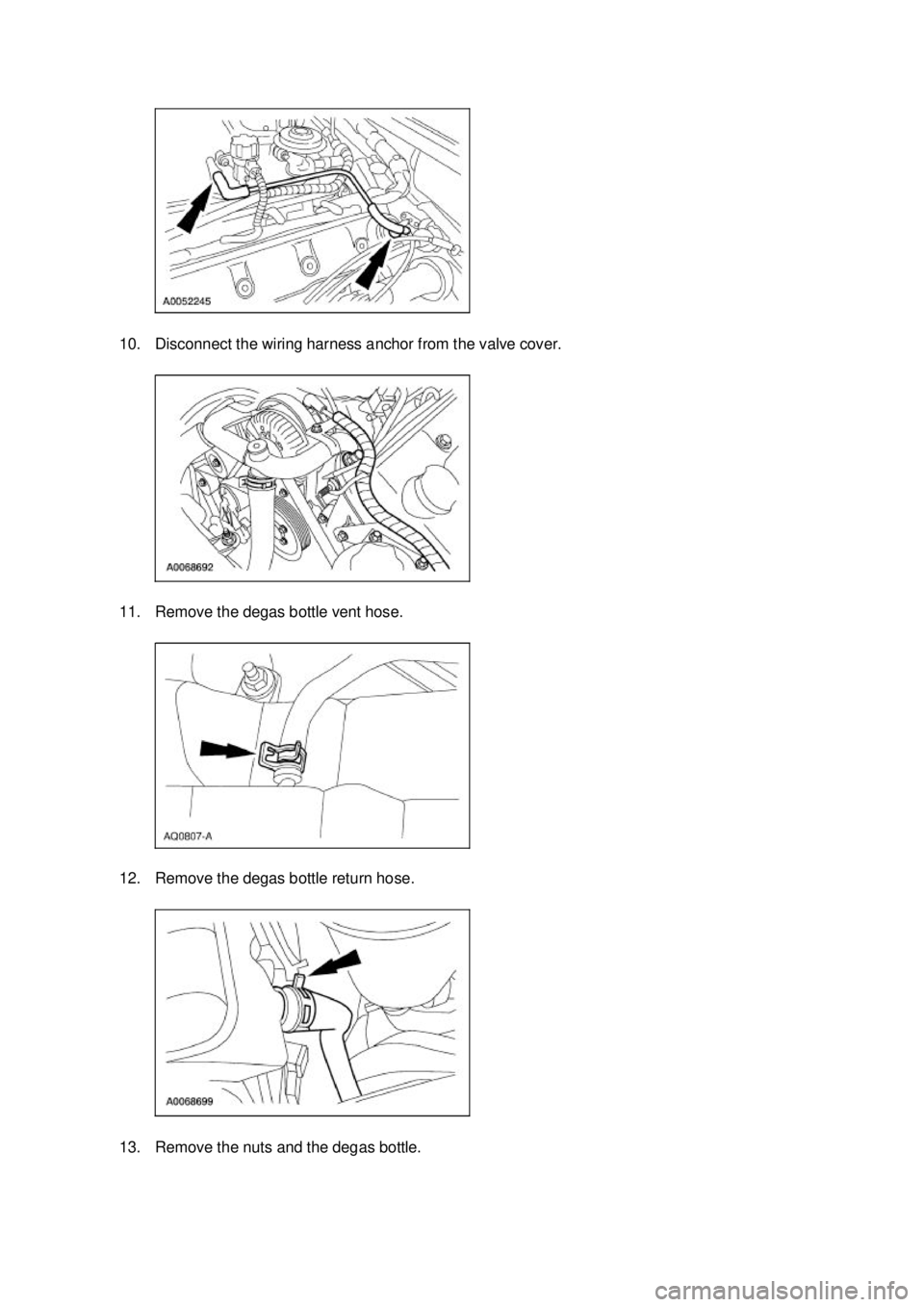

FORD MUSTANG 2003 Workshop Manual 10. Disconnect the wiring harness anchor from the valve cover. 11. Remove the degas bottle vent hose. 12. Remove the degas bottle return hose. 13. Remove the nuts and the degas bottle. Klj . 3

Page 1661 of 4378

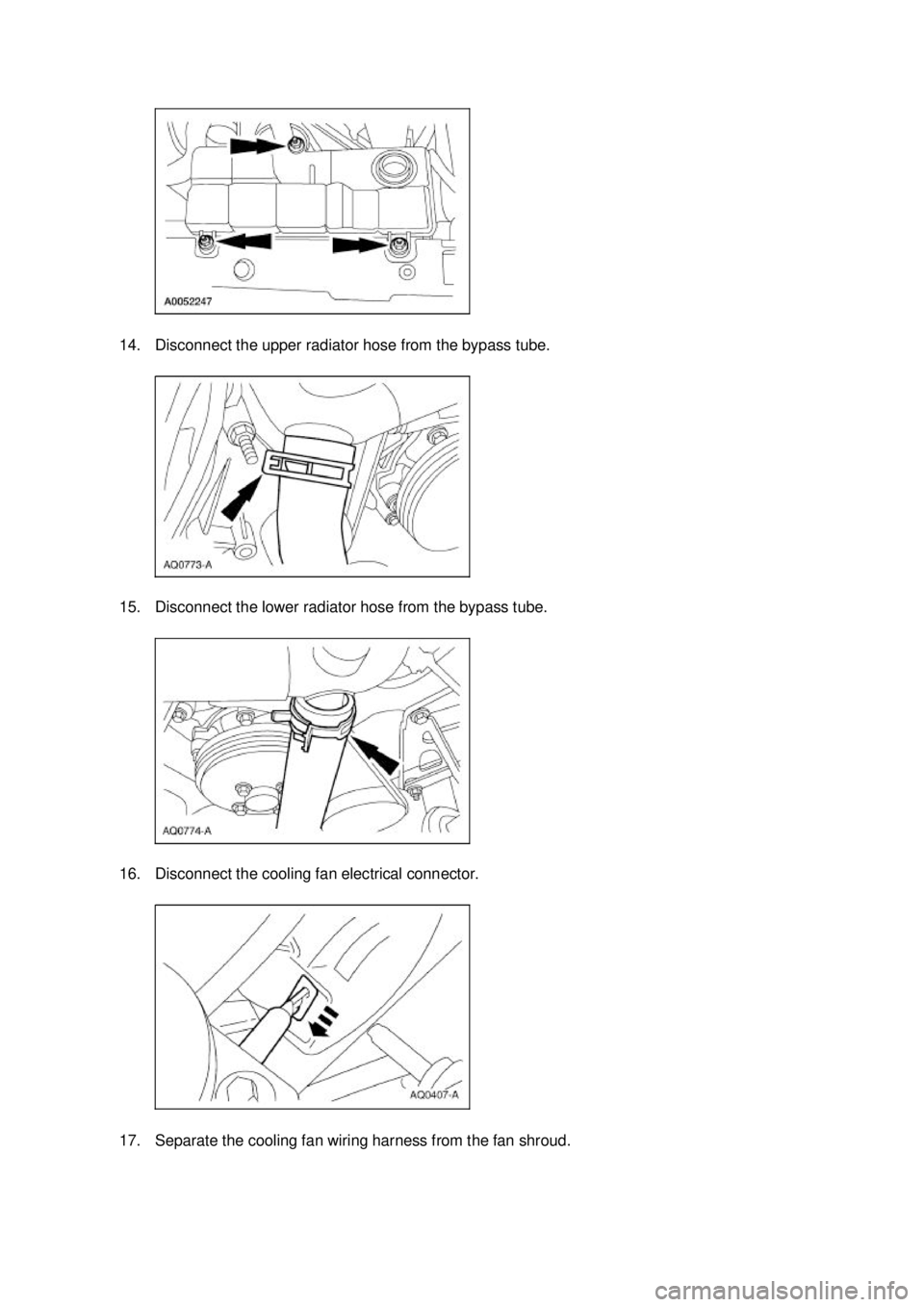

FORD MUSTANG 2003 Workshop Manual 14. Disconnect the upper radiator hose from the bypass tube. 15. Disconnect the lower radiator hose from the bypass tube. 16. Disconnect the cooling fan electrical connector. 17. Separate the cooli

Page 1662 of 4378

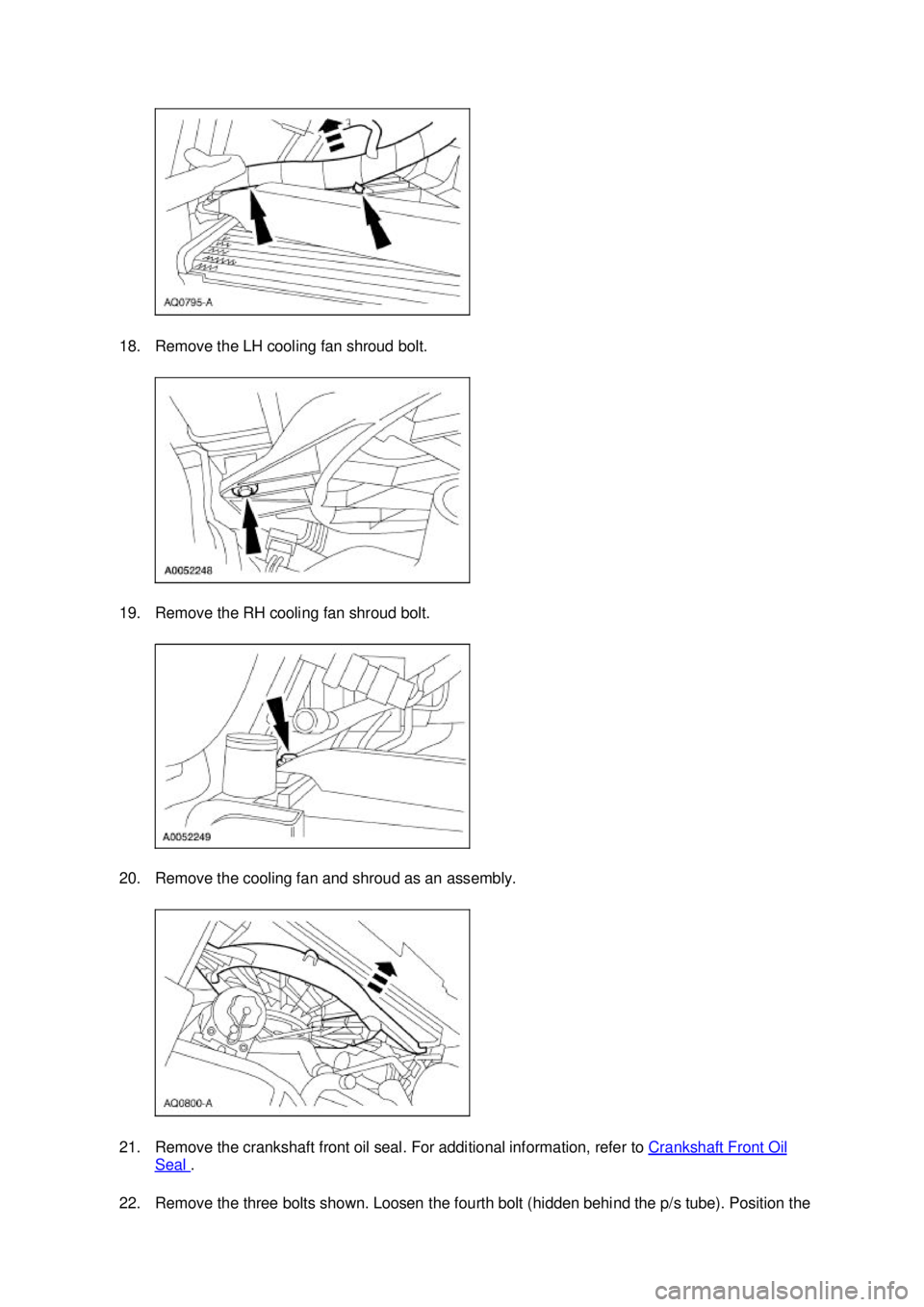

FORD MUSTANG 2003 Workshop Manual 18. Remove the LH cooling fan shroud bolt. 19. Remove the RH cooling fan shroud bolt. 20. Remove the cooling fan and shroud as an assembly. 21. Remove the crankshaft front oil seal. For additional

Page 1663 of 4378

FORD MUSTANG 2003 Workshop Manual power steering pump aside. 23. Remove the A/C muffler bracket nut. 24. Remove the bolts and position the A/C compressor aside. 25. Disconnect the crankshaft position (CKP) sensor electrical connect

Page 1664 of 4378

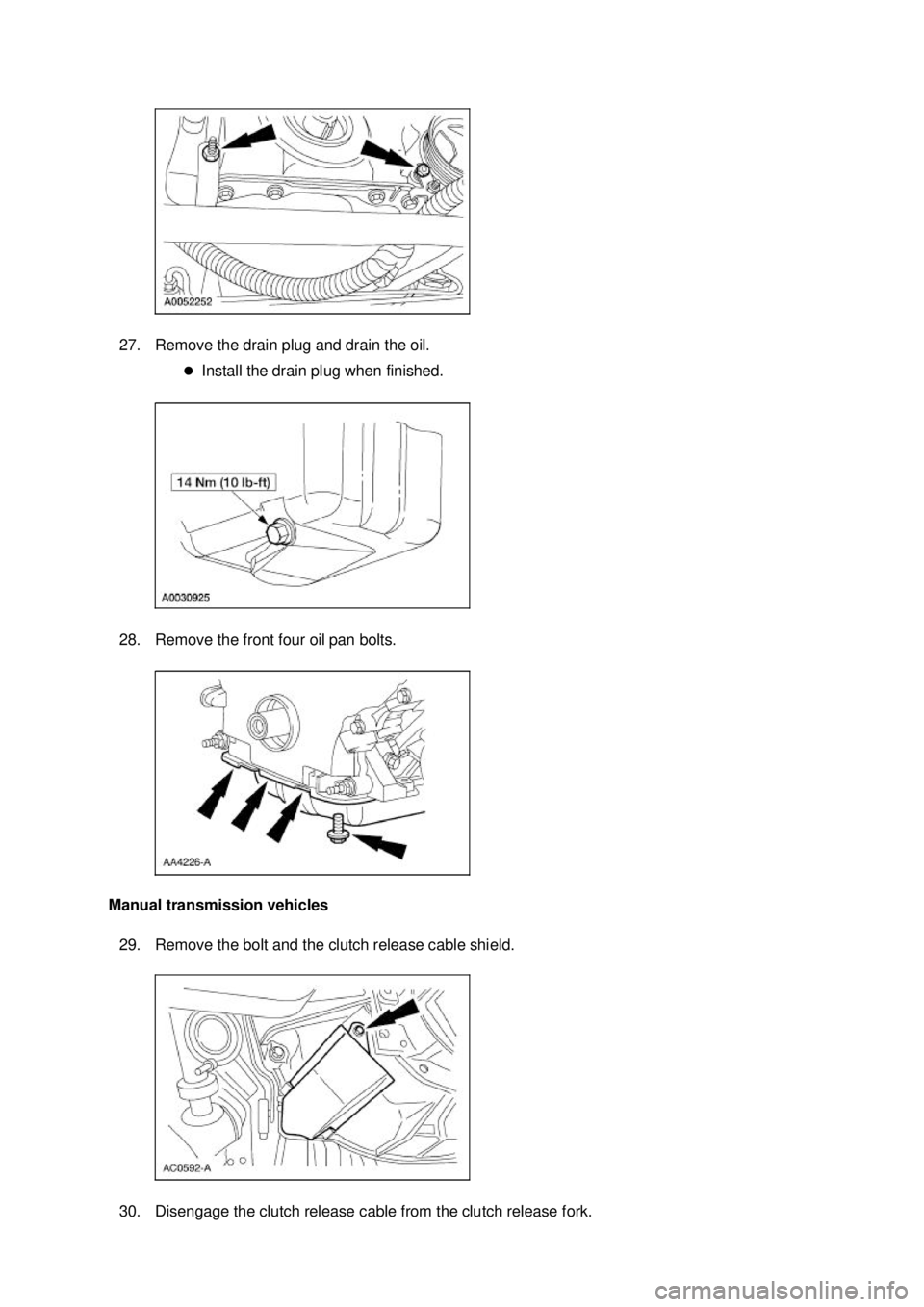

FORD MUSTANG 2003 Workshop Manual 27. Remove the drain plug and drain the oil. �zInstall the drain plug when finished. 28. Remove the front four oil pan bolts. Manual transmission vehicles 29. Remove the bolt and the clutch releas
