Page 3425 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Antenna The antenna system consists of: �zantenna mast �z antenna base and cable �z antenna lead- in cable The radio antenna uses a two- piece coaxial cable to connect

Page 3426 of 4378

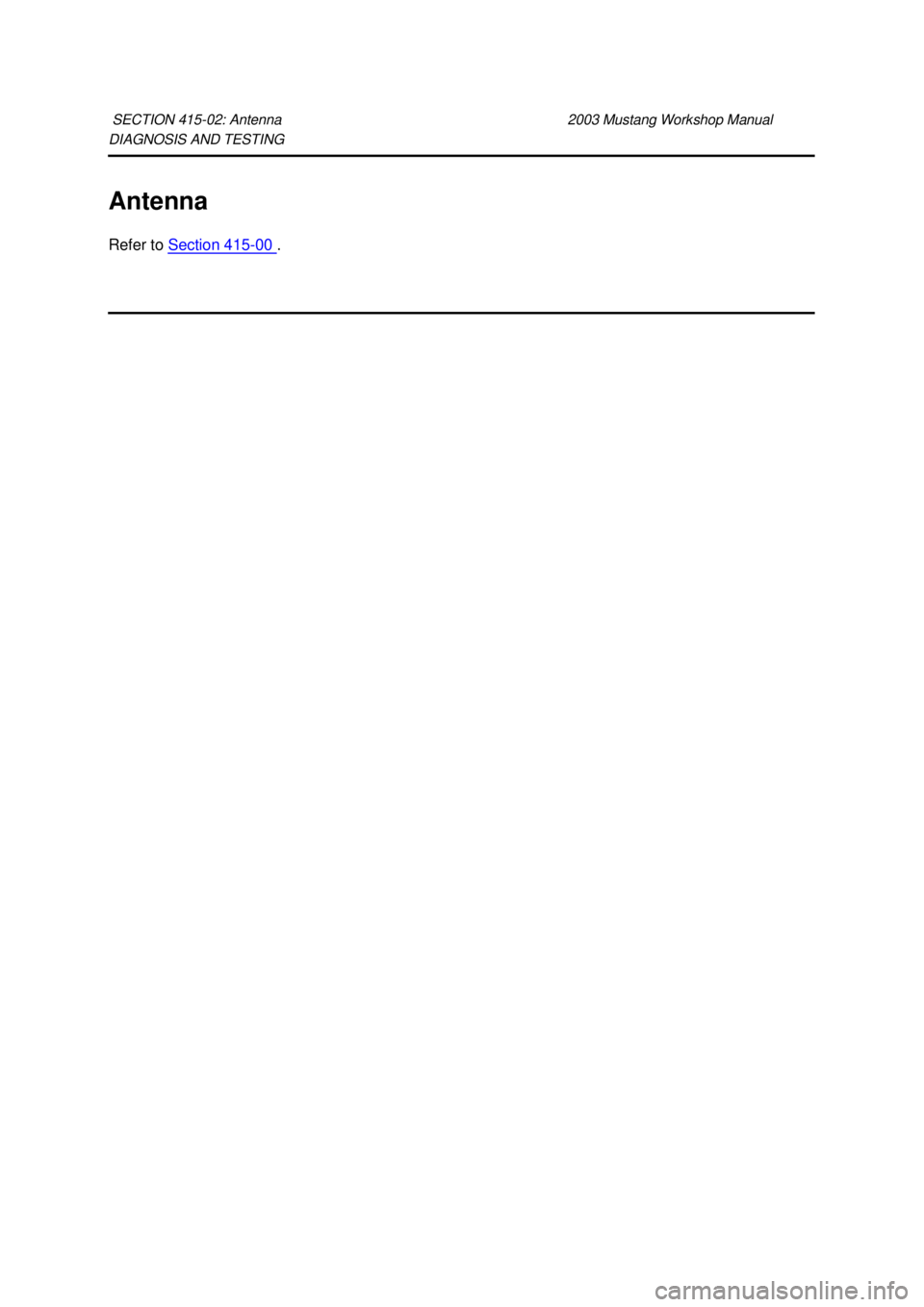

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Antenna Refer to Section 415 - 00 . SECTION 415- 02: Antenna 2003 Mustang Workshop Manual Klj . 1 ba 12003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000

Page 3427 of 4378

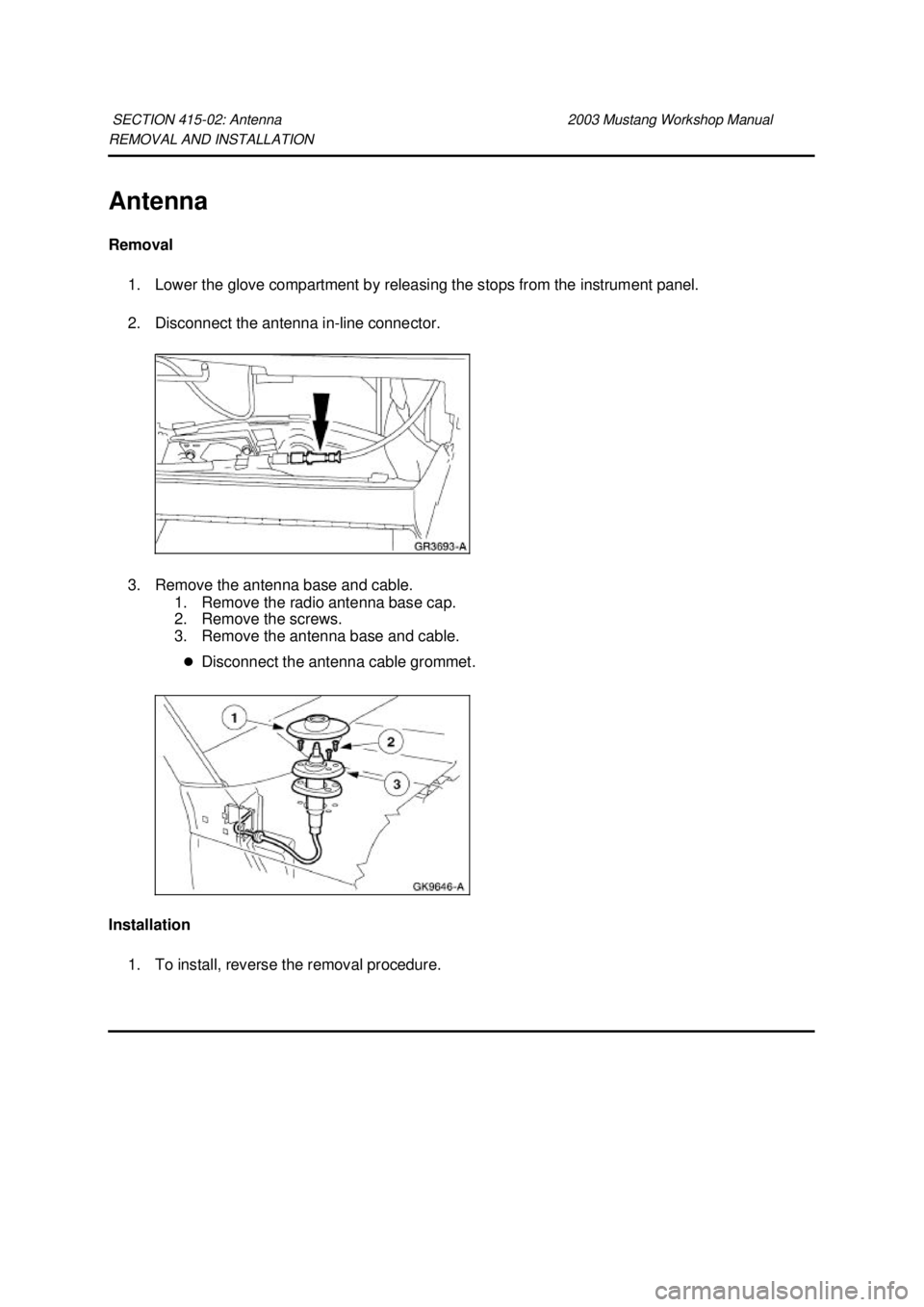

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Antenna Removal 1. Lower the glove compartment by releasing the stops from the instrument panel. 2. Disconnect the antenna in- line connector. 3. Remove the antenna base

Page 3428 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3429 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Cable — Antenna Lead In Removal 1. Remove the audio unit. Refer to Section 415 - 01 . 2. Lower the glove compartment by releasing the stops from the instrument panel.

Page 3430 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3431 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 415- 03: Speakers 2003 Mustang Workshop Manual Torque Specifications Description Nm lb- ft lb- in Subwoofer nut (coupe) 10 — 89 Subwoofer nut (Mach 1000) 25 18

Page 3432 of 4378

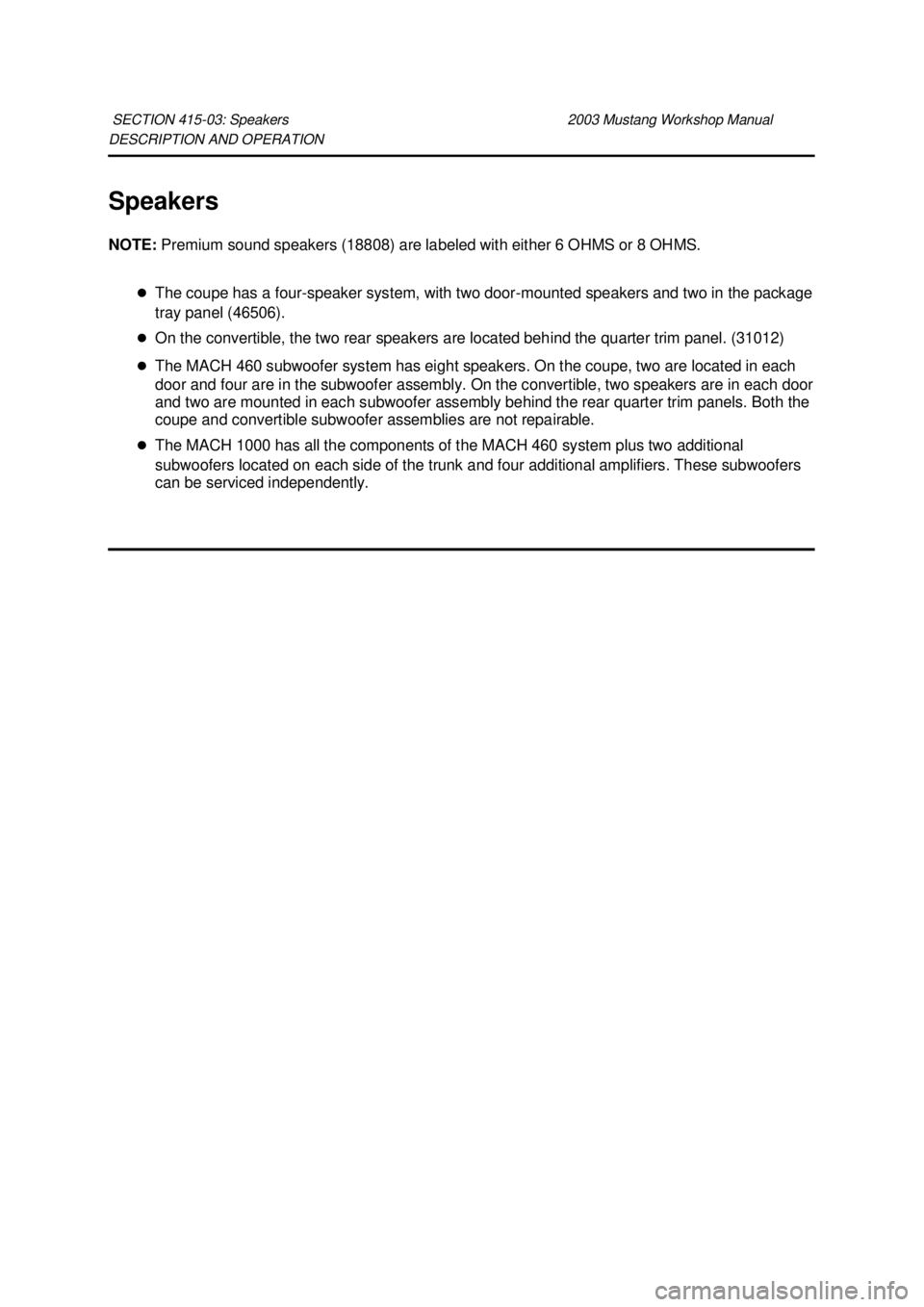

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Speakers NOTE: Premium sound speakers (18808) are labeled with either 6 OHMS or 8 OHMS. �z The coupe has a four-speaker system, with two door- mounted speakers and two in
