FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 308- 00: Manual Transaxle/Transmission and Clutch — General Information 2003 Mustang Workshop Manual General Specifications Item Specification Pressure plate Pressure

Page 2626 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Manual Transmission and Clutch The primary function of the clutch is to couple and uncouple engine power to the transmission upon driver command. For additional informatio

Page 2627 of 4378

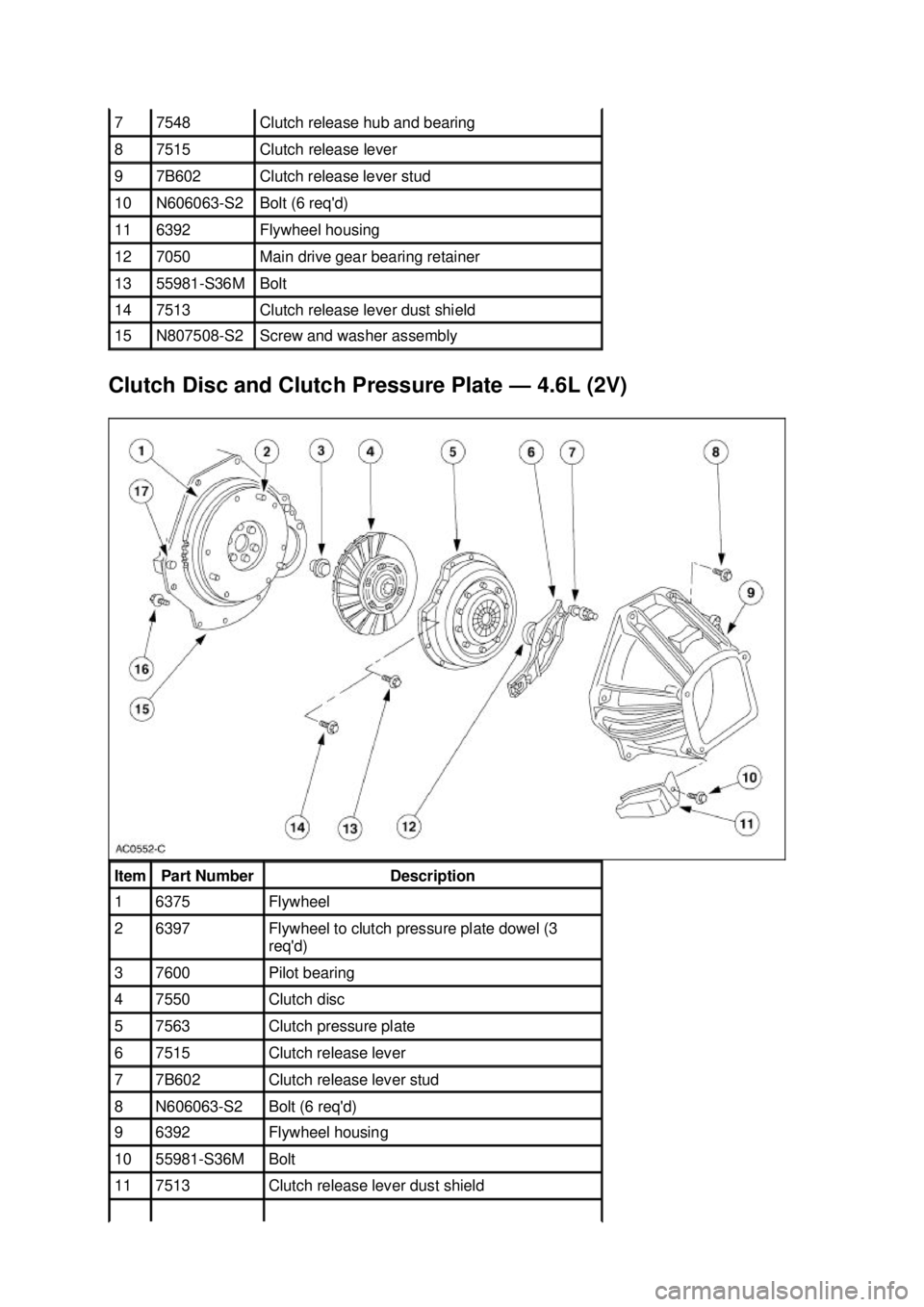

FORD MUSTANG 2003 Workshop Manual Clutch Disc and Clutch Pressure Plate — 4.6L (2V) 7 7548 Clutch release hub and bearing 8 7515 Clutch release lever 9 7B602 Clutch release lever stud 10 N606063-S2 Bolt (6 reqd) 11 639

Page 2628 of 4378

FORD MUSTANG 2003 Workshop Manual Clutch Disc and Clutch Pressure Plate — 4.6L (4V) �z The clutch is a single plate, dry friction clutch disc. The clutch disc has a splined hub with integral torsional springs. The clutch disc hub

Page 2629 of 4378

FORD MUSTANG 2003 Workshop Manual forces exerted by the clutch pressure plate and the flywheel on the facings. These factors limit the amount of torque that can be transmitted without slippage. �z The clamping force is obtained from

Page 2630 of 4378

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Manual Transmission and Clutch Inspection and Verification It is important to get an accurate description of the concern before any diagnosis can be carried out. Ask question

Page 2631 of 4378

FORD MUSTANG 2003 Workshop Manual or excessive runout. �z Clutch disc facing surface hardened or damaged. �z Flywheel surface glazed or damaged. �z Transmission input shaft eccentric or not perpendicular. �z Clutch drag

Page 2632 of 4378

FORD MUSTANG 2003 Workshop Manual �z Excessive noise �zPilot bearing worn or damaged. �z Excessive crankshaft end play. �z Go To Pinpoint Test G . �z Transmission difficult to shift �z Lubricant. �zADD or DRAIN AND FILL w
