Page 1265 of 4378

FORD MUSTANG 2003 Workshop Manual 17. Disconnect the A/C manifold suction tube. 18. Disconnect the A/C pressure cycle switch. 19. Remove the nut and separate the liquid tube from the A/C condenser. 20. Disconnect the power steering

Page 1266 of 4378

FORD MUSTANG 2003 Workshop Manual 21. Remove the bolt and the body ground. 22. Separate the fuse link. 23. Disconnect the connector. 24. Disconnect the ground connector. Klj . 5 ba 122003 Mustang Workshop Manual 17. 11. 20

Page 1267 of 4378

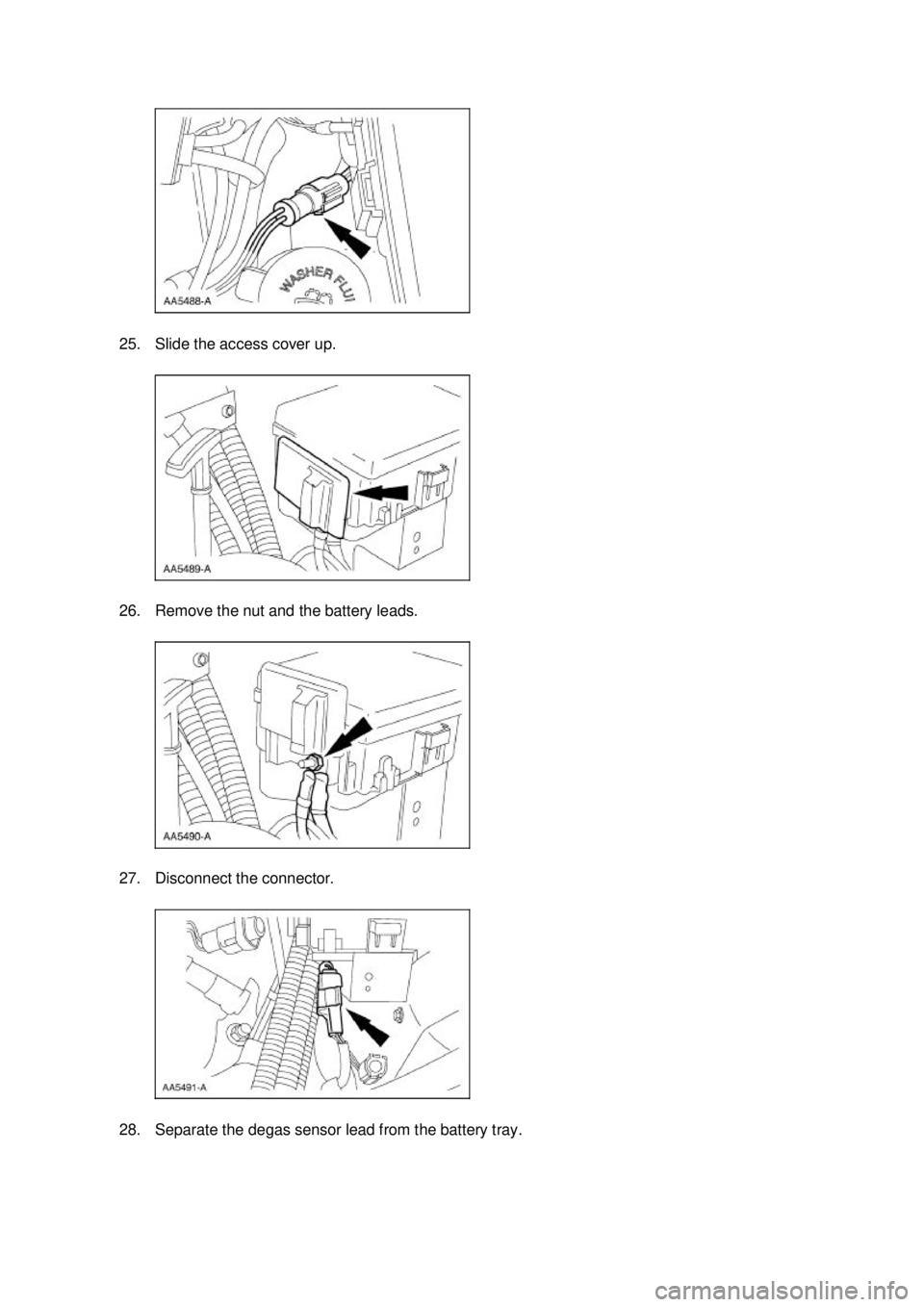

FORD MUSTANG 2003 Workshop Manual 25. Slide the access cover up. 26. Remove the nut and the battery leads. 27. Disconnect the connector. 28. Separate the degas sensor lead from the battery tray. Klj . 6 ba 122003 Mustang W

Page 1268 of 4378

FORD MUSTANG 2003 Workshop Manual 29. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 30. Drain the engine oil. 31. Disconnect the RH heated oxygen sensor connector. 32. Disconnect the LH he

Page 1269 of 4378

FORD MUSTANG 2003 Workshop Manual 34. Remove the starter. For additional information, refer to Section 303 - 06 . 35. Remove the nine bell housing bolts. 36. Remove the bolt and the body ground. 37. Remove the power steering pump

Page 1270 of 4378

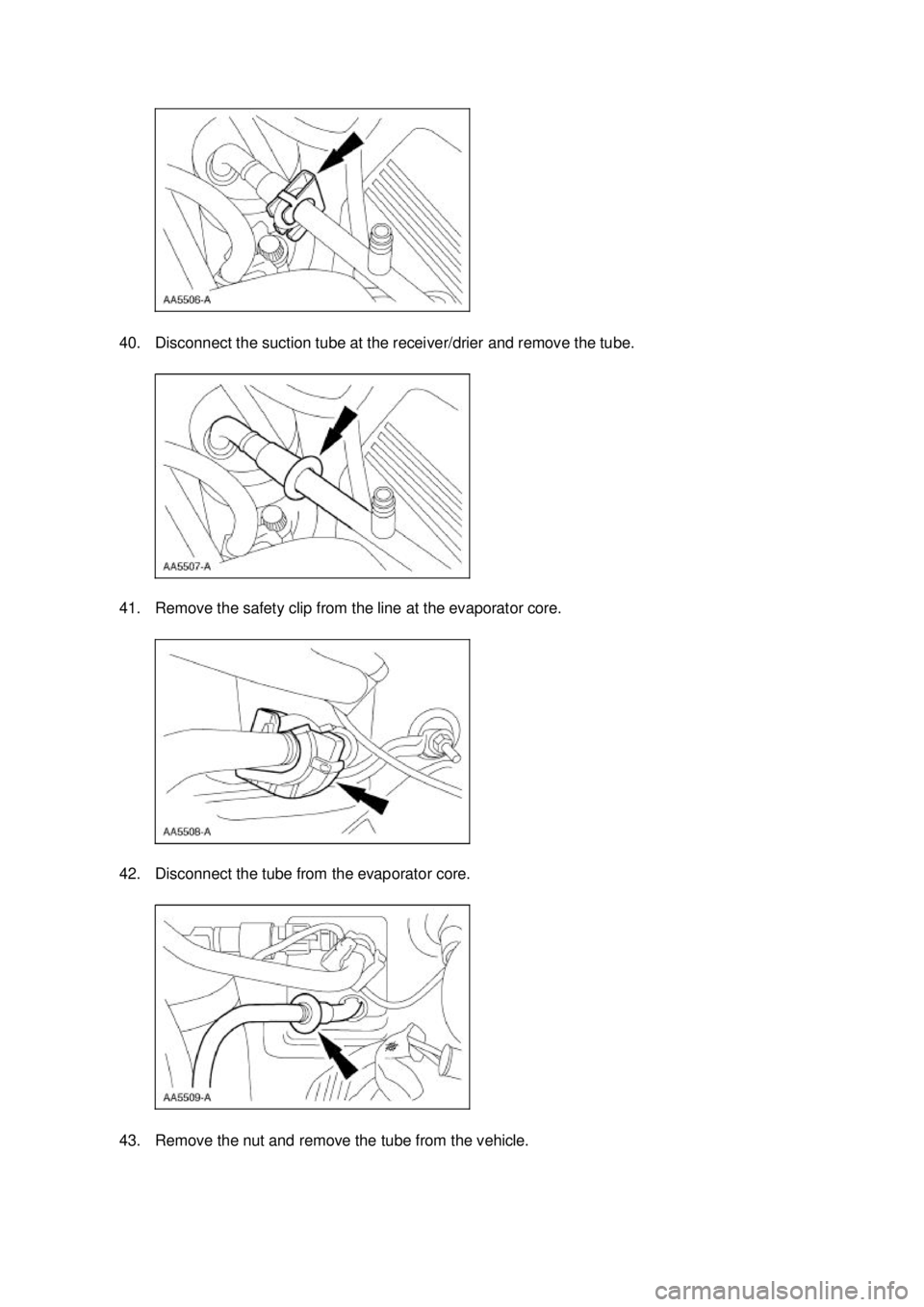

FORD MUSTANG 2003 Workshop Manual 40. Disconnect the suction tube at the receiver/drier and remove the tube. 41. Remove the safety clip from the line at the evaporator core. 42. Disconnect the tube from the evaporator core. 43. Rem

Page 1271 of 4378

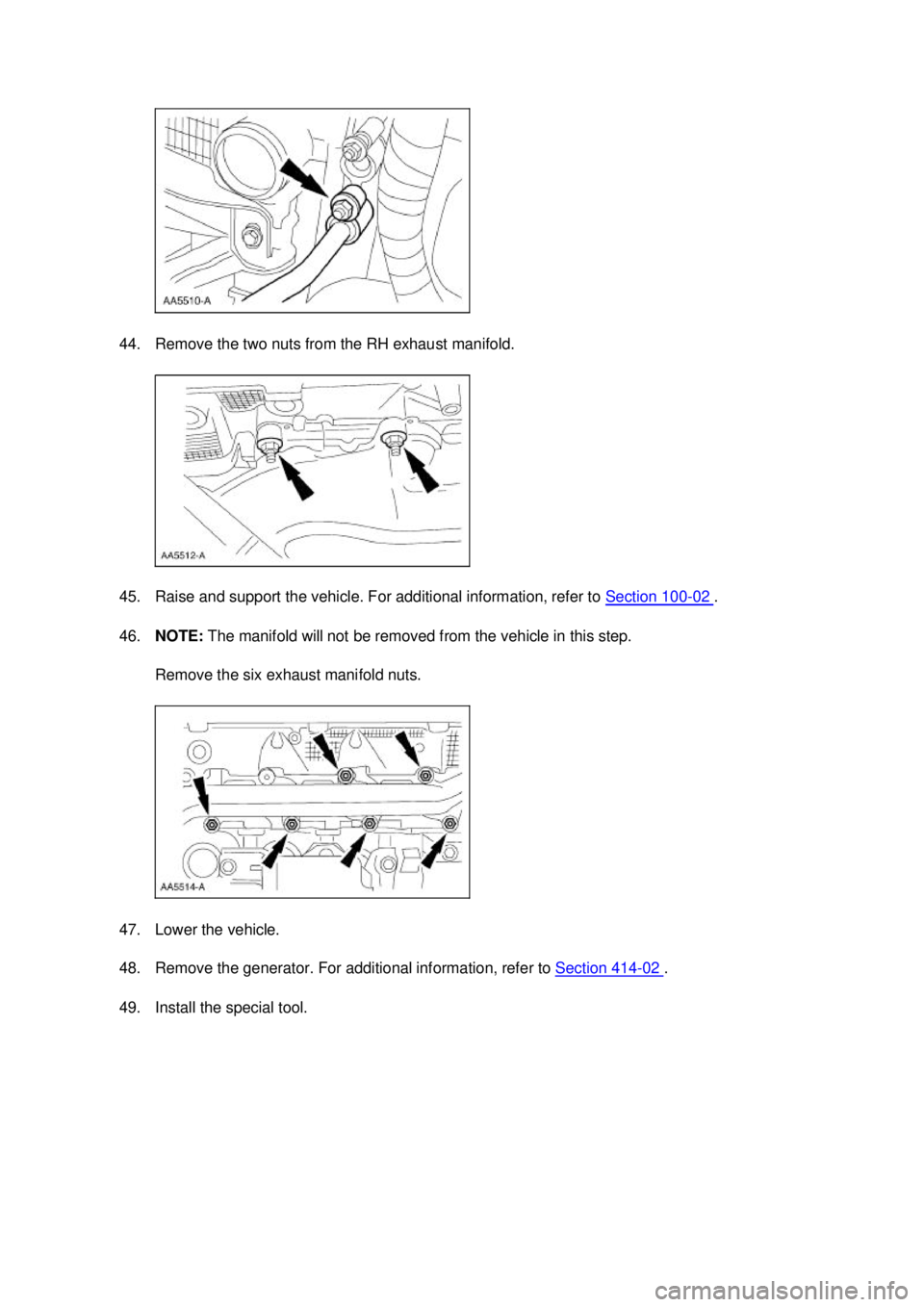

FORD MUSTANG 2003 Workshop Manual 44. Remove the two nuts from the RH exhaust manifold. 45. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 46. NOTE: The manifold will not be removed from th

Page 1272 of 4378

FORD MUSTANG 2003 Workshop Manual 50. NOTE: This step will allow removal of the exhaust manifold through the bottom and access for the installation of the engine lift brackets. Using a suitable floor crane, raise the engine to remo
