Page 3633 of 4378

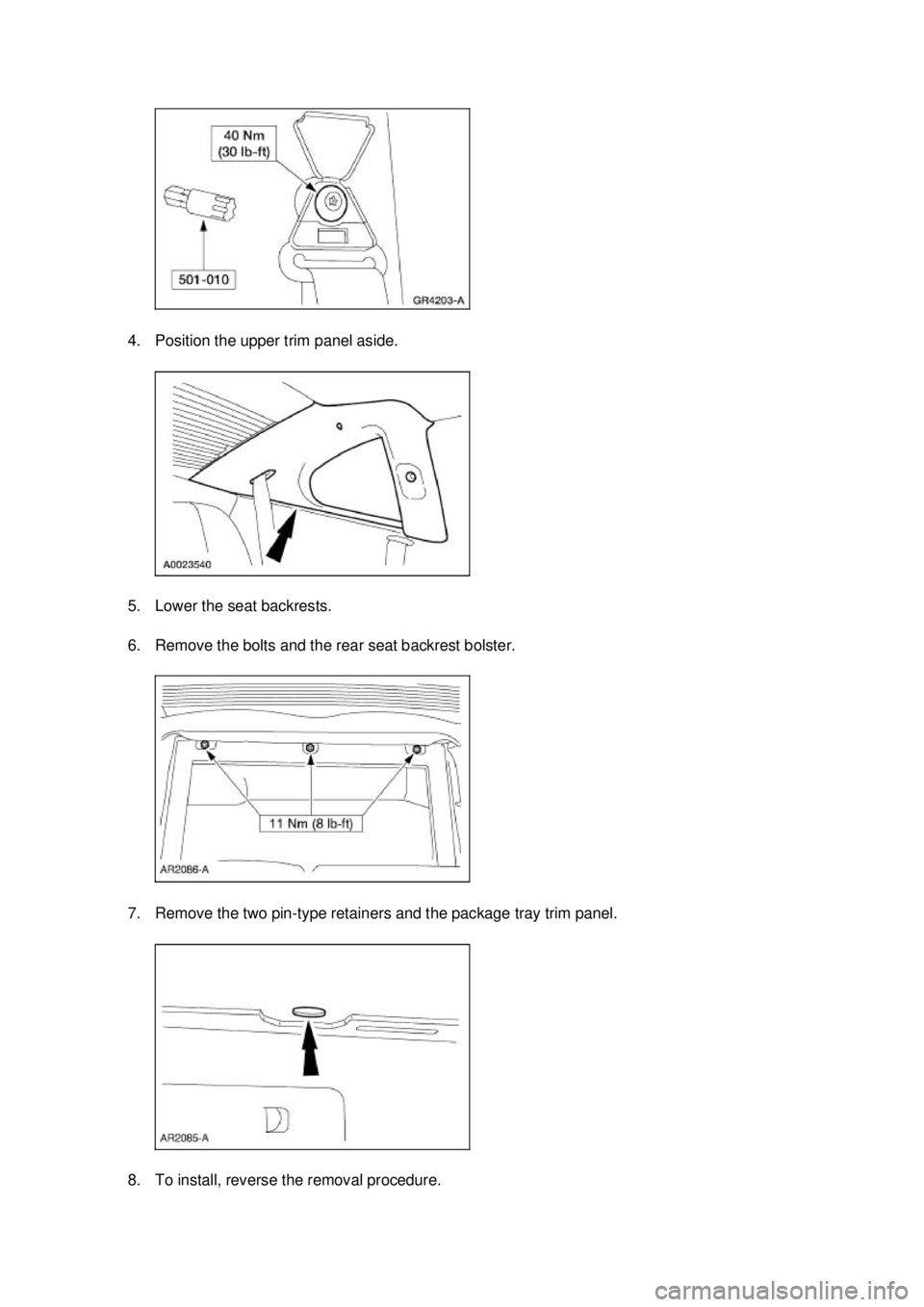

FORD MUSTANG 2003 Workshop Manual 4. Position the upper trim panel aside. 5. Lower the seat backrests. 6. Remove the bolts and the rear seat backrest bolster. 7. Remove the two pin- type retainers and the package tray trim panel.

Page 3634 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3635 of 4378

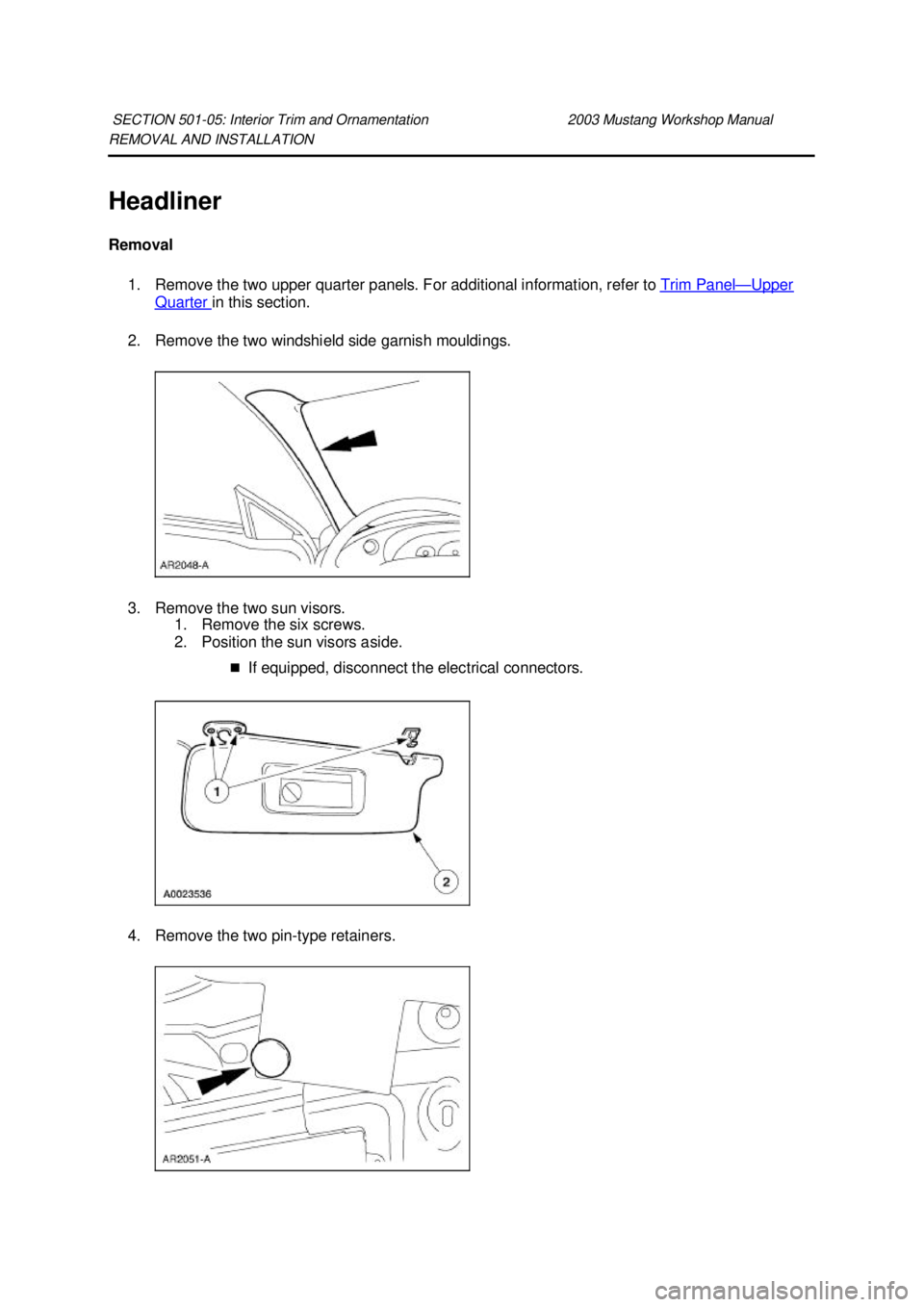

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Headliner Removal 1. Remove the two upper quarter panels. For additional information, refer to Trim Panel — Upper Quarter in this section. 2. Remove the two windshiel

Page 3636 of 4378

FORD MUSTANG 2003 Workshop Manual 5. CAUTION: Folding the headliner will result in damage to the headliner. Remove the headliner. 1. Disconnect the electrical connector. 2. Release the wiring harness locators. 3. Remove the headl

Page 3637 of 4378

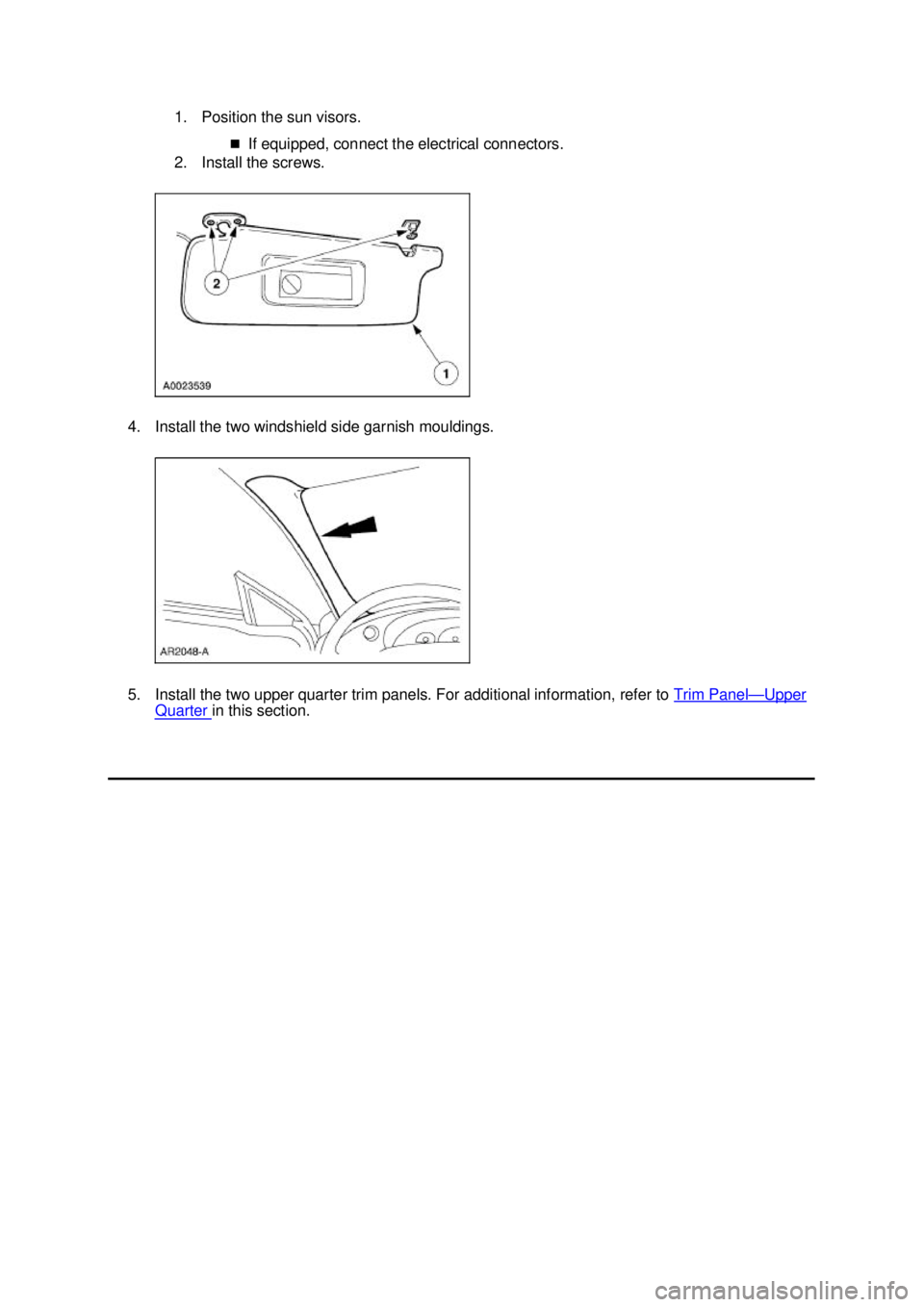

FORD MUSTANG 2003 Workshop Manual 1. Position the sun visors. �„If equipped, connect the electrical connectors. 2. Install the screws. 4. Install the two windshield side garnish mouldings. 5. Install the two upper quarter trim p

Page 3638 of 4378

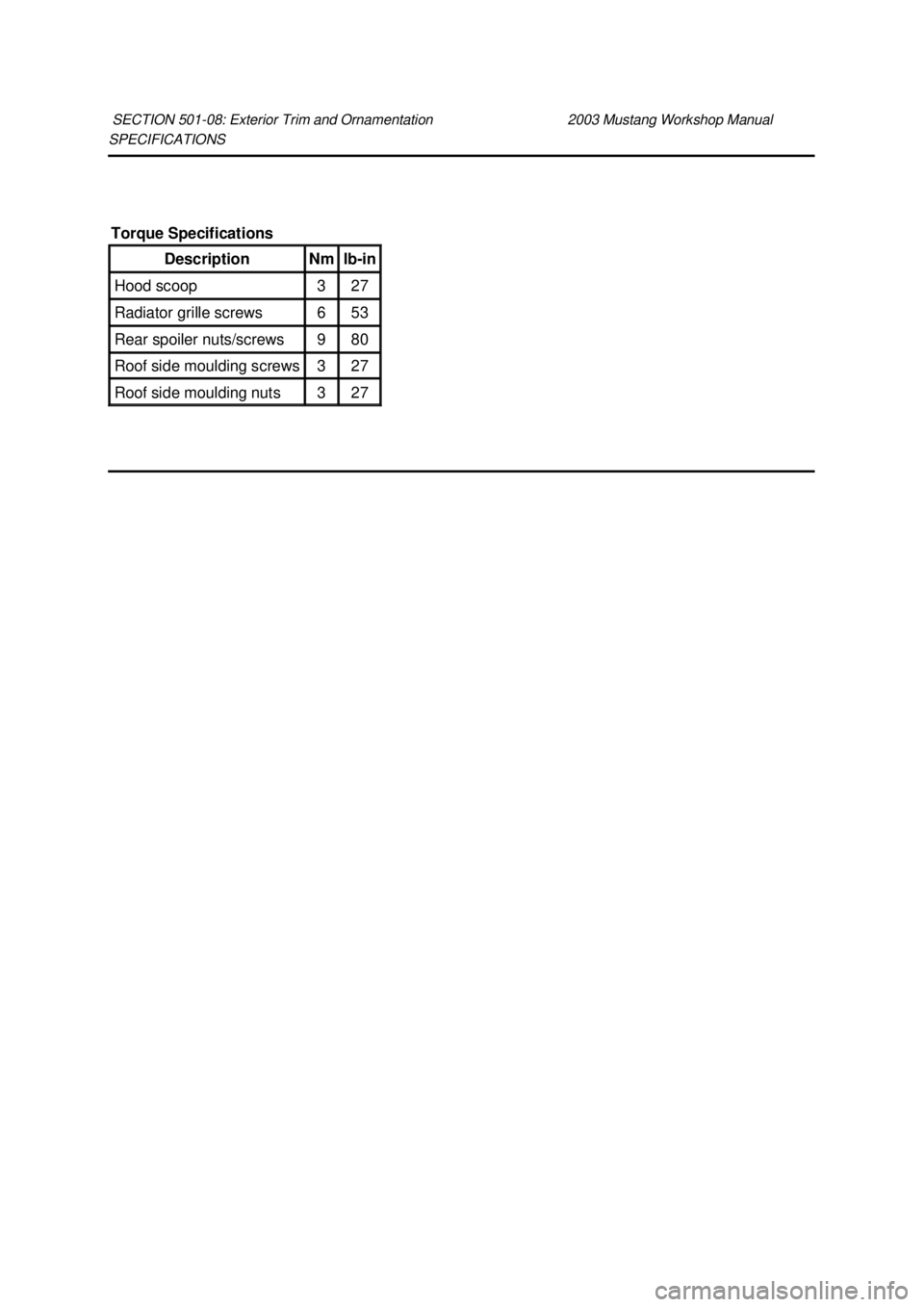

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 501- 08: Exterior Trim and Ornamentation 2003 Mustang Workshop Manual Torque Specifications Description Nm lb- in Hood scoop 3 27 Radiator grille screws 6 53 Rear sp

Page 3639 of 4378

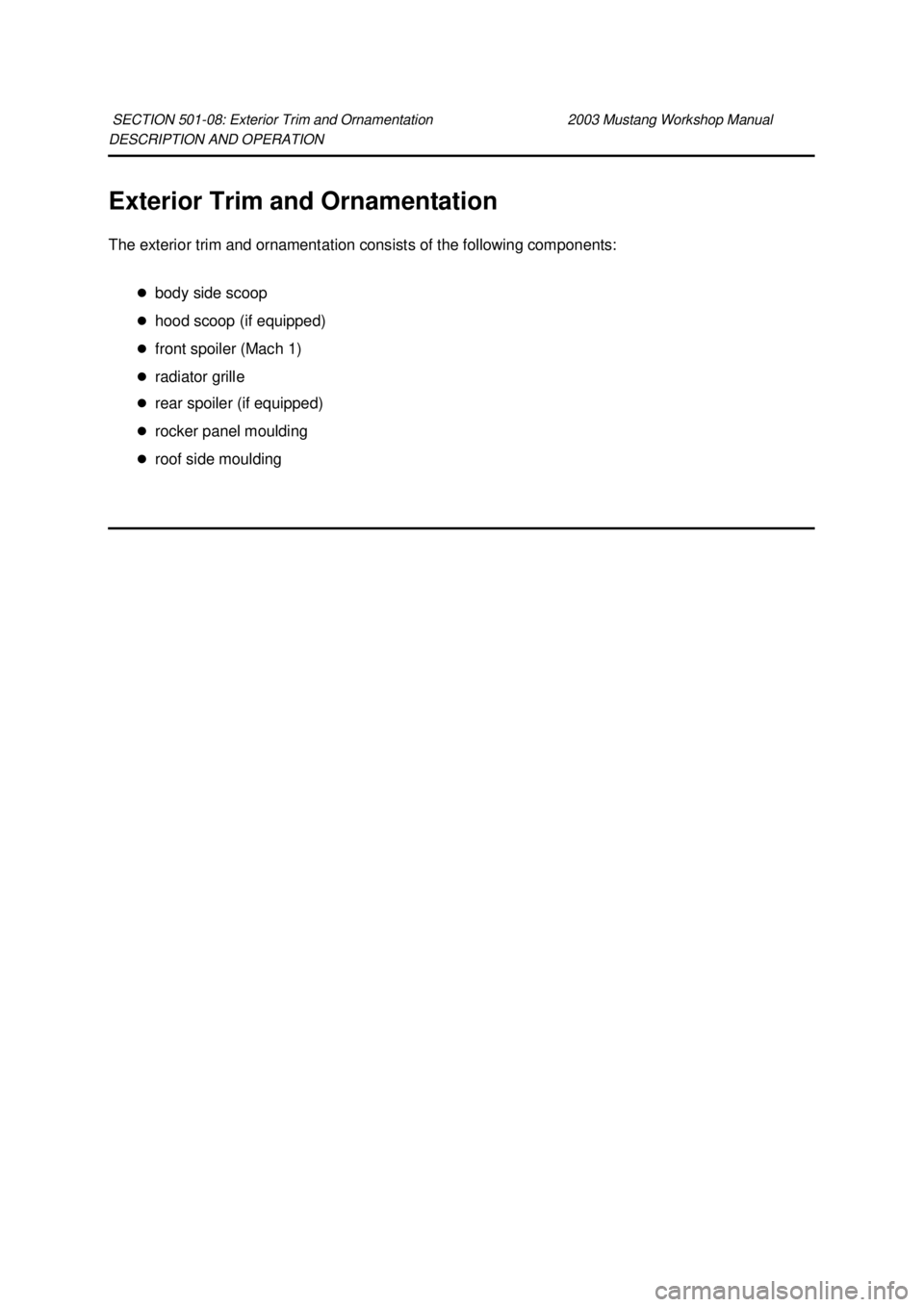

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Exterior Trim and Ornamentation The exterior trim and ornamentation consists of the following components: �zbody side scoop �z hood scoop (if equipped) �z front spoiler

Page 3640 of 4378

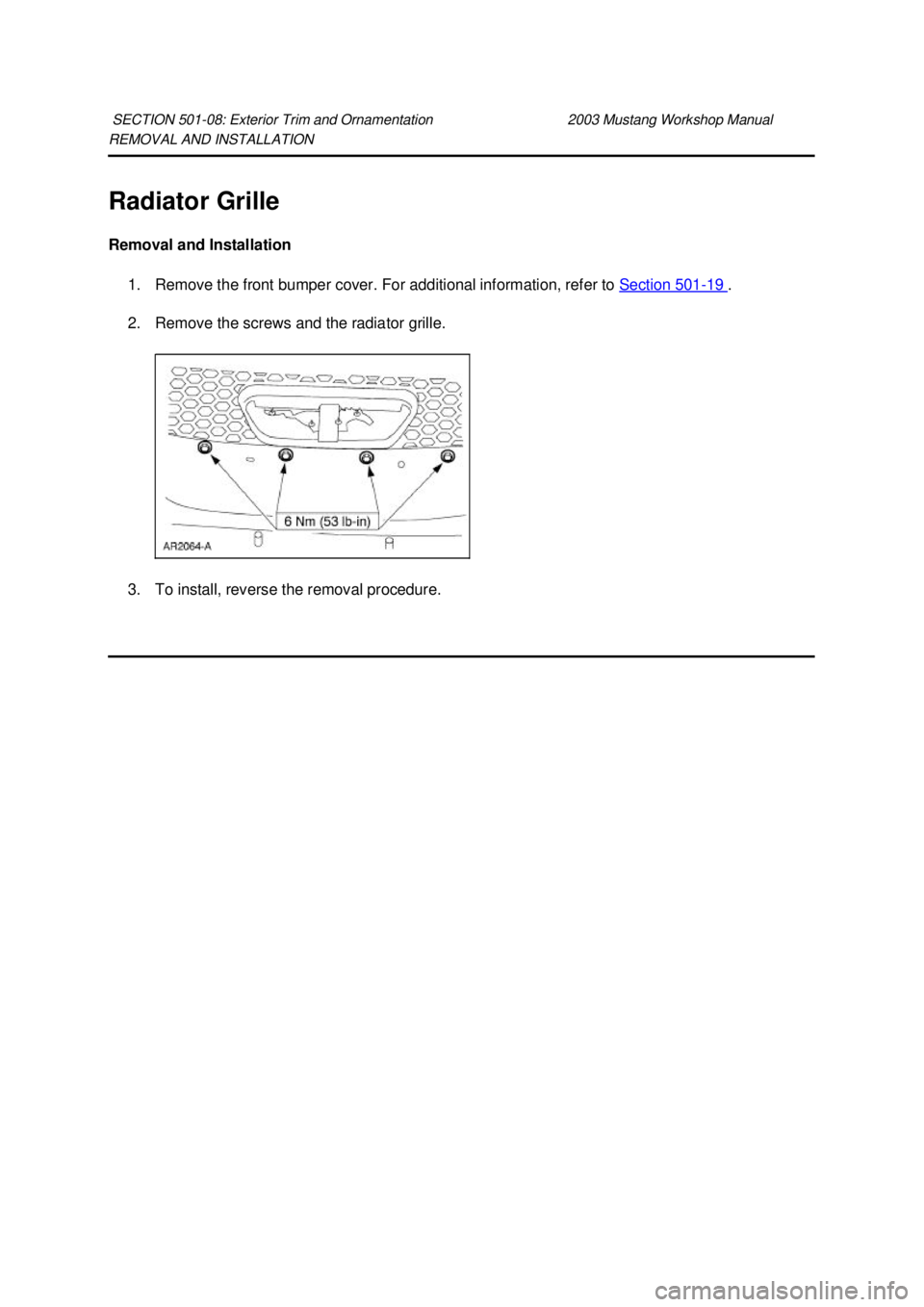

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Radiator Grille Removal and Installation 1. Remove the front bumper cover. For additional information, refer to Section 501 - 19 . 2. Remove the screws and the radiator
