REMOVAL AND INSTALLATION
Floor Console
Removal and Installation
All vehicles
1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Apply the parking brake.
Vehicles with automatic transmission 3. Place the selector lever in the 1 position.
Vehicles with manual transmission 4. Remove the gearshift lever handle.
All vehicles 5. Remove the floor console finish panel. zDisconnect the electrical connector.
6. Open the floor console glove compartment door.
7. Remove the floor console screws.
8. Disconnect the floor console electrical connector.
SECTION 501-
12: Instrument Panel and Console 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3811 of 4378

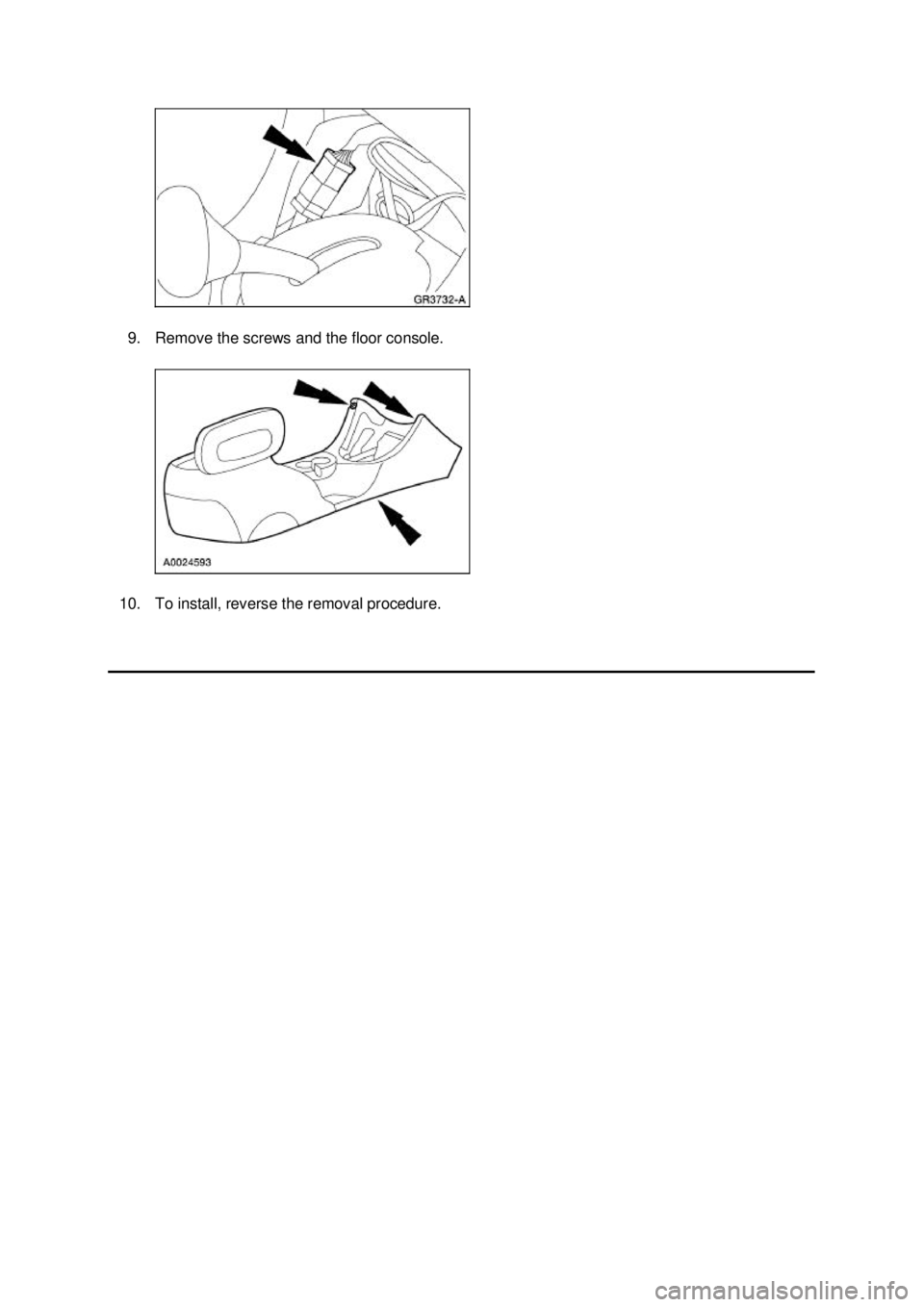

9. Remove the screws and the floor console.
10. To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3812 of 4378
SPECIFICATIONS
SECTION 501-
14A: Handles, Locks, Latches and Mechanisms 2003 Mustang Workshop Manual General Specifications
Item Specification
Lubricants
Multi-
Purpose Grease Spray
F5AZ- 19G209- AA ESR-
M1C159- A Penetrating and Lock Lubricant
E8AZ-
19A501- B —
Torque Specifications Description Nm lb-
ft lb-
in Door latch screws 12 9 —
Luggage compartment lid screws 9 — 80
Exterior door handle nuts 9 — 80
Luggage compartment lid latch striker screws 12 9 —
Fuel tank filler door retaining screws 3 — 27
Door latch striker plate screws 25 18 —
LOCK REPAIR/REPLACEMENT SPECIFICATIONS Part Number Lock Repair Package Name
F85Z-
11582- AA Ignition Cylinder
F8ZZ-
6321990- AA Door Lock
XR32-
6343262- BA Luggage Compartment Lid
Luggage Compartment Lid, Remote
F8DZ-
5406082- AA Glove Box
F8DZ-
5421970- AA Lock Lever Kit Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3813 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3814 of 4378

DESCRIPTION AND OPERATION
Handles, Locks, Latches And Mechanisms
Lock Cylinders
Individual lock cylinders are repaired by discarding the inoperative lock cylinder and building a new
lock cylinder using the appropriate lock repair package. The lock repair package includes a detailed
instruction sheet to build the new lock cylinder to the current key code of the vehicle.
Latch System
The door latch system consists of:
zfront door latch remote control and cable assembly
z front door latch (21812)
z door latch control rod knob (21850)
z door handle (22404) and front door latch actuating rod (22152)
z lock cylinder (22050) and front door latch control cylinder rod (22134)
z door latch striker plate (22008)
z front door latch remote control cable (221A00)
z door lock cylinder (21990)
z window regulator switch plates (14524)
z adjunct actuator (218B20)
z circuit wiring and circuit protection
z front door lock switch (14017)
z luggage compartment lid latch with mechanical interior release handle and cable
z luggage compartment lid lock cylinder
Refer to Section 501 - 14B .
Luggage Compartment Lid Remote Control Lock Switch
The luggage compartment remote control system consists of:
zluggage compartment remote control lock switch (19C542) located in the glove compartment
(06010)
z remote control lock actuator (part of the luggage compartment lid latch)
z circuit wiring and circuit protection
Refer to Section 501 - 14B .
SECTION 501-
14A: Handles, Locks, Latches and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
