Page 1193 of 4378

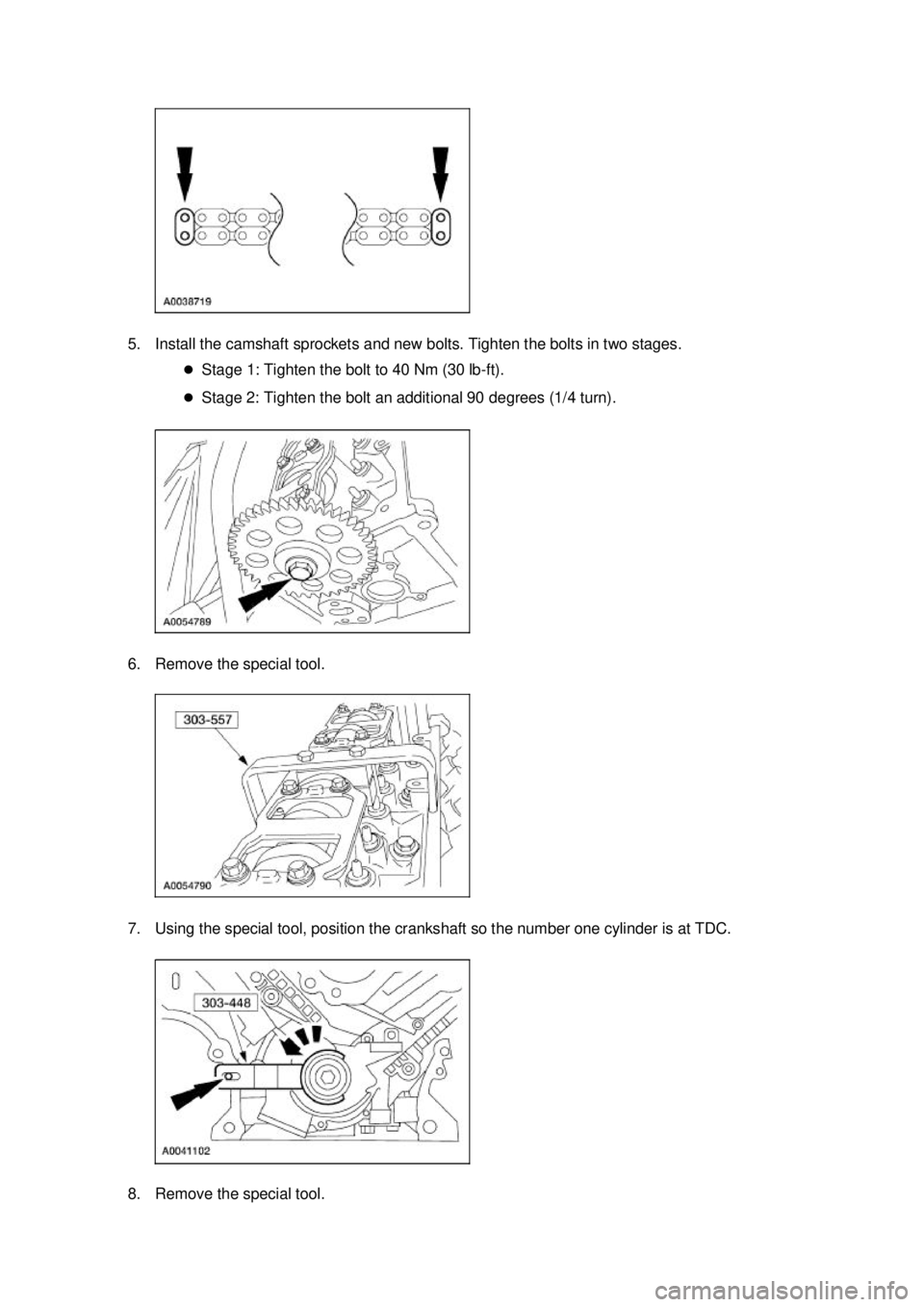

FORD MUSTANG 2003 Workshop Manual 5. Install the camshaft sprockets and new bolts. Tighten the bolts in two stages. �zStage 1: Tighten the bolt to 40 Nm (30 lb- ft). �z Stage 2: Tighten the bolt an additional 90 degrees (1/4 turn).

Page 1194 of 4378

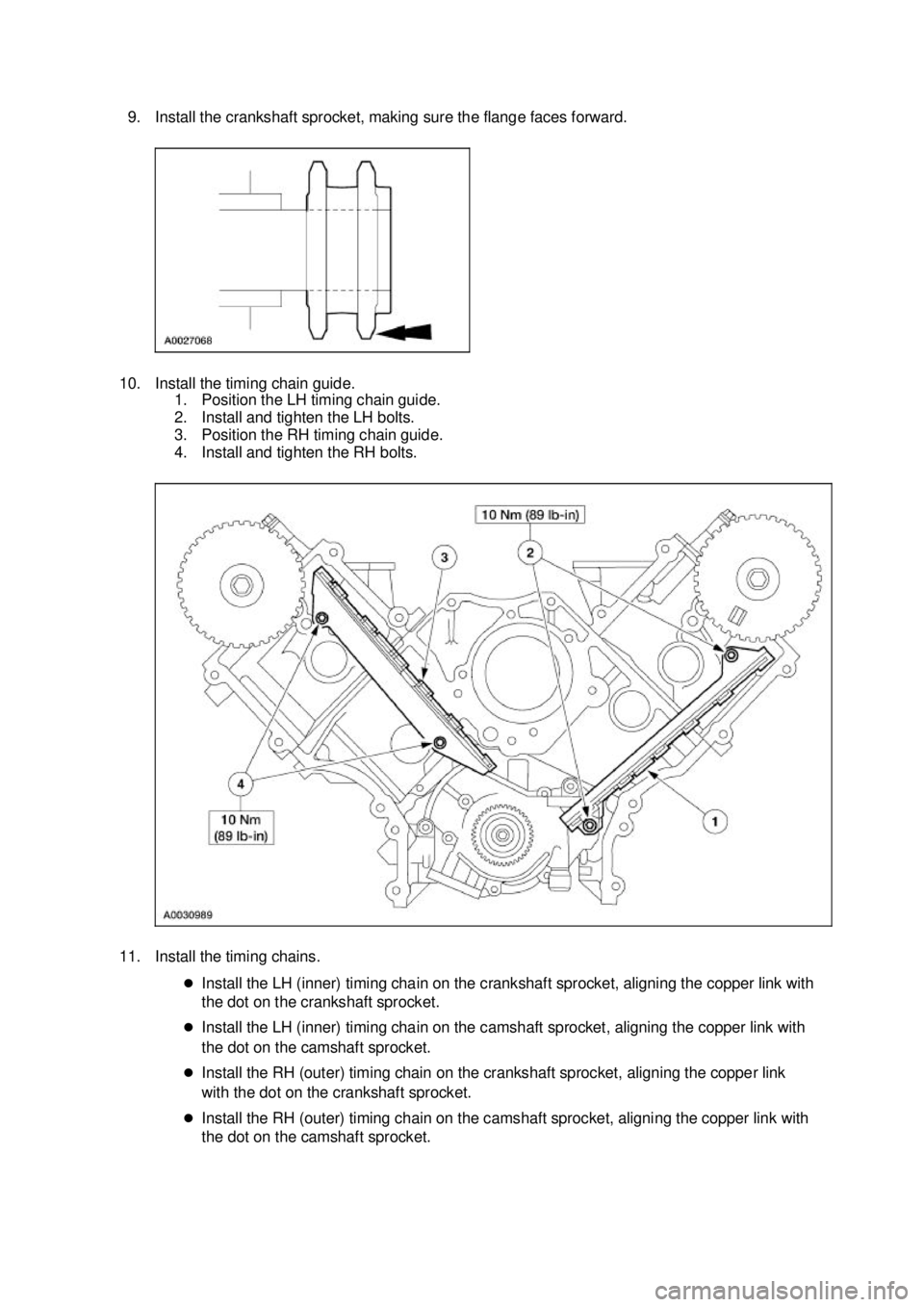

FORD MUSTANG 2003 Workshop Manual 9. Install the crankshaft sprocket, making sure the flange faces forward. 10. Install the timing chain guide. 1. Position the LH timing chain guide. 2. Install and tighten the LH bolts. 3. Positio

Page 1195 of 4378

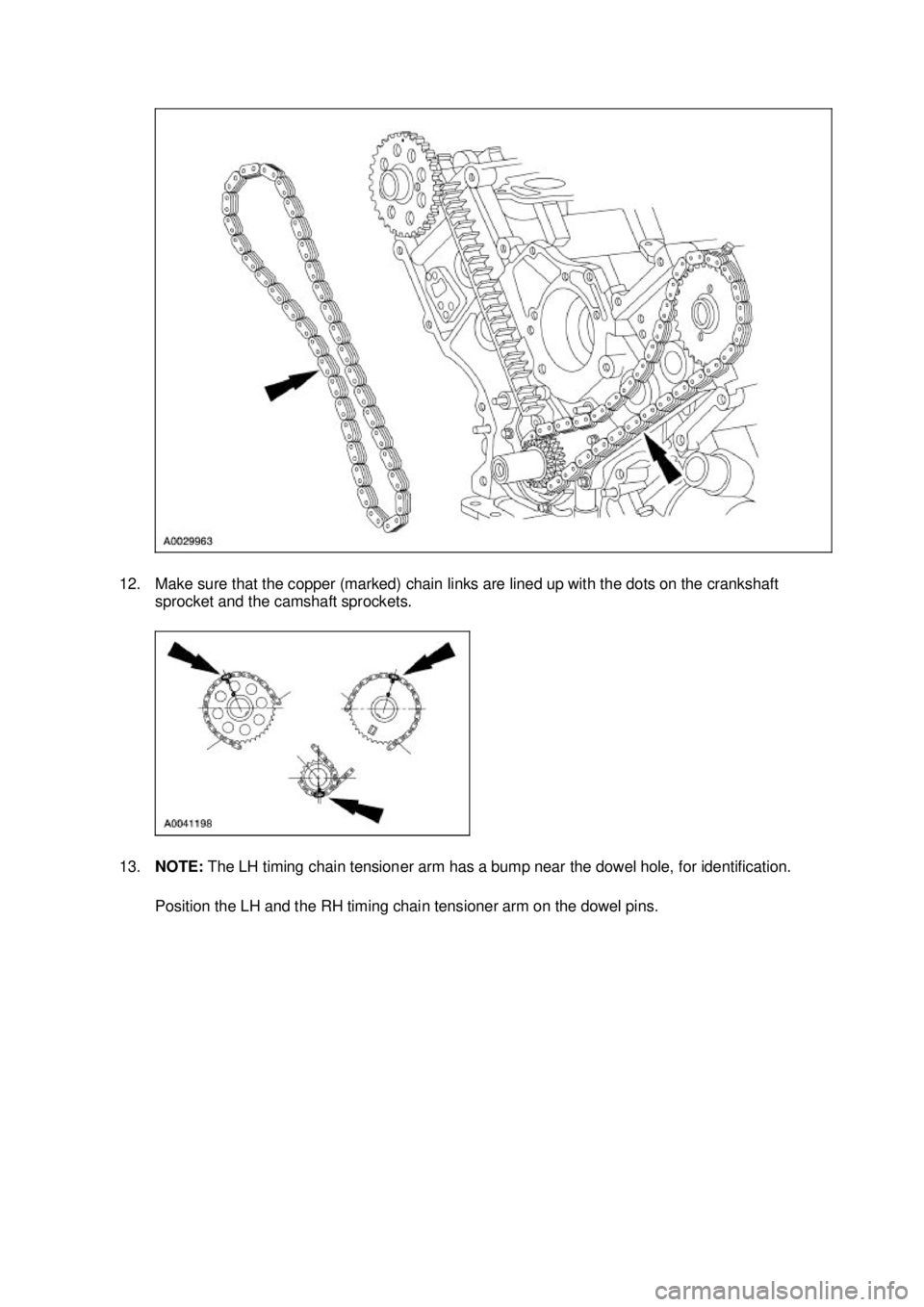

FORD MUSTANG 2003 Workshop Manual 12. Make sure that the copper (marked) chain links are lined up with the dots on the crankshaft sprocket and the camshaft sprockets. 13. NOTE: The LH timing chain tensioner arm has a bump near the

Page 1196 of 4378

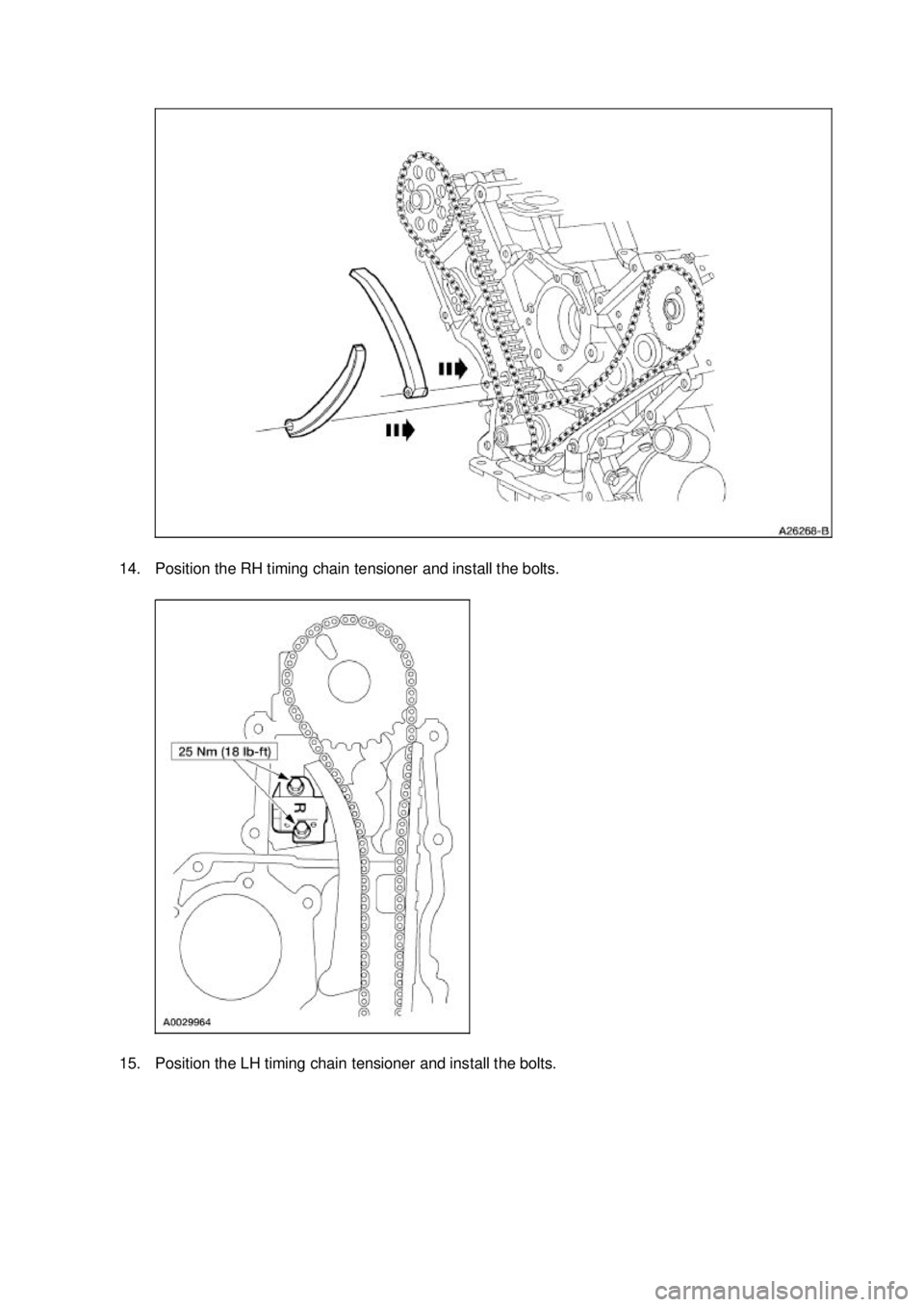

FORD MUSTANG 2003 Workshop Manual 14. Position the RH timing chain tensioner and install the bolts. 15. Position the LH timing chain tensioner and install the bolts. Klj . 10 ba 132003 Mustang Workshop Manual 17. 11. 2011fil

Page 1197 of 4378

FORD MUSTANG 2003 Workshop Manual 16. Remove the paper clip from the RH and the LH timing chain tensioners. 17. NOTE: Rotate the camshaft to the base circle of the camshaft lobe before installing the roller followers. NOTE: Keep

Page 1198 of 4378

FORD MUSTANG 2003 Workshop Manual 19. Install the eight ignition coils and bolts. 20. Connect the eight ignition coil electrical connectors. 21. Install the crankshaft sensor ring on the crankshaft. 22. Install the engine front cov

Page 1199 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 13 ba 132003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1200 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Valve Seals Removal and Installation 1. Remove the roller followers. For additional information, refer to Camshaft Roller Follower in this section. 2. Remove the spark plug (
