Page 1577 of 4378

FORD MUSTANG 2003 Workshop Manual 79. NOTE: LH is shown, RH is similar. Install the RH and LH radio ignition interference capacitors. 80. NOTE: LH is shown, RH is similar. Connect the two radio ignition interference capacitor ele

Page 1578 of 4378

FORD MUSTANG 2003 Workshop Manual 82. Connect the camshaft position (CMP) sensor electrical connector. 83. Install the power steering reservoir and mounting bolts. 84. Attach the wiring harness to the power steering support bracket.

Page 1579 of 4378

FORD MUSTANG 2003 Workshop Manual 86. Tighten the EGR tube to the exhaust manifold. 87. Connect the barometric pressure (BARO) sensor electrical connector. 88. Install and connect the positive crankcase ventilation (PCV) hose. 89.

Page 1580 of 4378

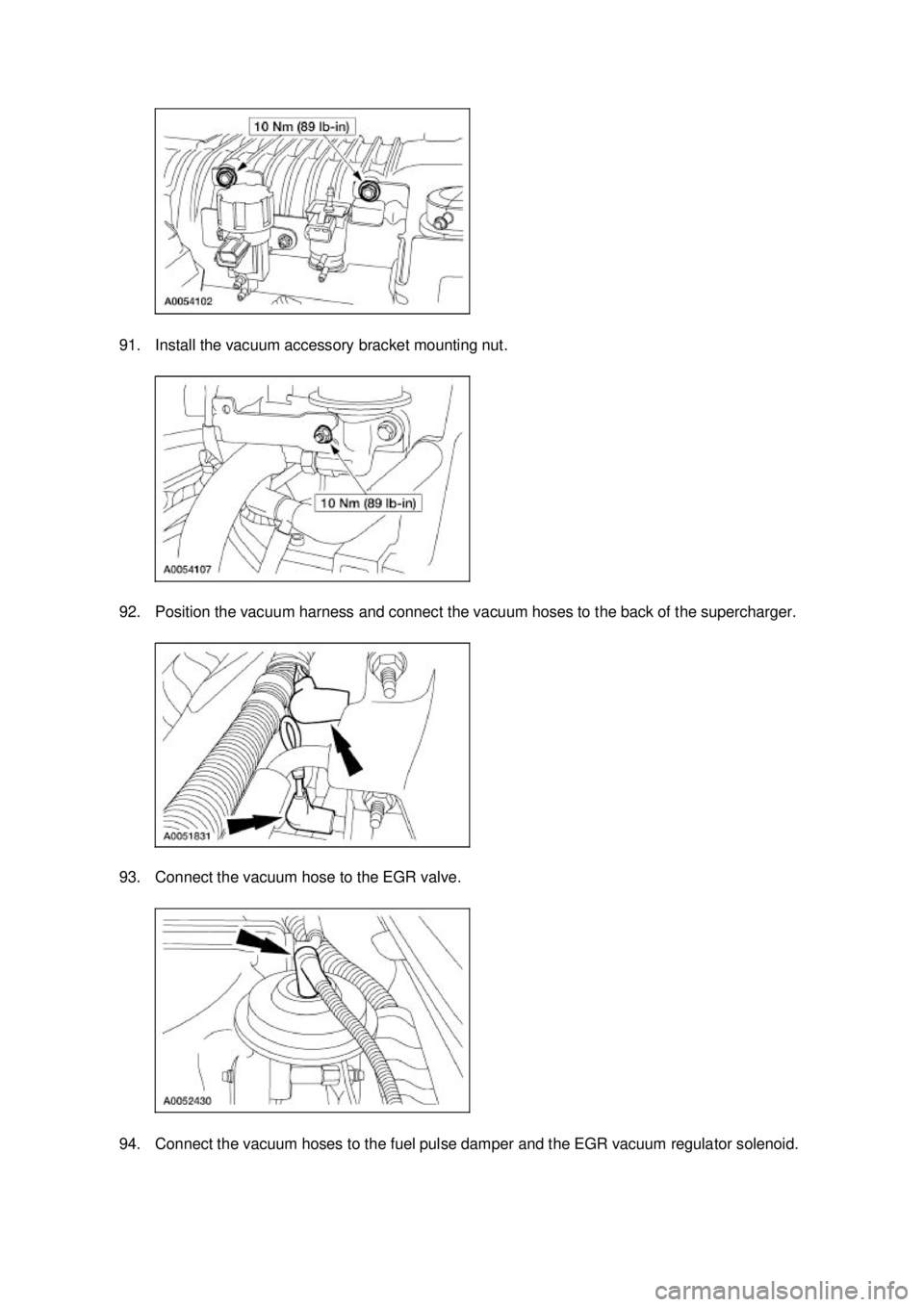

FORD MUSTANG 2003 Workshop Manual 91. Install the vacuum accessory bracket mounting nut. 92. Position the vacuum harness and connect the vacuum hoses to the back of the supercharger. 93. Connect the vacuum hose to the EGR valve. 94

Page 1581 of 4378

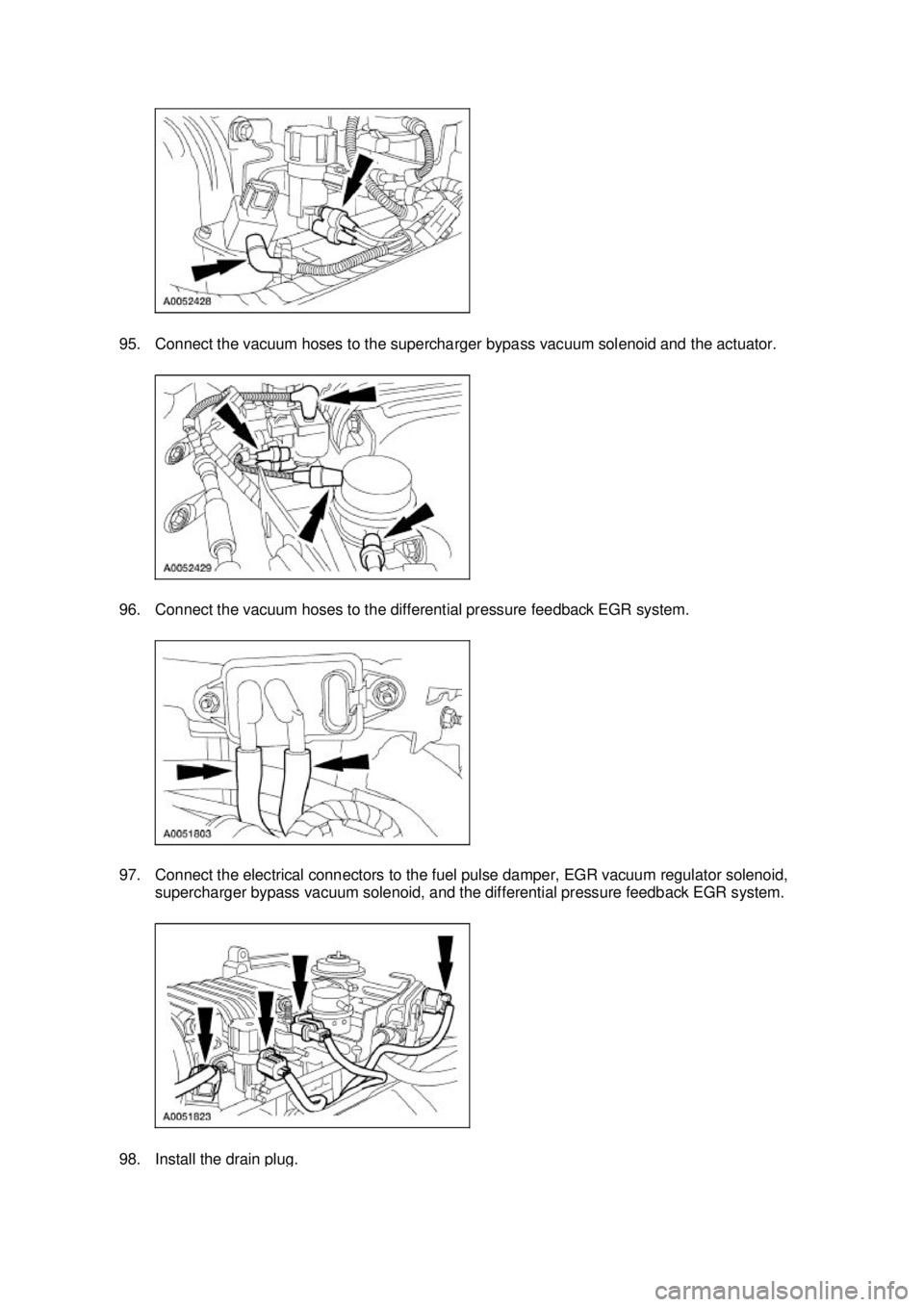

FORD MUSTANG 2003 Workshop Manual 95. Connect the vacuum hoses to the supercharger bypass vacuum solenoid and the actuator. 96. Connect the vacuum hoses to the differential pressure feedback EGR system. 97. Connect the electrical co

Page 1582 of 4378

FORD MUSTANG 2003 Workshop Manual 99. Install the special tools. 100. Attach the special tool to a floor crane and the engine, and remove the engine from the stand. 101. NOTE: If not secured within four minutes, the sealant must be

Page 1583 of 4378

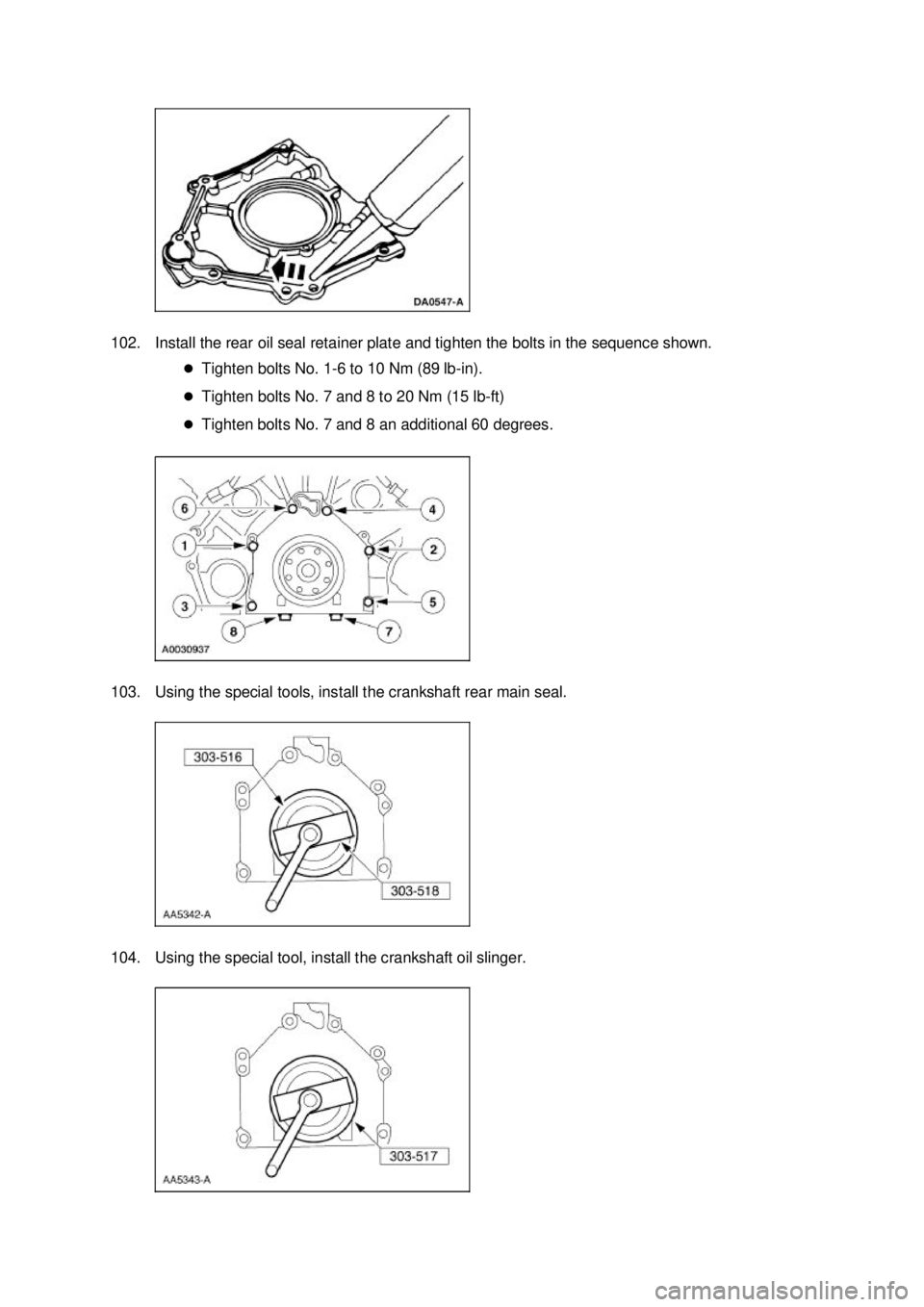

FORD MUSTANG 2003 Workshop Manual 102. Install the rear oil seal retainer plate and tighten the bolts in the sequence shown. �zTighten bolts No. 1- 6 to 10 Nm (89 lb-in). �z Tighten bolts No. 7 and 8 to 20 Nm (15 lb- ft) �z Tighten

Page 1584 of 4378

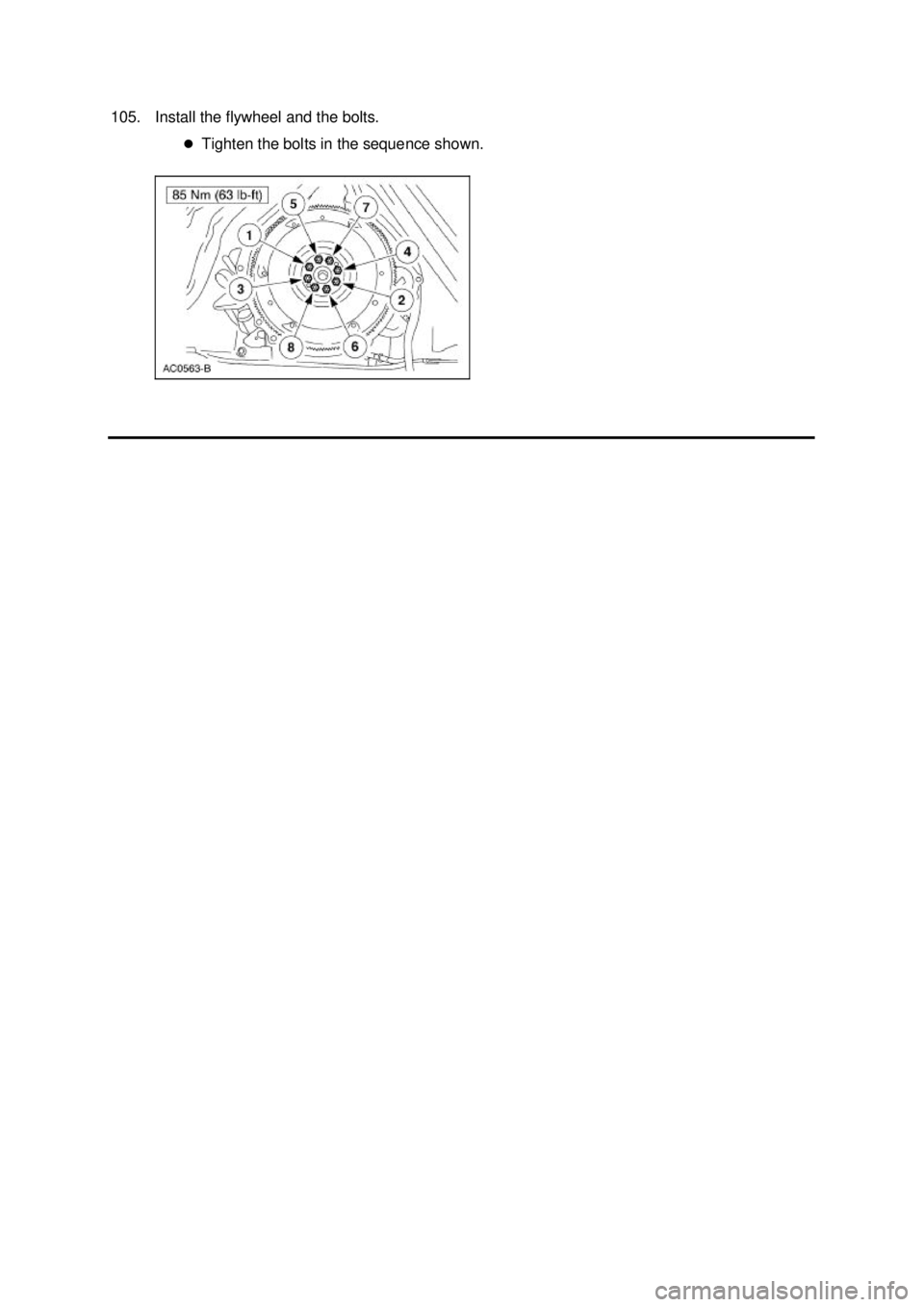

FORD MUSTANG 2003 Workshop Manual 105. Install the flywheel and the bolts. �zTighten the bolts in the sequence shown. Klj . 35 ba 352003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~
