FORD MUSTANG 2003 Workshop Manual INSTALLATION Engine Installation 1. Install the engine in the vehicle and remove the floor crane and the special tool. SECTION 303- 01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Sp

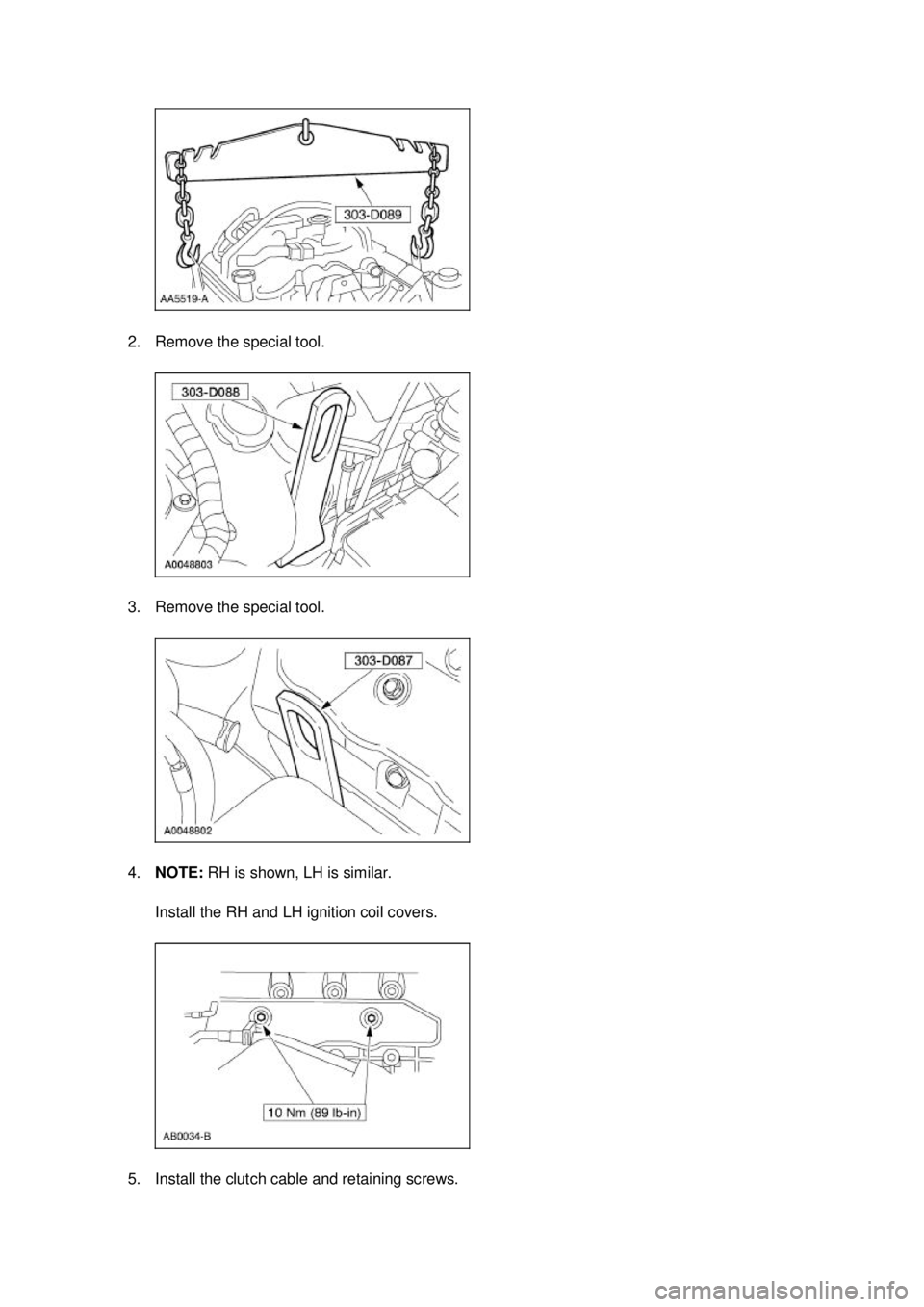

Page 1586 of 4378

FORD MUSTANG 2003 Workshop Manual 2. Remove the special tool. 3. Remove the special tool. 4. NOTE: RH is shown, LH is similar. Install the RH and LH ignition coil covers. 5. Install the clutch cable and retaining screws. Klj

Page 1587 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 7. NOTE: RH is shown, LH is similar. Install the two engine mount nuts. 8. Install the degas bottle supp

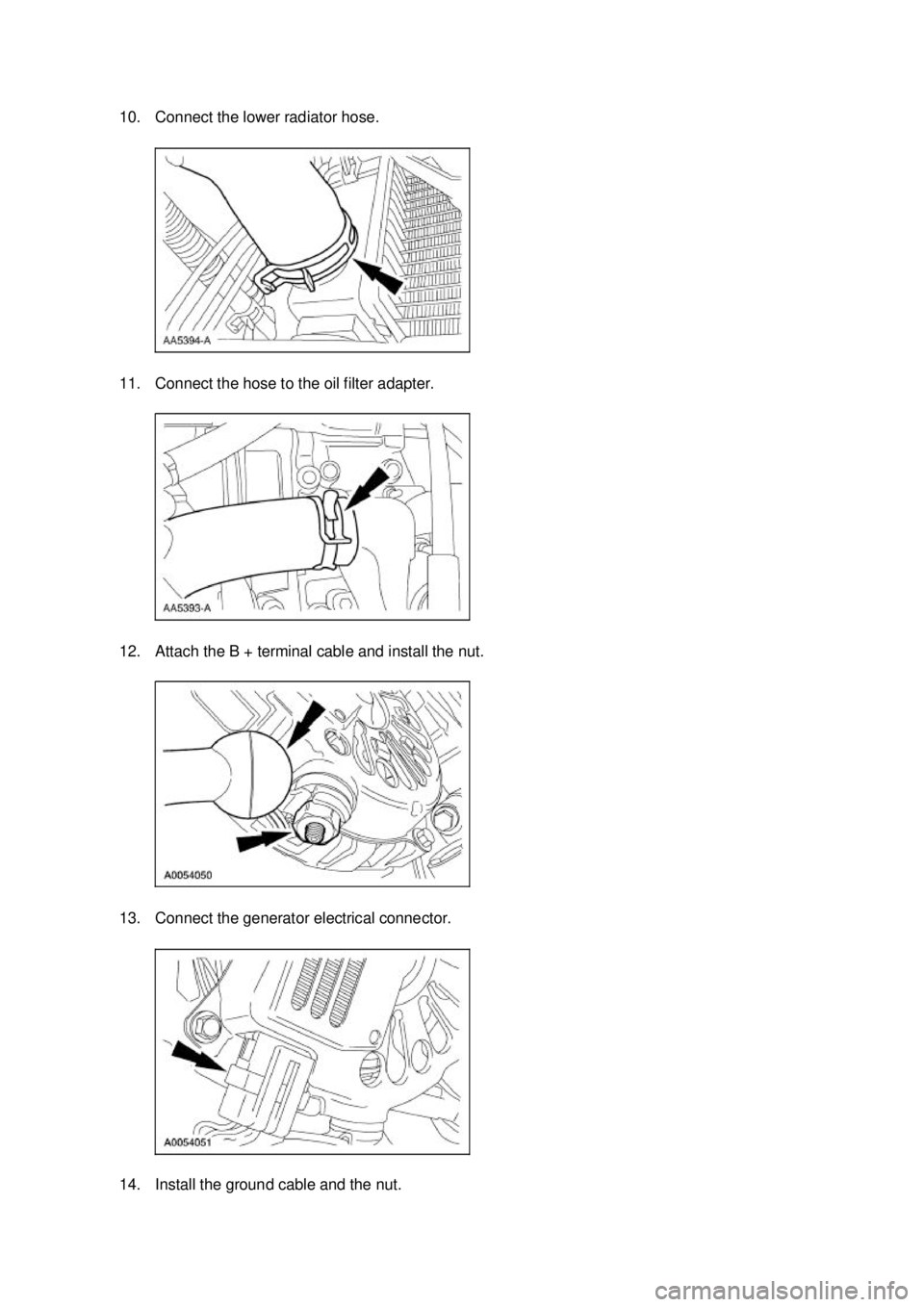

Page 1588 of 4378

FORD MUSTANG 2003 Workshop Manual 10. Connect the lower radiator hose. 11. Connect the hose to the oil filter adapter. 12. Attach the B + terminal cable and install the nut. 13. Connect the generator electrical connector. 14. Inst

Page 1589 of 4378

FORD MUSTANG 2003 Workshop Manual 15. Position the wiring harness bracket and install the nut. 16. NOTE: RH is shown, LH is similar. Position the exhaust and install the manifold flange nuts. 17. Connect the transmission wiring ha

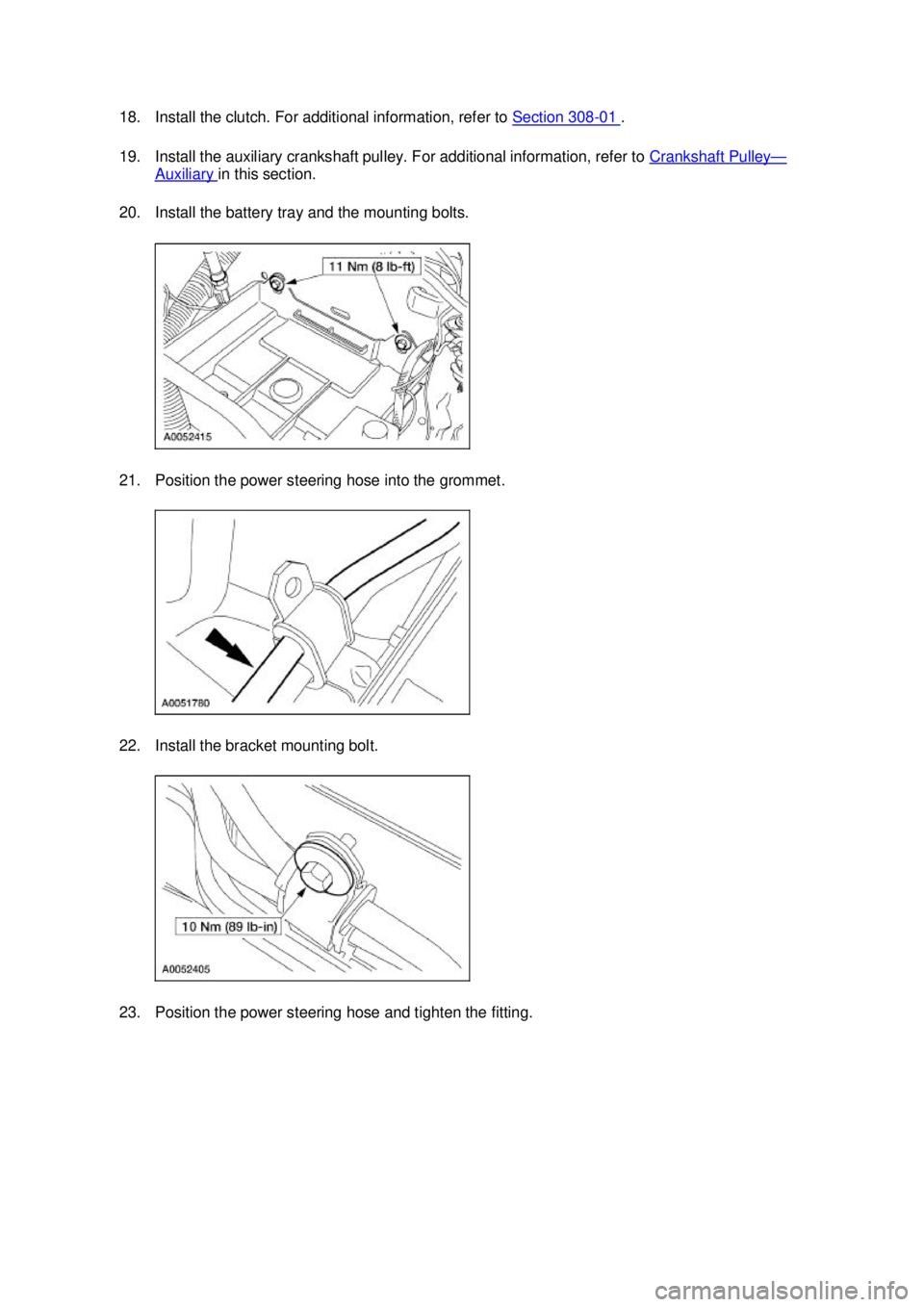

Page 1590 of 4378

FORD MUSTANG 2003 Workshop Manual 18. Install the clutch. For additional information, refer to Section 308 - 01 . 19. Install the auxiliary crankshaft pulley. For additional information, refer to Crankshaft Pulley — Auxiliary i

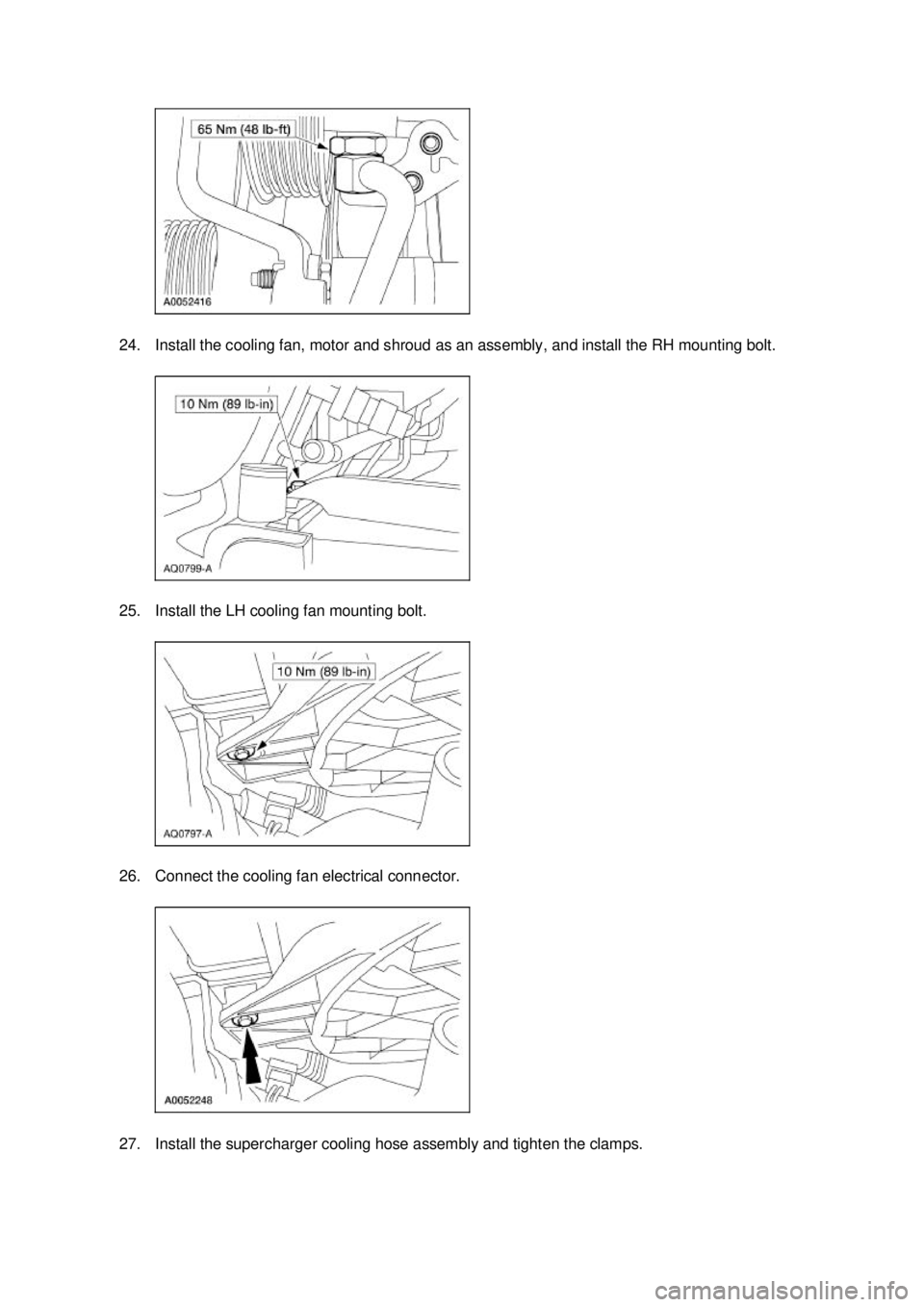

Page 1591 of 4378

FORD MUSTANG 2003 Workshop Manual 24. Install the cooling fan, motor and shroud as an assembly, and install the RH mounting bolt. 25. Install the LH cooling fan mounting bolt. 26. Connect the cooling fan electrical connector. 27. I

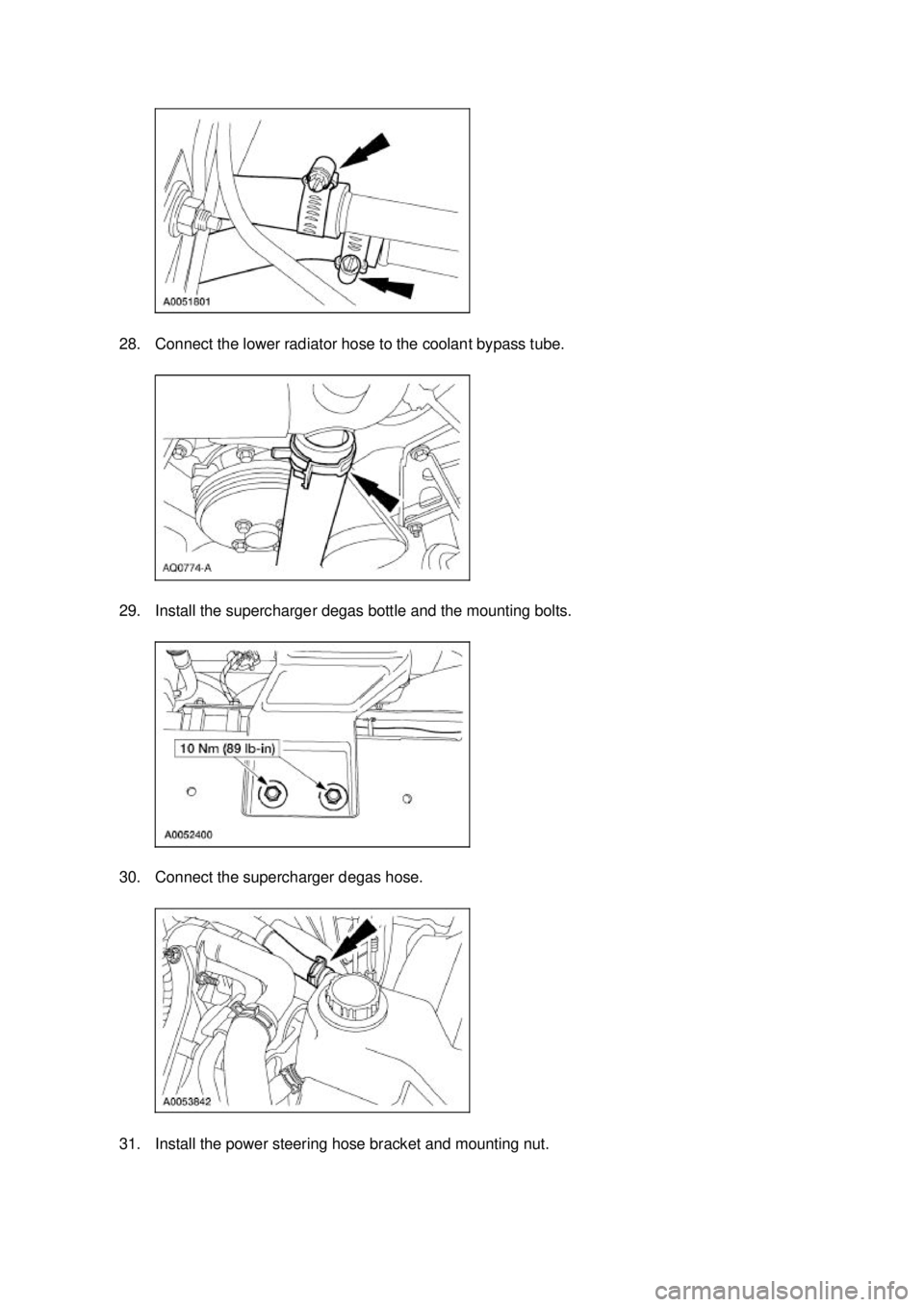

Page 1592 of 4378

FORD MUSTANG 2003 Workshop Manual 28. Connect the lower radiator hose to the coolant bypass tube. 29. Install the supercharger degas bottle and the mounting bolts. 30. Connect the supercharger degas hose. 31. Install the power stee
