FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES
Inspection and Repair After a Supplemental Restraint
System (SRS) Deployment
WARNING: If the supplemental restraint system (SRS) is being serviced, the system must
be deactivat

GENERAL PROCEDURES
Inspection and Repair After a Supplemental Restraint
System (SRS) Deployment
WARNING: If the supplemental restraint system (SRS) is being serviced, the system must
be deactivated and restraint system diagnostic tools must be installed. Refer to Air Bag Supplemental Restraint System (SRS) in this section.
The air bag restraint system diagnostic tools must be removed and the air bag modules
reconnected when the system is reactivated to avoid non- deployment in a collision, resulting in
possible personal injury.
NOTE: Diagnostics or repairs are not to be performed on a seat equipped with a seat side air bag with
the seat in the vehicle. Prior to attempting to diagnose or repair a seat concern when equipped with a
seat side air bag, the seat must be removed from the vehicle and the restraint system diagnostic tools
must be installed in the seat side air bag electrical connectors. The restraint system diagnostic
tools must be removed prior to operating the vehicle over the road.
NOTE: After diagnosing or repairing a SRS the restraint system diagnostic tools must be removed
before operating the vehicle over the road.
NOTE: After diagnosing or repairing a seat system the restraint system diagnostic tools must be
removed before operating the vehicle over the road.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the
customer.
1. When any deployable device (driver air bag, passenger air bag, seat side air bag, safety belt pretensioner, etc.) or combination of devices are deployed and/or the RCM has the DTC B1231
(Crash Data Memory Full) in memory, the repair of the vehicle's supplemental restraint system
(SRS) is to include the removal of all deployed devices and installation of new deployable
devices, the removal and installation of new impact sensors, and the removal and installation of
a new RCM.
2. When any damage to the impact sensor mounting points or mounting hardware has occurred, repair or install new mounting points and mounting hardware as needed.
3. When the driver air bag module has deployed a new clockspring must be installed.
4. Inspect the entire vehicle for damage, including the following components: zsteering column.
z instrument panel knee bolsters and mounting points.
z instrument panel braces and brackets.
z instrument panel and mounting points.
z seats and seat mounting points.
z safety belts, safety belt buckles, and safety belt retractors. For additional information,
refer to Section 501 - 20A .
z supplemental restraint system (SRS) wiring, wiring harnesses, and connectors.
5. After carrying out the review and inspection of the entire vehicle for damage, repair or install new components as needed.
SECTION 501-
20B: Supplemental Restraint System 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 4075 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 4076 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES
Air Bag Disposal —
Deployed Air Bag
1. WARNING: Always wear safety glasses when repairing an air bag supplemental
restraint system (SRS) vehicle and when handling an air bag m

Page 4077 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES
Air Bag Disposal —
Undeployed Inoperative
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint
system (SRS) vehicle and when handling an air ba

Page 4078 of 4378

Page 4079 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES
Air Bag Disposal —
Driver, Undeployed, Scrapped Vehicle
Remote Deployment WARNING: Always wear safety glasses when repairing an air bag supplemental restraint
system (SRS) ve

Page 4080 of 4378

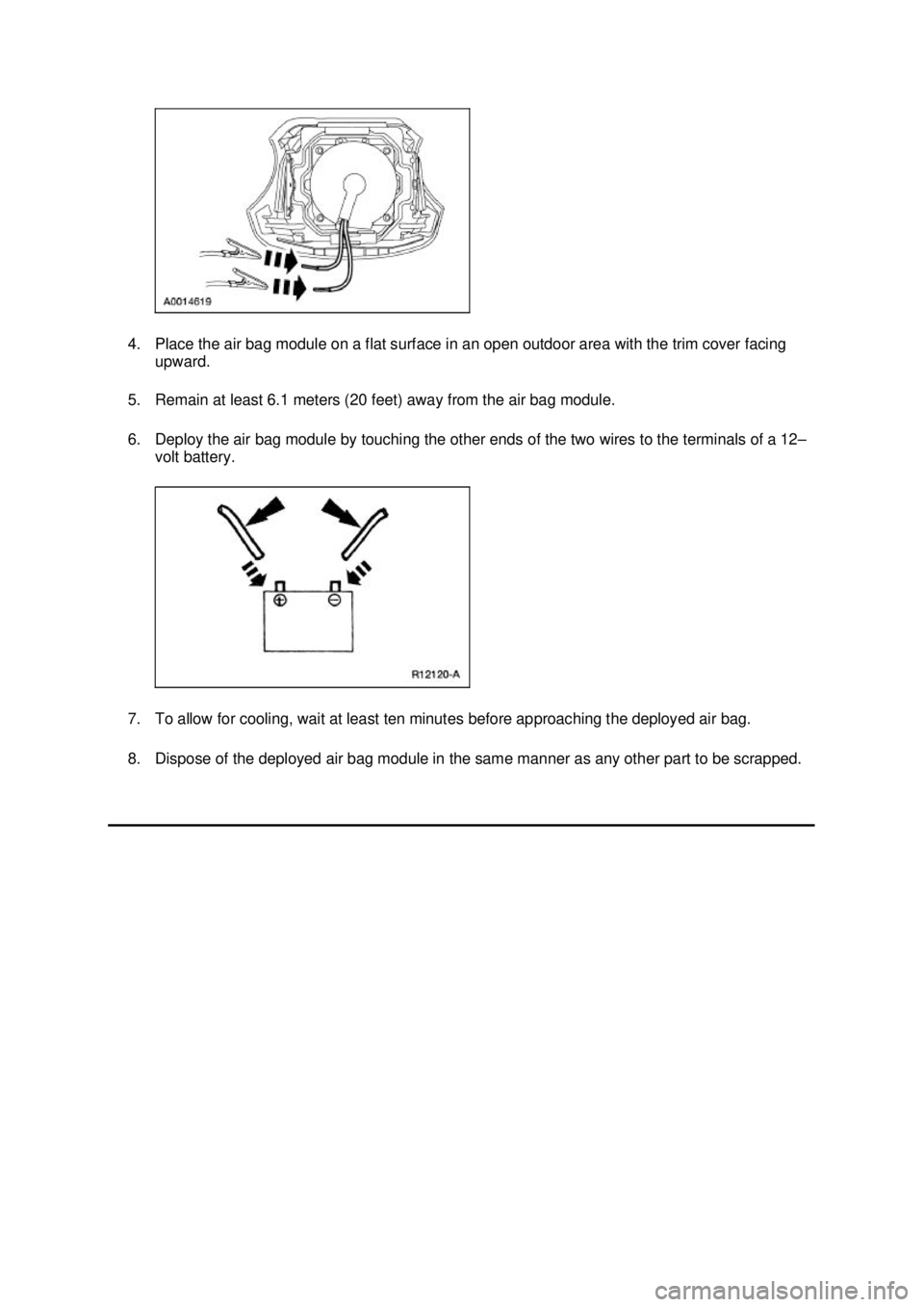

FORD MUSTANG 2003 Workshop Manual 4. Place the air bag module on a flat surface in an open outdoor area with the trim cover facing
upward.
5. Remain at least 6.1 meters (20 feet) away from the air bag module.
6. Deploy the air bag

Load next 8 pages
