Page 3305 of 4378

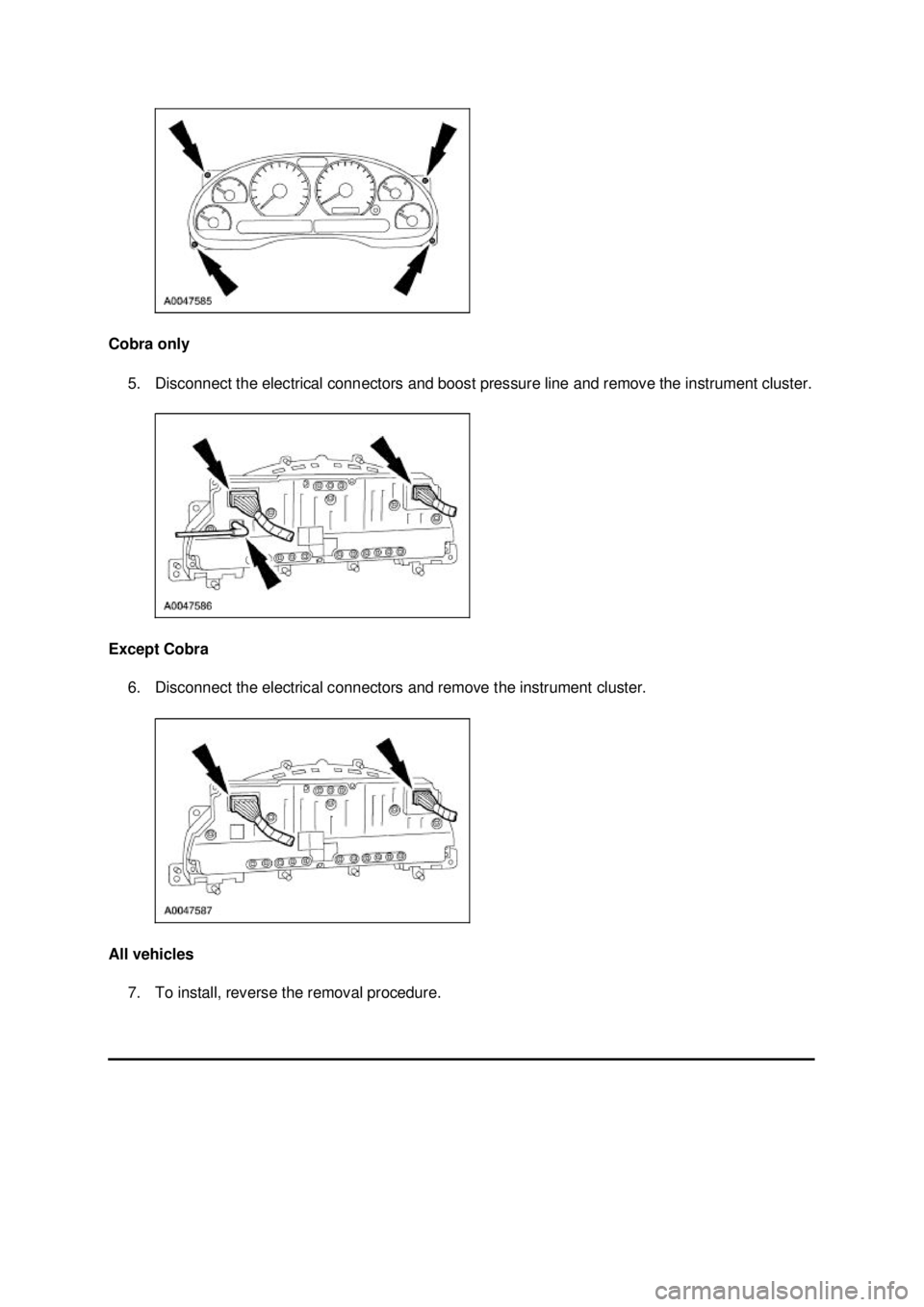

FORD MUSTANG 2003 Workshop Manual Cobra only 5. Disconnect the electrical connectors and boost pressure line and remove the instrument cluster. Except Cobra 6. Disconnect the electrical connectors and remove the instrument cluster.

Page 3306 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3307 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Warning Indicator Bulb Removal and Installation 1. Remove the instrument cluster. Refer to Instrument Cluster in this section. 2. Remove the necessary instrument cluster

Page 3308 of 4378

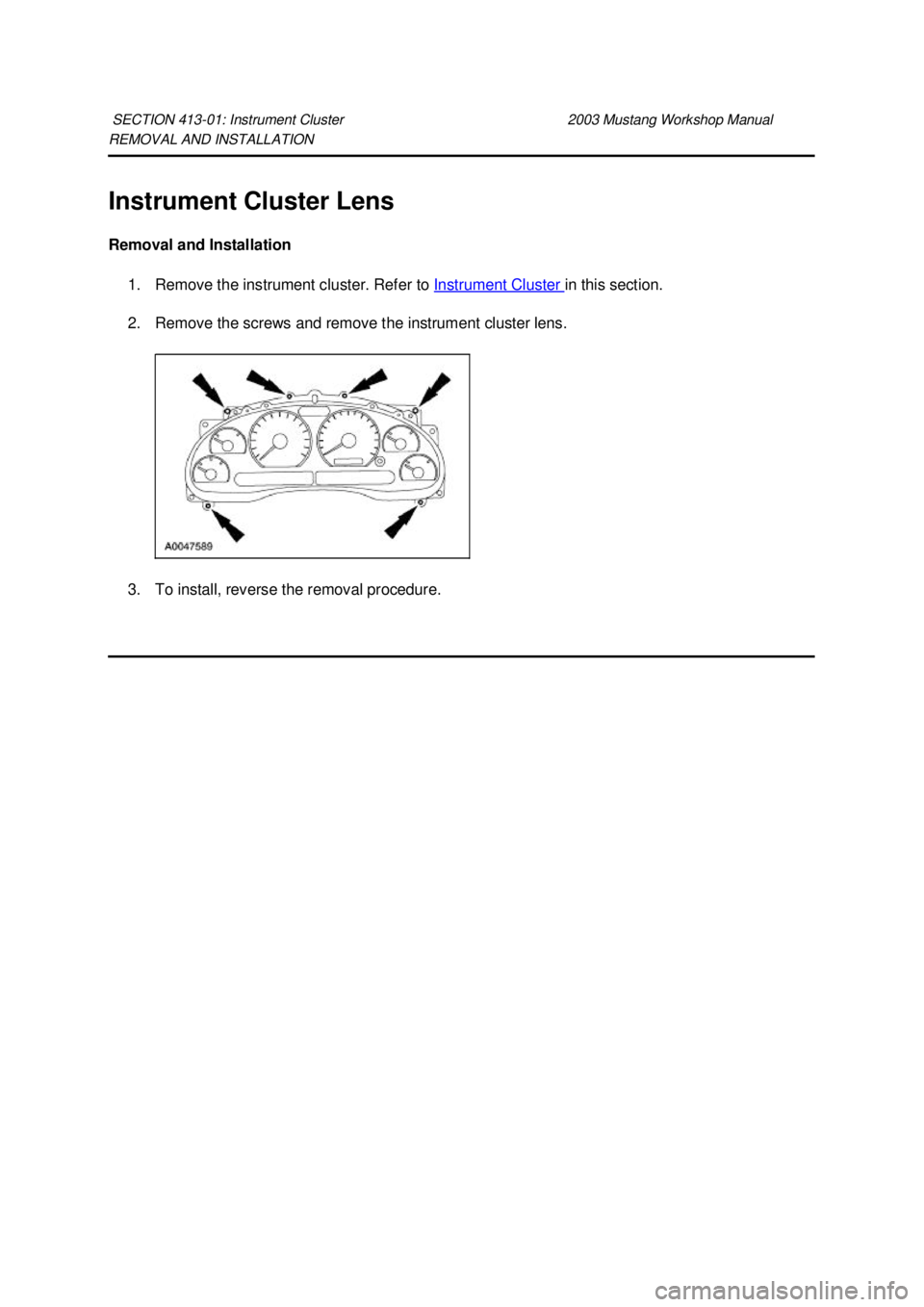

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Instrument Cluster Lens Removal and Installation 1. Remove the instrument cluster. Refer to Instrument Cluster in this section. 2. Remove the screws and remove the instr

Page 3309 of 4378

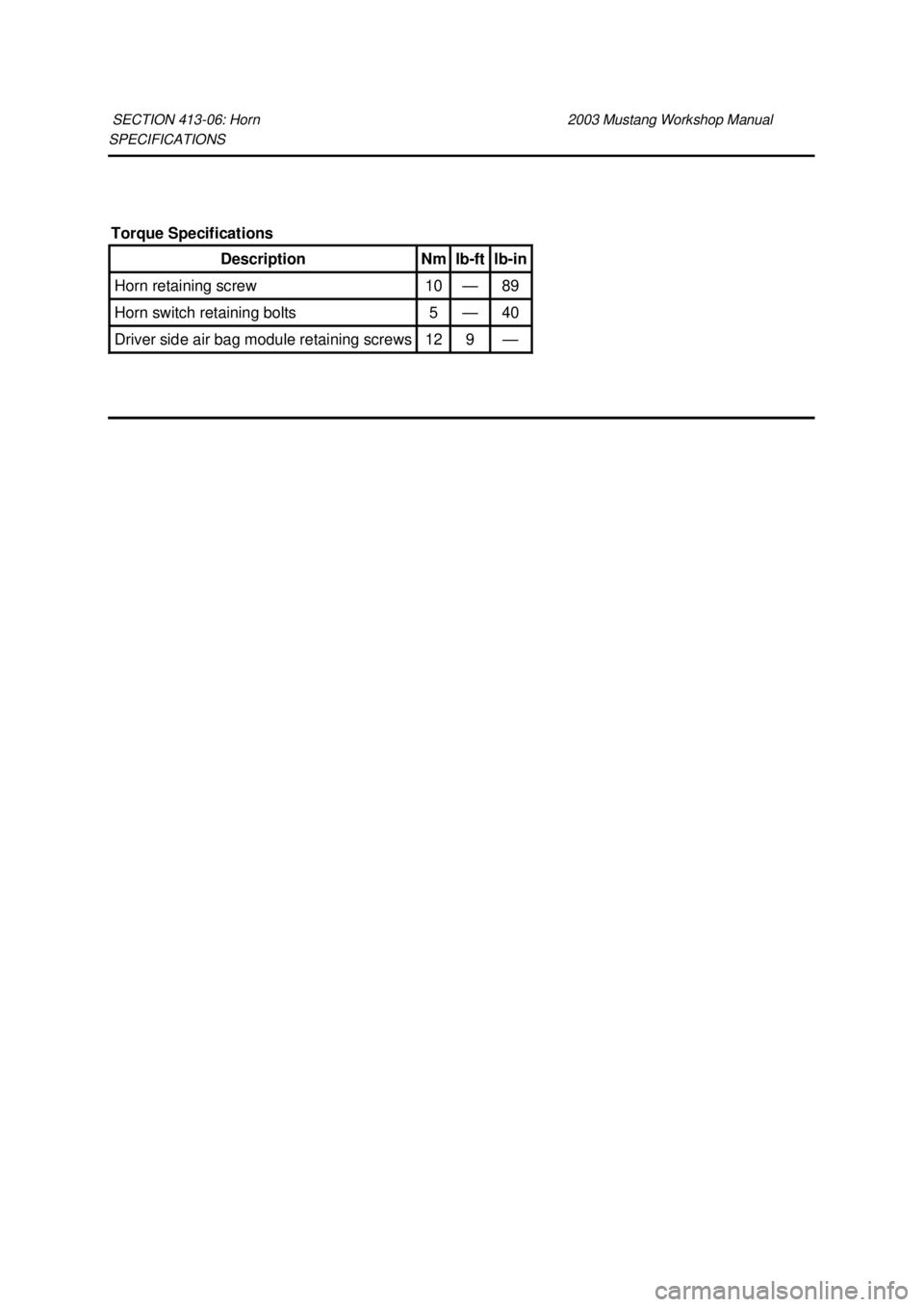

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 413- 06: Horn 2003 Mustang Workshop Manual Torque Specifications Description Nm lb- ft lb- in Horn retaining screw 10 — 89 Horn switch retaining bolts 5 — 40 Dr

Page 3310 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Horn The horn system consists of the following: �zdual horns (one high-pitched, one low- pitched) �z horn switch (located underneath the driver side air bag module [043B1

Page 3311 of 4378

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Horn Refer to Wiring Diagrams Cell 44 , Horns/Cigar Lighter for schematic and connector information. Inspection and Verification 1. Verify the customer concern by operating

Page 3312 of 4378

FORD MUSTANG 2003 Workshop Manual Pinpoint Tests PINPOINT TEST A: THE HORN DOES NOT SOUND module. �z Horn switch. Test Step Result / Action to Take A1 CHECK POWER SUPPLY TO HORN RELAY �z Disconnect: Horn Relay. �z Measure the
