Page 2337 of 4378

FORD MUSTANG 2003 Workshop Manual manual.
P1460 A/C A/C clutch
cycling
pressure
switch error A/C or defrost on
condition may
result from A/C
clutch being on
during on-
board
diagnostic. DTC set during on-
board diagnostic

manual.
P1460 A/C A/C clutch
cycling
pressure
switch error A/C or defrost on
condition may
result from A/C
clutch being on
during on-
board
diagnostic. DTC set during on-
board diagnostic,
repeat with A/C off.
Failed on, EPC
pressure slightly
low with A/C OFF. REFER to the
Powertrain
Control/Emissions
Diagnosis (PC/ED)
manual.
P1636 PCM PCM detected
internal error — — REFER to the
Powertrain
Control/Emissions
Diagnosis (PC/ED)
manual.
P1703 BPP BPP switch
circuit failed. Brake ON/OFF
circuit failure. Failed ON or not
connected —
torque converter
clutch will not
engage at less than
1/3 throttle. Failed
OFF or not
connected —
torque converter
clutch will not
disengage when
brake is applied. REFER to the
Powertrain
Control/Emissions
Diagnosis (PC/ED)
manual.
P1703 BPP Brake not
actuated
during on-
board
diagnostic Brake not cycled
during KOER. Failed OFF or not
connected —
torque converter
clutch will not
engage at less than
1/3 throttle. Failed
OFF or not
connected —
torque converter
clutch will not
disengage when
brake is applied. REFER to the
Powertrain
Control/Emissions
Diagnosis (PC/ED)
manual.
P0740 TCC, wiring,
PCM TCC electrical
circuit failure TCC circuit fails to
provide voltage
drop across
solenoid. Circuit
open or shorted or
PCM driver failed
during on-
board
diagnostic. Short circuit: engine
stalls in second
(OD, 2 range) at
low idle speeds with
brake applied.
Open circuit: torque
converter clutch
never engages.
Flashing
Transmission
Control Indicator
Lamp (TCIL). Go To Pinpoint
Test A .
P1740 TCC TCC
malfunction Mechanical failure
of the solenoid
detected. Failed ON —
Engine stalls in 2nd
(O/D, Manual 2
ranges) at low idle
speeds with brake
applied. Failed OFF
—
Torque
Converter never
applies. Go To Pinpoint
Test F .
P1741
b TCC,
internal Excessive
torque Excessive
variations in slip Engine rpm
oscillation is Go To Pinpoint
Test A . Klj . 6 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2338 of 4378

FORD MUSTANG 2003 Workshop Manual a
Output circuit check, generated only by electrical symptoms.
b May also be generated by some other non- electric transmission hardware system.
Rotunda Transmission Tester
The Transmission Teste

a
Output circuit check, generated only by electrical symptoms.
b May also be generated by some other non- electric transmission hardware system.
Rotunda Transmission Tester
The Transmission Tester is used to diagnosis the digital transmission range sensor and is used in
conjunction with the pinpoint tests. The tests should be carried out in order. Installing the Transmission
Tester allows separation of the vehicle electronics from transmission electronics; refer to the
Transmission Tester manual for these tests.
zDigital Transmission Range (TR) Sensor Testing components converter
clutch
engagement
error (engine speed
surge) across the
torque converter
clutch. present in 3rd gear.
P1742 TCC,
internal
components TCC solenoid
failed ON TCC solenoid has
failed on by
electric,
mechanical or
hydraulic concern. Harsh shifts. Go To Pinpoint
Test A .
P1743 TCC,
internal
components TCC solenoid
failed ON TCC solenoid has
failed ON by
electric,
mechanical or
hydraulic concern. Harsh shifts. Go To Pinpoint
Test A .
P1744 TCC TCC The PCM picked
up an excessive
amount of TCC
slippage during
normal vehicle
operation. TCC
slippage/erratic or
no torque converter
clutch operation. GO to Diagnosis by
Symptom.
P1767 TCC TCC solenoid
circuit failure
during OBD
Test TCC solenoid
circuit fails to
provide voltage
drop across
solenoid. Circuit
open or shorted or
PCM Driver failure
during OBD Test. Short circuit: engine
stalls in second
(O/D, 2 range) at
low idle speeds with
brake applied.
Open circuit:
Torque Converter
never engages. Go To Pinpoint
Test A .
P1780 TCS TCS not
changing
states TCS not cycled
during self-
test.
TCS circuit open
or shorted. Rerun on-
board
diagnostic and
cycle switch. No
OD cancel when
switch is cycled. REFER to the
Powertrain
Control/Emissions
Diagnosis (PC/ED)
manual.
— TCIL TCIL circuit
failure TCIL circuit open
or shorted. Failed on, OD
cancel mode on. No
flashing TCIL for
EPC failure or
sensor. Failed off,
OD cancel mode
never indicated. No
flashing TCIL for
EPC sensor failure. REFER to the
Powertrain
Control/Emissions
Diagnosis (PC/ED)
manual
P1709 PNP switch PNP switch
out of self-
test
range Vehicle not in
PARK or
NEUTRAL during
on-
board
diagnostic. Rerun on-
board
diagnostic in PARK
or NEUTRAL. Go To Pinpoint
Test C . Klj . 7 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2339 of 4378

FORD MUSTANG 2003 Workshop Manual �z

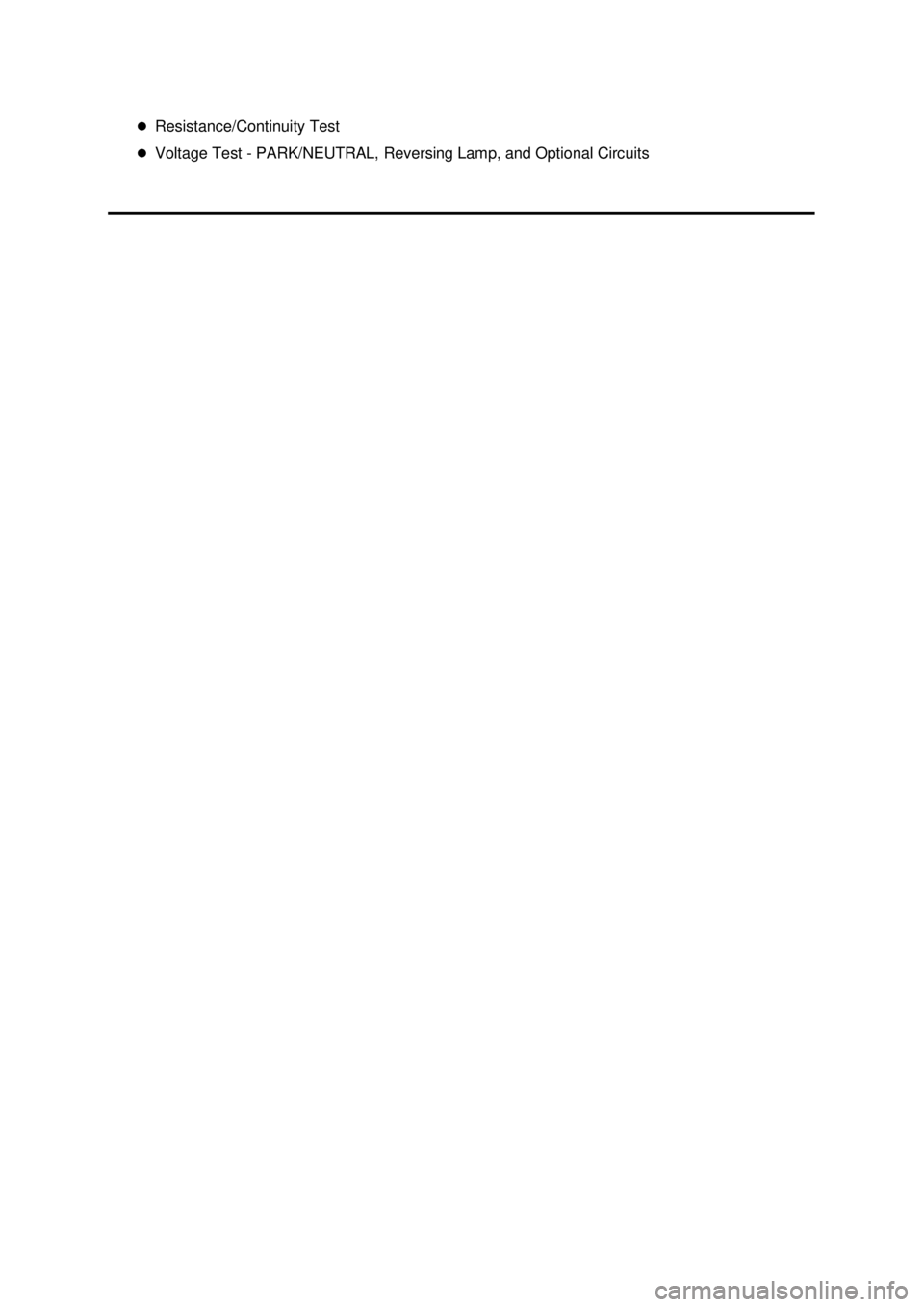

Resistance/Continuity Test
�z Voltage Test - PARK/NEUTRAL, Reversing Lamp, and Optional Circuits Klj . 8 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/

Page 2340 of 4378

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING
Transmission Connector Layouts
Transmission Vehicle Harness Connector
Transmission Internal Harness Connector SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang

Page 2341 of 4378

FORD MUSTANG 2003 Workshop Manual Digital Transmission Range (TR) Sensor Connector Pin Number Circuit Circuit Function
1 — NOT USED
2 — Signal Return Transmission Fluid Temperature (TFT)
3 — Torque Converter Clutch (TCC

Page 2342 of 4378

FORD MUSTANG 2003 Workshop Manual Output Shaft Speed (OSS) Sensor Harness Connector 1 — NOT USED
2 — Signal Return
3 — TR3A
4 — TR1
5 — TR2
6 — TR4
7 — NOT USED
8 — NOT USED
9 — Fused Power Feed
10

Page 2343 of 4378

FORD MUSTANG 2003 Workshop Manual a
Will read "Drive" if O/D is canceled.
A. TR_V is the voltage at the PCM pin 64 (TR3A Circuit) to signal return.
B. "In Between" reading could be caused by a shift cable or digital TR sensor misal

Page 2344 of 4378

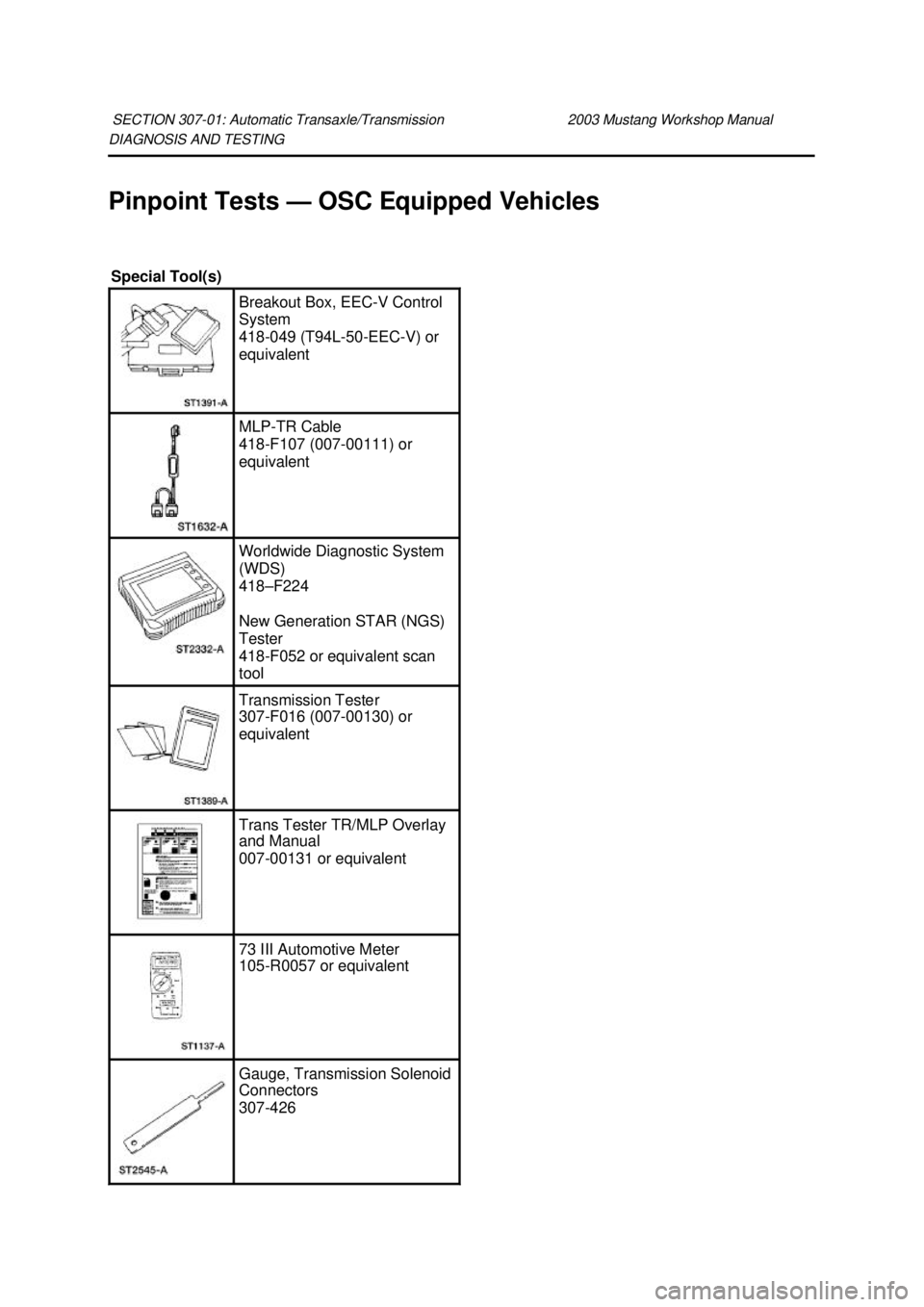

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING
Pinpoint Tests —
OSC Equipped Vehicles
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Breakout Box, EEC-V Control
System
4
