Page 545 of 4378

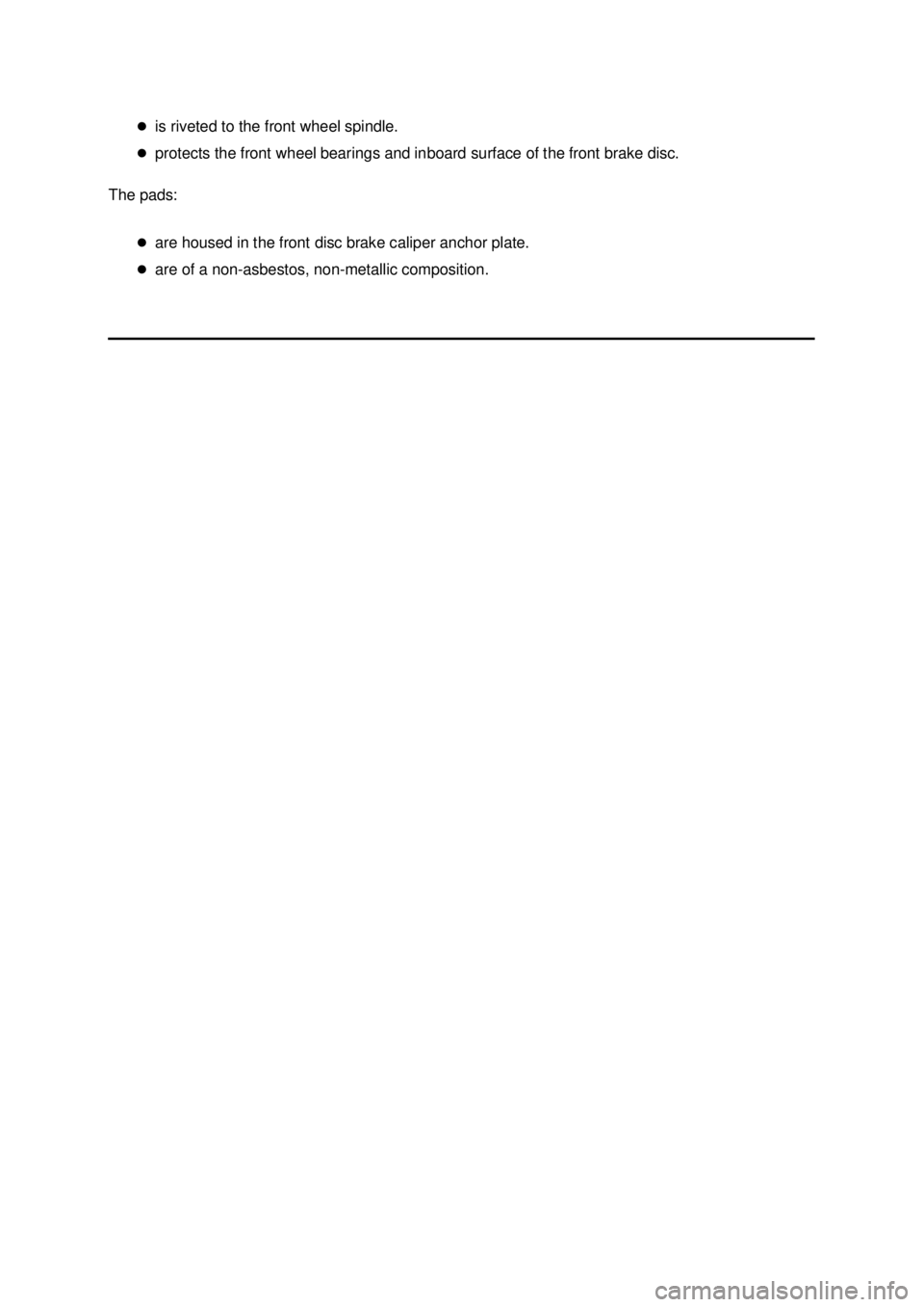

FORD MUSTANG 2003 Workshop Manual �z is riveted to the front wheel spindle. �z protects the front wheel bearings and inboard surface of the front brake disc. The pads: �zare housed in the front disc brake caliper anchor plate. �z

Page 546 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Pads Removal 1. Remove brake master cylinder filler cap (2162). Check brake fluid level in brake master cylinder reservoir (2K478). Remove fluid until brake master cylinde

Page 547 of 4378

FORD MUSTANG 2003 Workshop Manual 6. CAUTION: Do not pry in caliper sight hole to retract pistons as this can damage the pistons and boots. CAUTION: When removing the disc brake caliper (2B120), never allow it to hang from the br

Page 548 of 4378

FORD MUSTANG 2003 Workshop Manual 8. Measure the front brake disc thickness. �zInstall a new front brake disc (1125) if not within specification. 9. Inspect the disc brake caliper. �zIf leaks or damaged boots are found, disassembly

Page 549 of 4378

FORD MUSTANG 2003 Workshop Manual 10. Inspect the front disc brake anchor plate assembly. �zCheck the guide pin boots for damage. �z Check the guide pins for binding and damage. �z Worn or damaged pins should be installed new. Ins

Page 550 of 4378

FORD MUSTANG 2003 Workshop Manual 2. NOTE: Use a wood block or used pad to protect pistons and boots. Compress the caliper pistons (2196). 3. Make sure the anti- rattle spring is correctly positioned in the caliper. Klj . 5 b

Page 551 of 4378

FORD MUSTANG 2003 Workshop Manual 4. CAUTION: Use care not to damage the bleeder screw or front brake disc shield. Install the disc brake caliper. 1. Hold the guide pins stationary. 2. Install the caliper bolts. 5. Install the wh

Page 552 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 7 ba 72003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
