Page 1145 of 4378

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Engine For basic mechanical concerns, refer to Section 303 - 00 . Refer to the Powertrain Control/Emissions Diagnosis (PC/ED) manual. SECTION 303- 01B: Engine — 4.6L (2V)

Page 1146 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Intake Manifold Removal 1. Drain the engine cooling system. For additional information, refer to Section 303 - 03A or Section 303 - 03B . 2. Remove the air cleaner outlet t

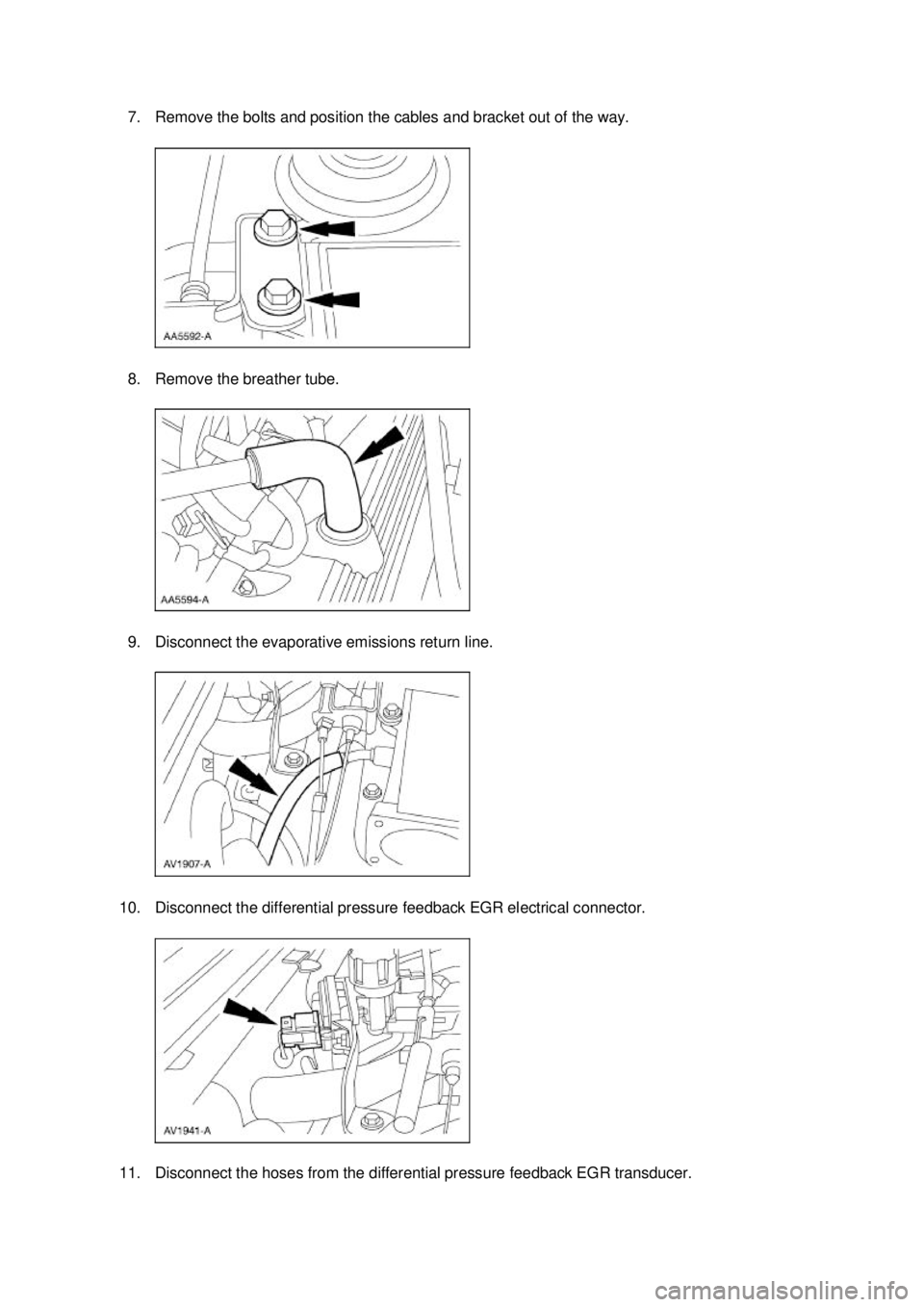

Page 1147 of 4378

FORD MUSTANG 2003 Workshop Manual 7. Remove the bolts and position the cables and bracket out of the way. 8. Remove the breather tube. 9. Disconnect the evaporative emissions return line. 10. Disconnect the differential pressure fe

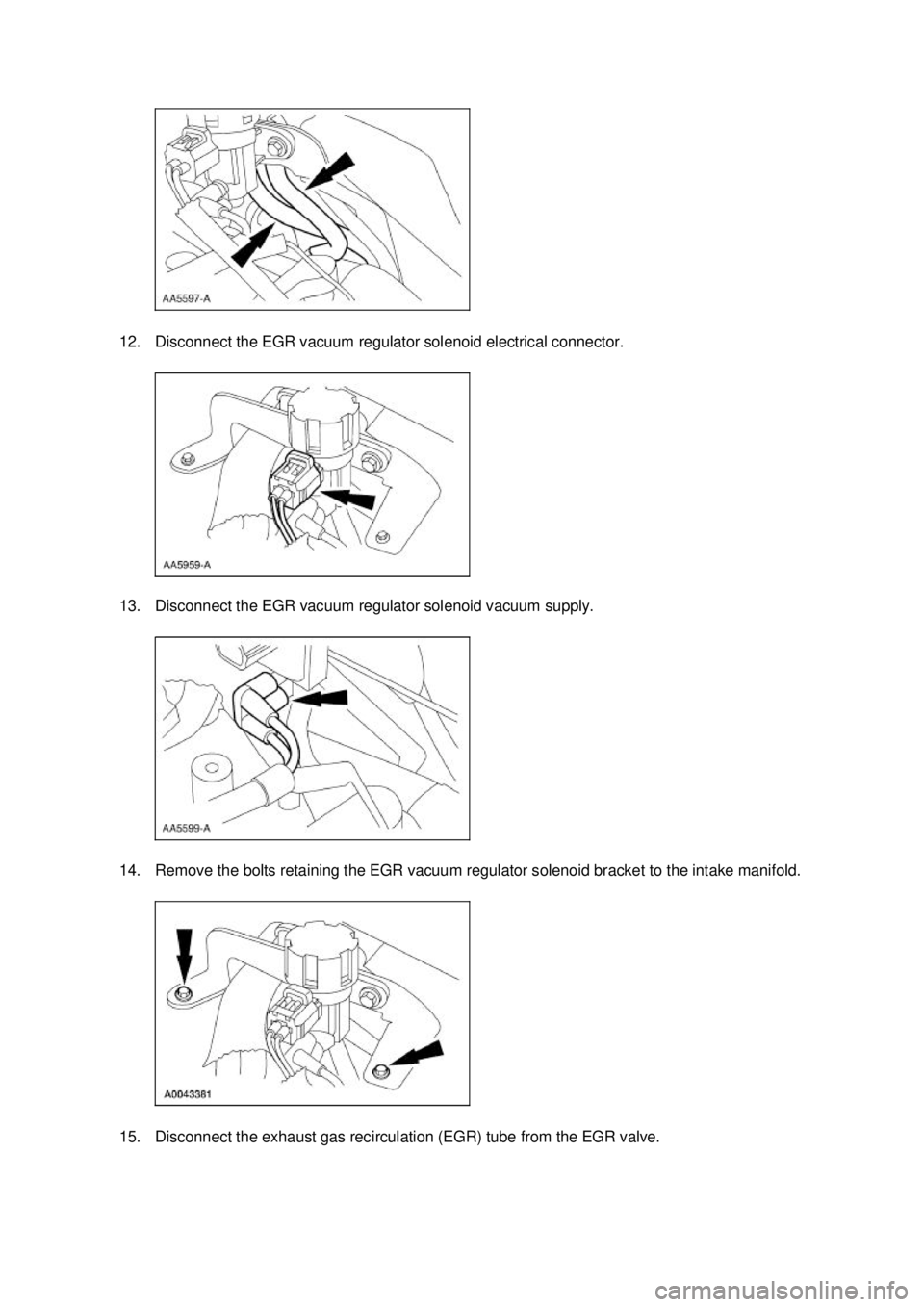

Page 1148 of 4378

FORD MUSTANG 2003 Workshop Manual 12. Disconnect the EGR vacuum regulator solenoid electrical connector. 13. Disconnect the EGR vacuum regulator solenoid vacuum supply. 14. Remove the bolts retaining the EGR vacuum regulator solenoi

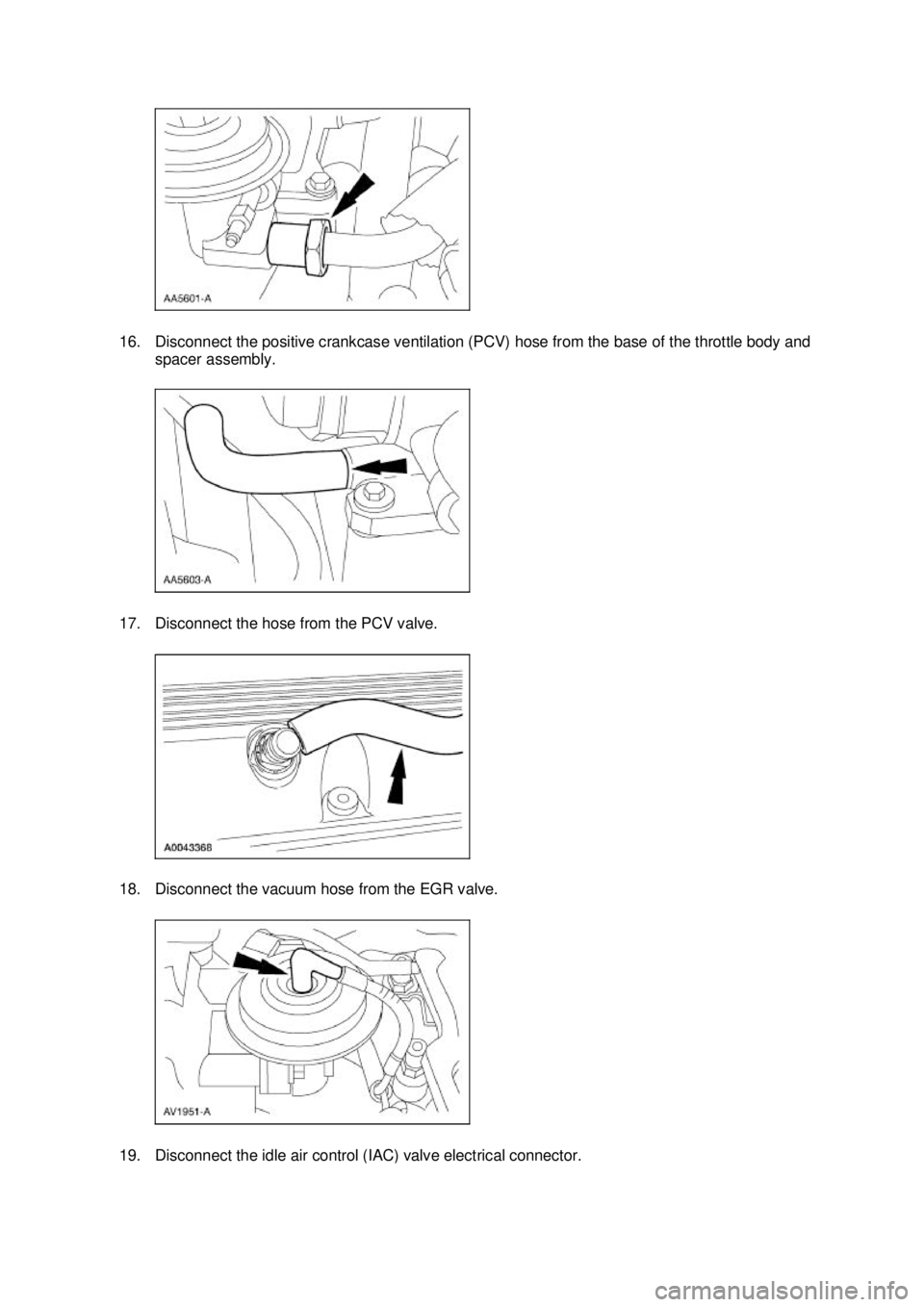

Page 1149 of 4378

FORD MUSTANG 2003 Workshop Manual 16. Disconnect the positive crankcase ventilation (PCV) hose from the base of the throttle body and spacer assembly. 17. Disconnect the hose from the PCV valve. 18. Disconnect the vacuum hose from

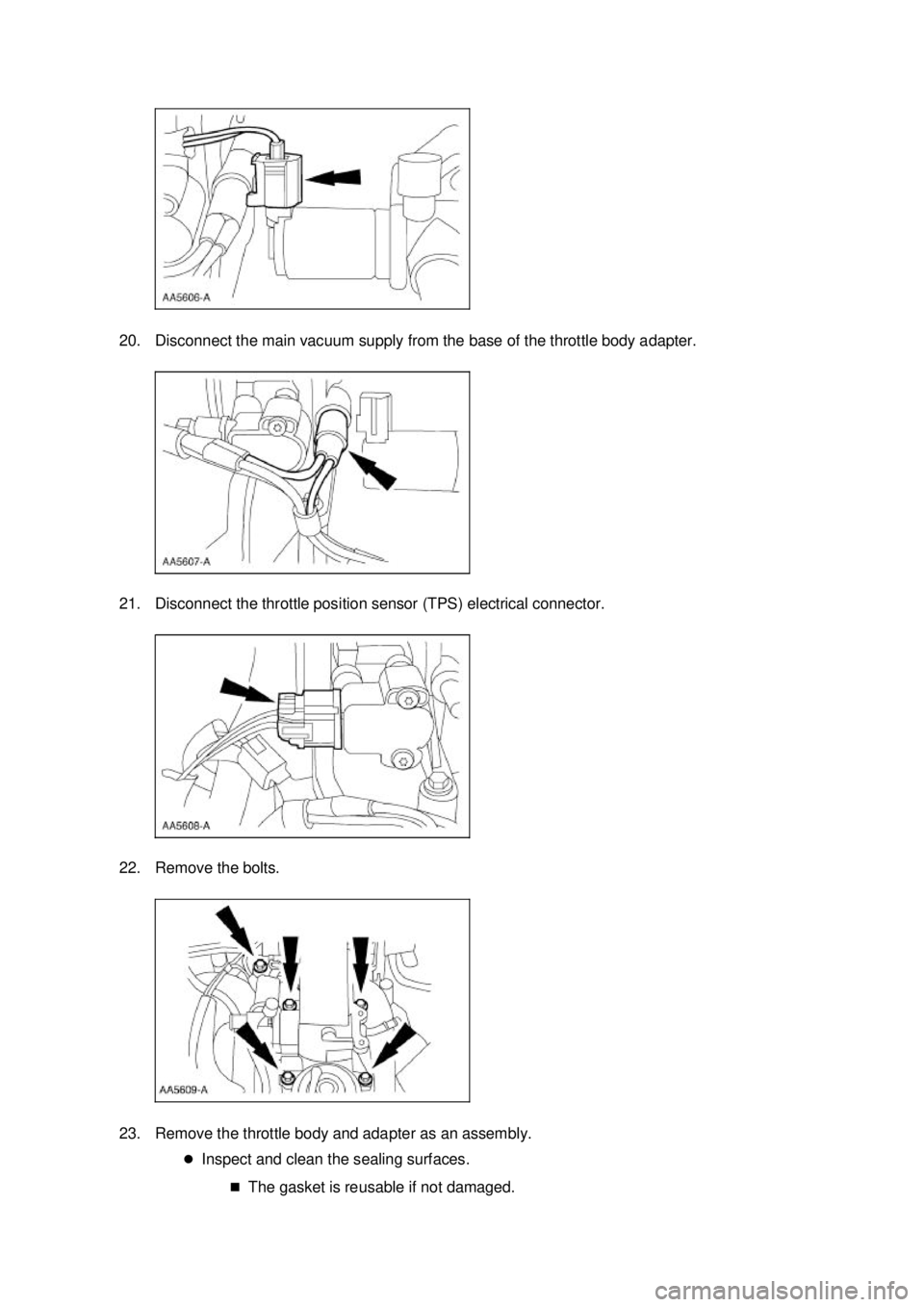

Page 1150 of 4378

FORD MUSTANG 2003 Workshop Manual 20. Disconnect the main vacuum supply from the base of the throttle body adapter. 21. Disconnect the throttle position sensor (TPS) electrical connector. 22. Remove the bolts. 23. Remove the thrott

Page 1151 of 4378

FORD MUSTANG 2003 Workshop Manual 24. Disconnect the fuel pressure sensor electrical connector and the vacuum hose. 25. Disconnect the fuel charging ground wire. 26. Disconnect the ignition coils and the fuel injectors. 27. Disconn

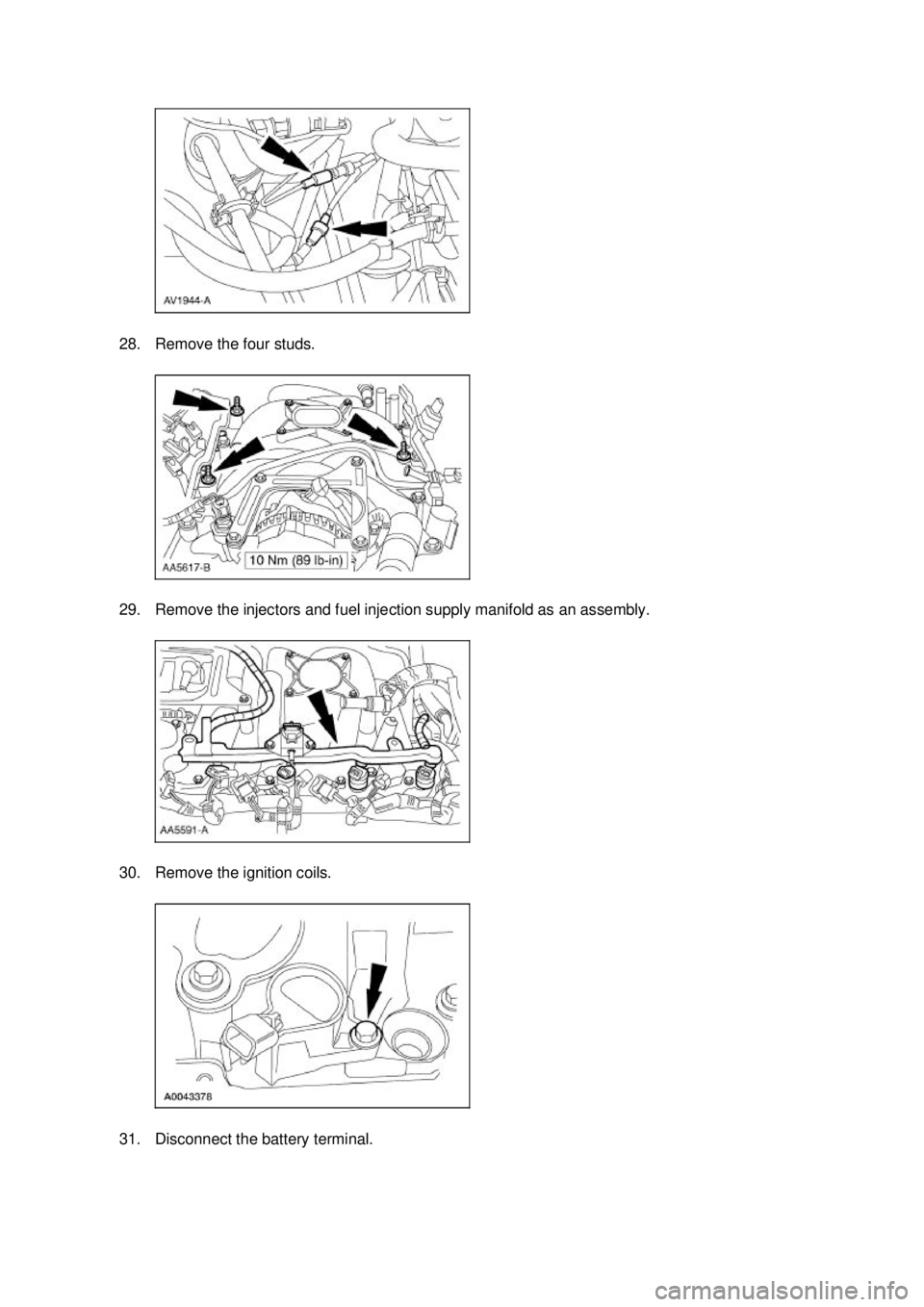

Page 1152 of 4378

FORD MUSTANG 2003 Workshop Manual 28. Remove the four studs. 29. Remove the injectors and fuel injection supply manifold as an assembly. 30. Remove the ignition coils. 31. Disconnect the battery terminal. Klj . 7 ba 202003
