Page 1177 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1178 of 4378

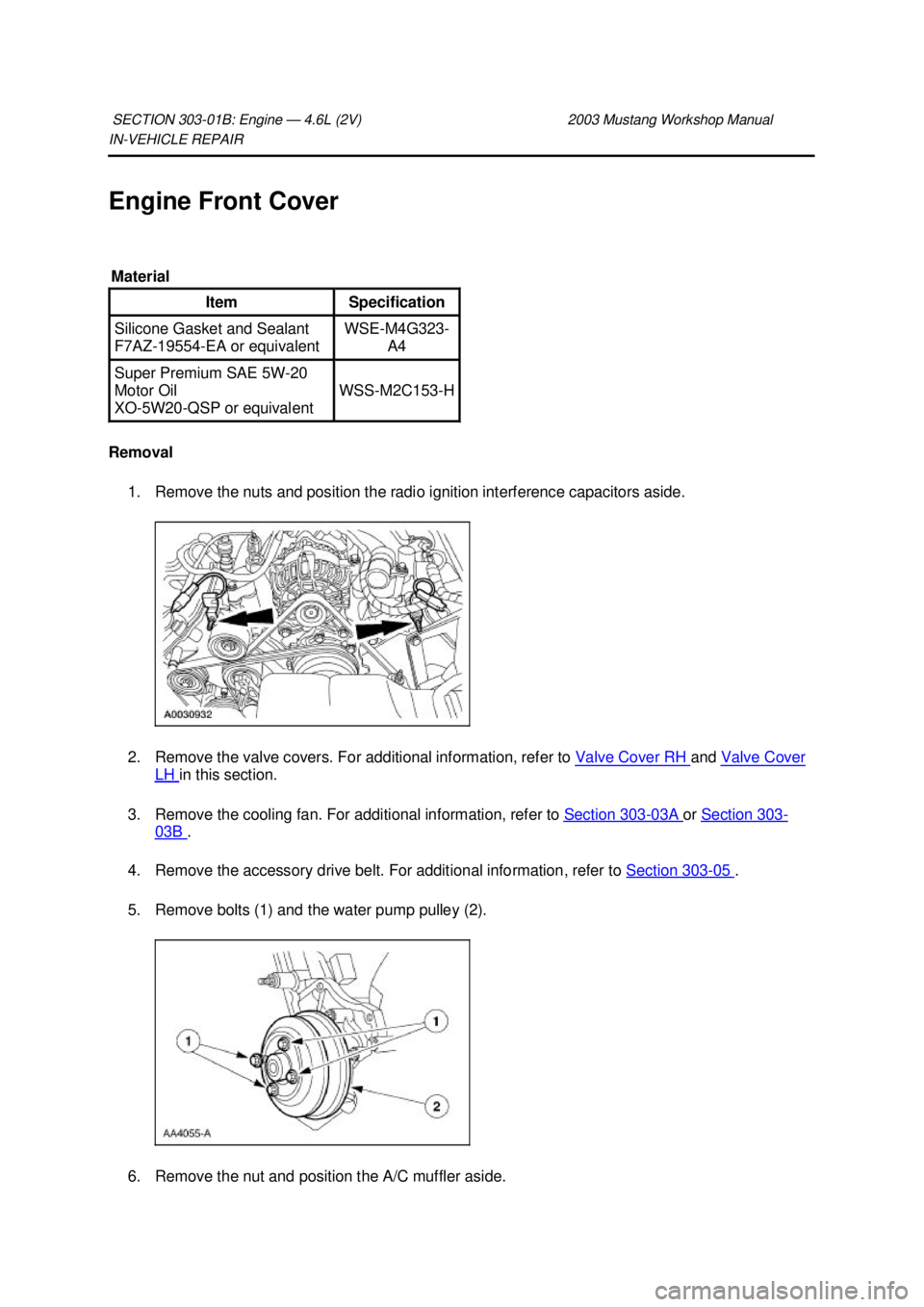

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Engine Front Cover Removal 1. Remove the nuts and position the radio ignition interference capacitors aside. 2. Remove the valve covers. For additional information, refer to Va

Page 1179 of 4378

FORD MUSTANG 2003 Workshop Manual 7. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 8. Remove the bolts and position the power steering pump aside. 9. Disconnect the crankshaft position (CKP

Page 1180 of 4378

FORD MUSTANG 2003 Workshop Manual 12. Remove the crankshaft front oil seal. For additional information, refer to Crankshaft Front Oil Seal in this section. 13. Remove the front oil pan bolts. 14. Lower the vehicle. 15. Remove the

Page 1181 of 4378

FORD MUSTANG 2003 Workshop Manual 17. Remove the bolts and the belt idler pulleys. 18. Remove the engine front cover bolts and the studs. �zDiscard the gaskets. Clean and inspect the sealing surfaces. Installation 1. Apply silicon

Page 1182 of 4378

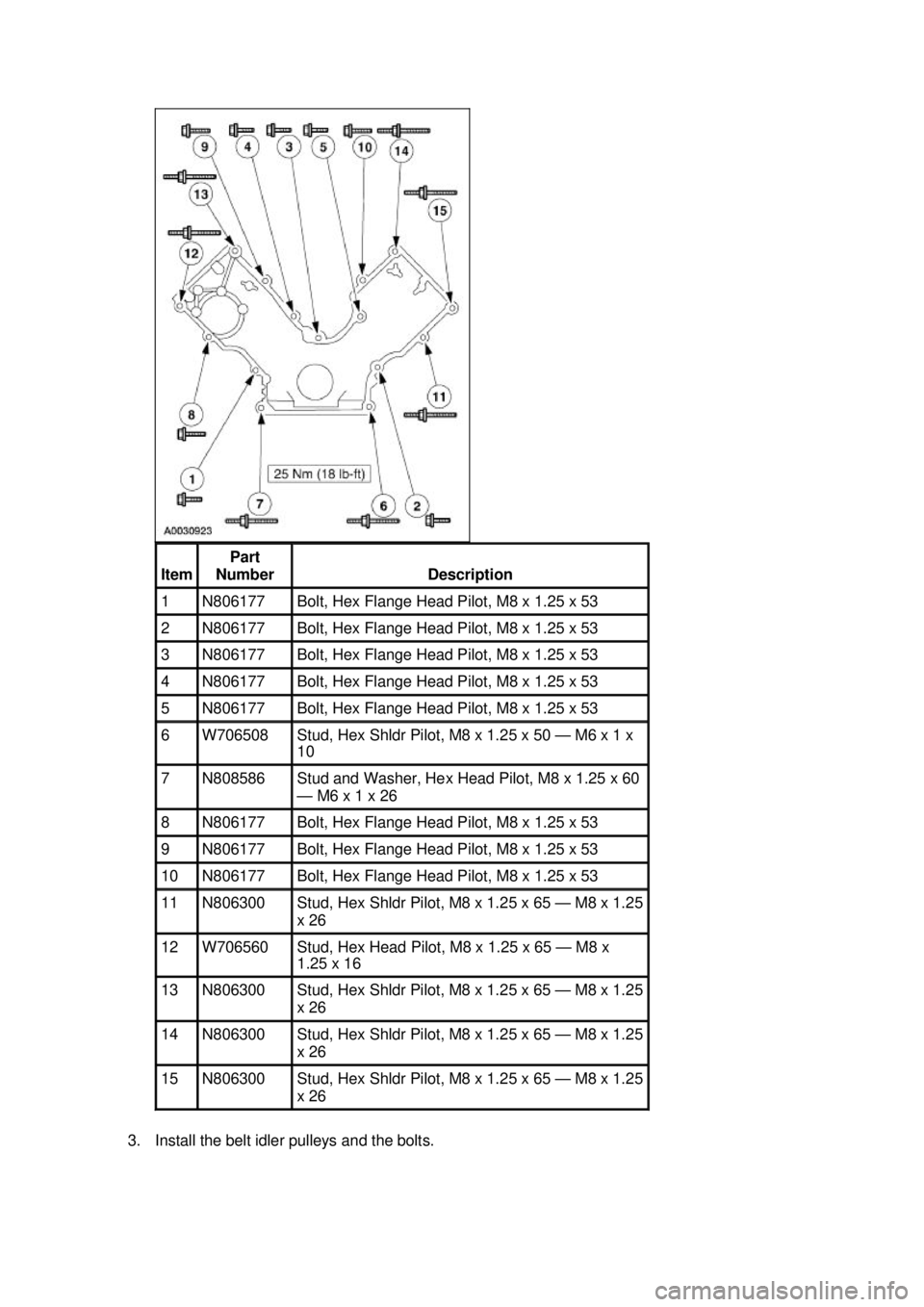

FORD MUSTANG 2003 Workshop Manual 3. Install the belt idler pulleys and the bolts. Item Part Number Description 1 N806177 Bolt, Hex Flange Head Pilot, M8 x 1.25 x 53 2 N806177 Bolt, Hex Flange Head Pilot, M8 x 1.25 x 53 3

Page 1183 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Connect the CMP sensor electrical connector. 5. Raise the vehicle. 6. Install the crankshaft front oil seal. For additional information, refer to Crankshaft Front Oil Seal in this section. 7. T

Page 1184 of 4378

FORD MUSTANG 2003 Workshop Manual 9. Position the power steering reservoir and install the bolts. 10. Connect the CKP sensor electrical connector. 11. Position the A/C muffler and tighten the nut. 12. Install the power steering pum
