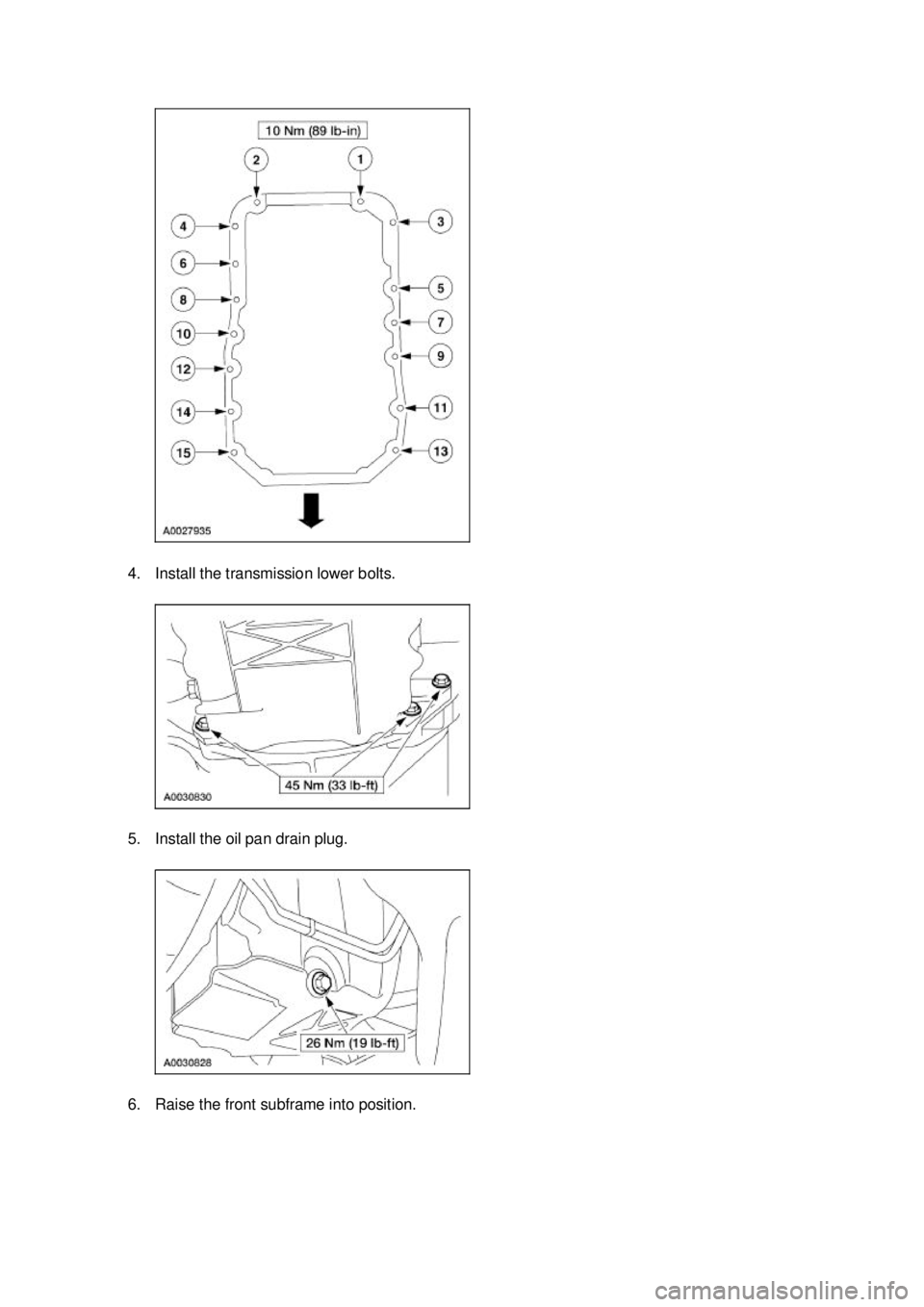

Page 1033 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Install the transmission lower bolts. 5. Install the oil pan drain plug. 6. Raise the front subframe into position. Klj . 8 ba 122003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/

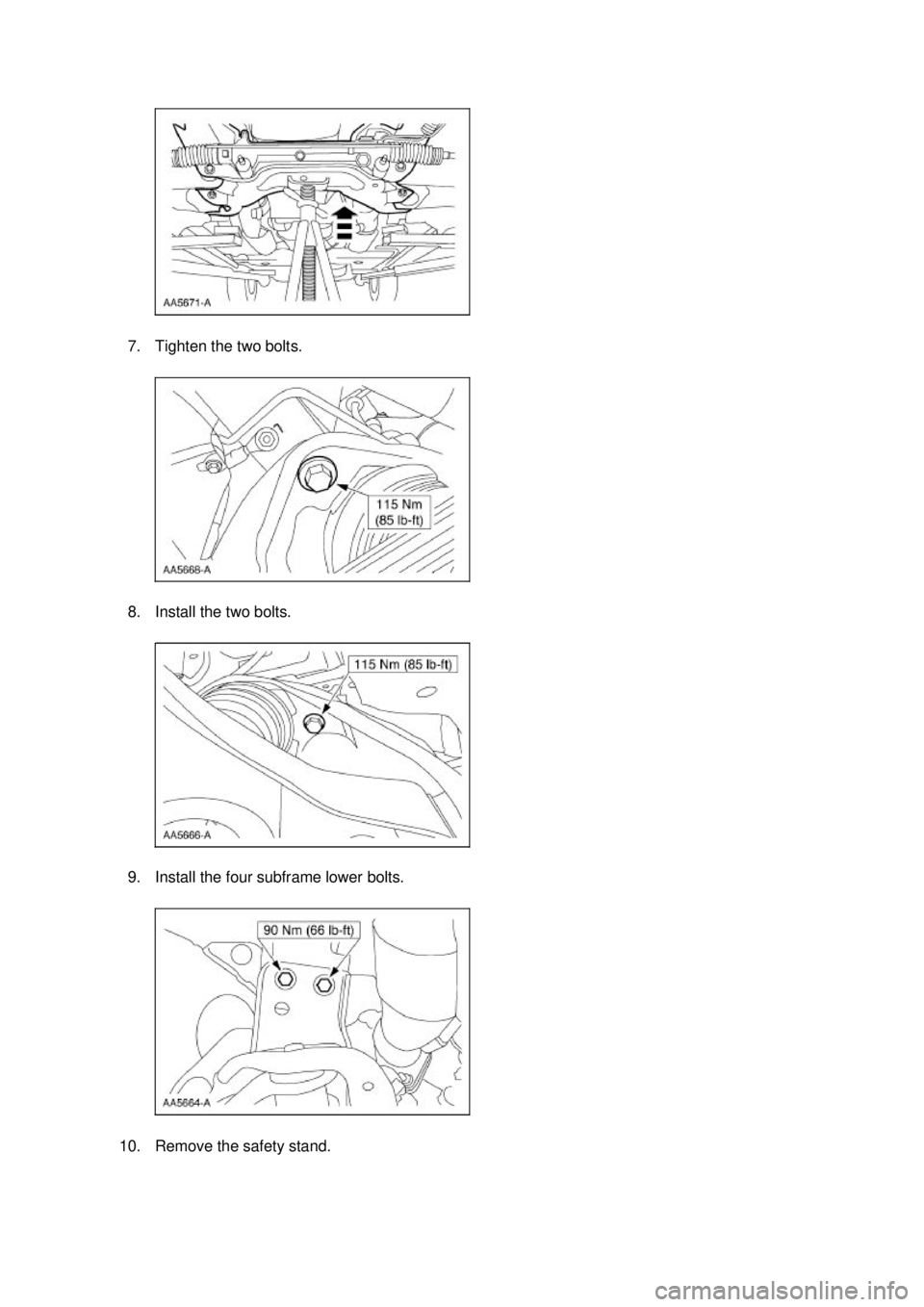

Page 1034 of 4378

FORD MUSTANG 2003 Workshop Manual 7. Tighten the two bolts. 8. Install the two bolts. 9. Install the four subframe lower bolts. 10. Remove the safety stand. Klj . 9 ba 122003 Mustang Workshop Manual 17. 11. 2011file:///C:/

Page 1035 of 4378

FORD MUSTANG 2003 Workshop Manual 11. Install the bracket. 12. Install the starter motor. For additional information, refer to Section 303 - 06 . 13. Lower the vehicle. 14. Lower the engine. 15. Raise and support the vehicle. Fo

Page 1036 of 4378

FORD MUSTANG 2003 Workshop Manual 17. Install the LH engine mount nut. 18. Lower the vehicle. 19. Remove the special tools. 20. Install the coolant recovery reservoir. 21. Install the radiator sight shield. Klj . 11 ba 12

Page 1037 of 4378

FORD MUSTANG 2003 Workshop Manual 22. Install the air cleaner outlet pipe. For additional information, refer to Section 303 - 12 . 23. Connect the battery ground cable. For additional information, refer to Section 414 - 01 . 24.

Page 1038 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Oil Pan Baffle Removal and Installation 1. Remove the oil pump screen cover and tube (6622). For additional information, refer to Oil Pump Screen and Pickup Tube in this sectio

Page 1039 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Flywheel Removal and Installation 1. Remove the clutch. For additional information, refer to Section 308 - 01 . 2. Remove the flywheel bolts. 3. To install, reverse the remov

Page 1040 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
