Page 2121 of 4378
REMOVAL AND INSTALLATION

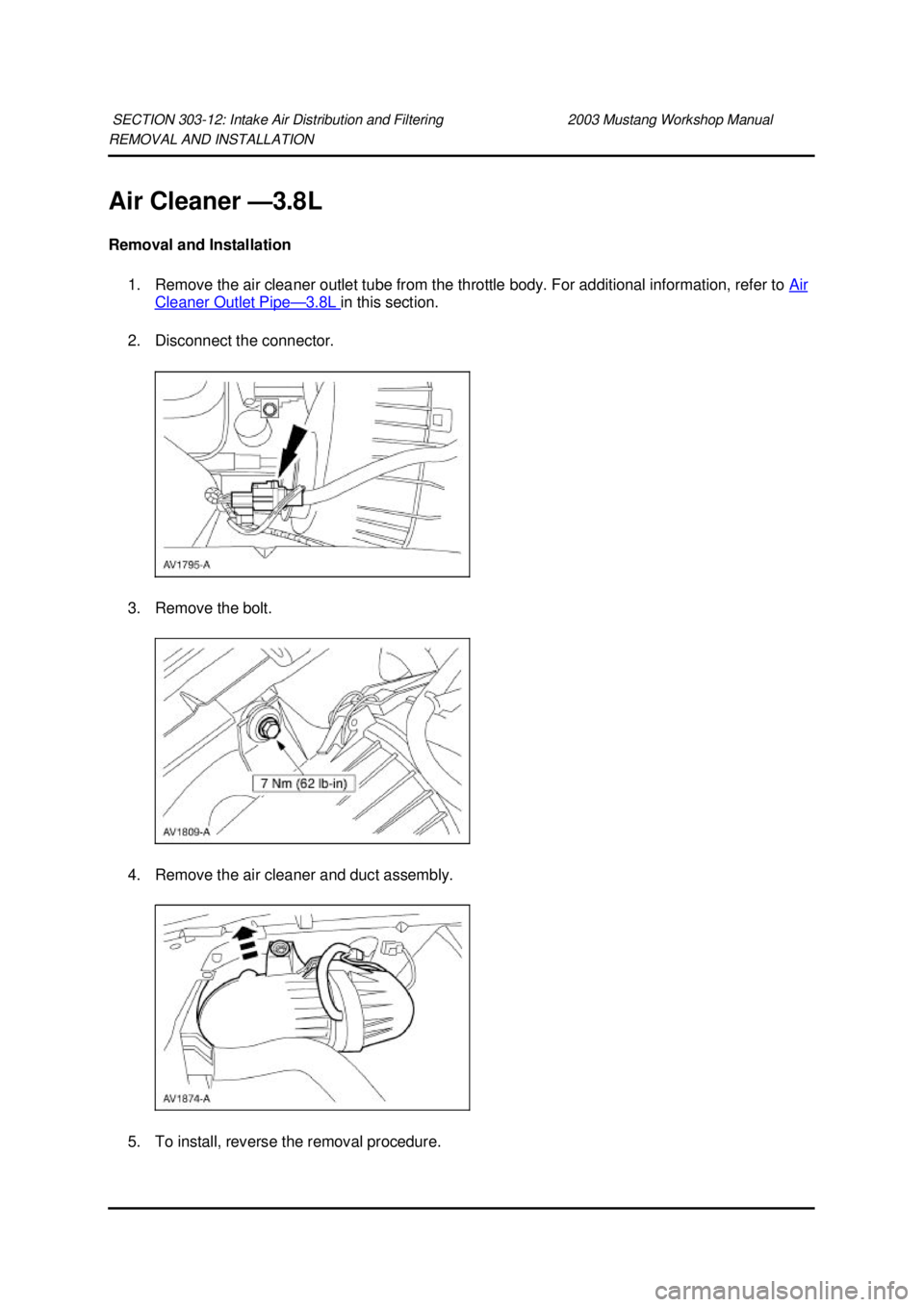

Air Cleaner —
3.8L
Removal and Installation 1. Remove the air cleaner outlet tube from the throttle body. For additional information, refer to Air Cleaner Outlet Pipe — 3.8L in this section.
2. Disconnect the connector.
3. Remove the bolt.
4. Remove the air cleaner and duct assembly.
5. To install, reverse the removal procedure.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2122 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2123 of 4378

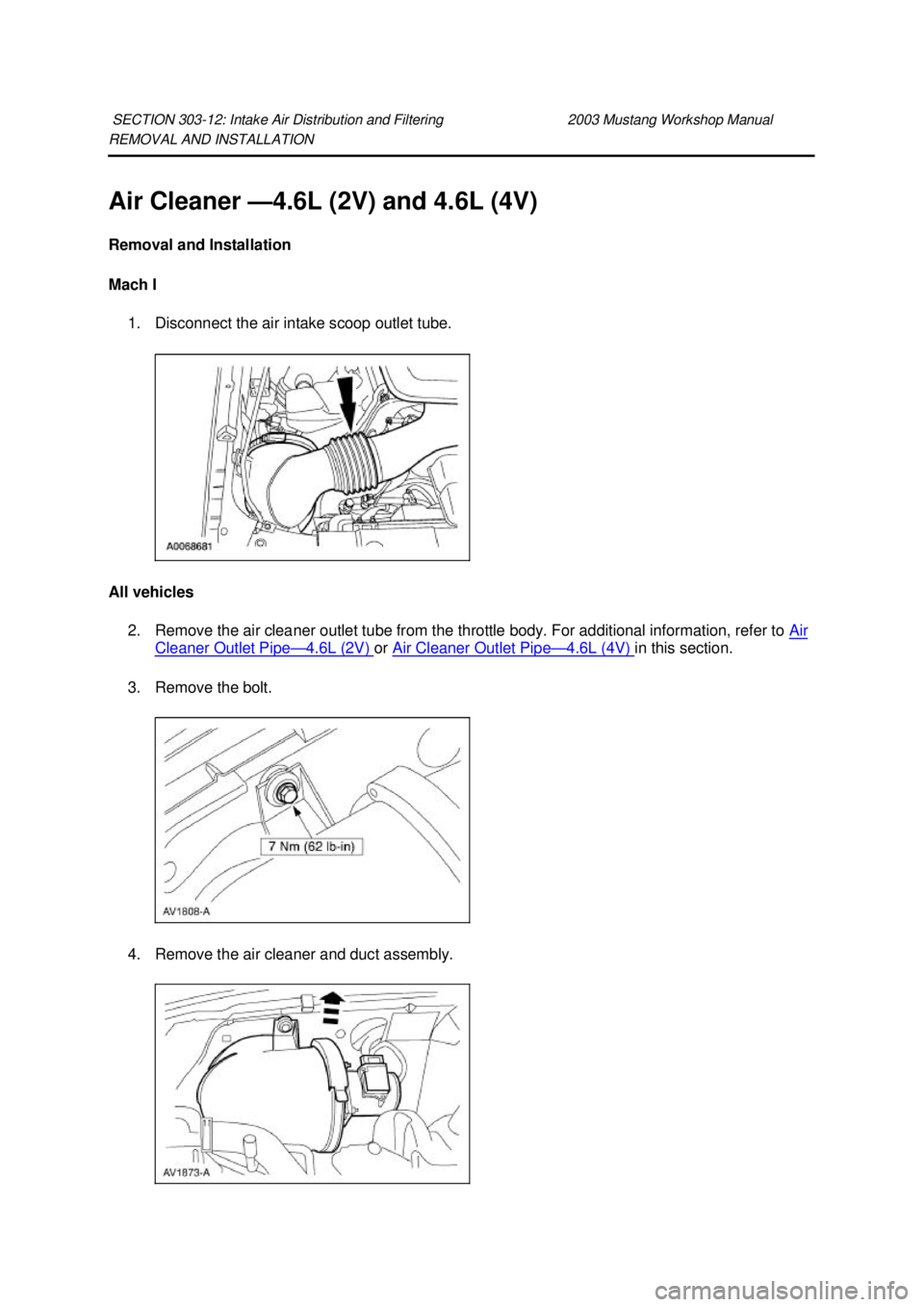

REMOVAL AND INSTALLATION
Air Cleaner —
4.6L (2V) and 4.6L (4V)
Removal and Installation
Mach I 1. Disconnect the air intake scoop outlet tube.
All vehicles 2. Remove the air cleaner outlet tube from the throttle body. For additional information, refer to Air Cleaner Outlet Pipe — 4.6L (2V) or
Air Cleaner Outlet Pipe — 4.6L (4V) in this section.
3. Remove the bolt.
4. Remove the air cleaner and duct assembly.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2124 of 4378

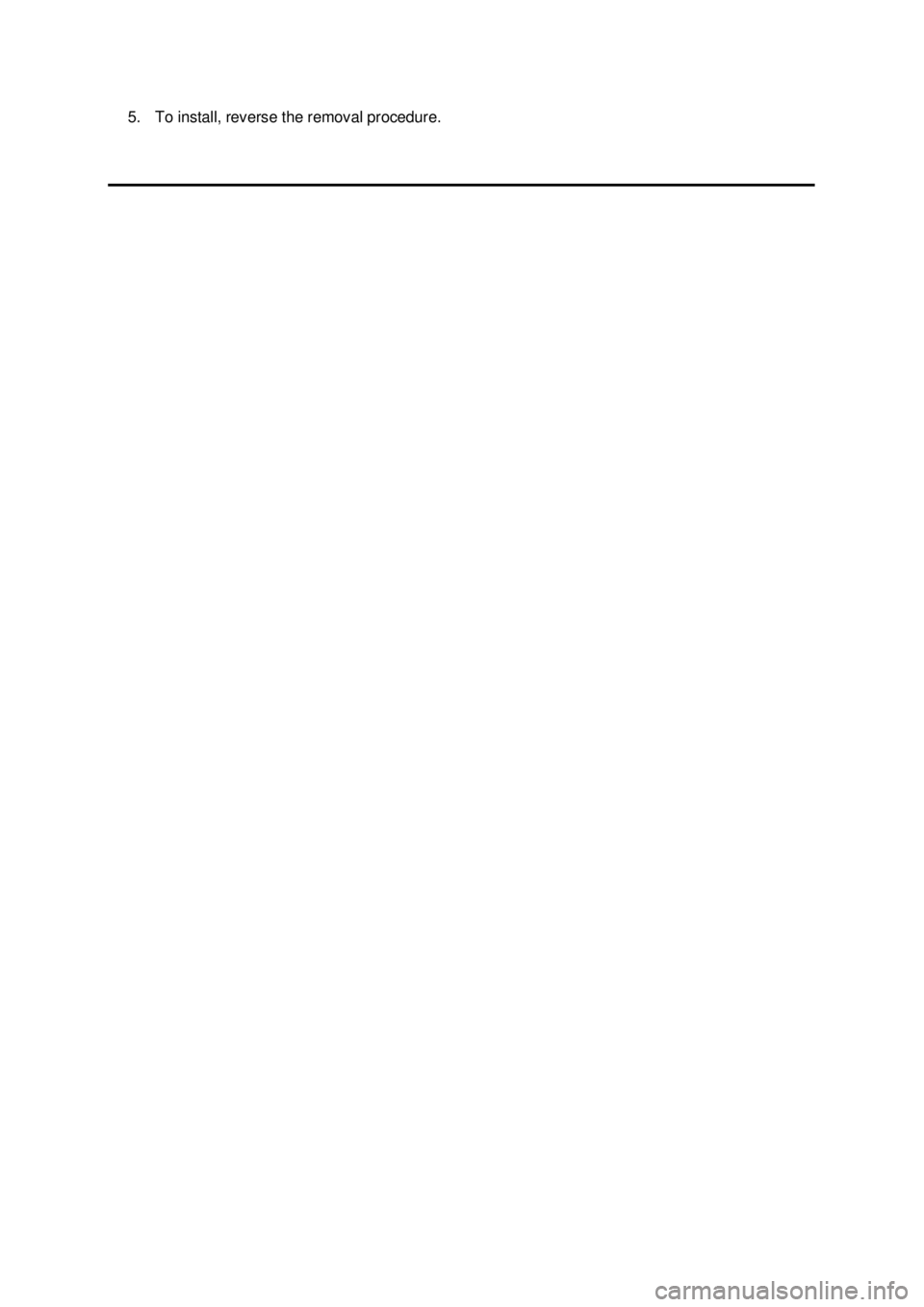

5. To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2125 of 4378
REMOVAL AND INSTALLATION
Air Cleaner Element —
3.8L
Removal and Installation 1. Remove the air cleaner outlet tube. For additional information, refer to Air Cleaner Outlet Pipe —
3.8L in this section
2. Disconnect the connector.
3. Remove the mass air flow (MAF) sensor. 1. Release the clips.
2. Remove the MAF sensor assembly.
4. Remove the air cleaner element.
5. To install, reverse the removal procedure.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2126 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2127 of 4378
REMOVAL AND INSTALLATION
Air Cleaner Element —
4.6L (2V)
Removal and Installation 1. Remove the air cleaner outlet tube (9B659). For additional information, refer to Air Cleaner Outlet Pipe — 4.6L (2V) in this section.
2. Remove the mass air flow (MAF) assembly. 1. Release the clip.
2. Remove the MAF sensor assembly and position aside.
3. Remove the air cleaner element.
4. To install, reverse the removal procedure.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2128 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
