Page 1313 of 4378

FORD MUSTANG 2003 Workshop Manual 17. Make sure the ring gaps (oil spacer [A], oil ring [B], and compression ring [C]) are properly spaced around the circumference of the piston. 18. CAUTION: Do not scratch the cylinder walls or th

Page 1314 of 4378

FORD MUSTANG 2003 Workshop Manual 19. NOTE: The piston grade number will face the rear of the engine. Check that the piston/connecting rod assembly is oriented with the identification marks facing the front of the engine. 20. CAU

Page 1315 of 4378

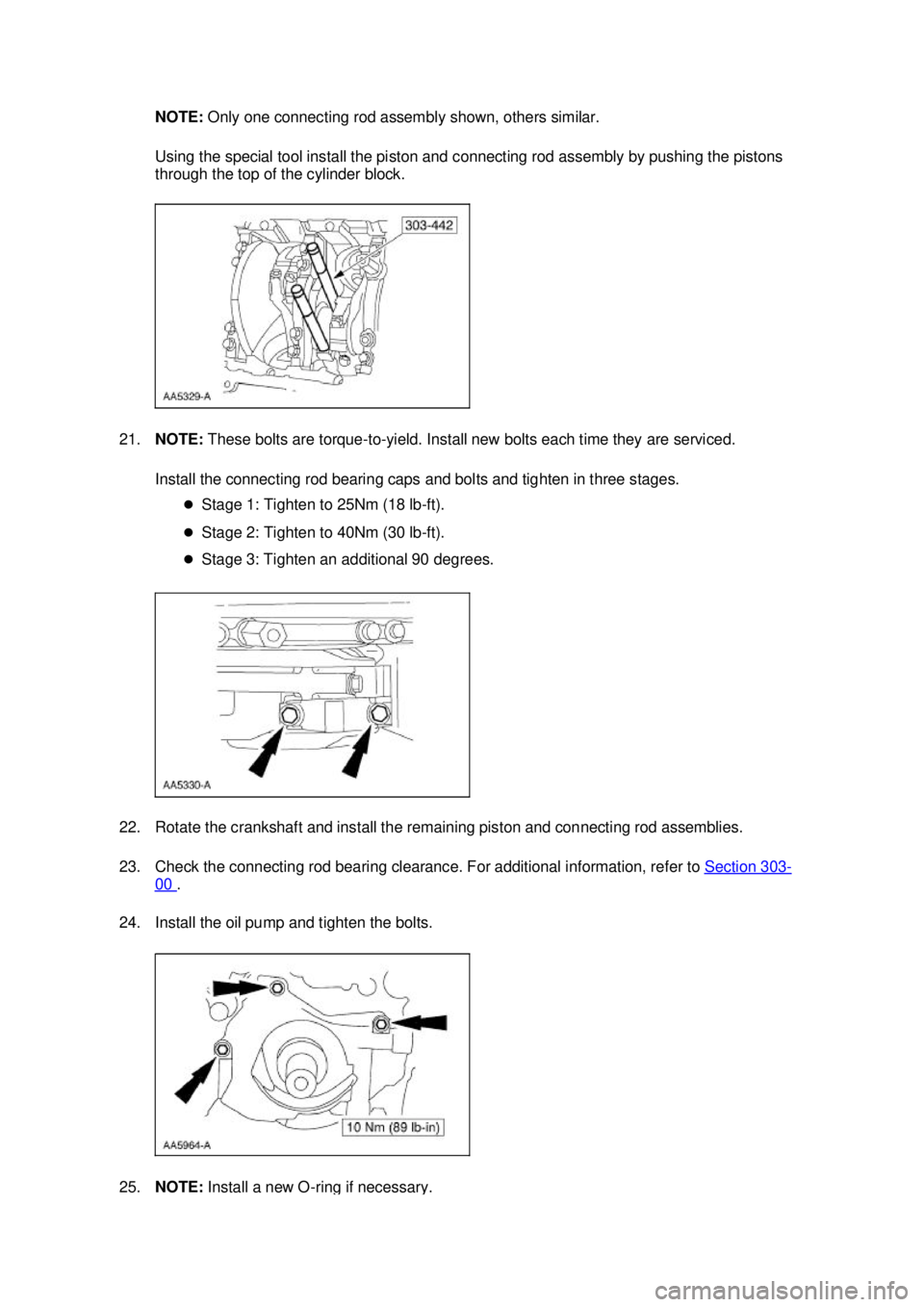

FORD MUSTANG 2003 Workshop Manual NOTE: Only one connecting rod assembly shown, others similar. Using the special tool install the piston and connecting rod assembly by pushing the pistons through the top of the cylinder block. 21

Page 1316 of 4378

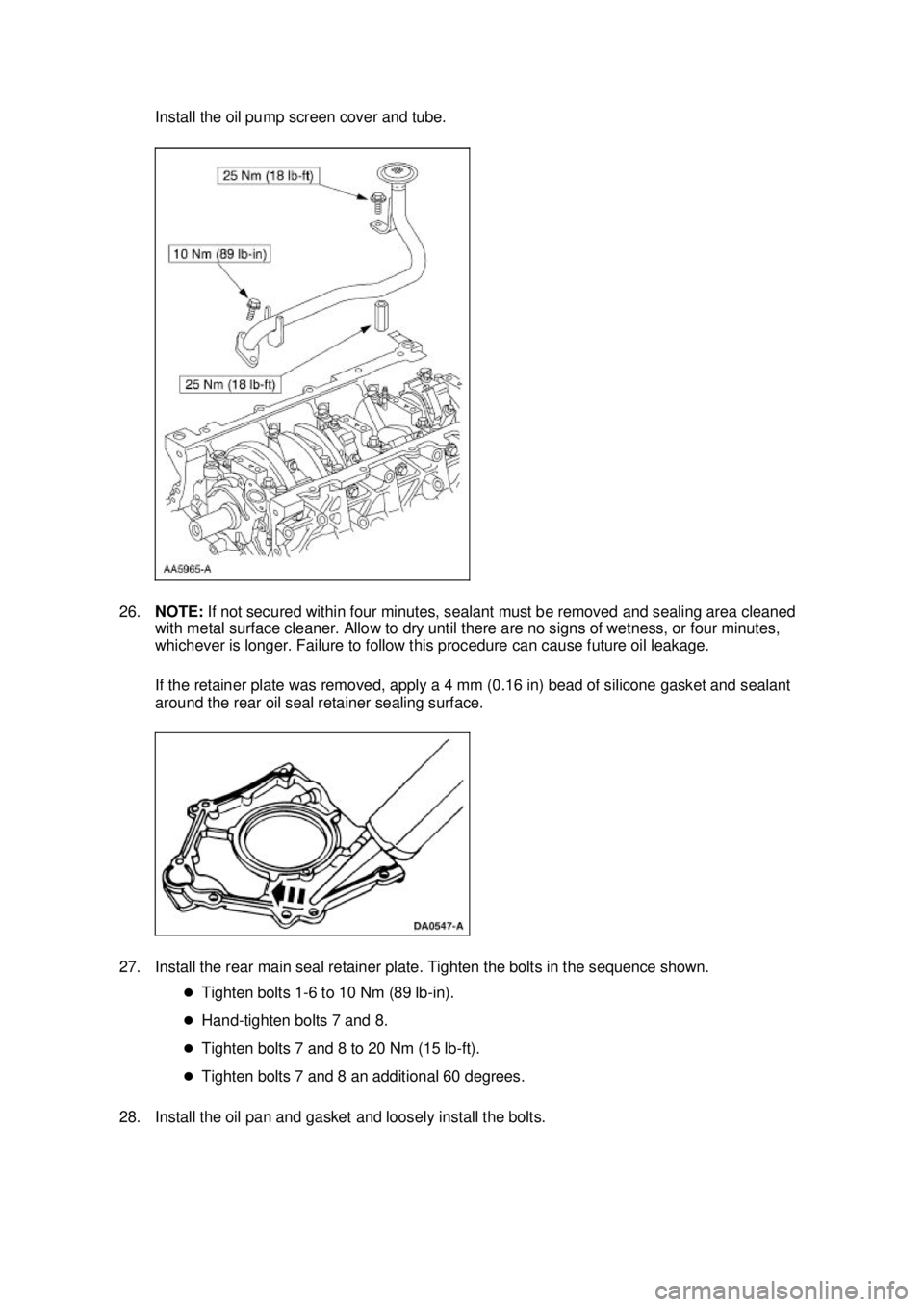

FORD MUSTANG 2003 Workshop Manual Install the oil pump screen cover and tube. 26. NOTE: If not secured within four minutes, sealant must be removed and sealing area cleaned with metal surface cleaner. Allow to dry until there are n

Page 1317 of 4378

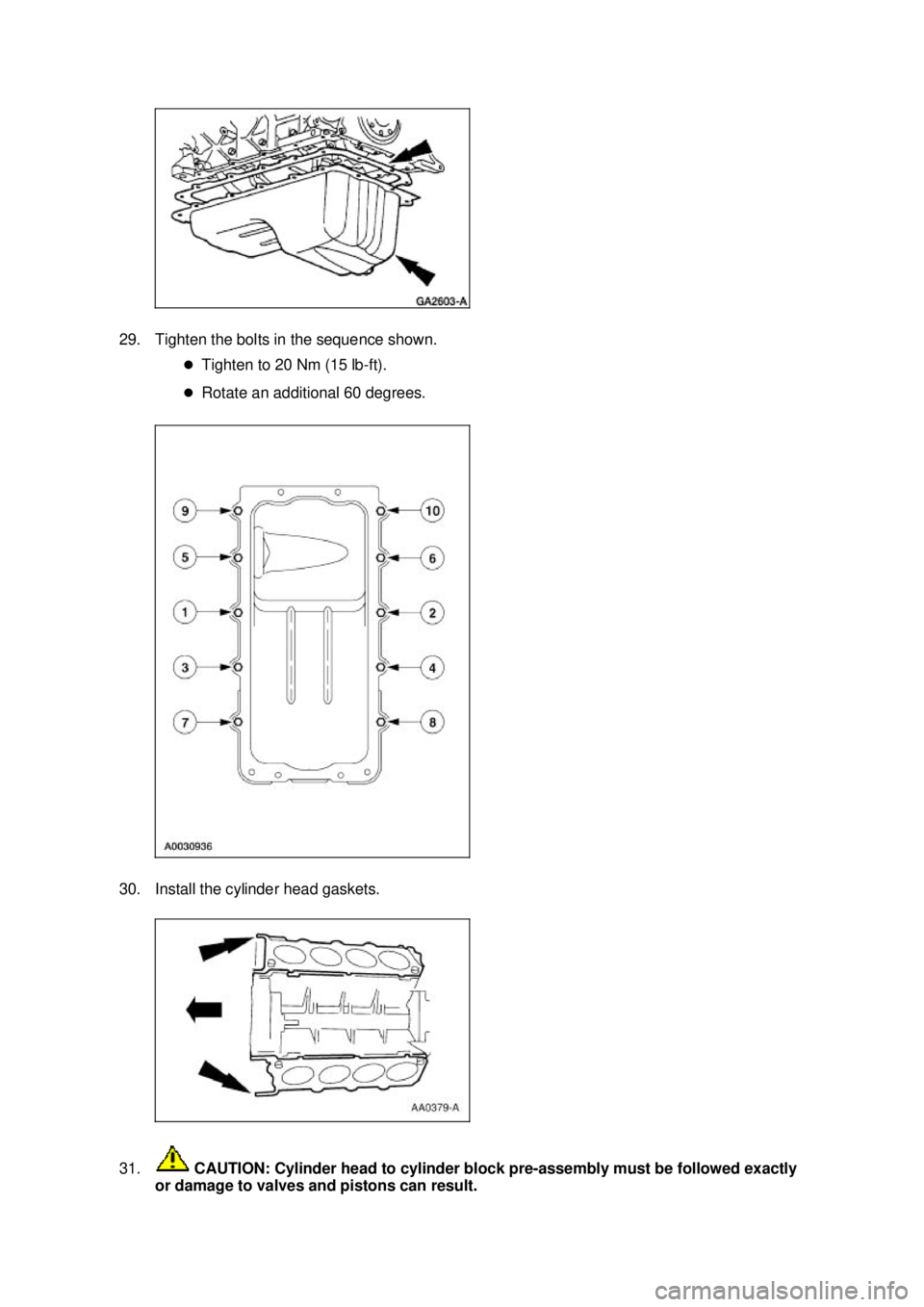

FORD MUSTANG 2003 Workshop Manual 29. Tighten the bolts in the sequence shown. �zTighten to 20 Nm (15 lb- ft). �z Rotate an additional 60 degrees. 30. Install the cylinder head gaskets. 31. CAUTION: Cylinder head to cylinder bloc

Page 1318 of 4378

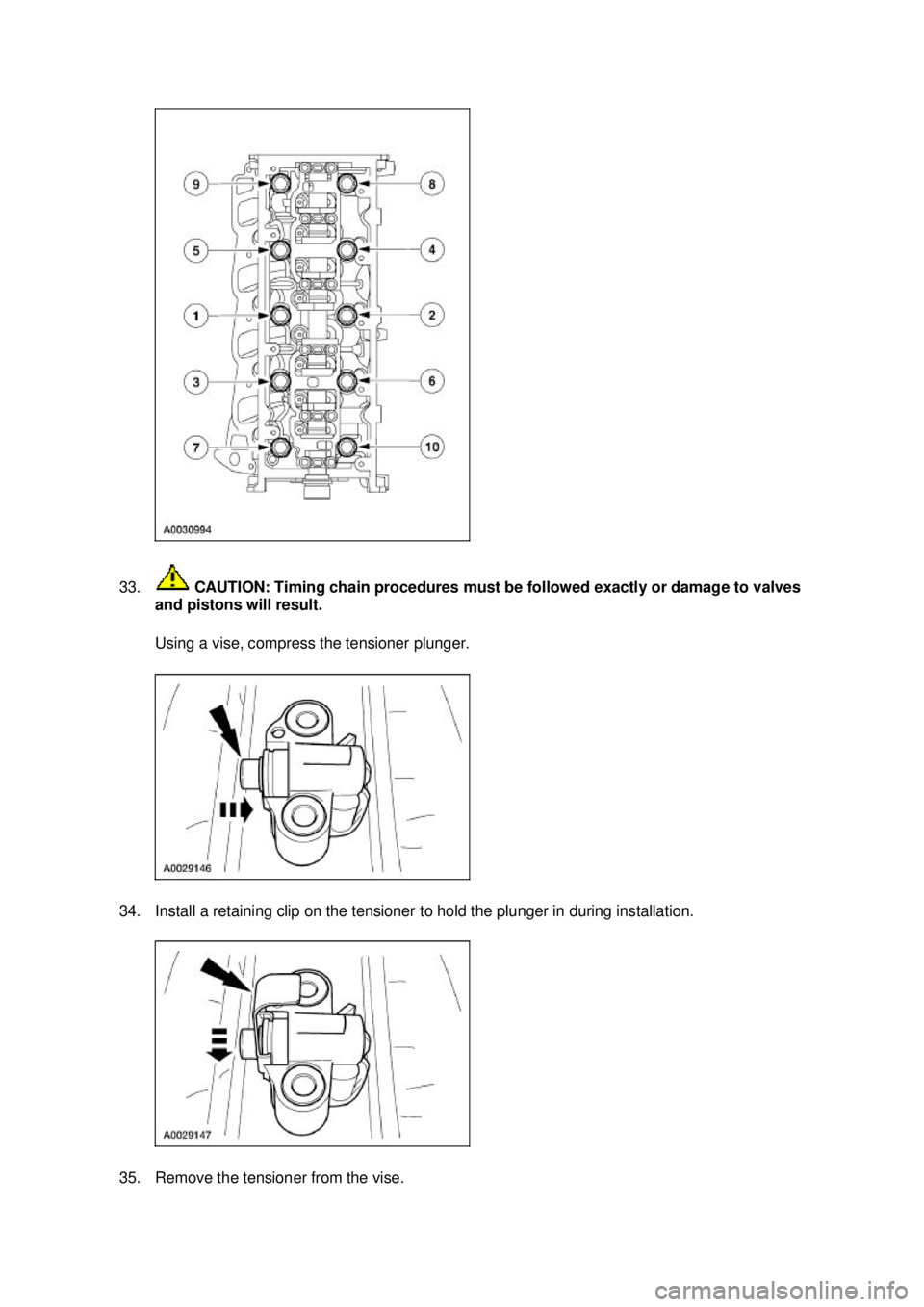

FORD MUSTANG 2003 Workshop Manual CAUTION: Camshaft keyways must maintain a 90 degree clocked position relative to the valve cover rail. CAUTION: To prevent piston crown and valve damage the crankshaft keyway must be clocked at 2

Page 1319 of 4378

FORD MUSTANG 2003 Workshop Manual 33. CAUTION: Timing chain procedures must be followed exactly or damage to valves and pistons will result. Using a vise, compress the tensioner plunger. 34. Install a retaining clip on the tension

Page 1320 of 4378

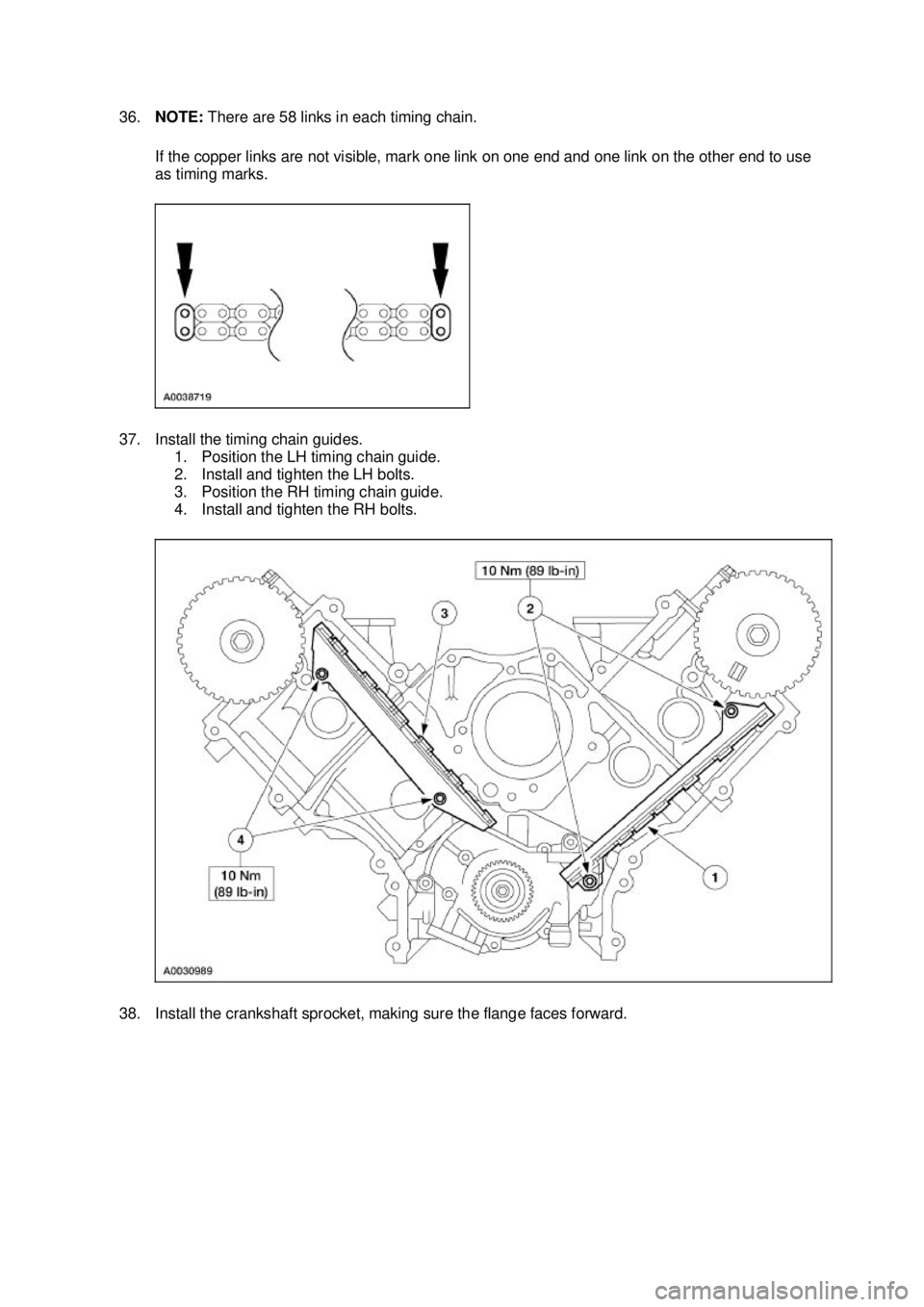

FORD MUSTANG 2003 Workshop Manual 36. NOTE: There are 58 links in each timing chain. If the copper links are not visible, mark one link on one end and one link on the other end to use as timing marks. 37. Install the timing chain
