REMOVAL AND INSTALLATION

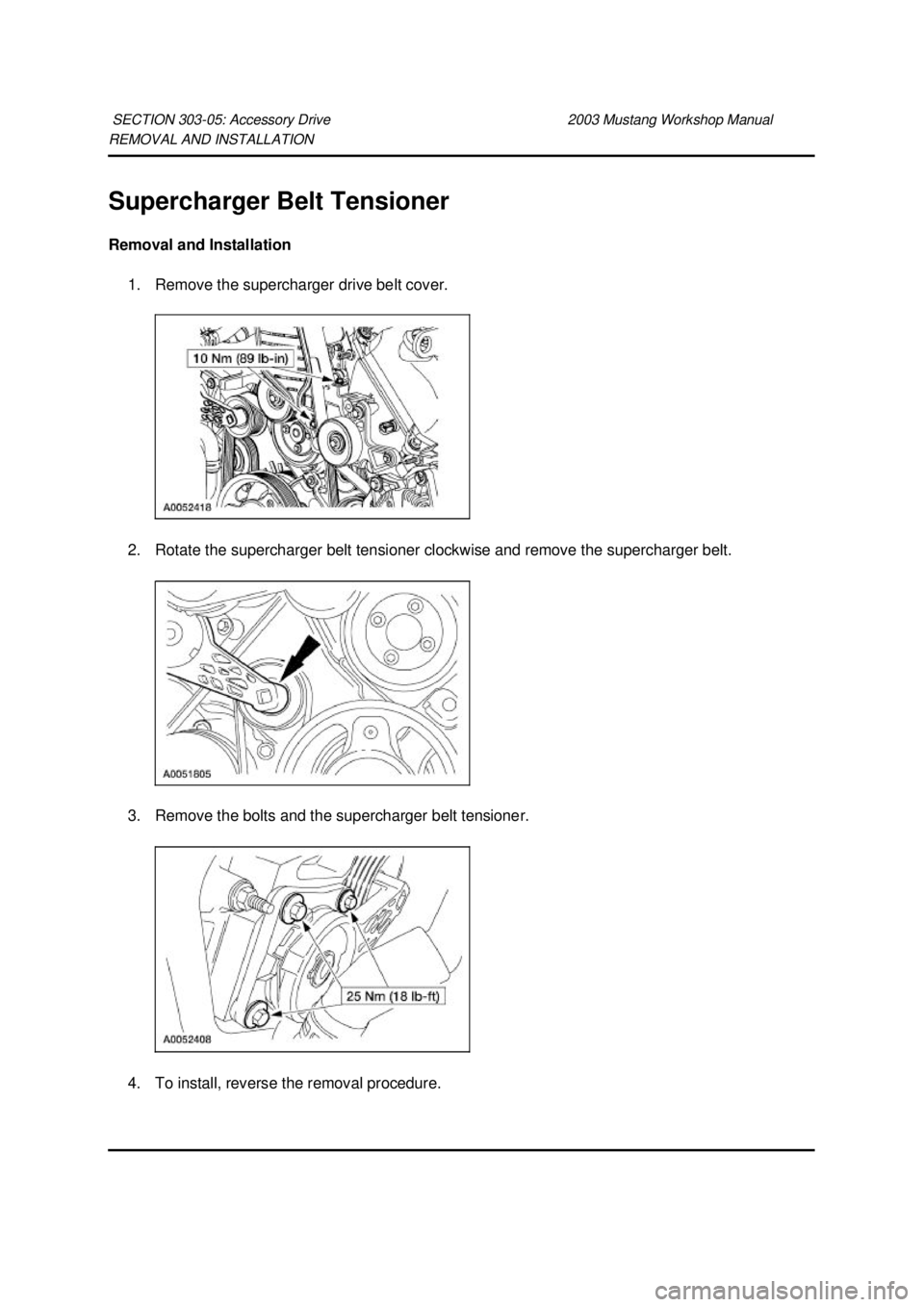

Supercharger Belt Tensioner
Removal and Installation
1. Remove the supercharger drive belt cover.
2. Rotate the supercharger belt tensioner clockwise and remove the supercharger belt.
3. Remove the bolts and the supercharger belt tensioner.
4. To install, reverse the removal procedure.
SECTION 303-
05: Accessory Drive 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2027 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2028 of 4378

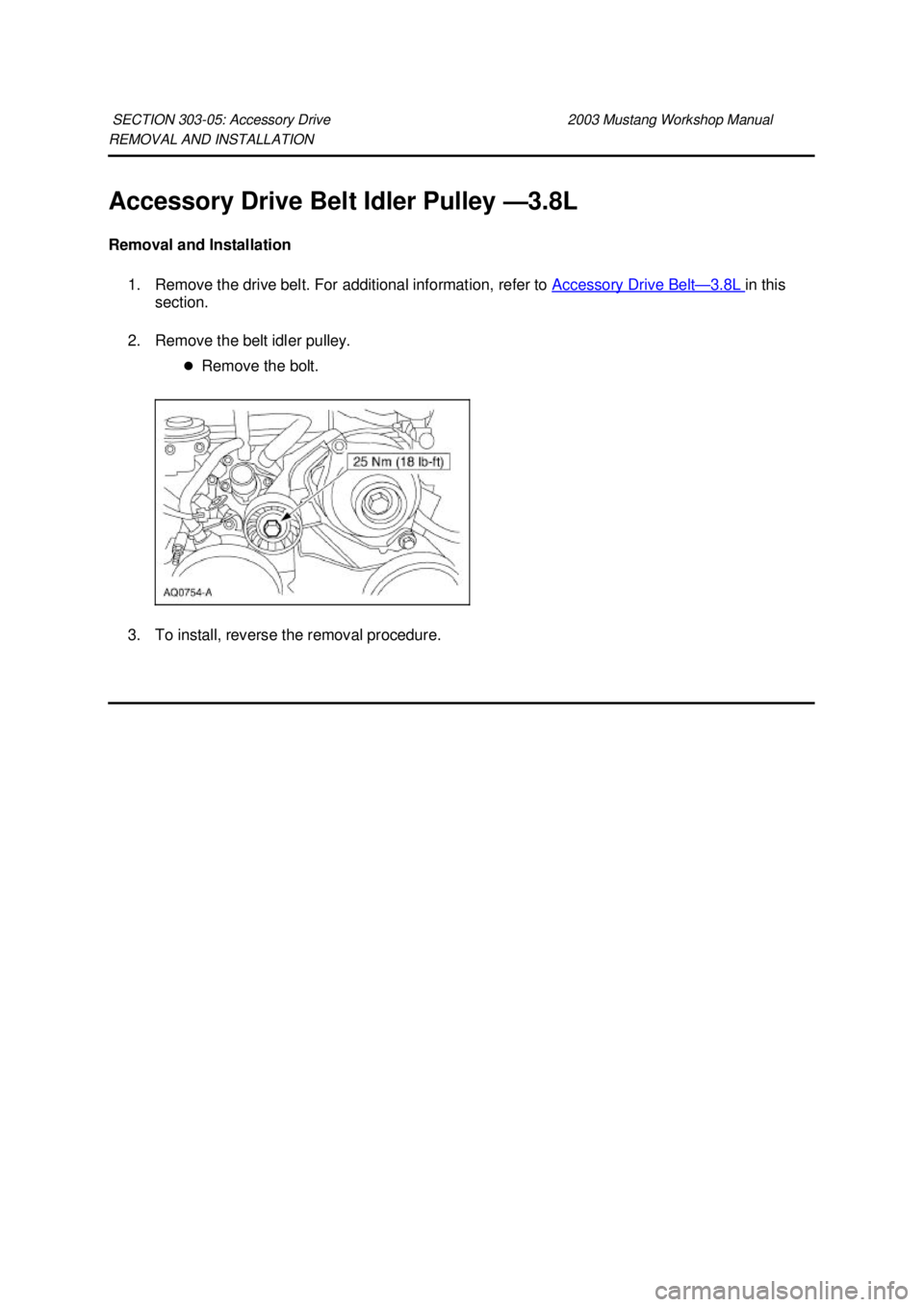

REMOVAL AND INSTALLATION
Accessory Drive Belt Idler Pulley —
3.8L
Removal and Installation 1. Remove the drive belt. For additional information, refer to Accessory Drive Belt — 3.8L in this
section.
2. Remove the belt idler pulley. zRemove the bolt.
3. To install, reverse the removal procedure.
SECTION 303-
05: Accessory Drive 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2029 of 4378
REMOVAL AND INSTALLATION
Accessory Drive Belt Idler Pulley —
4.6L (2V) and (4V)
Removal and Installation
Mach I 1. Remove the air intake scoop. For additional information, refer to Section 303 - 12 .
Cobra 2. Remove the supercharger drive belt cover.
3. Rotate the supercharger belt tensioner clockwise and remove the supercharger belt.
4. Remove the coolant hose mounting bolt.
5. Remove the belt idler support bracket assembly.
SECTION 303-
05: Accessory Drive 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2030 of 4378
All engines
6. Rotate the belt tensioner and position the accessory drive belt aside.
7. NOTE: The procedure listed below can be carried out on any of the 4.6L engine accessory drive
belt idler pulleys.
Remove the bolt and the belt idler pulley.
8. To install, reverse the removal procedure. Refer to Accessory Drive or
Accessory Drive — Cobra
in this section, for accessory belt routing. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2031 of 4378
Klj . 3 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2032 of 4378
REMOVAL AND INSTALLATION

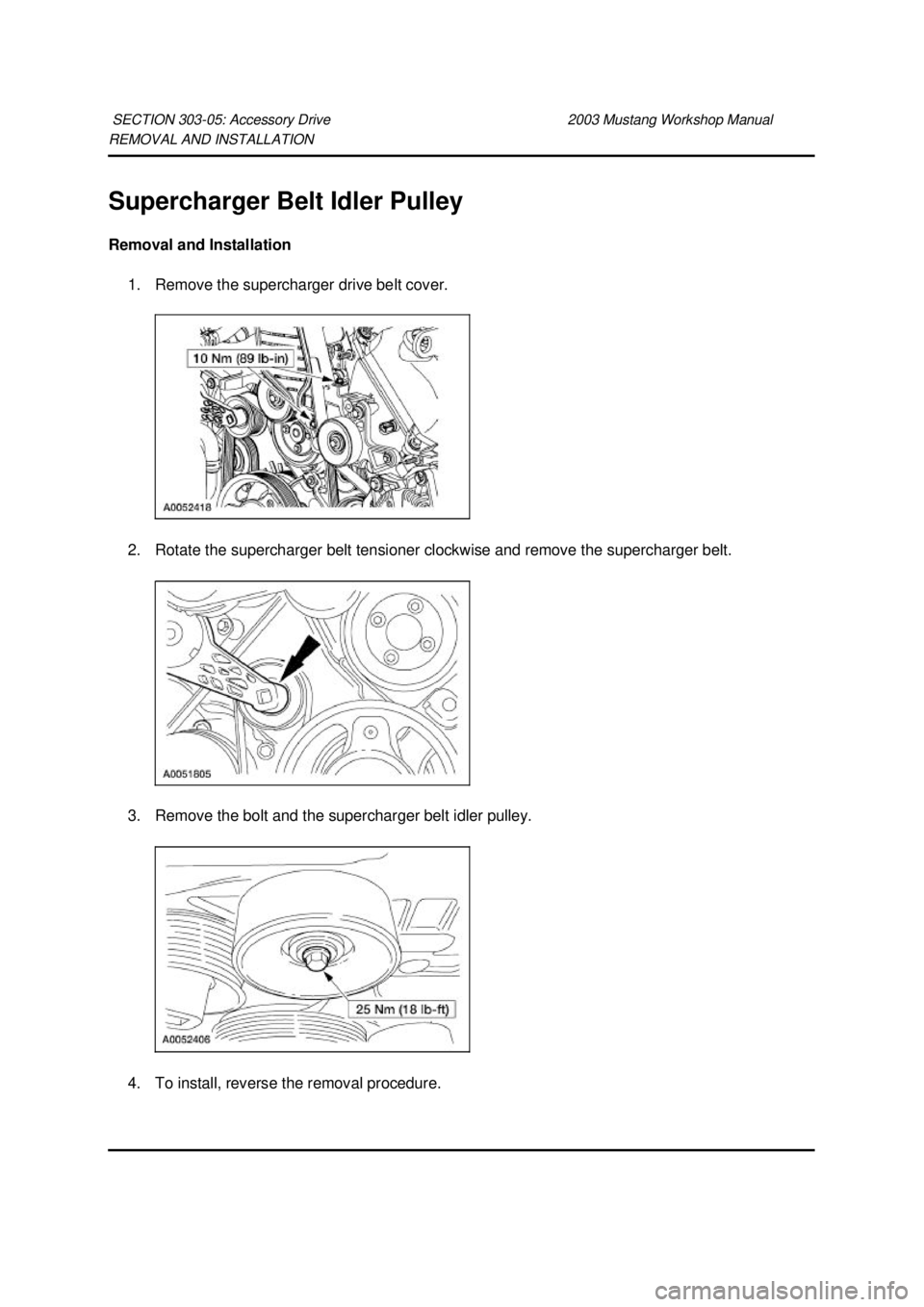

Supercharger Belt Idler Pulley
Removal and Installation
1. Remove the supercharger drive belt cover.
2. Rotate the supercharger belt tensioner clockwise and remove the supercharger belt.
3. Remove the bolt and the supercharger belt idler pulley.
4. To install, reverse the removal procedure.
SECTION 303-
05: Accessory Drive 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
