Page 1097 of 4378

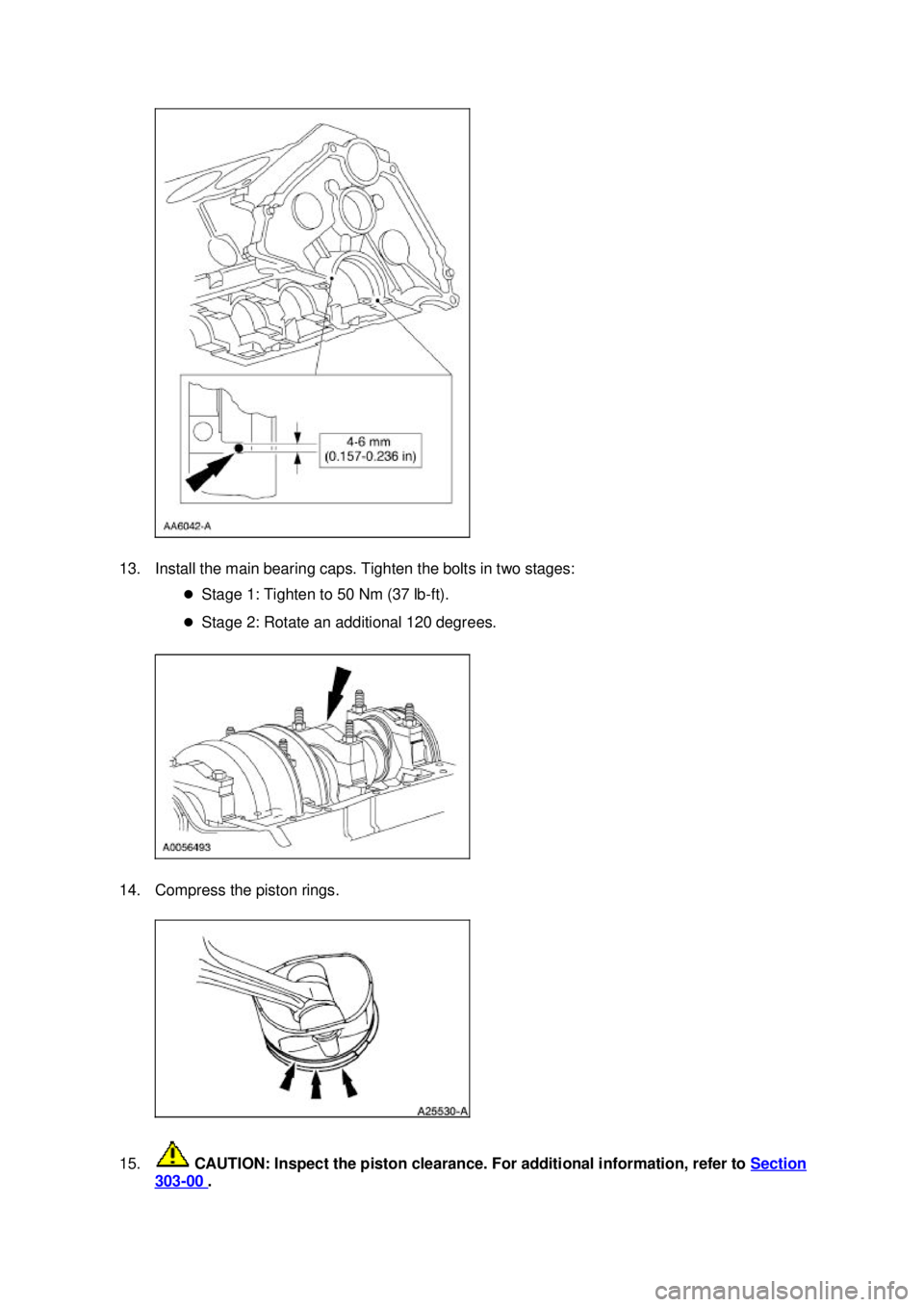

FORD MUSTANG 2003 Workshop Manual 13. Install the main bearing caps. Tighten the bolts in two stages: �zStage 1: Tighten to 50 Nm (37 lb- ft). �z Stage 2: Rotate an additional 120 degrees. 14. Compress the piston rings. 15. CAUTI

Page 1098 of 4378

FORD MUSTANG 2003 Workshop Manual CAUTION: Do not damage the cylinder wall with the sharp edges of the connecting rod. Install the piston with the arrow on the piston face pointing toward the front of the engine. 16. CAUTION: Ins

Page 1099 of 4378

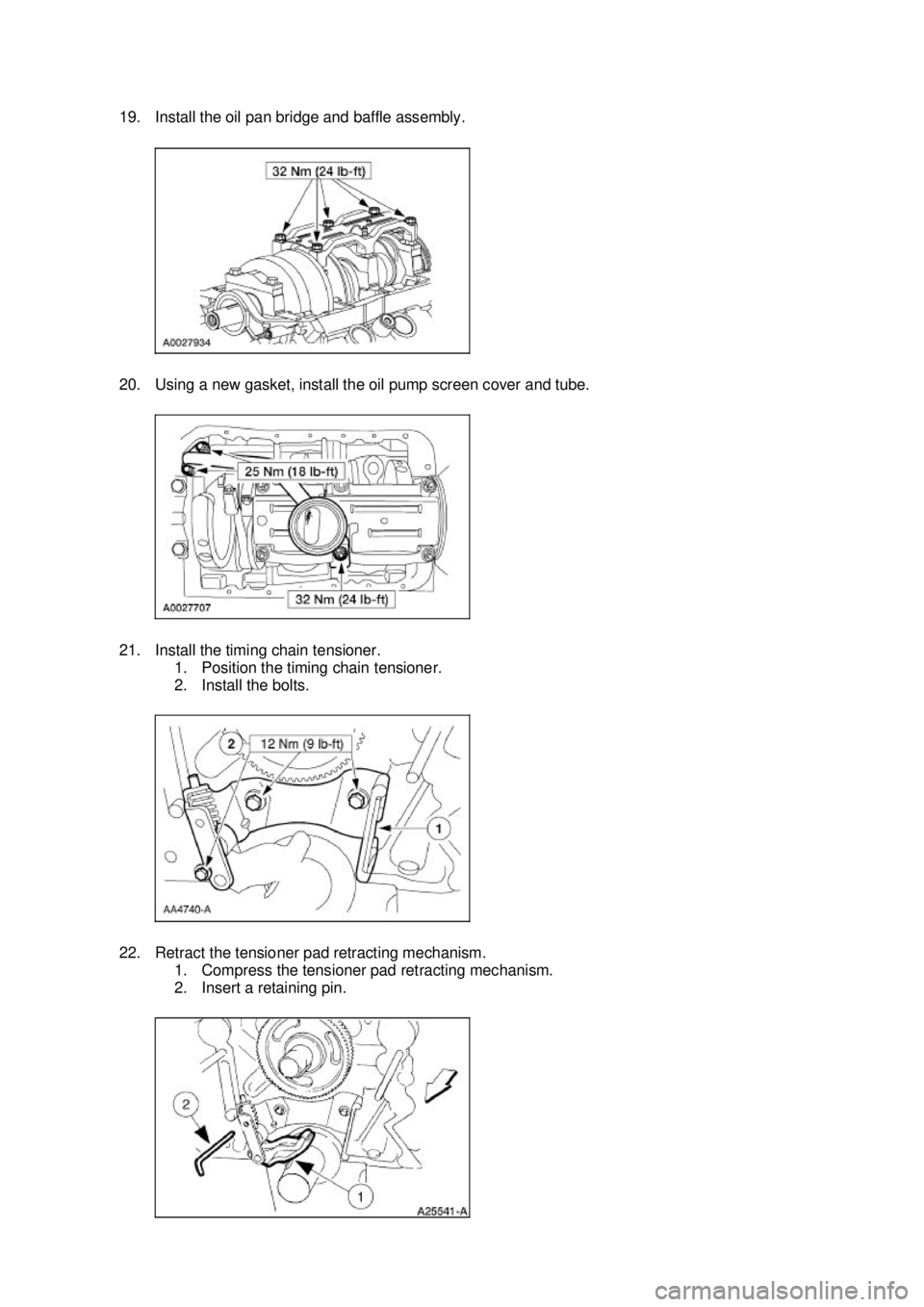

FORD MUSTANG 2003 Workshop Manual 19. Install the oil pan bridge and baffle assembly. 20. Using a new gasket, install the oil pump screen cover and tube. 21. Install the timing chain tensioner. 1. Position the timing chain tensione

Page 1100 of 4378

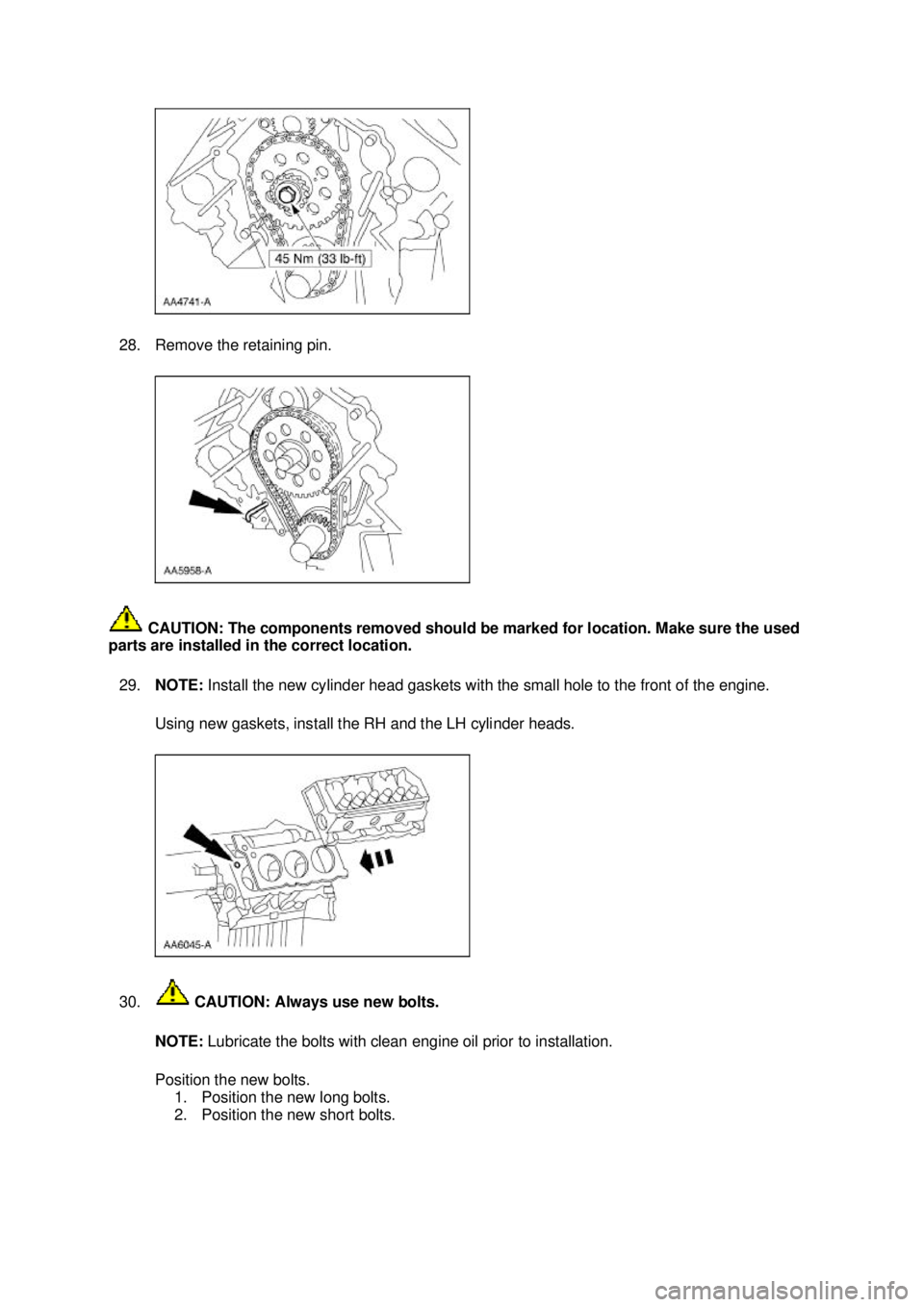

FORD MUSTANG 2003 Workshop Manual 23. Rotate the crankshaft so the number one piston is at top dead center (TDC) and the key is at the 12 oclock position. 24. Turn the camshaft sprocket so that the keyway is on the bottom of the ca

Page 1101 of 4378

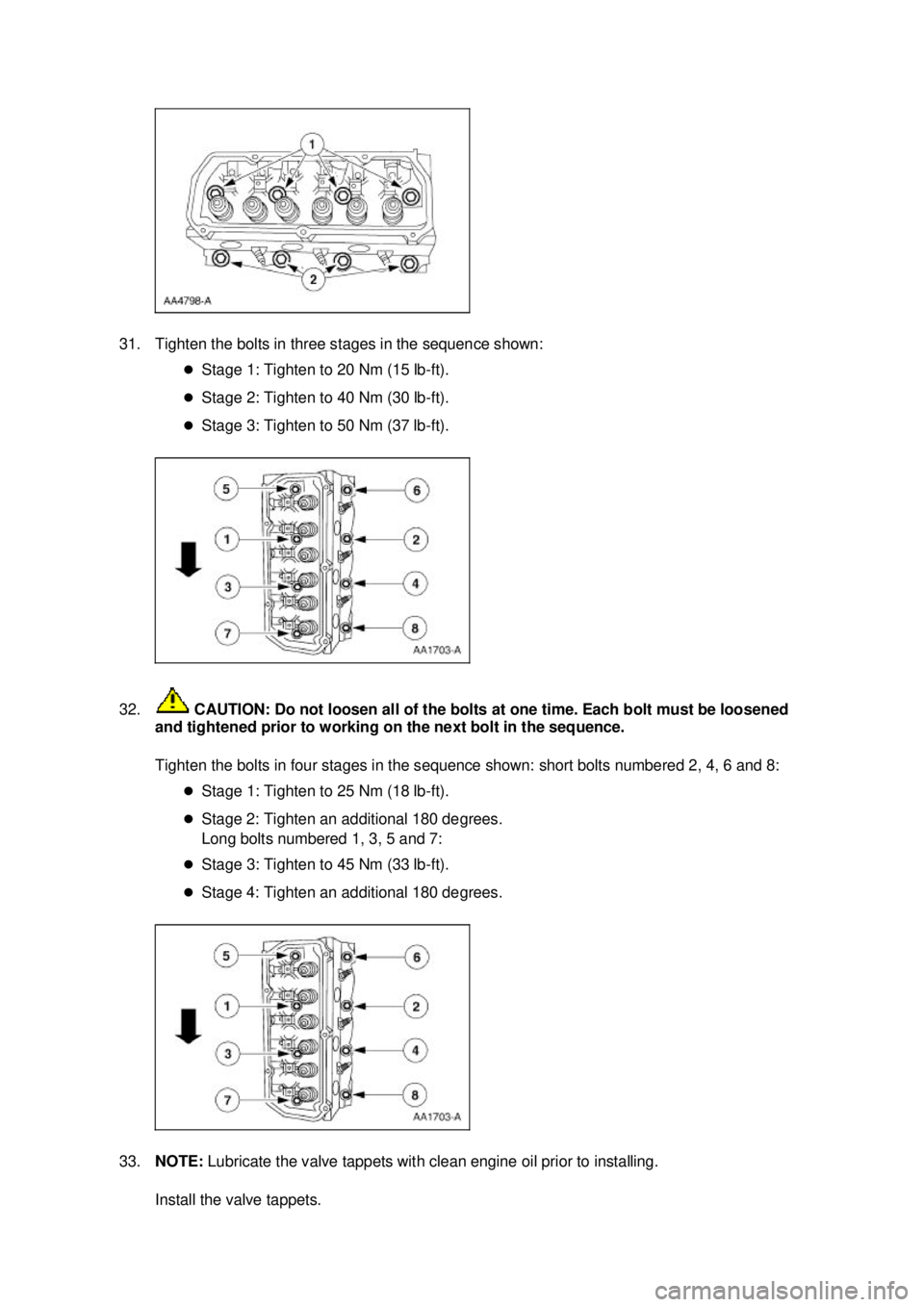

FORD MUSTANG 2003 Workshop Manual 28. Remove the retaining pin. CAUTION: The components removed should be marked for location. Make sure the used parts are installed in the correct location. 29. NOTE: Install the new cylinder hea

Page 1102 of 4378

FORD MUSTANG 2003 Workshop Manual 31. Tighten the bolts in three stages in the sequence shown: �zStage 1: Tighten to 20 Nm (15 lb- ft). �z Stage 2: Tighten to 40 Nm (30 lb- ft). �z Stage 3: Tighten to 50 Nm (37 lb- ft). 32. CAUTI

Page 1103 of 4378

FORD MUSTANG 2003 Workshop Manual �z Install the valve tappets. �z Install the tappet guide plates and retainers. �z Install the bolts. 34. NOTE: Lubricate the push rods with clean engine oil prior to installation. Install the 12

Page 1104 of 4378

FORD MUSTANG 2003 Workshop Manual Nm (21 lb- ft). 37. NOTE: Lubricate the parts with clean engine oil before assembly. Using the special tool, install the front crankshaft seal. 38. Install the crankshaft position sensor. 39. App
