FORD MUSTANG 2003 Workshop Manual 13. Remove the valve stem seals. 14. CAUTION: The outer bolts on the outer cam bearing cap (exhaust) are longer and must be returned to the same location or engine damage may occur. NOTE: Identif

Page 1538 of 4378

FORD MUSTANG 2003 Workshop Manual 15. Remove the camshafts (6250). Assembly 1. Install the valve stem seals. 2. Install the valves and the valve springs. 3. CAUTION: Make sure the tool is seated correctly on the valve spring. App

Page 1539 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Compress the valve spring compressor and install the key on the valves. 5. NOTE: LH is shown, RH is similar. Install the camshafts. �zLubricate the camshafts with clean engine oil. 6. Install

Page 1540 of 4378

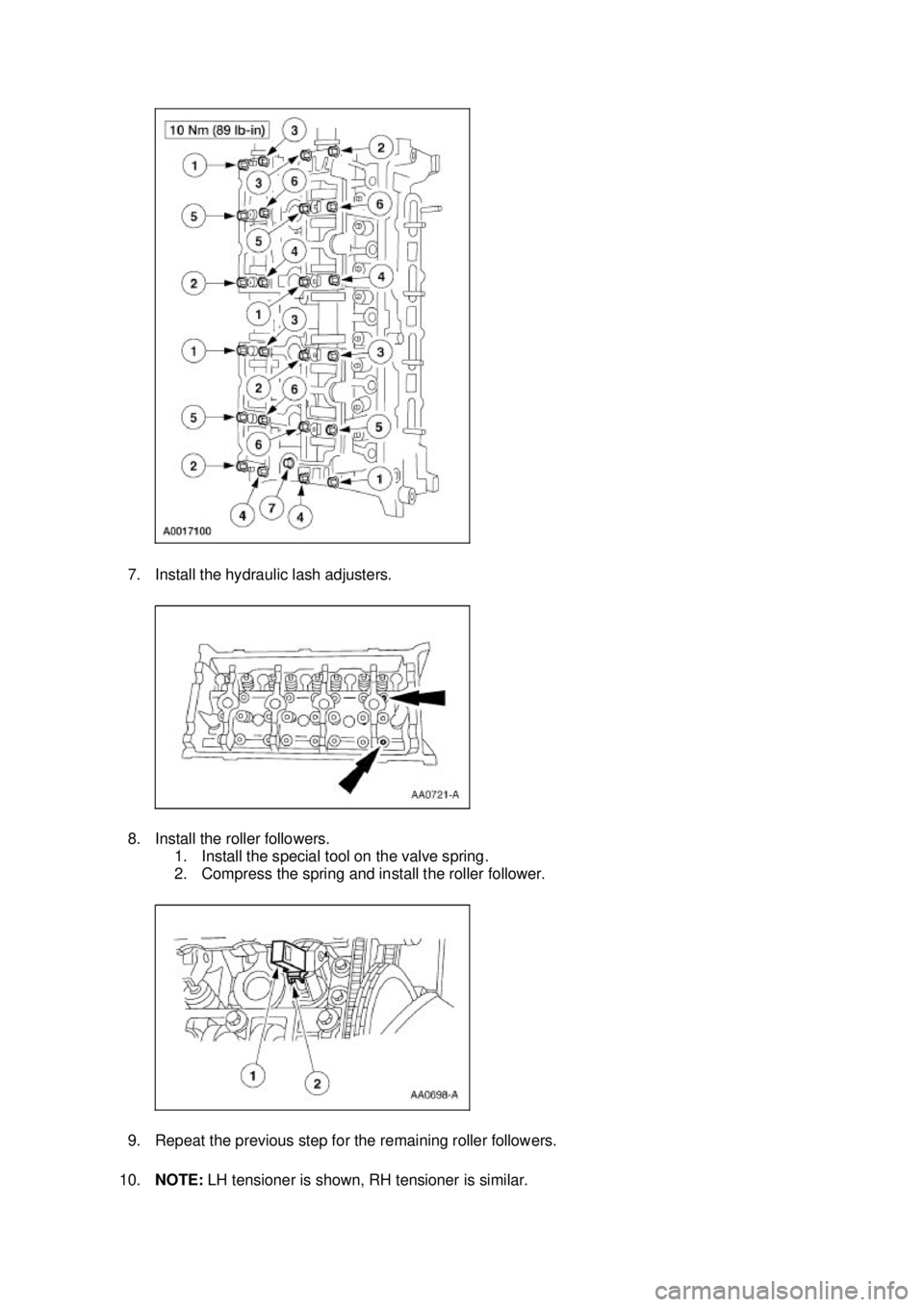

FORD MUSTANG 2003 Workshop Manual 7. Install the hydraulic lash adjusters. 8. Install the roller followers. 1. Install the special tool on the valve spring. 2. Compress the spring and install the roller follower. 9. Repeat the pre

Page 1541 of 4378

FORD MUSTANG 2003 Workshop Manual Install the tensioner. 11. CAUTION: Timing marks must be at 12 oclock and indexed at 6 oclock. Install the camshaft sprockets and the chain as an assembly. 12. Install the special tool. 13. Ins

Page 1542 of 4378

FORD MUSTANG 2003 Workshop Manual 14. Install the camshaft sprocket, washer and bolt, and hand- tighten the bolt. 15. Tighten the bolts in two stages: �zStage 1: Tighten to 40 Nm (30 lb- ft). �z Stage 2: Tighten and additional 90 d

Page 1543 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 11 ba 112003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1544 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Piston Disassembly 1. Remove the clips. 2. Remove the piston pin (6135) from the piston (6108) and connecting rod assembly. 3. Remove the connecting rod
