Page 393 of 4378

FORD MUSTANG 2003 Workshop Manual �z For new differential pinion bearings, tighten the nut to specification. Refer to torque specifications for new differential pinion bearings in the Specifications portion of this section. �z For

Page 394 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 13 ba 132003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 395 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Differential Case Removal 1. Remove the differential housing cover (4033) and drain the rear axle (4001). For additional information, refer to Differential Housing Cover in th

Page 396 of 4378

FORD MUSTANG 2003 Workshop Manual Remove the axle shafts. For additional information, refer to Axle Shaft in this section. 3. Wipe the lubricant from the internal working parts and inspect the parts for wear and damage. 4. Rotate

Page 397 of 4378

FORD MUSTANG 2003 Workshop Manual (4010) to protect the machined surface from damage. Using a pry bar and a wood block, remove the differential assembly from the differential housing. 8. Remove the 10 bolts. 9. CAUTION: Do not da

Page 398 of 4378

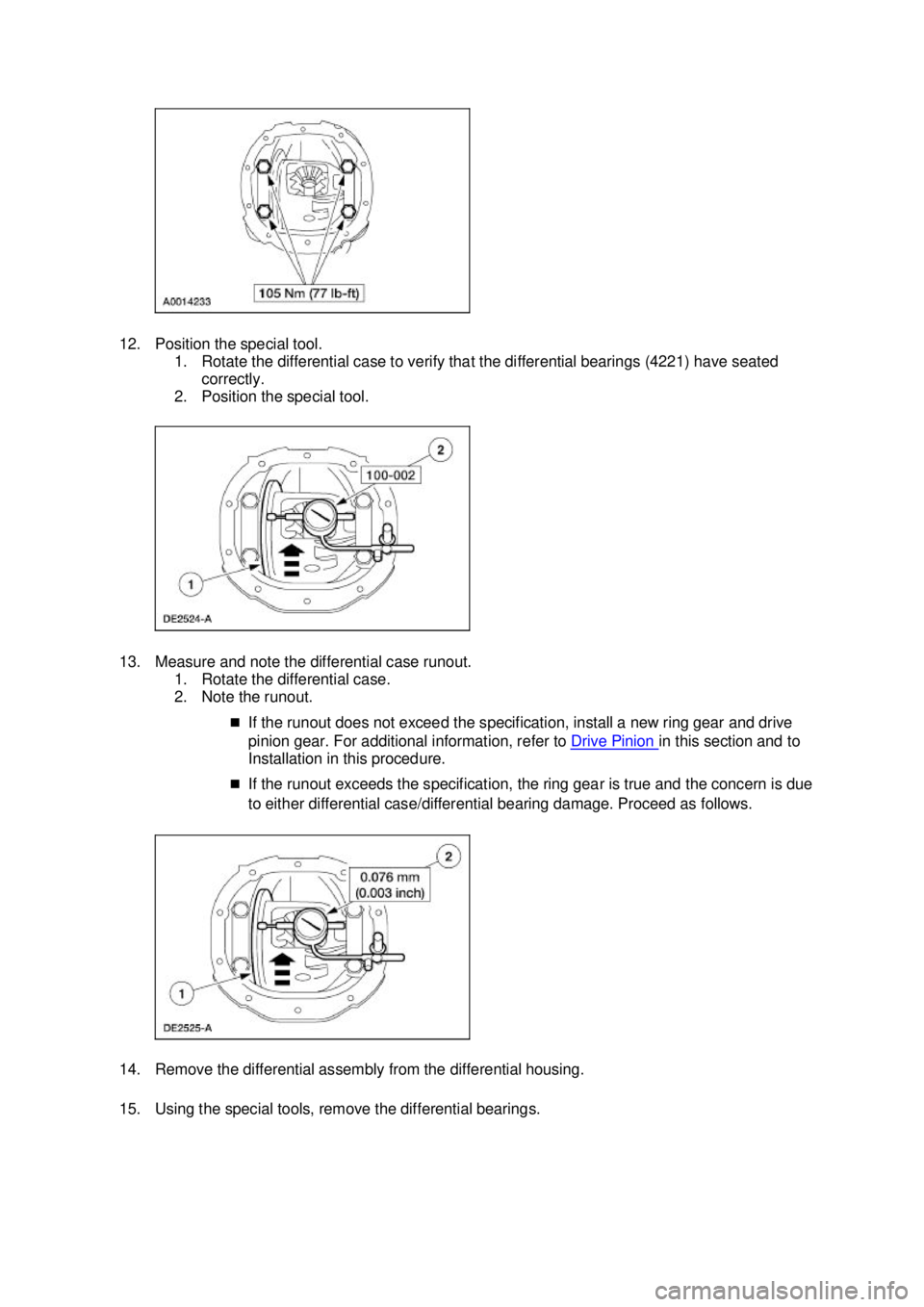

FORD MUSTANG 2003 Workshop Manual 12. Position the special tool. 1. Rotate the differential case to verify that the differential bearings (4221) have seated correctly. 2. Position the special tool. 13. Measure and note the differen

Page 399 of 4378

FORD MUSTANG 2003 Workshop Manual 16. Using the special tool, install the new differential bearings. 17. Position the differential assembly, including the differential bearing cups and differential bearing shims, in the differential

Page 400 of 4378

FORD MUSTANG 2003 Workshop Manual �z If the runout does not exceed the specification, use the new differential bearings for assembly. �z If the runout exceeds the specification, install a new differential case. For additional infor
