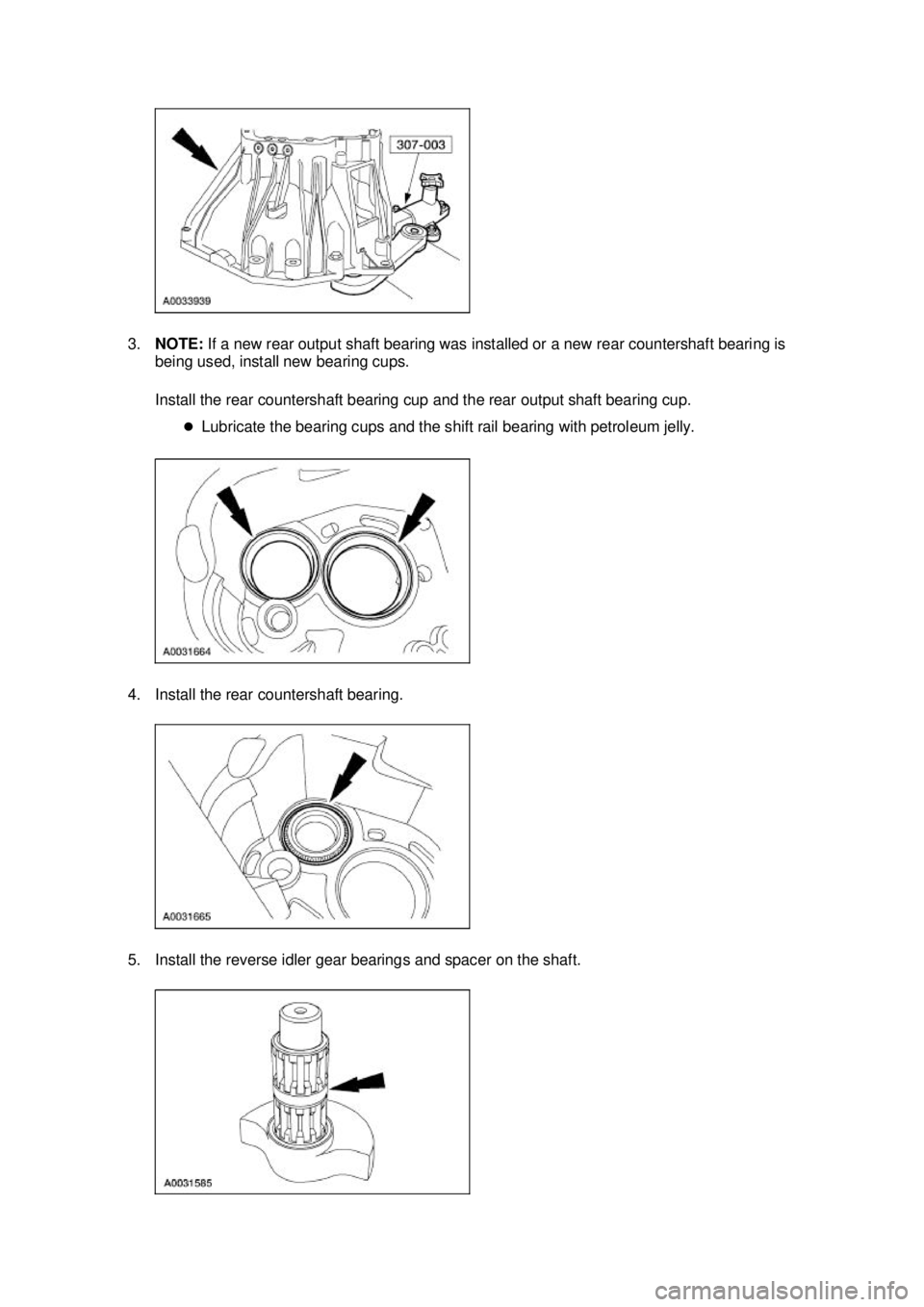

FORD MUSTANG 2003 Workshop Manual 3. NOTE: If a new rear output shaft bearing was installed or a new rear countershaft bearing is being used, install new bearing cups. Install the rear countershaft bearing cup and the rear output s

Page 2826 of 4378

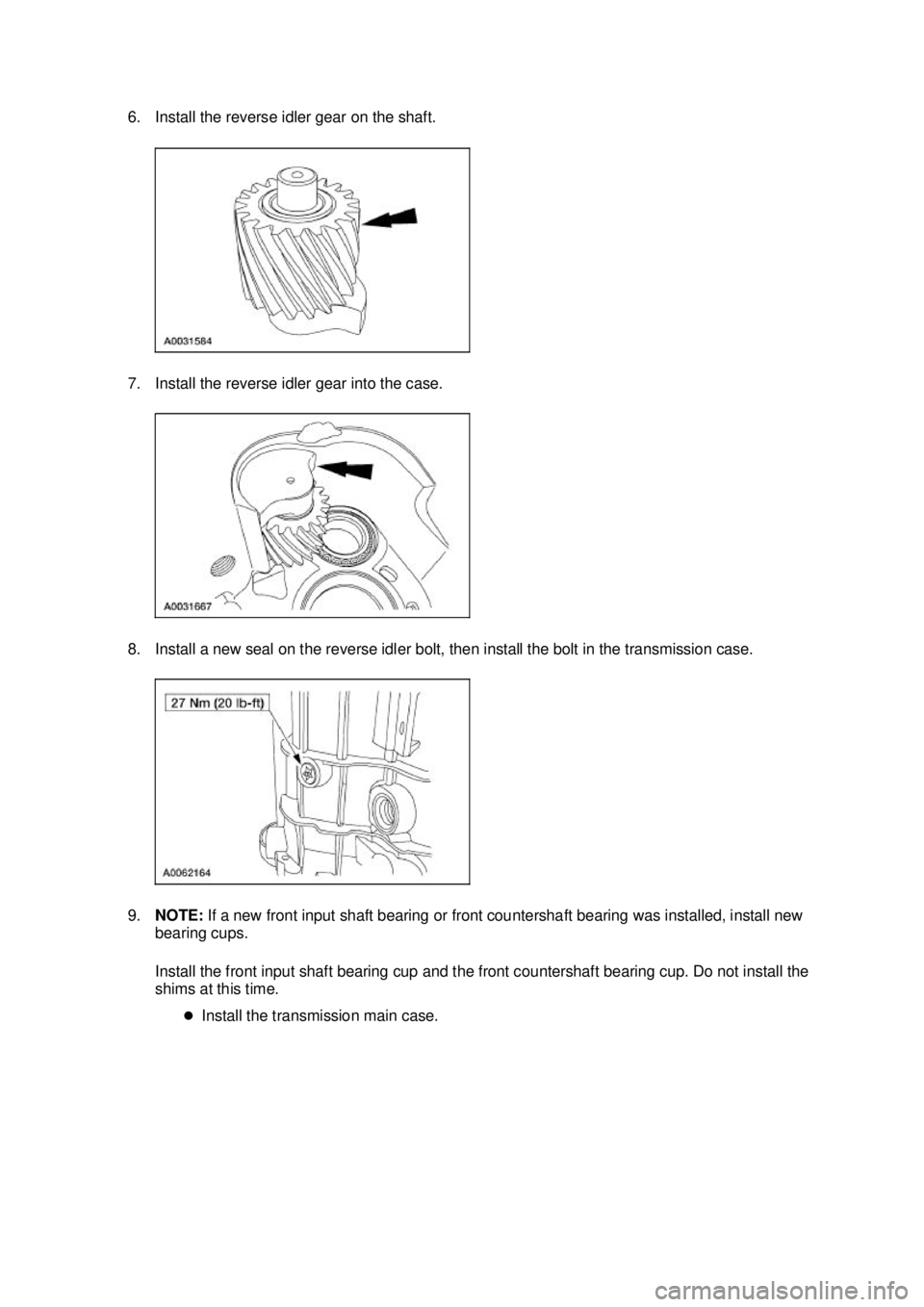

FORD MUSTANG 2003 Workshop Manual 6. Install the reverse idler gear on the shaft. 7. Install the reverse idler gear into the case. 8. Install a new seal on the reverse idler bolt, then install the bolt in the transmission case. 9.

Page 2827 of 4378

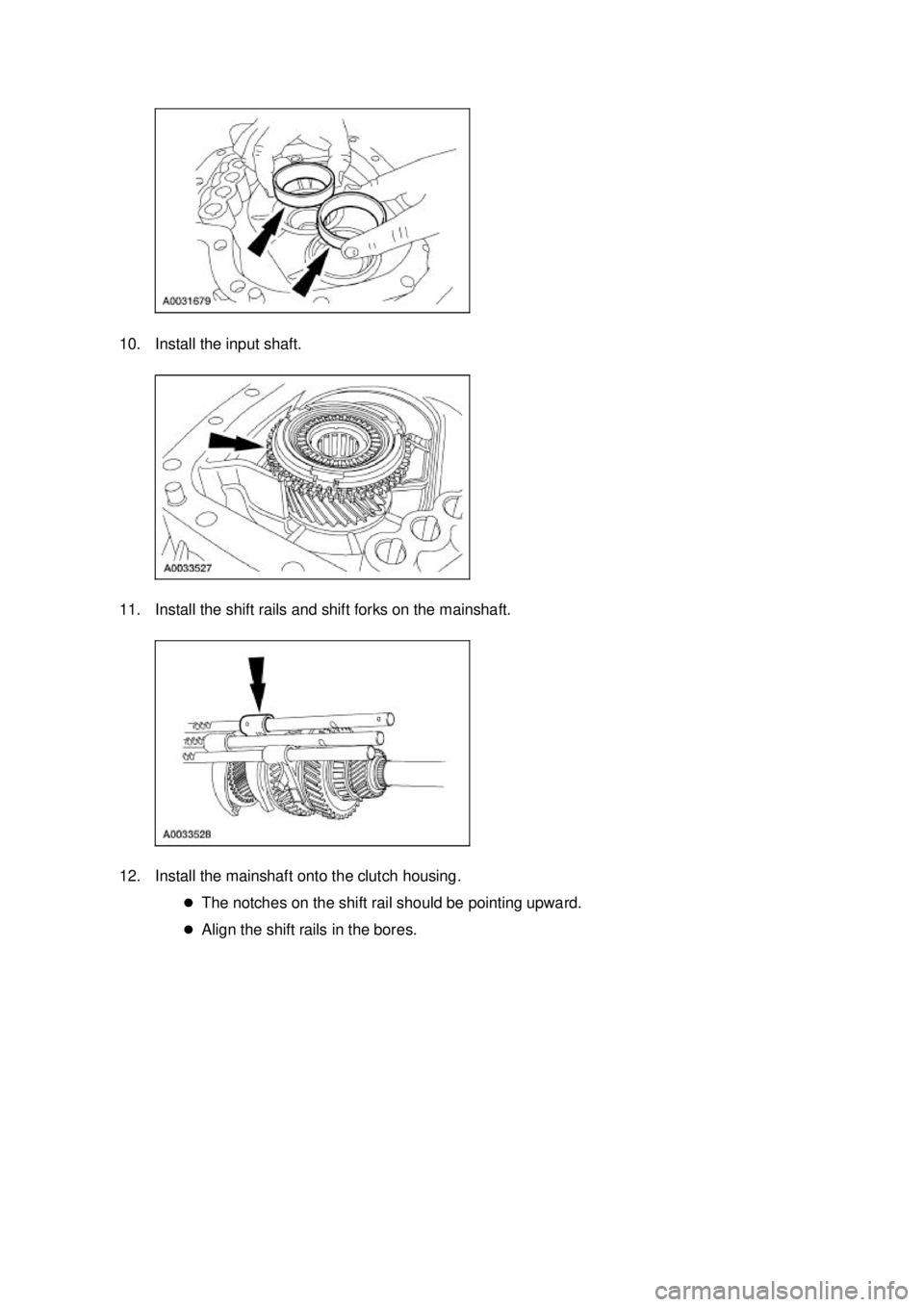

FORD MUSTANG 2003 Workshop Manual 10. Install the input shaft. 11. Install the shift rails and shift forks on the mainshaft. 12. Install the mainshaft onto the clutch housing. �zThe notches on the shift rail should be pointing upwa

Page 2828 of 4378

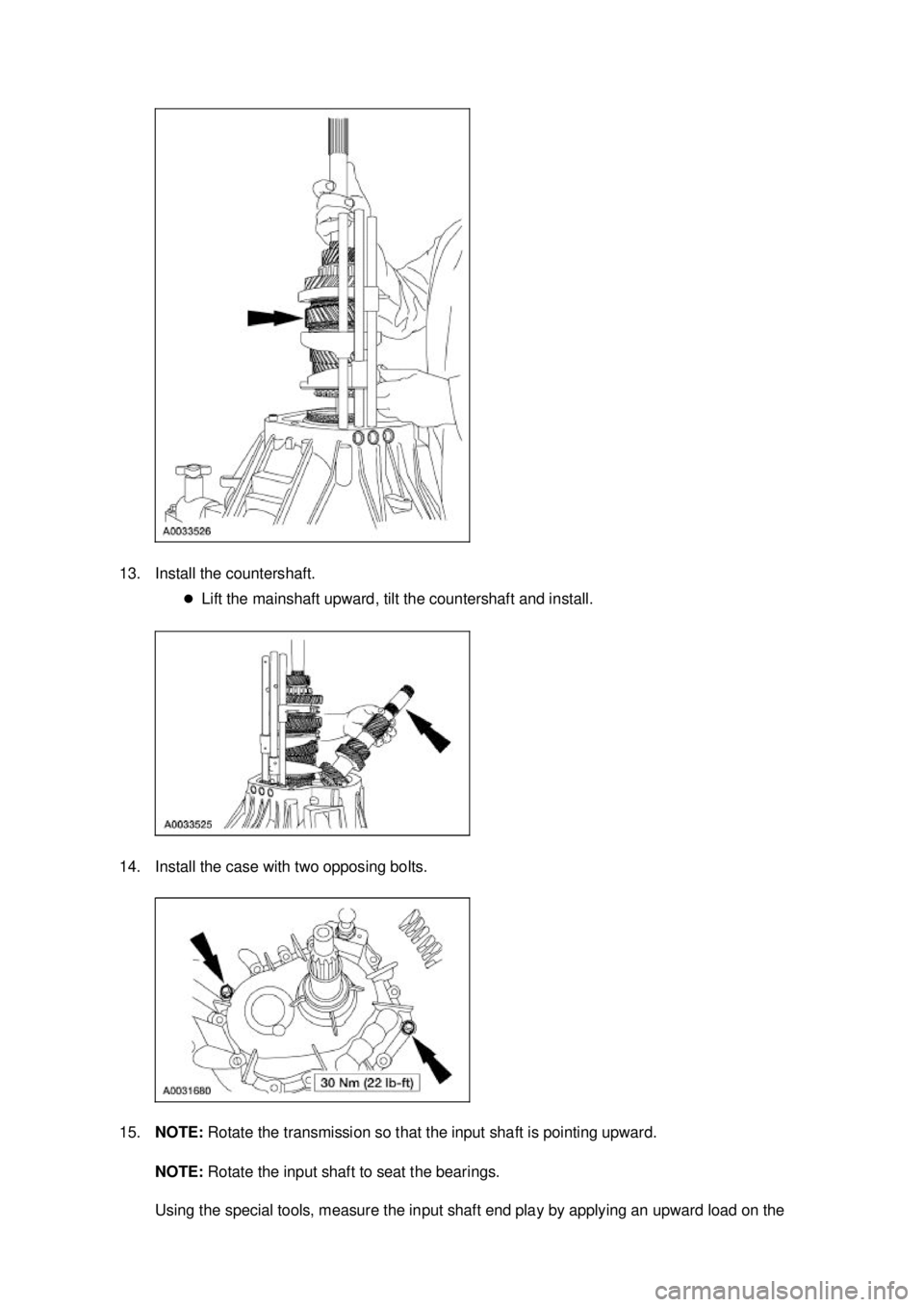

FORD MUSTANG 2003 Workshop Manual 13. Install the countershaft. �zLift the mainshaft upward, tilt the countershaft and install. 14. Install the case with two opposing bolts. 15. NOTE: Rotate the transmission so that the input shaf

Page 2829 of 4378

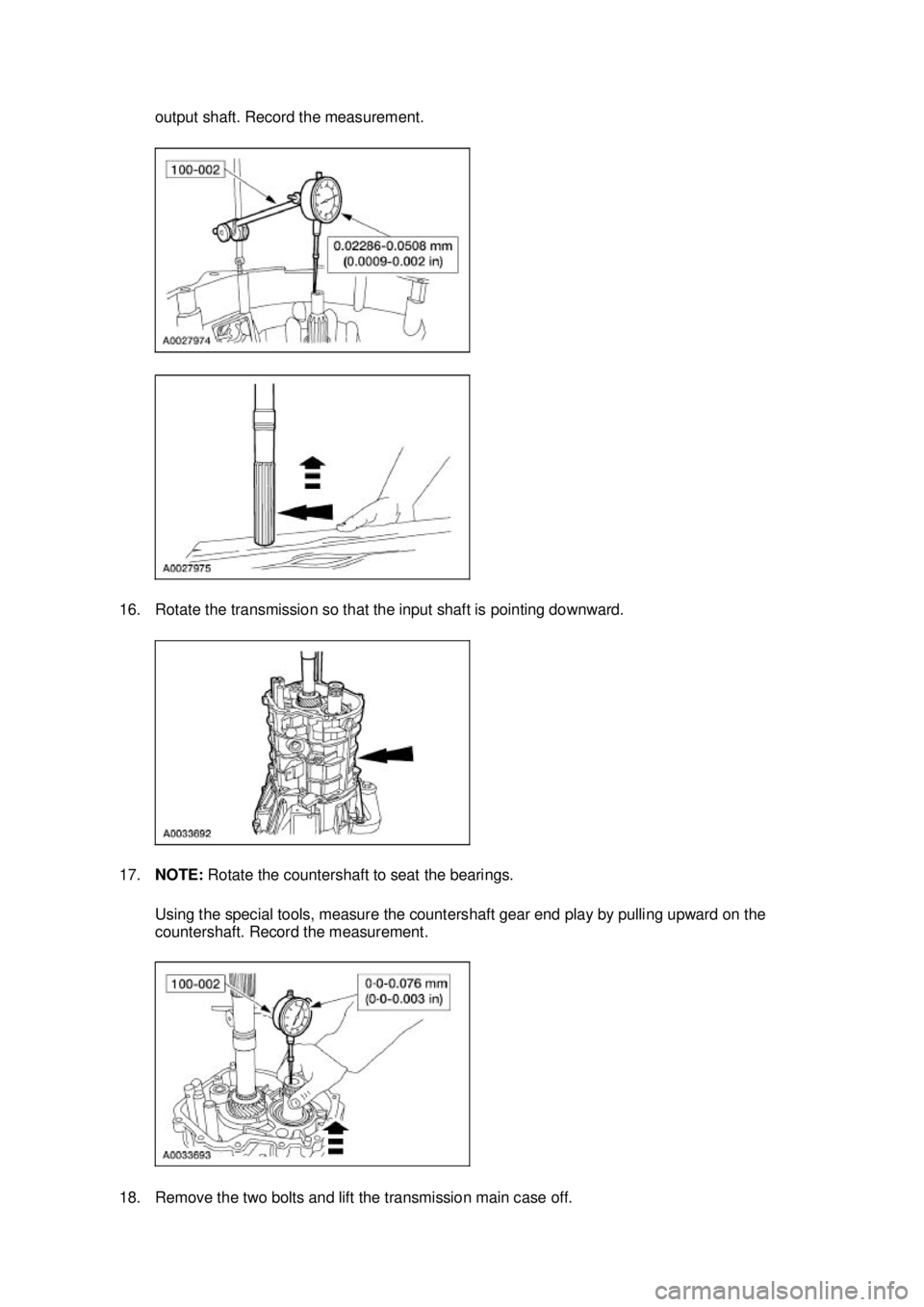

FORD MUSTANG 2003 Workshop Manual output shaft. Record the measurement. 16. Rotate the transmission so that the input shaft is pointing downward. 17. NOTE: Rotate the countershaft to seat the bearings. Using the special tools, mea

Page 2830 of 4378

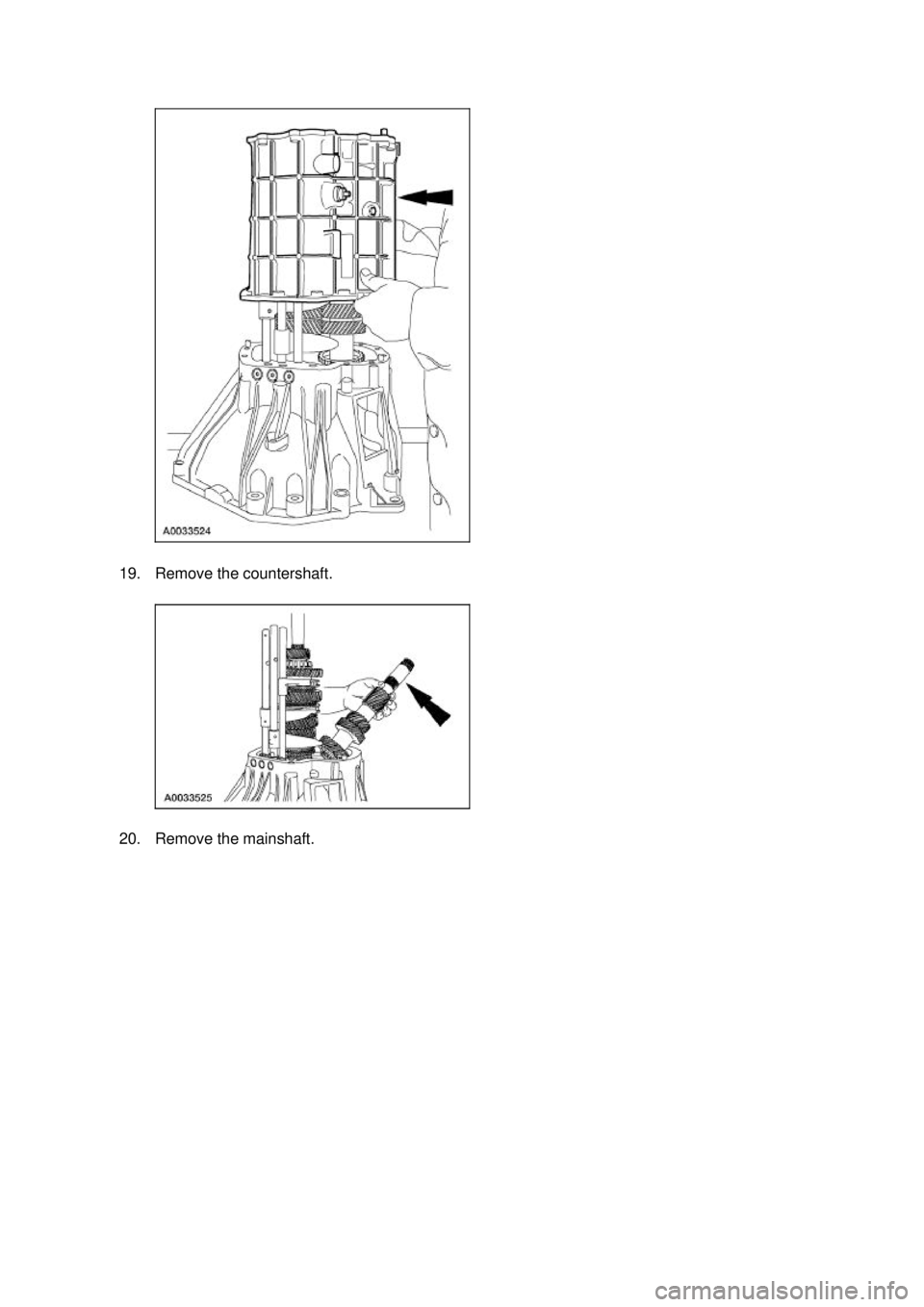

FORD MUSTANG 2003 Workshop Manual 19. Remove the countershaft. 20. Remove the mainshaft. Klj . 7 ba 192003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2831 of 4378

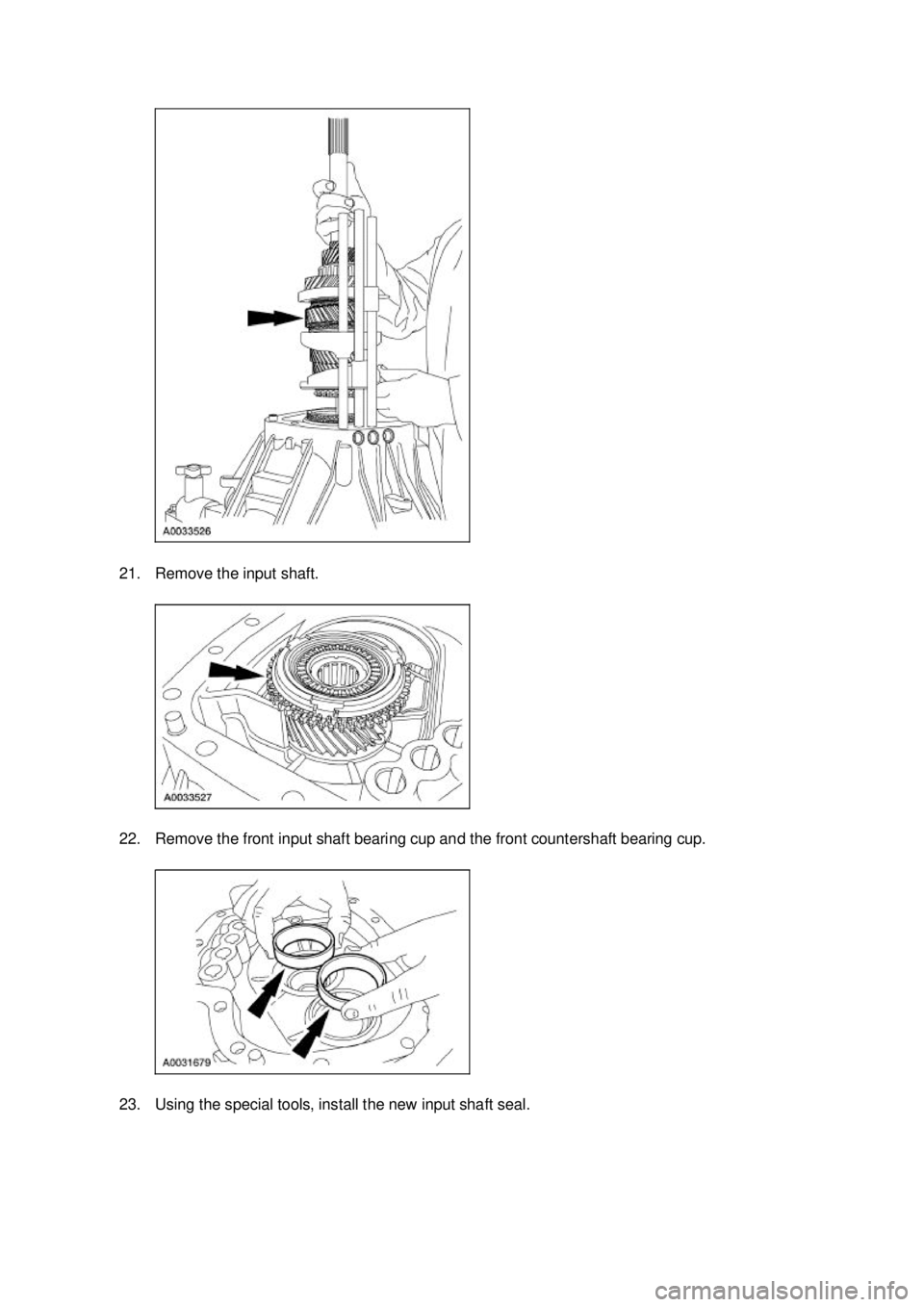

FORD MUSTANG 2003 Workshop Manual 21. Remove the input shaft. 22. Remove the front input shaft bearing cup and the front countershaft bearing cup. 23. Using the special tools, install the new input shaft seal. Klj . 8 ba 19

Page 2832 of 4378

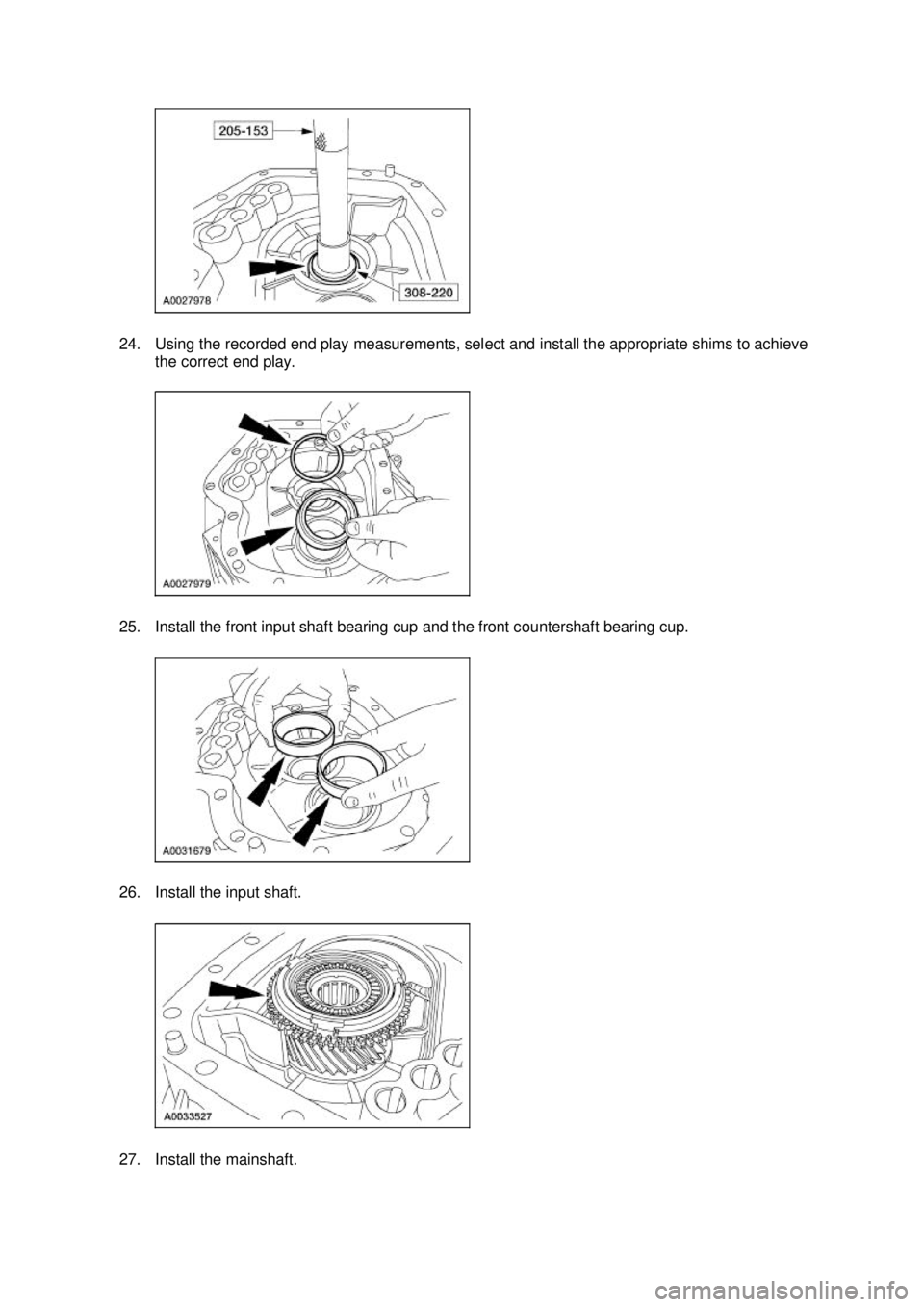

FORD MUSTANG 2003 Workshop Manual 24. Using the recorded end play measurements, select and install the appropriate shims to achieve the correct end play. 25. Install the front input shaft bearing cup and the front countershaft beari
