Page 3185 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Air Conditioning (A/C) Compressor — 3.8L Removal and Installation CAUTION: If installing a new air conditioning compressor due to an internal failure of the old unit, y

Page 3186 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Disconnect the mass airflow (MAF) sensor electrical connector. 5. Remove the air cleaner outlet tube (9B659). 1. Loosen the clamp. 2. Disconnect the crankcase ventilation tube (6758). 3. Remove

Page 3187 of 4378

FORD MUSTANG 2003 Workshop Manual 9. Remove the bolts and the A/C compressor. 10. To install, reverse the removal procedure. �zInstall new O- ring seals lubricated in clean PAG oil. �z If filtering of the refrigerant system is not

Page 3188 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3189 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Air Conditioning (A/C) Compressor — 4.6L Removal and Installation CAUTION: If installing a new air conditioning compressor due to an internal failure of the old unit, y

Page 3190 of 4378

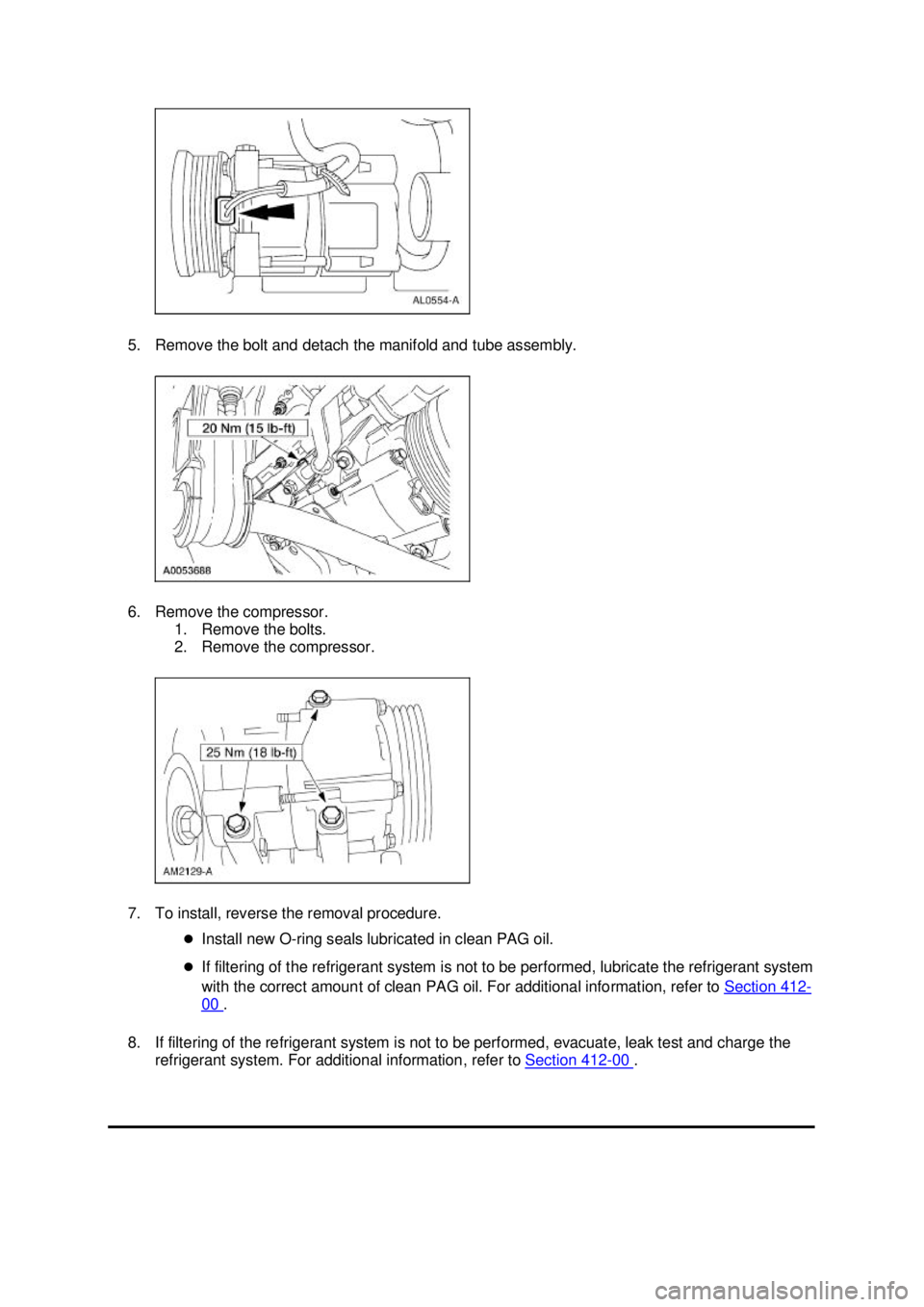

FORD MUSTANG 2003 Workshop Manual 5. Remove the bolt and detach the manifold and tube assembly. 6. Remove the compressor. 1. Remove the bolts. 2. Remove the compressor. 7. To install, reverse the removal procedure. �zInstall new

Page 3191 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3192 of 4378

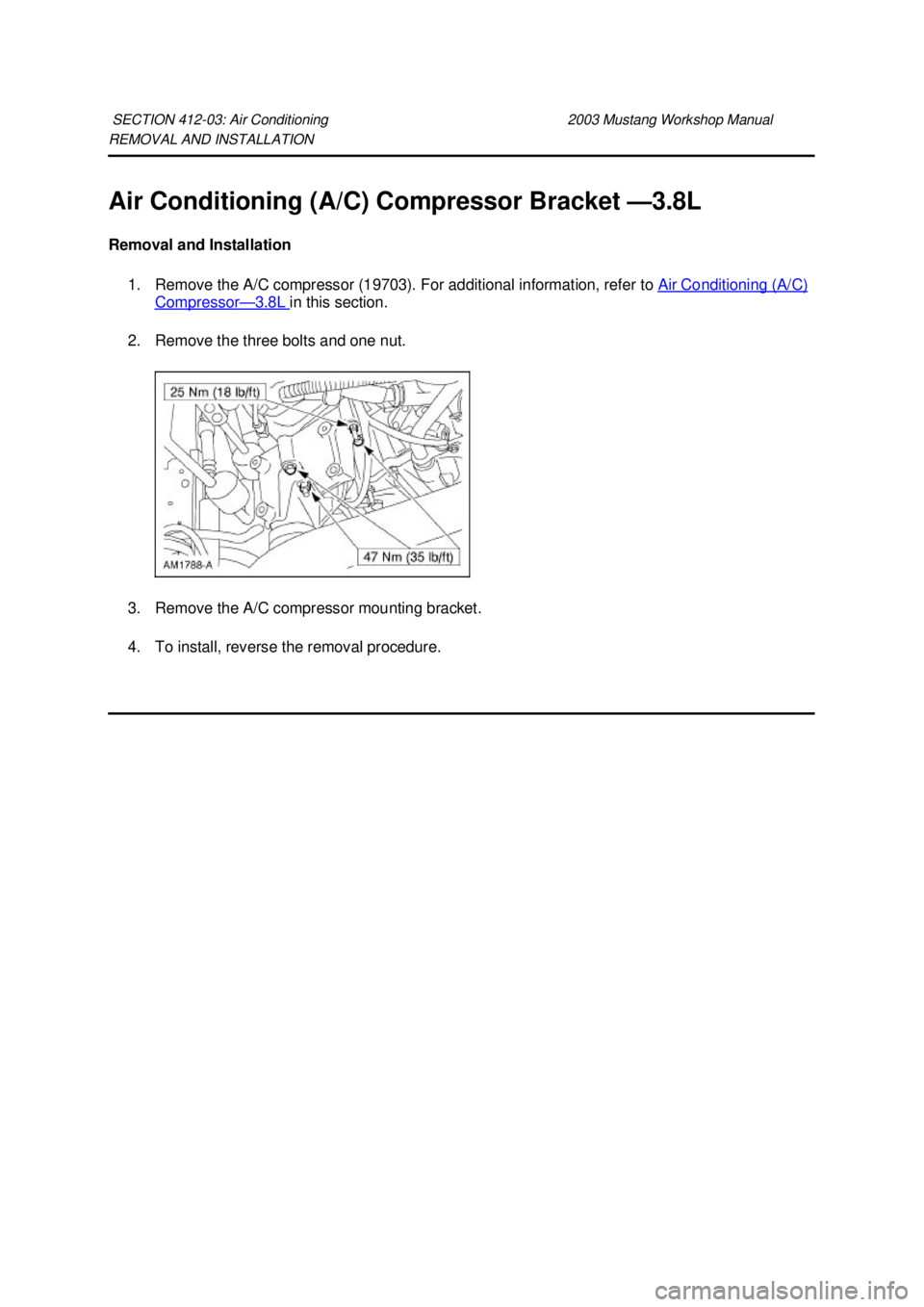

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Air Conditioning (A/C) Compressor Bracket — 3.8L Removal and Installation 1. Remove the A/C compressor (19703). For additional information, refer to Air Conditioning (A/
