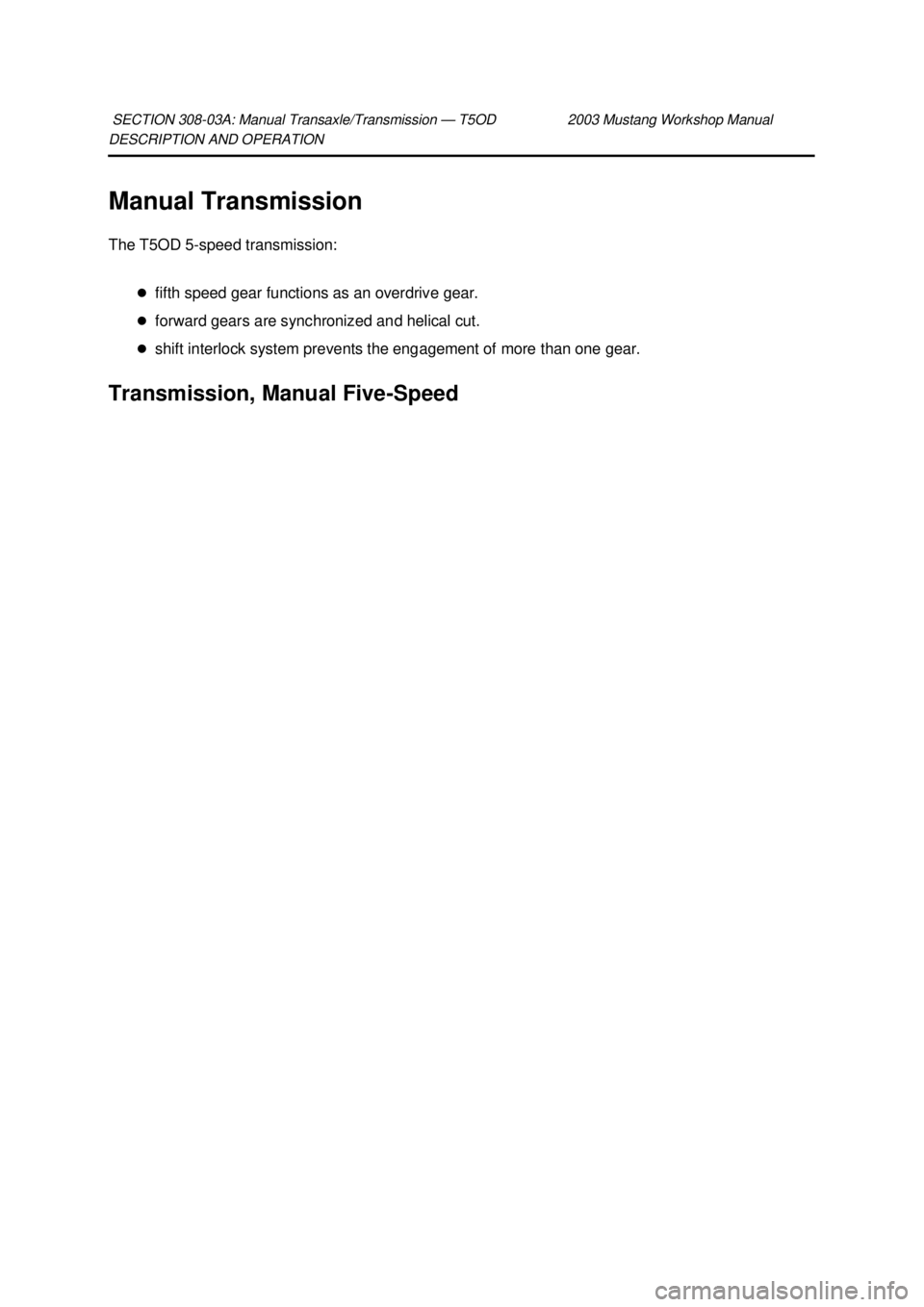

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Manual Transmission The T5OD 5- speed transmission: �z fifth speed gear functions as an overdrive gear. �z forward gears are synchronized and helical cut. �z shift inter

Page 2690 of 4378

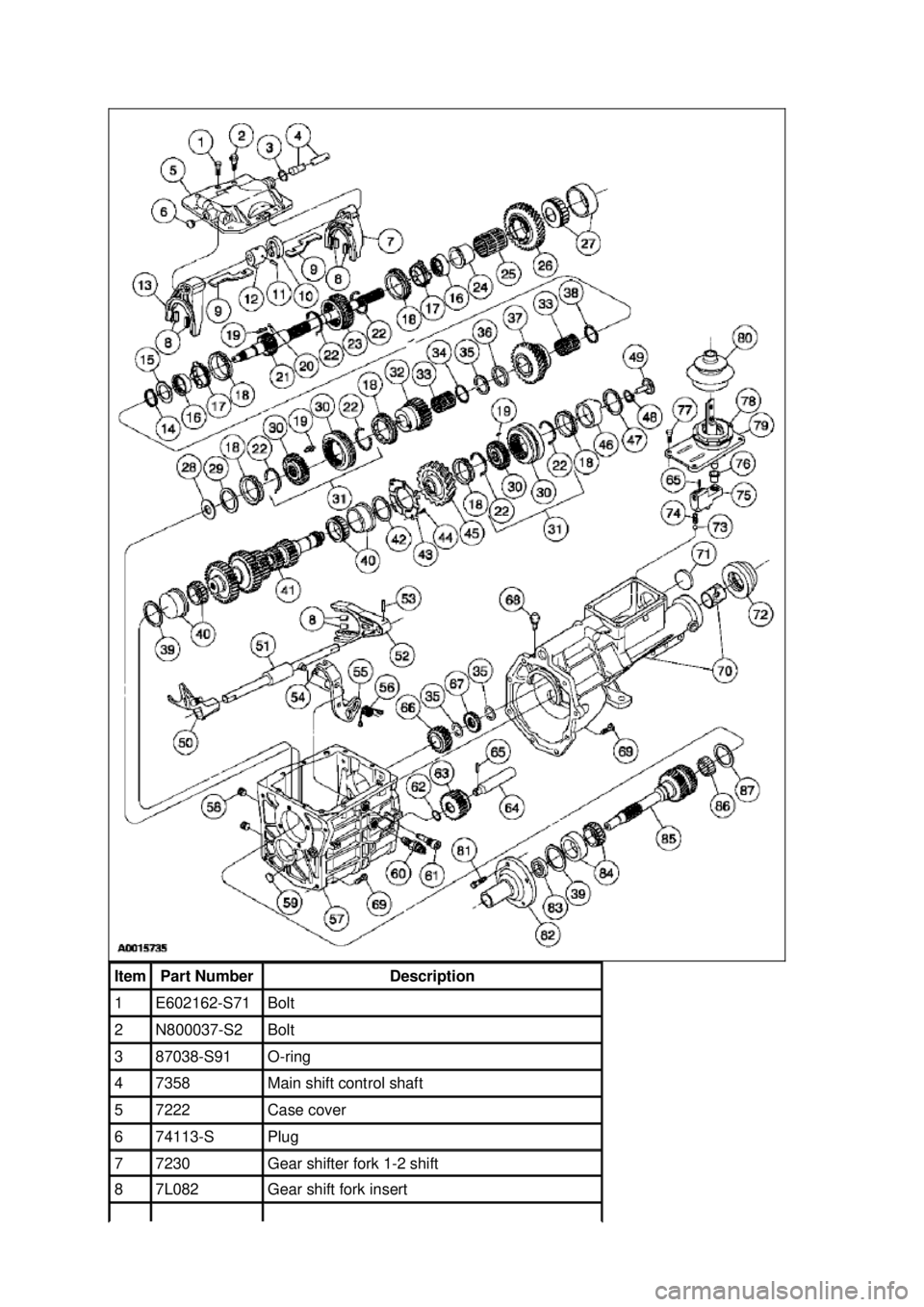

FORD MUSTANG 2003 Workshop Manual Item Part Number Description 1 E602162-S71 Bolt 2 N800037-S2 Bolt 3 87038-S91 O- ring 4 7358 Main shift control shaft 5 7222 Case cover 6 74113- S Plug 7 7230 Gear shifter fork

Page 2691 of 4378

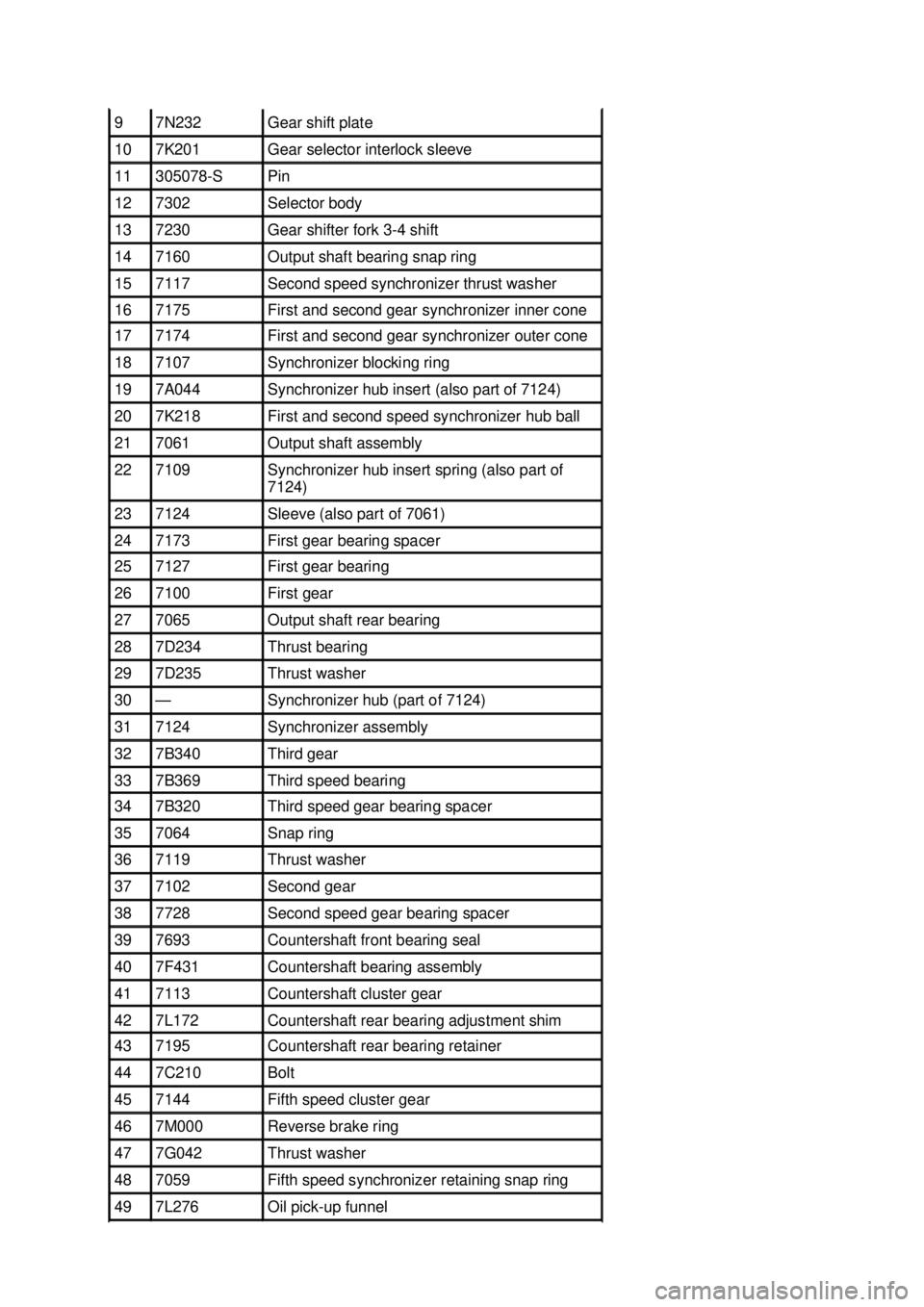

FORD MUSTANG 2003 Workshop Manual 9 7N232 Gear shift plate 10 7K201 Gear selector interlock sleeve 11 305078- S Pin 12 7302 Selector body 13 7230 Gear shifter fork 3- 4 shift 14 7160 Output shaft bearing snap ring 15

Page 2692 of 4378

FORD MUSTANG 2003 Workshop Manual Transmission Identification The transmission identification tag is located under the lower left bolt that retains the extension 50 7230 Reverse shift fork 51 7240 Reverse gear shift rail 52 7

Page 2693 of 4378

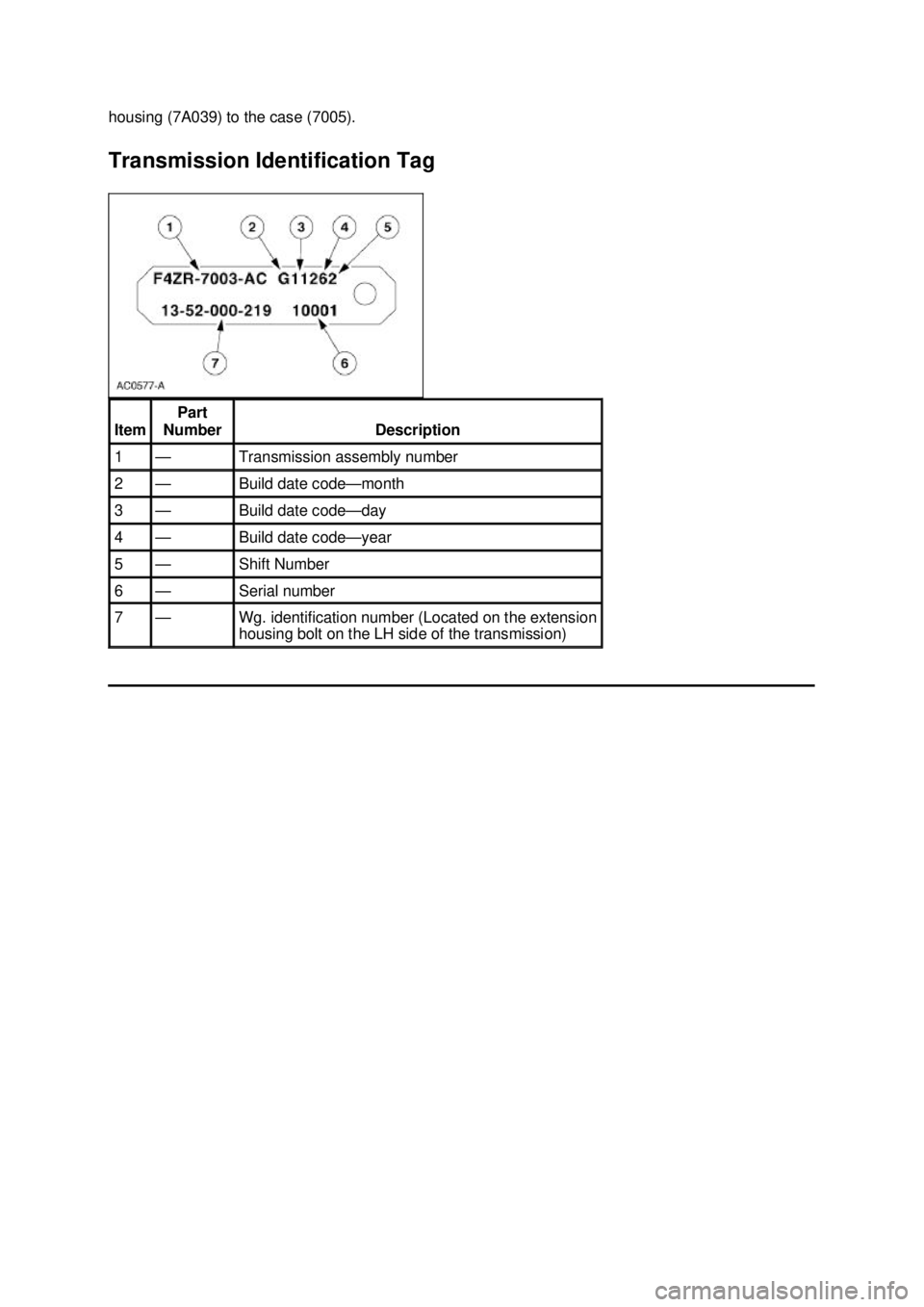

FORD MUSTANG 2003 Workshop Manual housing (7A039) to the case (7005). Transmission Identification Tag Item Part Number Description 1 — Transmission assembly number 2 — Build date code— month 3 — Build date code— da

Page 2694 of 4378

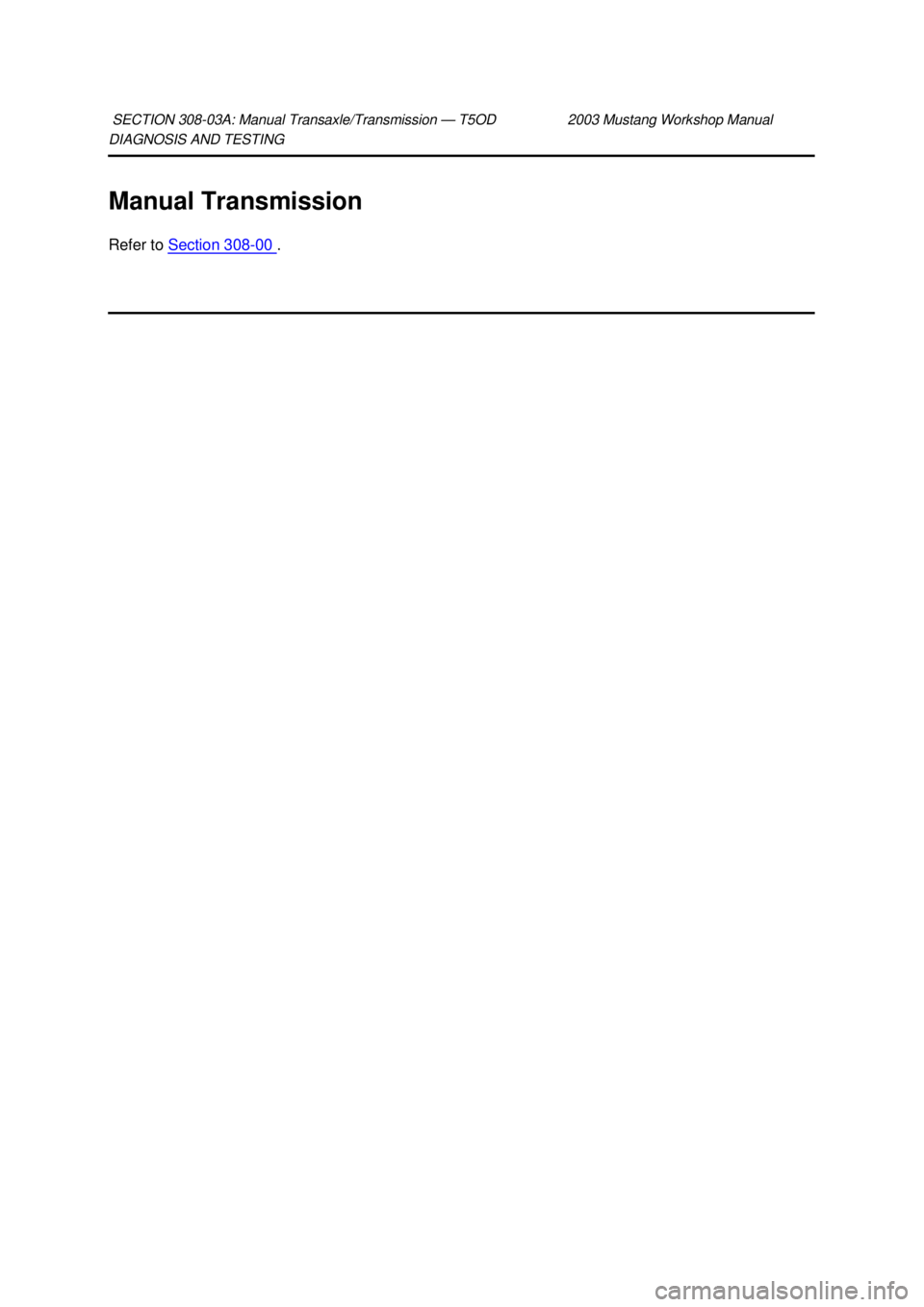

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Manual Transmission Refer to Section 308 - 00 . SECTION 308- 03A: Manual Transaxle/Transmission — T5OD 2003 Mustang Workshop Manual Klj . 1 ba 12003 Mustang Works

Page 2695 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Seal Removal 1. With the vehicle in NEUTRAL, raise and support the vehicle. For additional information, refer to Section 100 - 02 . 2. CAUTION: Index- mark the driveshaft fla

Page 2696 of 4378

FORD MUSTANG 2003 Workshop Manual 2. CAUTION: Align the index marks. Install the driveshaft. For additional information, refer to Section 205 - 01 . 3. Check the transmission fluid level, add fluid if necessary. 4. Lower the veh
