Page 1649 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Position the oil level indicator tube and install the bolt. 7. Install the LH ignition coils. 8. Connect the ignition coil electrical connectors. 9. Install the LH ignition coil cover and the bo

Page 1650 of 4378

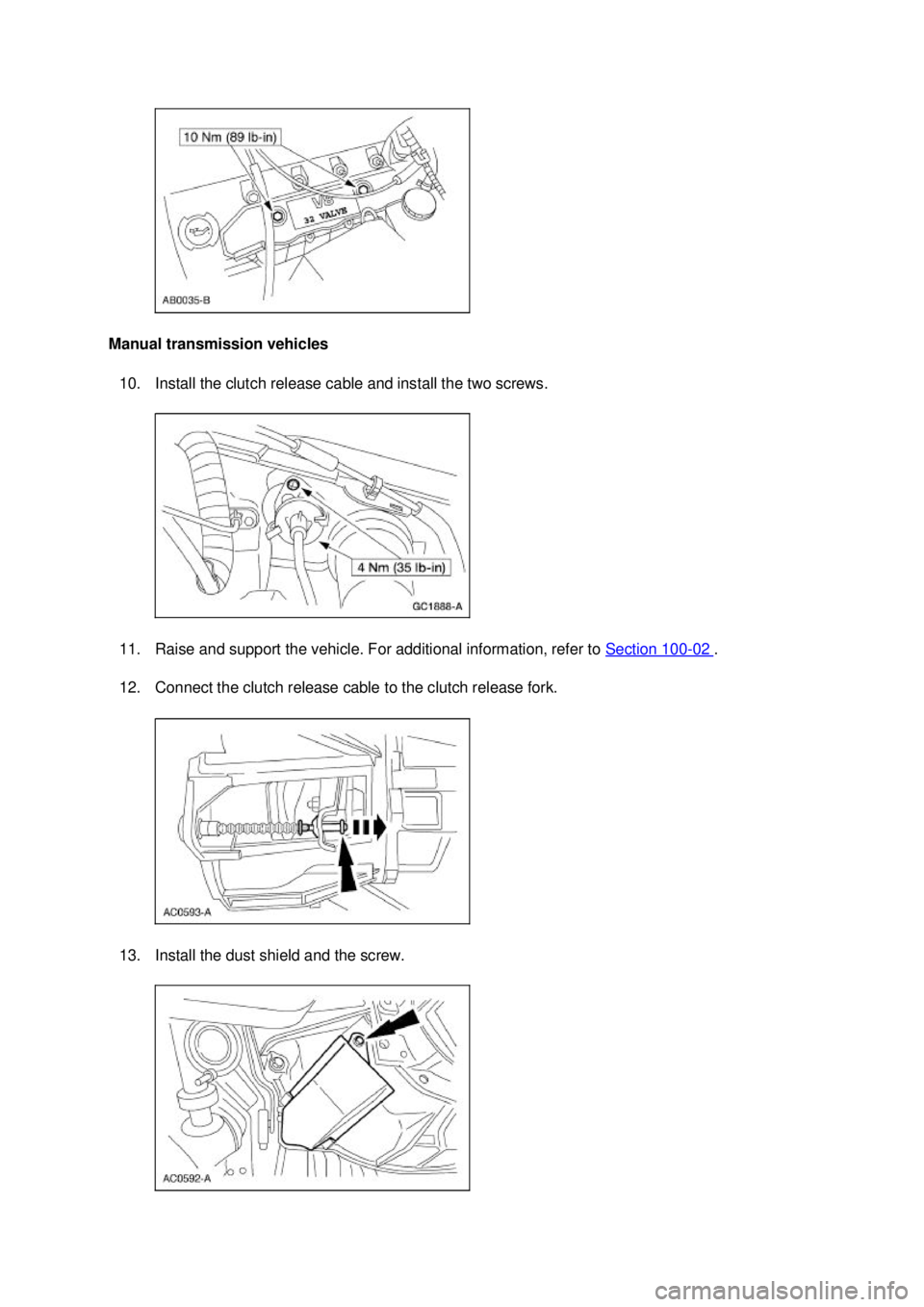

FORD MUSTANG 2003 Workshop Manual Manual transmission vehicles 10. Install the clutch release cable and install the two screws. 11. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 12. Connec

Page 1651 of 4378

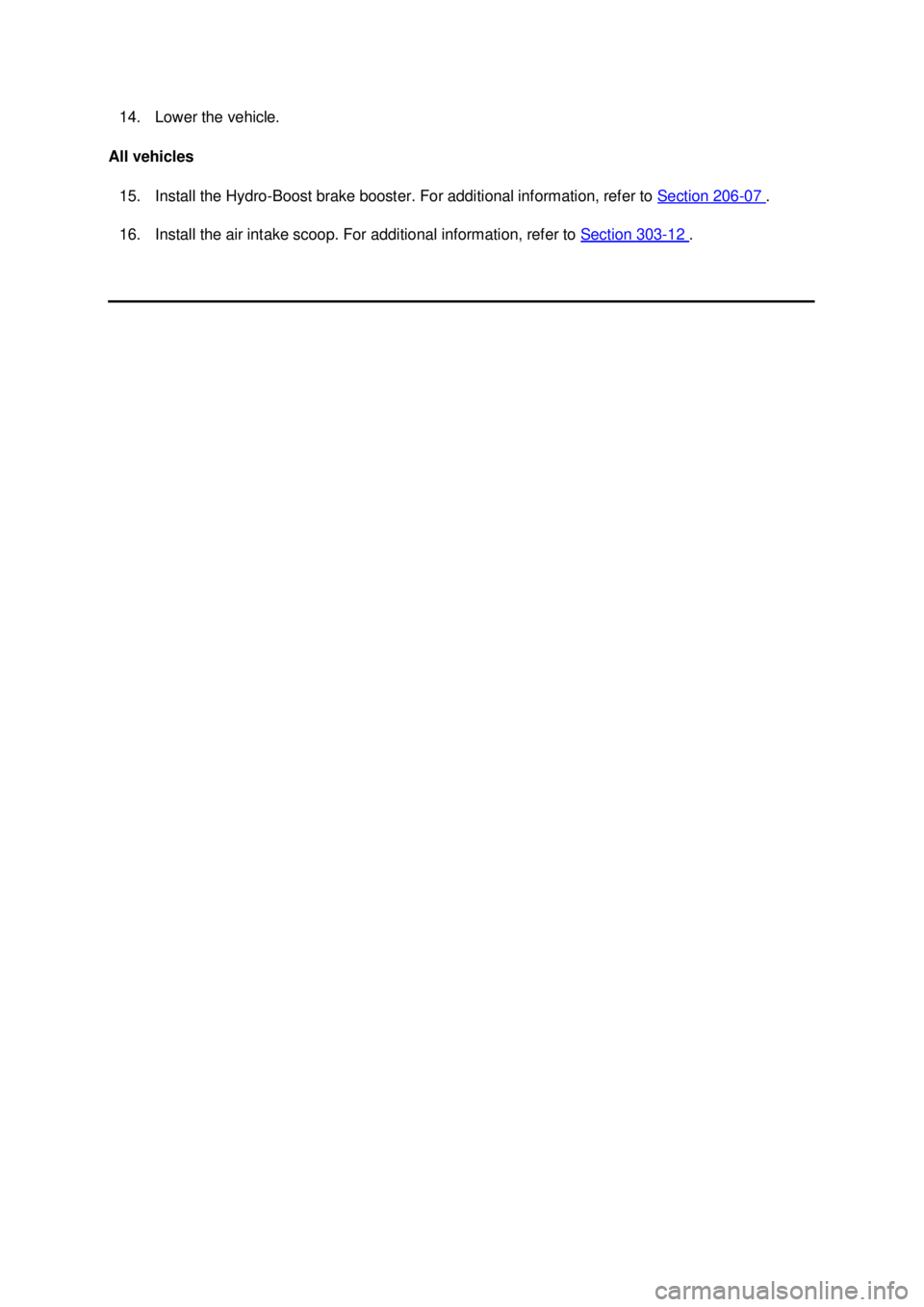

FORD MUSTANG 2003 Workshop Manual 14. Lower the vehicle. All vehicles 15. Install the Hydro- Boost brake booster. For additional information, refer to Section 206 - 07 . 16. Install the air intake scoop. For additional informatio

Page 1652 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Crankshaft Pulley Removal 1. Remove the accessory drive belt. For additional information, refer to Section 303 - 05 . 2. Raise and support the vehicle. For additional informat

Page 1653 of 4378

FORD MUSTANG 2003 Workshop Manual Installation 1. NOTE: The crankshaft pulley must be installed within four minutes after applying the silicone. Apply silicone to the Woodruff key slot on the crankshaft pulley. �zUse Silicone Gask

Page 1654 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1655 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Crankshaft Front Oil Seal Removal 1. Remove the crankshaft pulley. For additional information, refer to Crankshaft Pulley in this section. 2. Using the special tool, remove t

Page 1656 of 4378

FORD MUSTANG 2003 Workshop Manual Installation 1. Lubricate the engine front cover and the crankshaft front oil seal inner lip with clean engine oil. 2. Using the special tools, install the crankshaft front oil seal into the engine
