Page 2841 of 4378

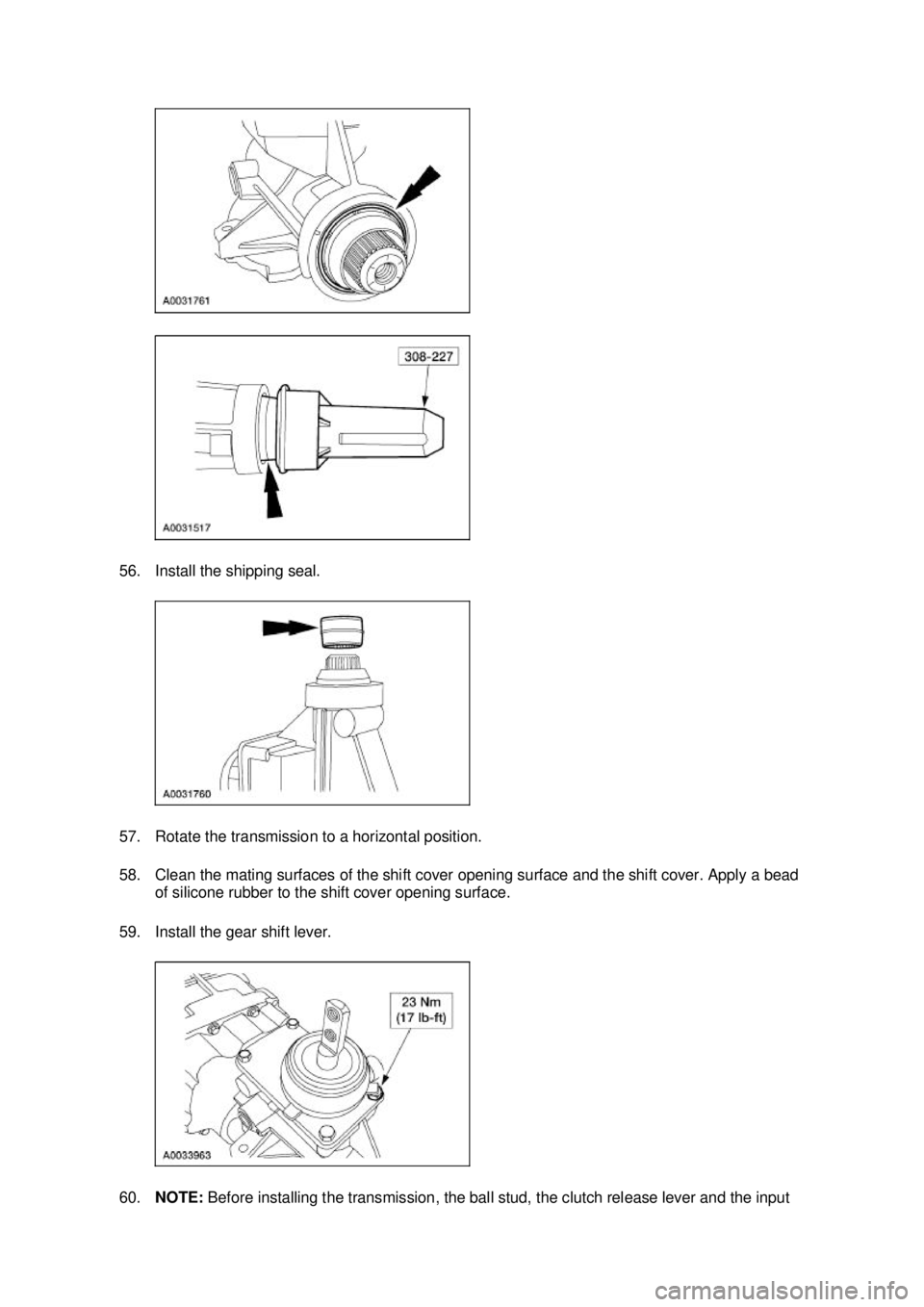

FORD MUSTANG 2003 Workshop Manual 56. Install the shipping seal. 57. Rotate the transmission to a horizontal position. 58. Clean the mating surfaces of the shift cover opening surface and the shift cover. Apply a bead of silicone r

Page 2842 of 4378

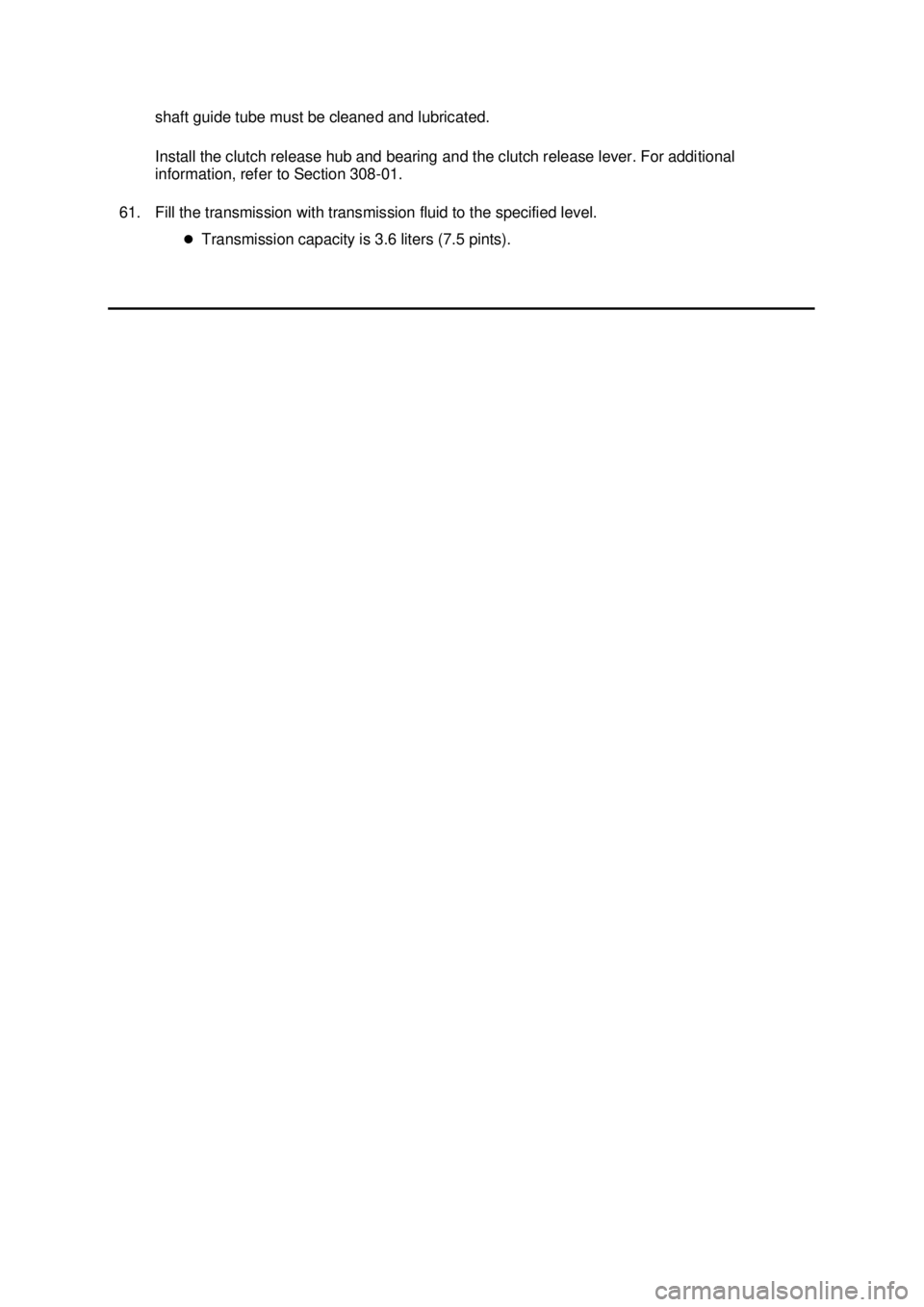

FORD MUSTANG 2003 Workshop Manual shaft guide tube must be cleaned and lubricated. Install the clutch release hub and bearing and the clutch release lever. For additional information, refer to Section 308- 01. 61. Fill the transmis

Page 2843 of 4378

FORD MUSTANG 2003 Workshop Manual INSTALLATION Transmission 1. NOTE: Before installing the transmission, the ball stud, clutch release lever and the input shaft must be cleaned and lubricated. Use Motorcraft Premium Long-Life Grea

Page 2844 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 308- 03C: Manual Transaxle/Transmission — T56 2003 Mustang Workshop Manual General Specifications Item Specification Lubricants and Sealants Premium Long- Life Grease X

Page 2845 of 4378

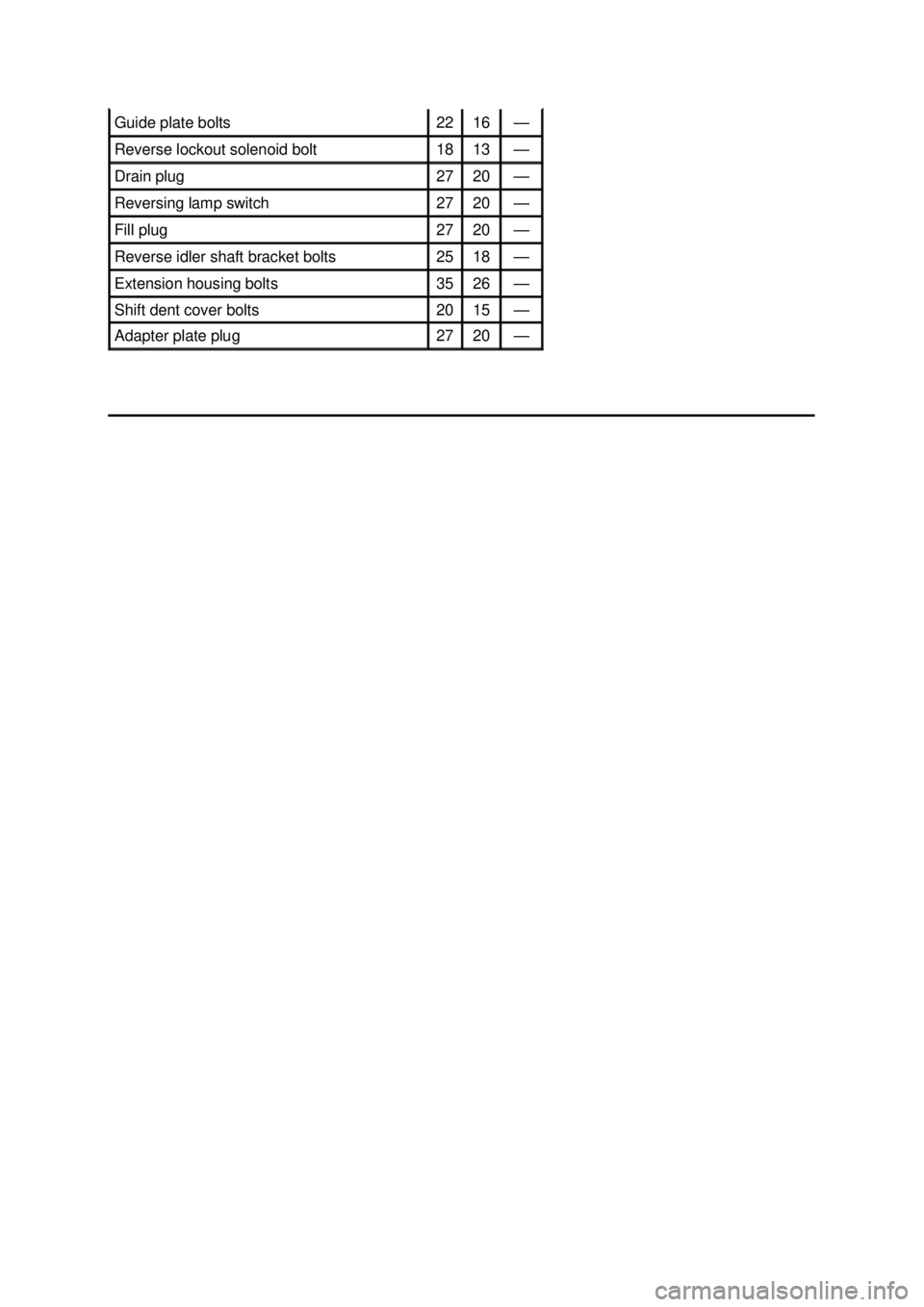

FORD MUSTANG 2003 Workshop Manual Guide plate bolts 22 16 — Reverse lockout solenoid bolt 18 13 — Drain plug 27 20 — Reversing lamp switch 27 20 — Fill plug 27 20 — Reverse idler shaft bracket bolts 25 18

Page 2846 of 4378

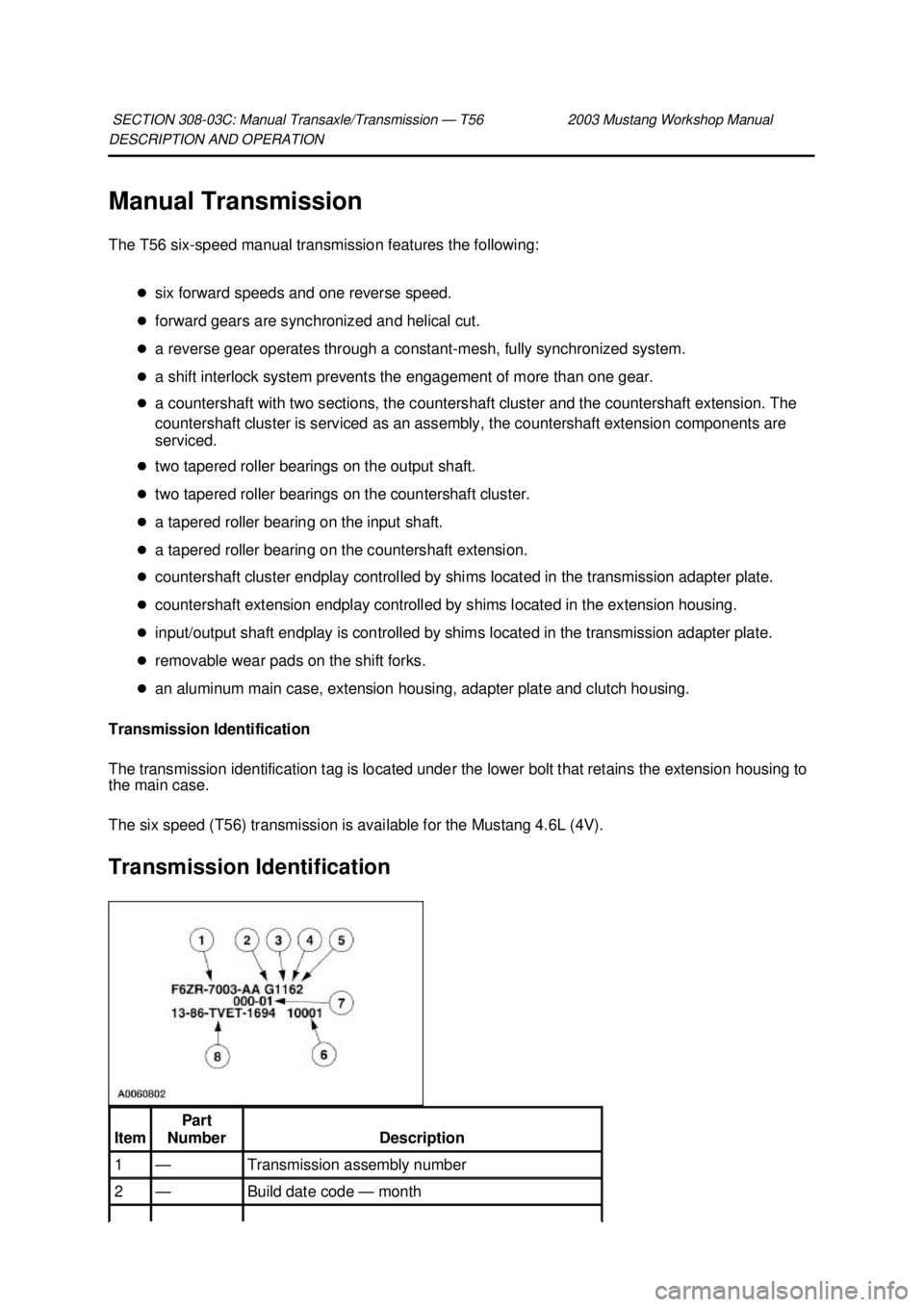

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Manual Transmission The T56 six- speed manual transmission features the following: �z six forward speeds and one reverse speed. �z forward gears are synchronized and heli

Page 2847 of 4378

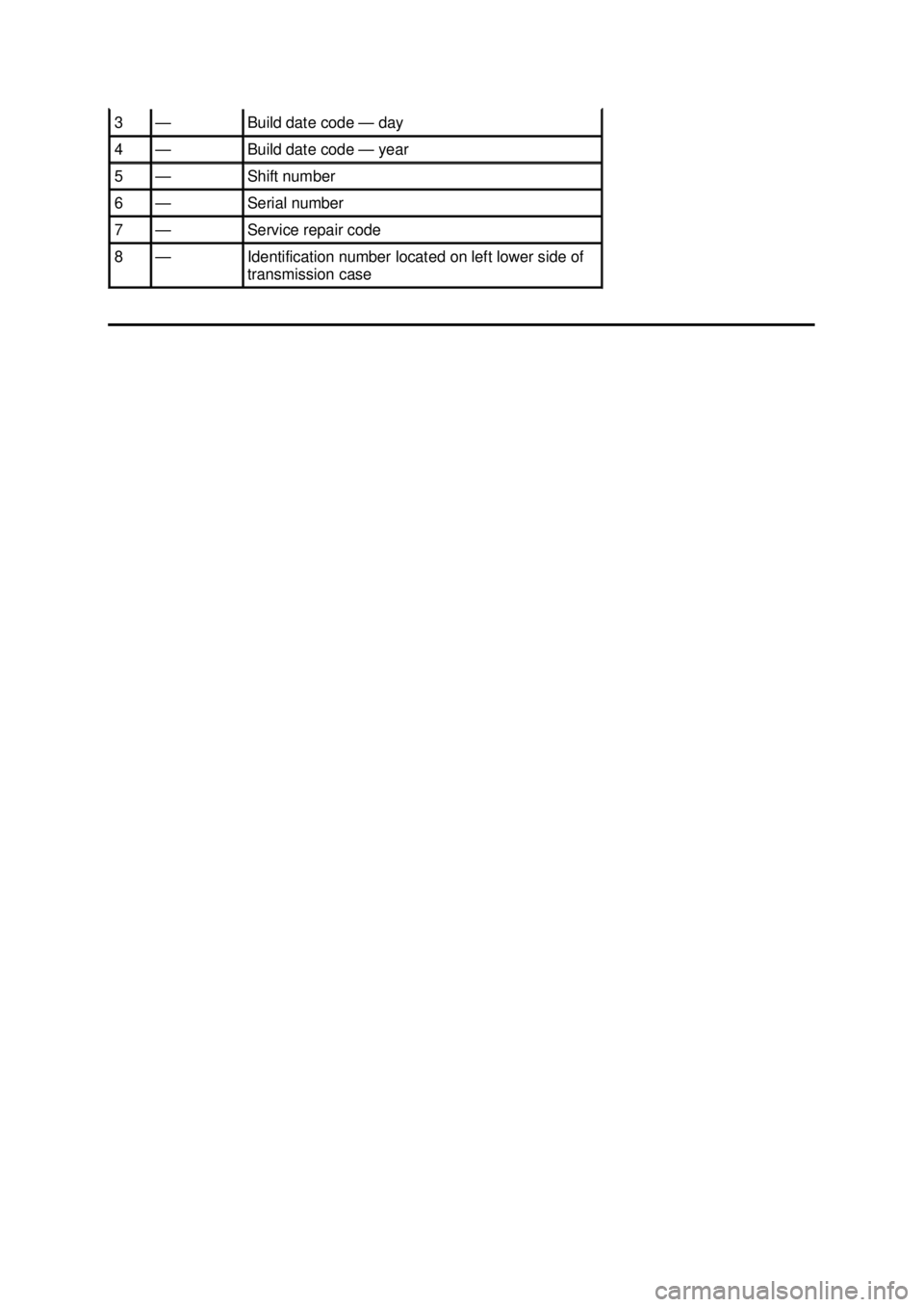

FORD MUSTANG 2003 Workshop Manual 3 — Build date code — day 4 — Build date code — year 5 — Shift number 6 — Serial number 7 — Service repair code 8 — Identification number located on left lower side of transm

Page 2848 of 4378

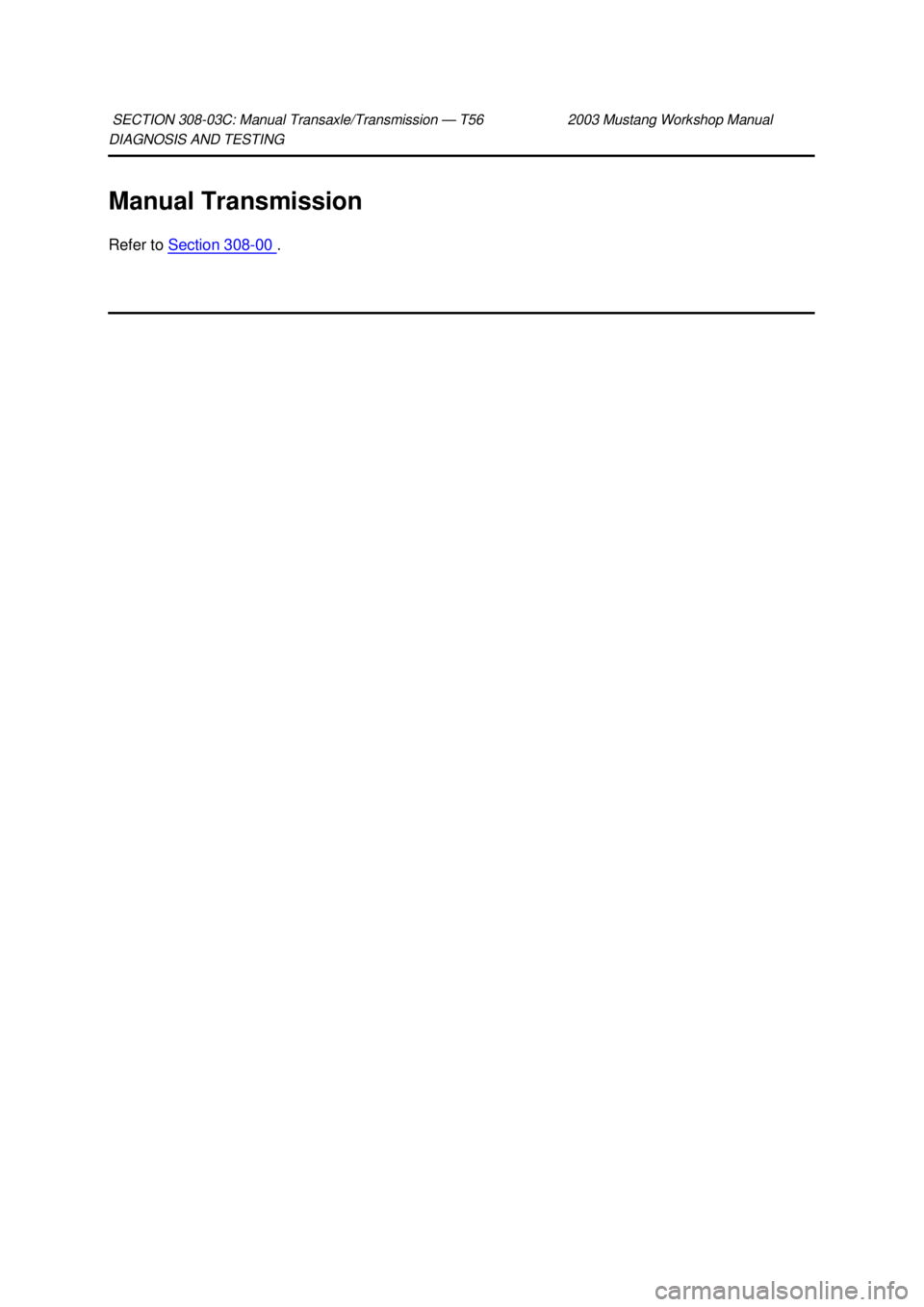

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Manual Transmission Refer to Section 308 - 00 . SECTION 308- 03C: Manual Transaxle/Transmission — T56 2003 Mustang Workshop Manual Klj . 1 ba 12003 Mustang Worksh
