Page 1105 of 4378

FORD MUSTANG 2003 Workshop Manual 40. Install the crankshaft pulley bolt. 41. Install the camshaft synchronizer. For additional information, refer to Section 303 - 14 . 42. Install the water pump pulley and the retaining bolts. 4

Page 1106 of 4378

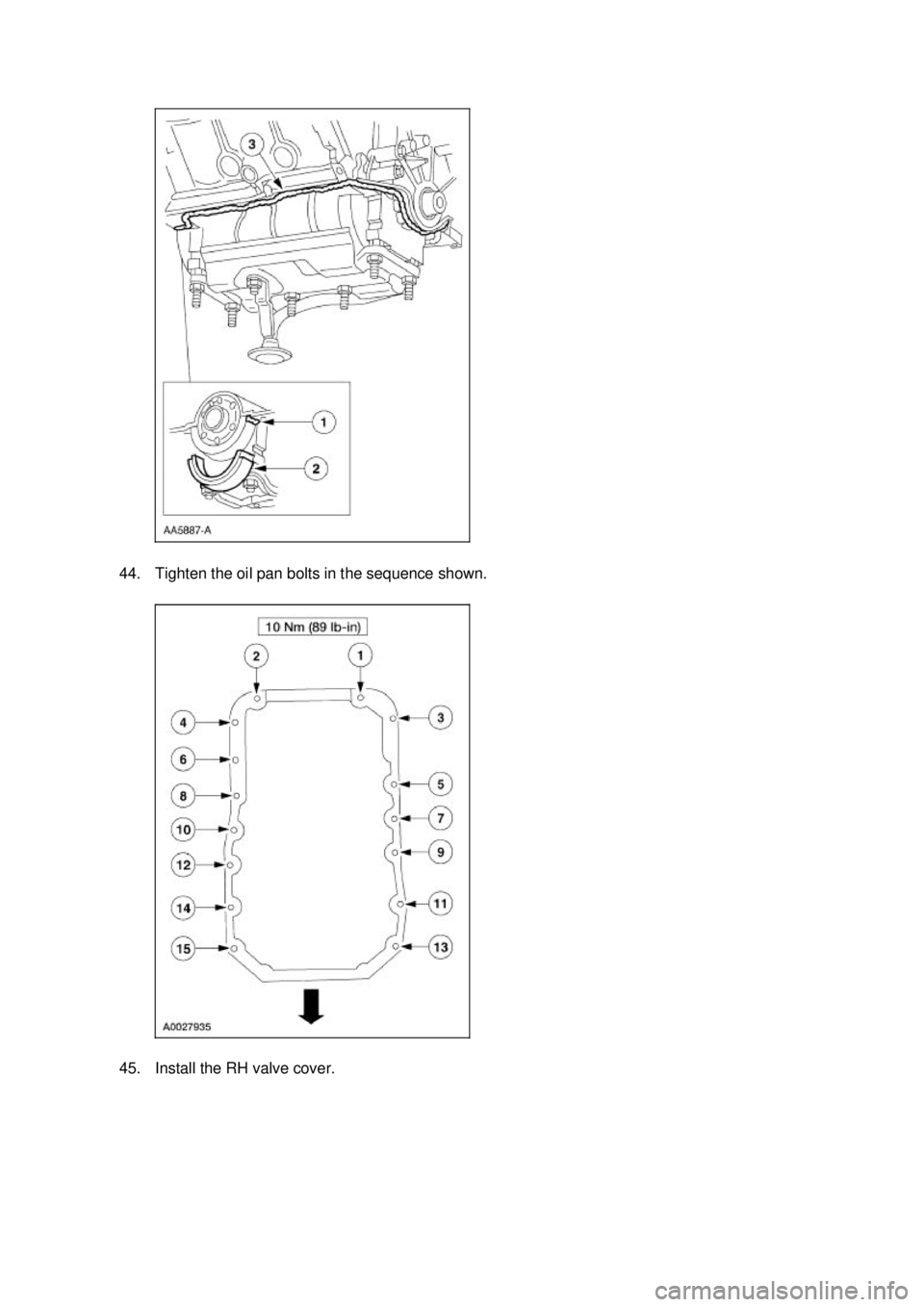

FORD MUSTANG 2003 Workshop Manual 44. Tighten the oil pan bolts in the sequence shown. 45. Install the RH valve cover. Klj . 15 ba 282003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B

Page 1107 of 4378

FORD MUSTANG 2003 Workshop Manual 46. Install the LH valve cover. 47. Install the generator mounting bracket. 48. Install the power steering pump bracket. 49. Using the special tool, install the power steering pump pulley. Klj

Page 1108 of 4378

FORD MUSTANG 2003 Workshop Manual 50. Install the A/C compressor bracket and the bolts. 51. Install the accessory drive belt. 52. Refer to the illustration for intake manifold sealing components. Item Part Number Description 1

Page 1109 of 4378

FORD MUSTANG 2003 Workshop Manual 53. NOTE: If the lower intake manifold is not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign o

Page 1110 of 4378

FORD MUSTANG 2003 Workshop Manual 56. Install the lower intake manifold bolts. �zInstall the six long bolts. �z Install the eight short bolts. 57. Tighten the bolts in two stages in the sequence shown. 1. Stage 1: Tighten to 5 Nm

Page 1111 of 4378

FORD MUSTANG 2003 Workshop Manual 59. Install the stud bolt. 60. Position the engine wire harness. 61. Connect the crankshaft position sensor electrical connector. 62. Install the pin- type retainer. Klj . 20 ba 282003 Mus

Page 1112 of 4378

FORD MUSTANG 2003 Workshop Manual 63. Connect the engine oil pressure sender electrical connector. 64. Connect the camshaft position (CMP) sensor electrical connector. 65. Connect the cylinder head temperature (CHT) sensor. 66. Ins
