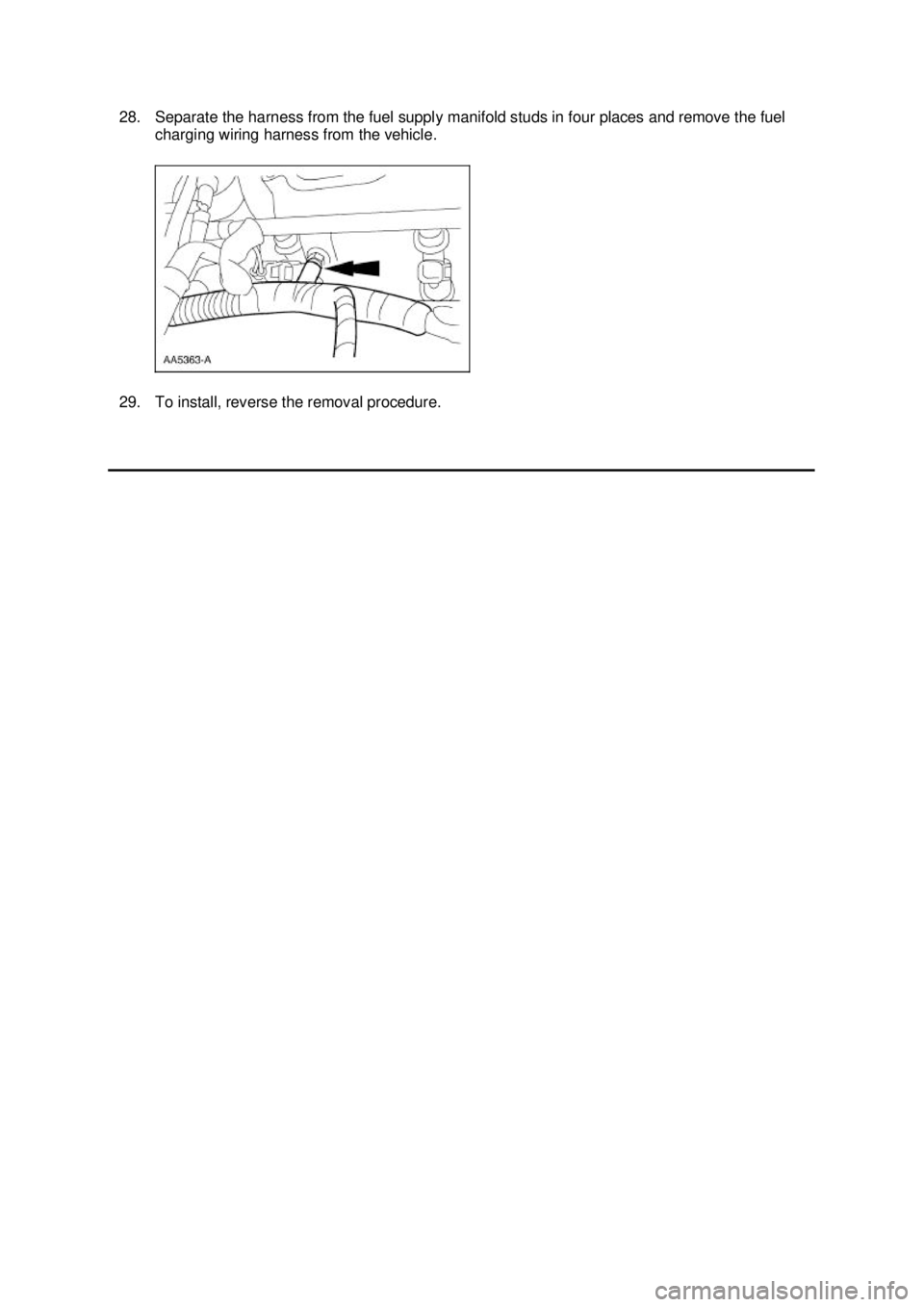

28. Separate the harness from the fuel supply manifold studs in four places and remove the fuel
charging wiring harness from the vehicle.
29. To install, reverse the removal procedure. Klj . 7 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1978 of 4378

REMOVAL AND INSTALLATION
Fuel Injection Supply Manifold and Fuel Injector
Removal and Installation
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel related components. Highly flammable mixtures are always present
and can ignite. Failure to follow these instructions can result in personal injury.
WARNING: Fuel in the fuel system remains under high pressure even when the engine is
not running. Before working on or disconnecting any of the fuel lines or fuel system
components, the fuel system pressure must be relieved. Failure to follow these instructions
can result in personal injury.
1. Disconnect the battery ground cable.
2. Remove the air cleaner outlet tube. For additional information, refer to Section 303 - 12 .
3. Release the fuel pressure. For additional information, refer to Section 310 - 00 .
4. Disconnect the fuel supply hose spring lock coupling. For additional information, refer to Section 310 - 00 .
5. Remove the exhaust gas recirculation (EGR) valve and the exhaust manifold- to-EGR valve
tube. For additional information, refer to Section 303 - 08 .
6. Remove the throttle body and spacer assembly.
7. Disconnect the vacuum hose.
SECTION 303-
04C: Fuel Charging and Controls — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Material
Item Specification
SAE 5W-
20 Premium Synthetic
Blend Motor Oil
XO- 5W20- QSP WSS-
M2C153-
H Klj . 1 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1979 of 4378

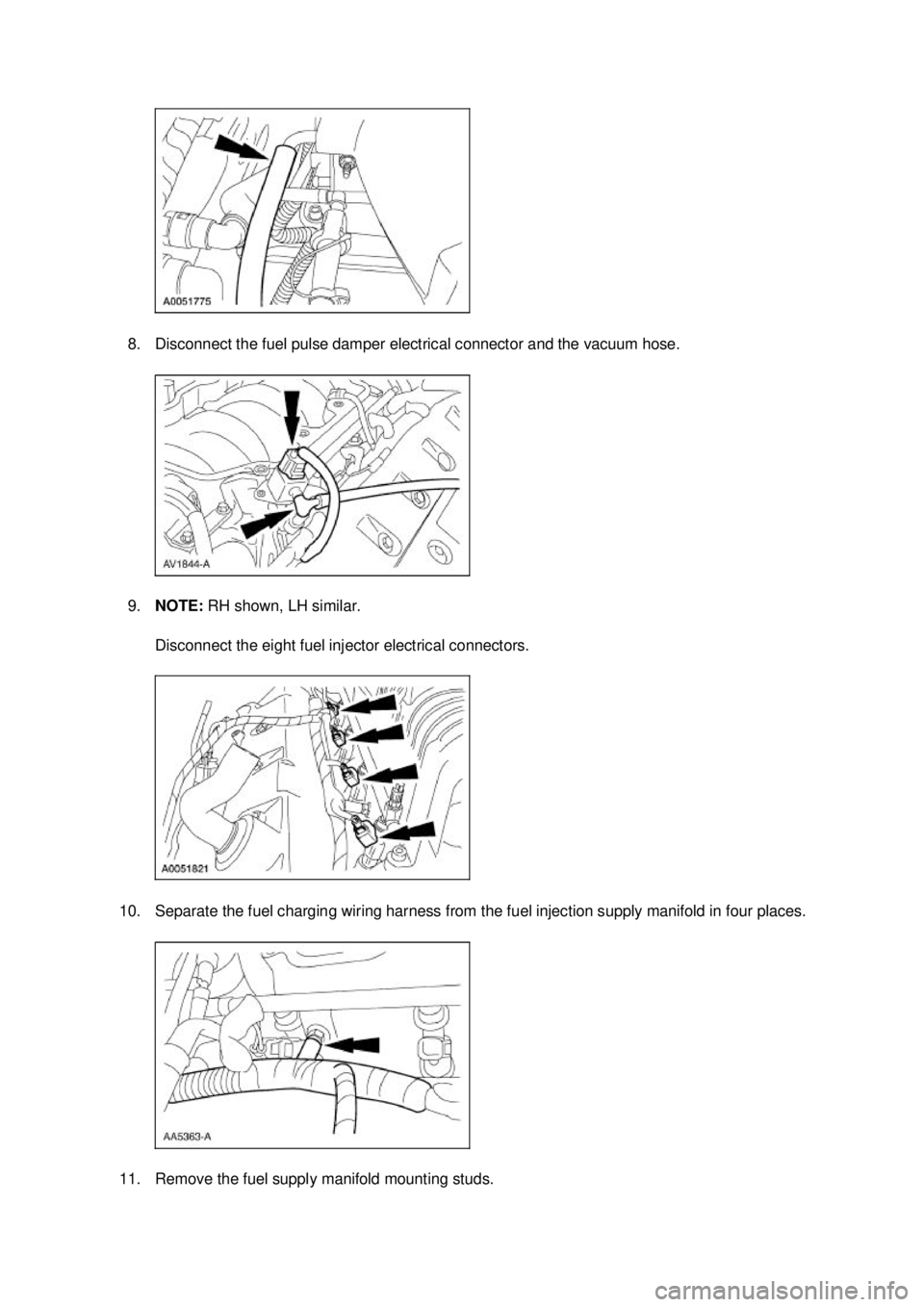

8. Disconnect the fuel pulse damper electrical connector and the vacuum hose.
9.
NOTE: RH shown, LH similar.
Disconnect the eight fuel injector electrical connectors.
10. Separate the fuel charging wiring harness from the fuel injection supply manifold in four places.
11. Remove the fuel supply manifold mounting studs. Klj . 2 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1980 of 4378
12. Remove the fuel supply manifold and fuel injectors as an assembly.

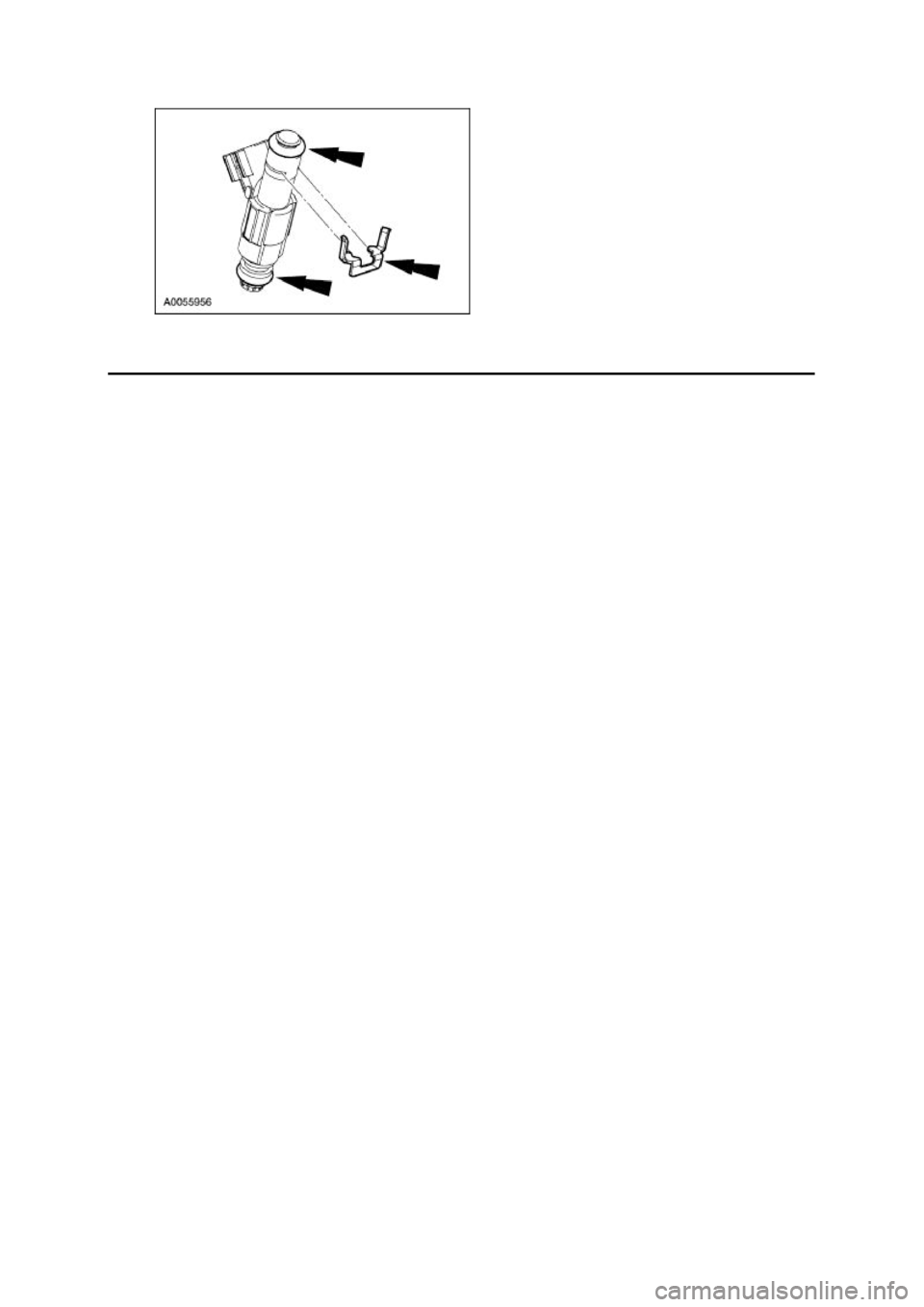

13. Remove the anti-
rotation clips and the fuel injectors from the fuel supply manifold.
14. NOTE: Always install new O- rings.
NOTE: Lubricate the O- rings with clean engine oil to aid installation.
NOTE: Make sure the anti- rotation clips are installed.
To install, reverse the removal procedure. Klj . 3 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1981 of 4378
Klj . 4 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1982 of 4378
SPECIFICATIONS

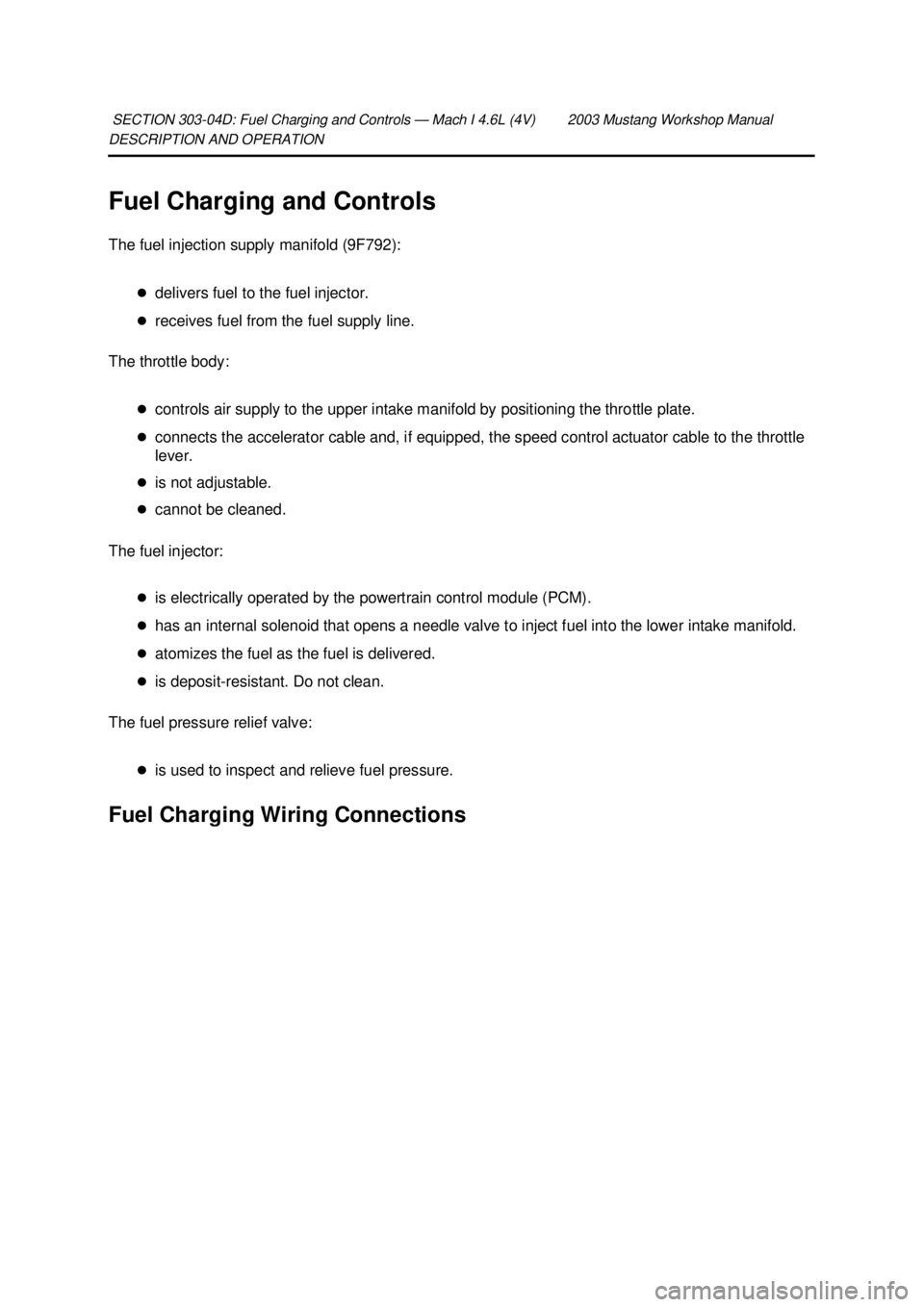

SECTION 303-
04D: Fuel Charging and Controls — Mach I 4.6L (4V) 2003 Mustang Workshop Manual General Specifications
Item Specification
Fluid/Lubricant Specification
Super Premium SAE 5W-30, XO-5W30-
QSP WSS-
M2C153- G
Torque Specifications Description Nm lb-
ft lb-
in Battery ground bolt 10 — 89
Throttle body bolts 9 — 80
Fuel injection supply manifold bolts 10 — 89
42 pin engine bulkhead electrical connector bolt 6 — 53
Ignition coil cover bolts 10 — 89
Battery supply wire nut to power distribution box 8 — 71
Battery supply wire nut to generator 8 — 71
Air intake scoop bolts 25 18 —
Air intake scoop bracket bolt 25 18 —
Air intake scoop bracket nuts 25 18 —
Air intake scoop bracket throttle body nut 9 — 80
Exhaust gas recirculation (EGR) vacuum regulator solenoid bolts 10 — 89
Wiring harness bracket bolt 20 15 — Klj . 1 ba
