Page 2649 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2650 of 4378

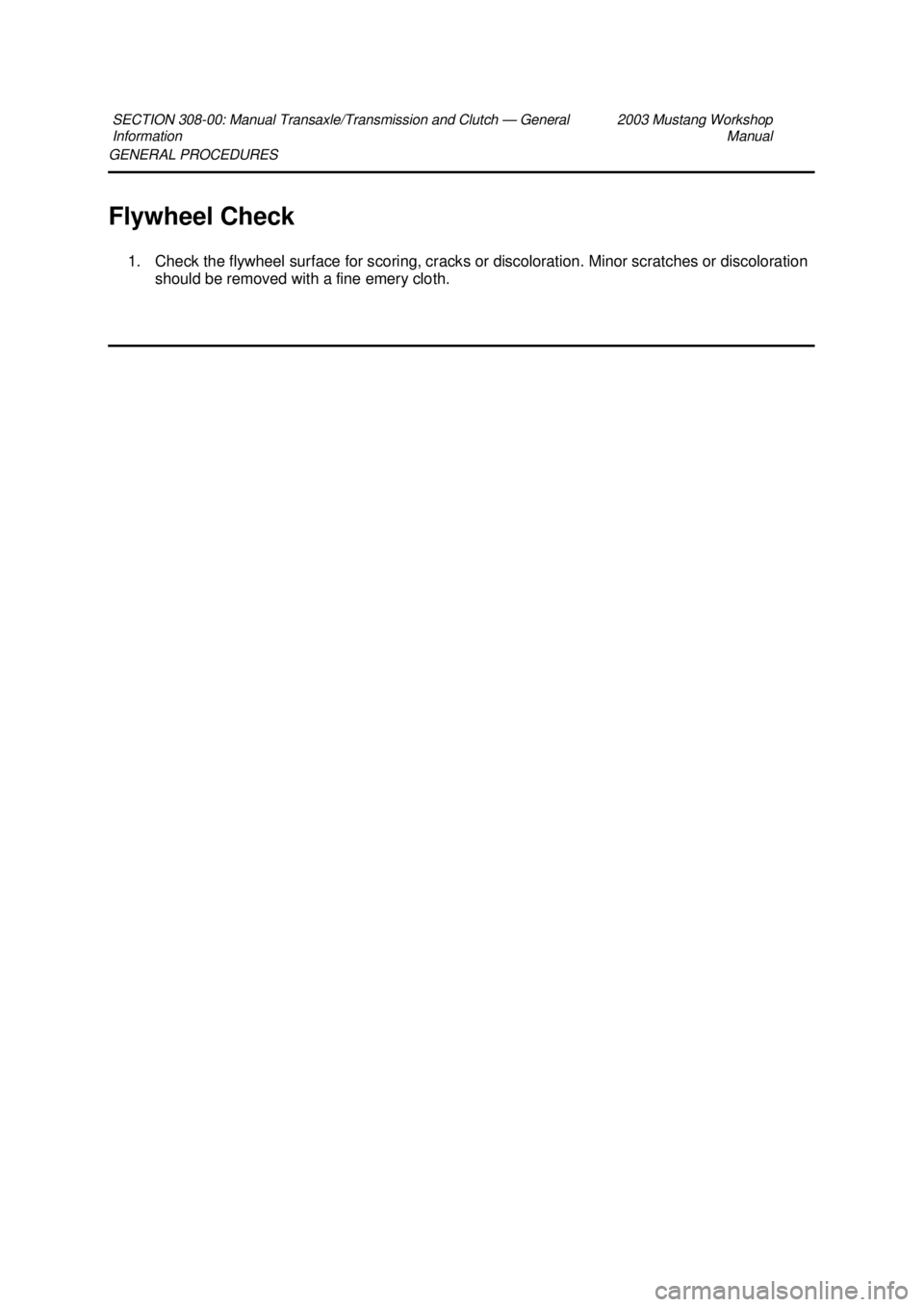

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Flywheel Check 1. Check the flywheel surface for scoring, cracks or discoloration. Minor scratches or discoloration should be removed with a fine emery cloth. SECTION 308- 00: M

Page 2651 of 4378

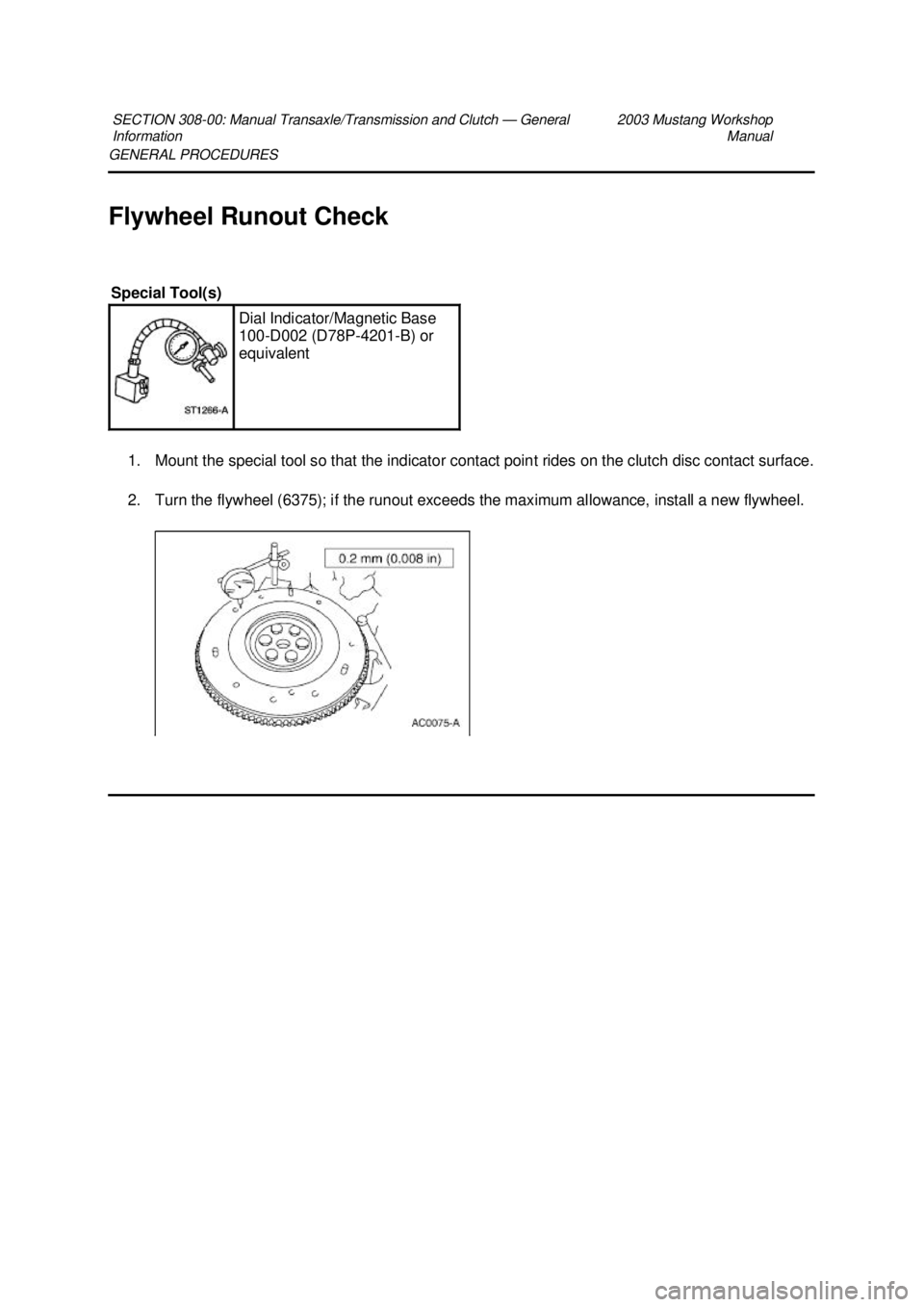

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Flywheel Runout Check 1. Mount the special tool so that the indicator contact point rides on the clutch disc contact surface. 2. Turn the flywheel (6375); if the runout exceeds t

Page 2652 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Bearing 1. CAUTION: The pilot bearing is a sealed bearing and must not be immersed in any type of cleaning fluid. Inspect the pilot bearing (7118) for: 1. needle rollers for s

Page 2653 of 4378

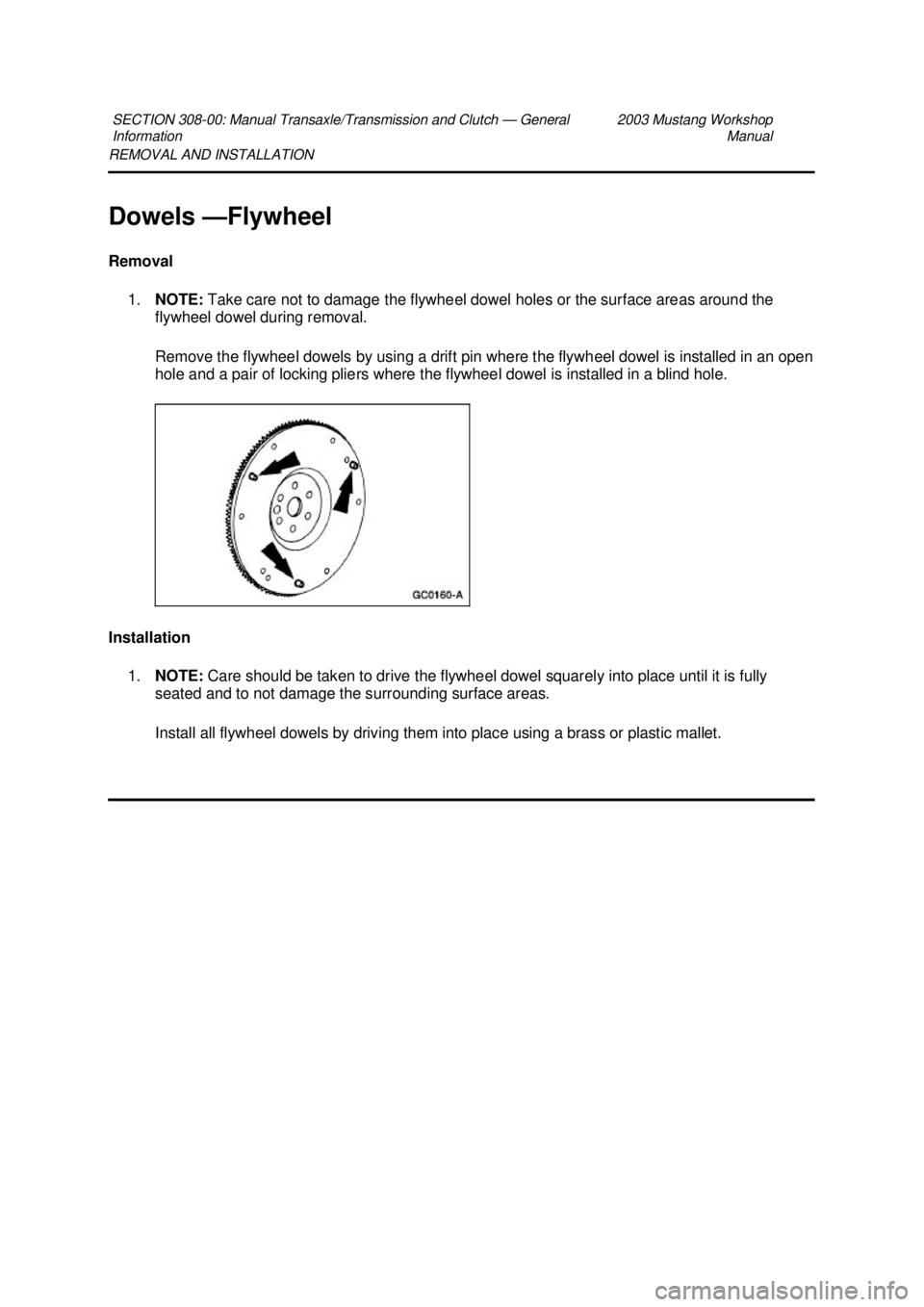

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Dowels —Flywheel Removal 1. NOTE: Take care not to damage the flywheel dowel holes or the surface areas around the flywheel dowel during removal. Remove the flywheel d

Page 2654 of 4378

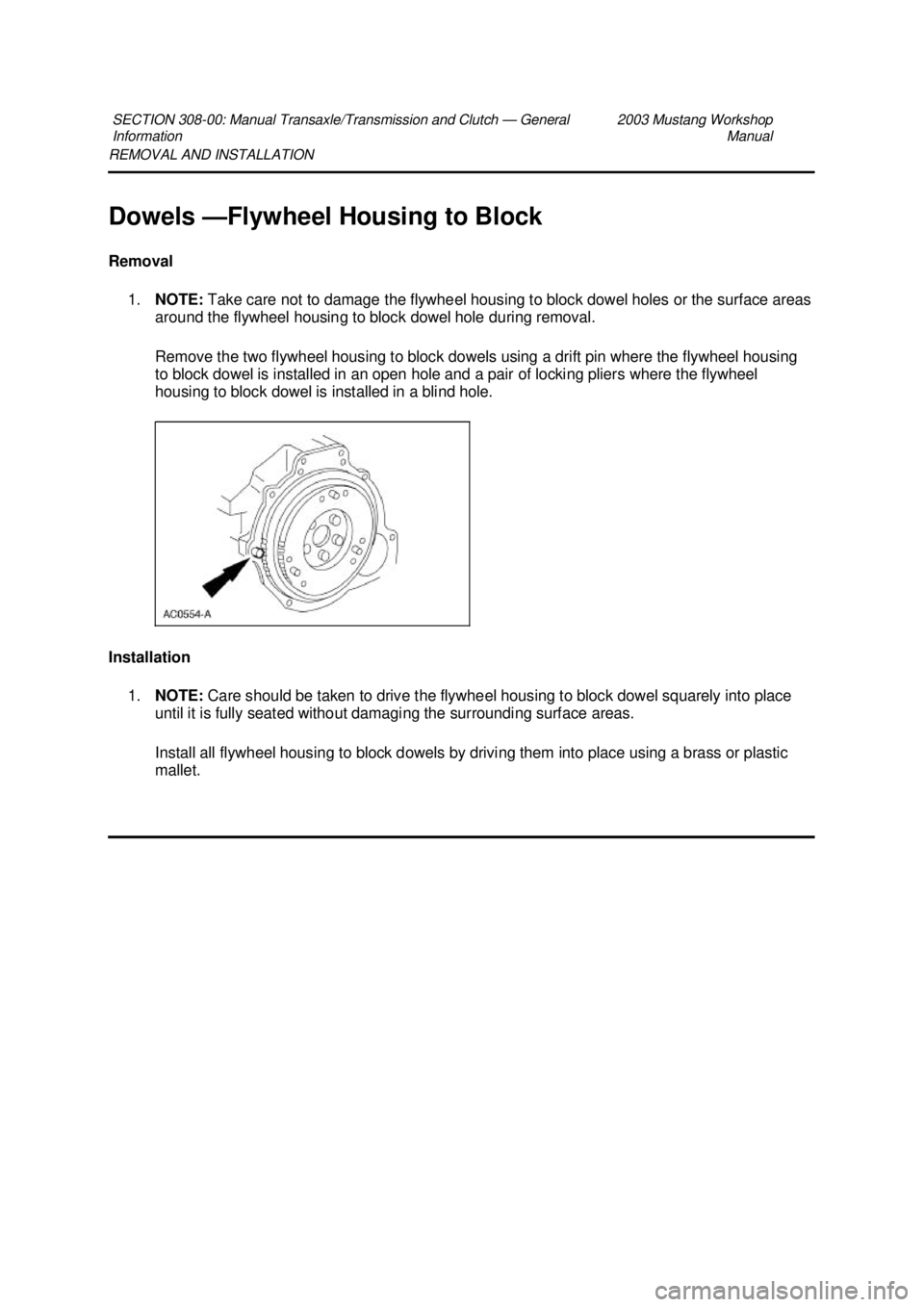

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Dowels — Flywheel Housing to Block Removal 1. NOTE: Take care not to damage the flywheel housing to block dowel holes or the surface areas around the flywheel housing t

Page 2655 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2656 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 308- 01: Clutch 2003 Mustang Workshop Manual General Specifications Item Specification Pressure Plate Pressure plate diameter (3.8L) 280 mm (11.0 in) Pressure plate diam
