Page 2417 of 4378

FORD MUSTANG 2003 Workshop Manual Refill 7. Position the magnet into the transmission fluid pan. 8. NOTE: The fluid pan gasket is reusable, clean and inspect for damage. If not damaged, the gasket should be reused. Install the fl

Page 2418 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 7 ba 72003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2419 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Fluid Pan, Gasket and Filter 1. Normal maintenance requires periodic automatic transmission fluid changes. If a major repair, such as a clutch, band, bearing, etc., is required,

Page 2420 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Remove the transmission fluid pan and transmission fluid pan gasket. 6. Pull down evenly and remove the transmission fluid filter and seal. 7. Remove torque converter housing plug. 8. Remove the

Page 2421 of 4378

FORD MUSTANG 2003 Workshop Manual 9. Clean and inspect the transmission fluid pan, gasket and magnet. 10. Flush the fluid cooler tubes. For additional information, refer to Transmission Fluid Cooler — Backflushing and Cleaning i

Page 2422 of 4378

FORD MUSTANG 2003 Workshop Manual 3. CAUTION: If installing a new filter, and the seal remains in the main control bore, carefully use a small screwdriver to remove the seal. Use care not to damage the main control bore. NOTE: If

Page 2423 of 4378

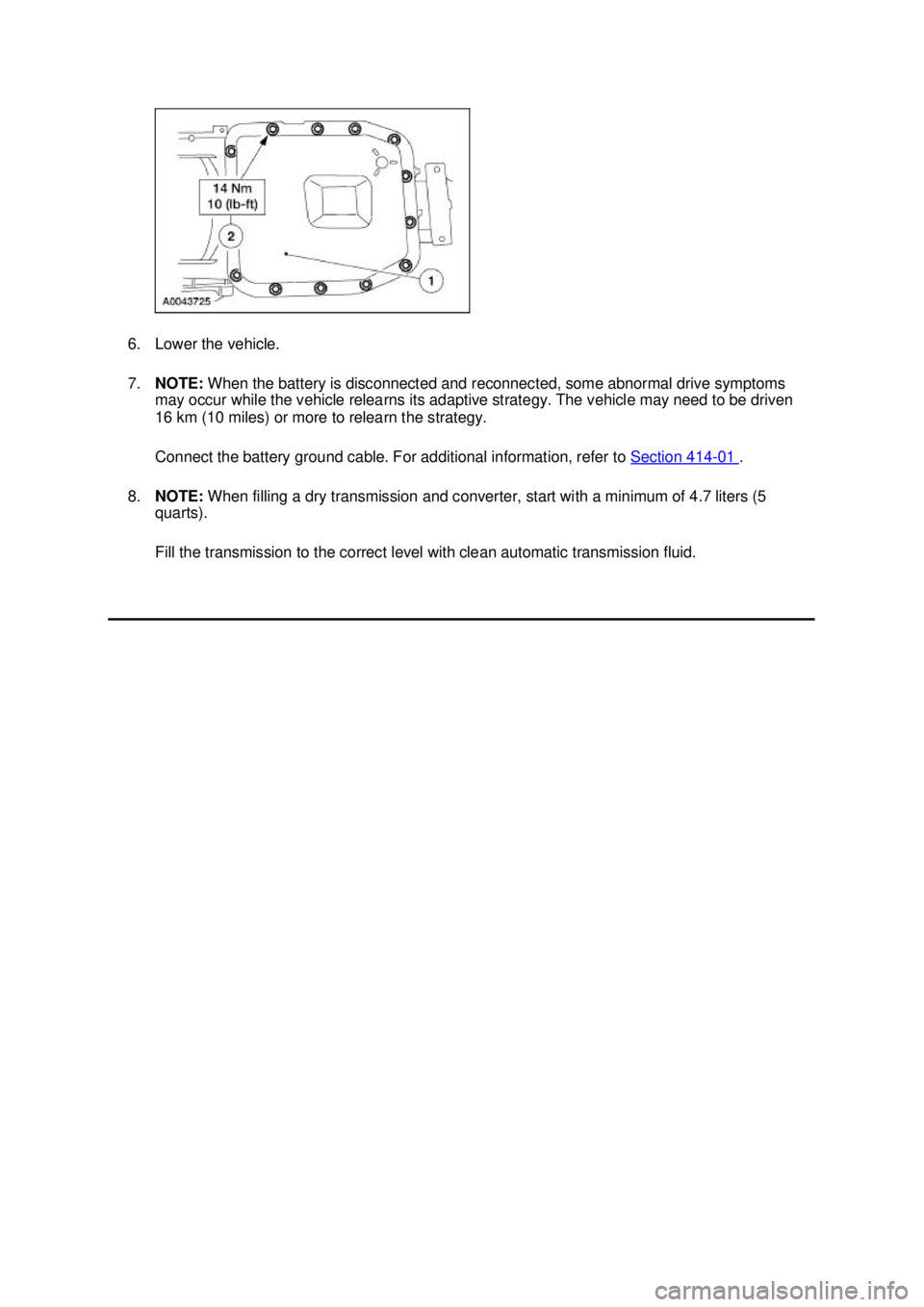

FORD MUSTANG 2003 Workshop Manual 6. Lower the vehicle. 7. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be

Page 2424 of 4378

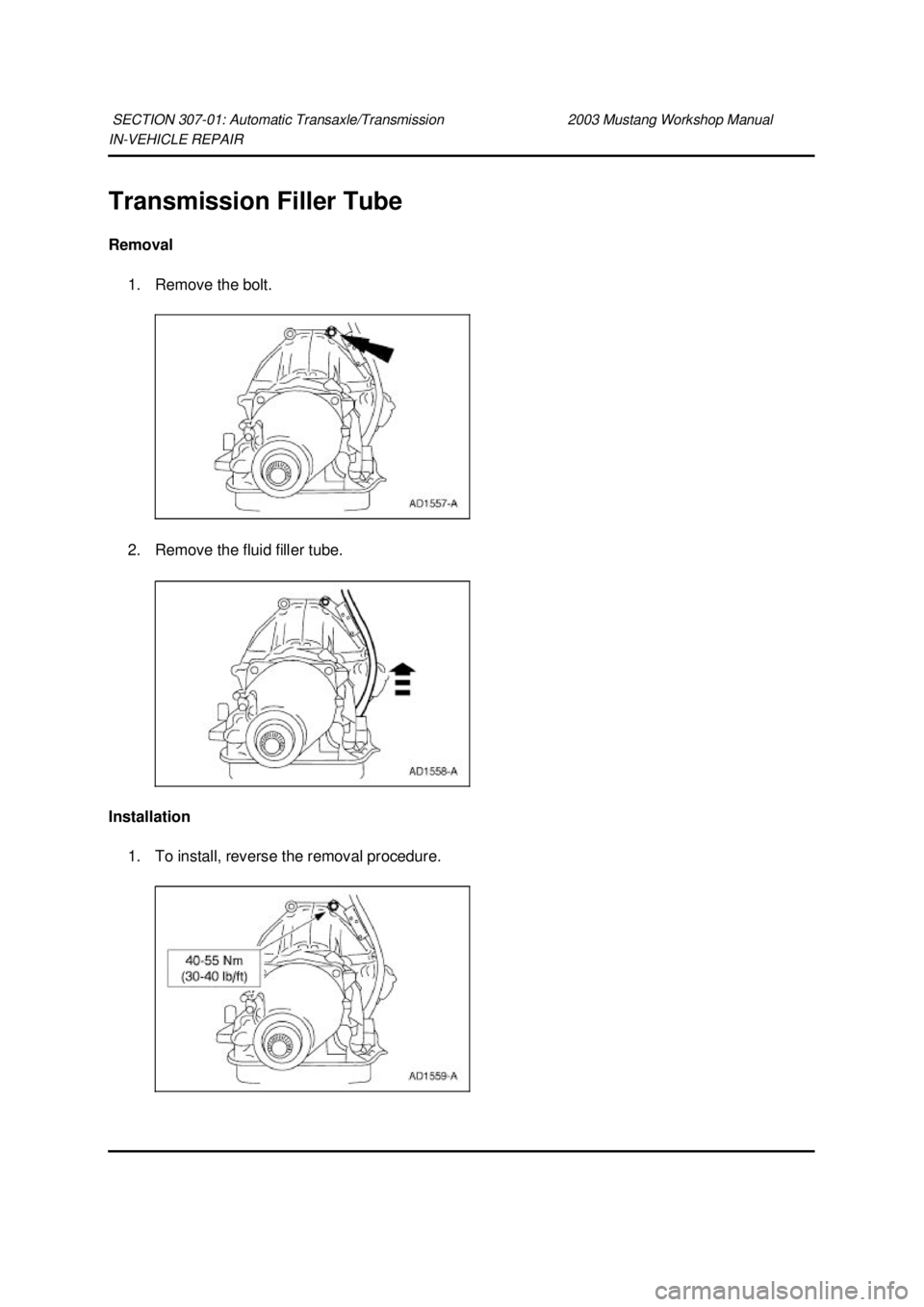

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Transmission Filler Tube Removal 1. Remove the bolt. 2. Remove the fluid filler tube. Installation 1. To install, reverse the removal procedure. SECTION 307- 01: Automatic Tr
