Page 1969 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Throttle Body Removal and Installation WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highl

Page 1970 of 4378

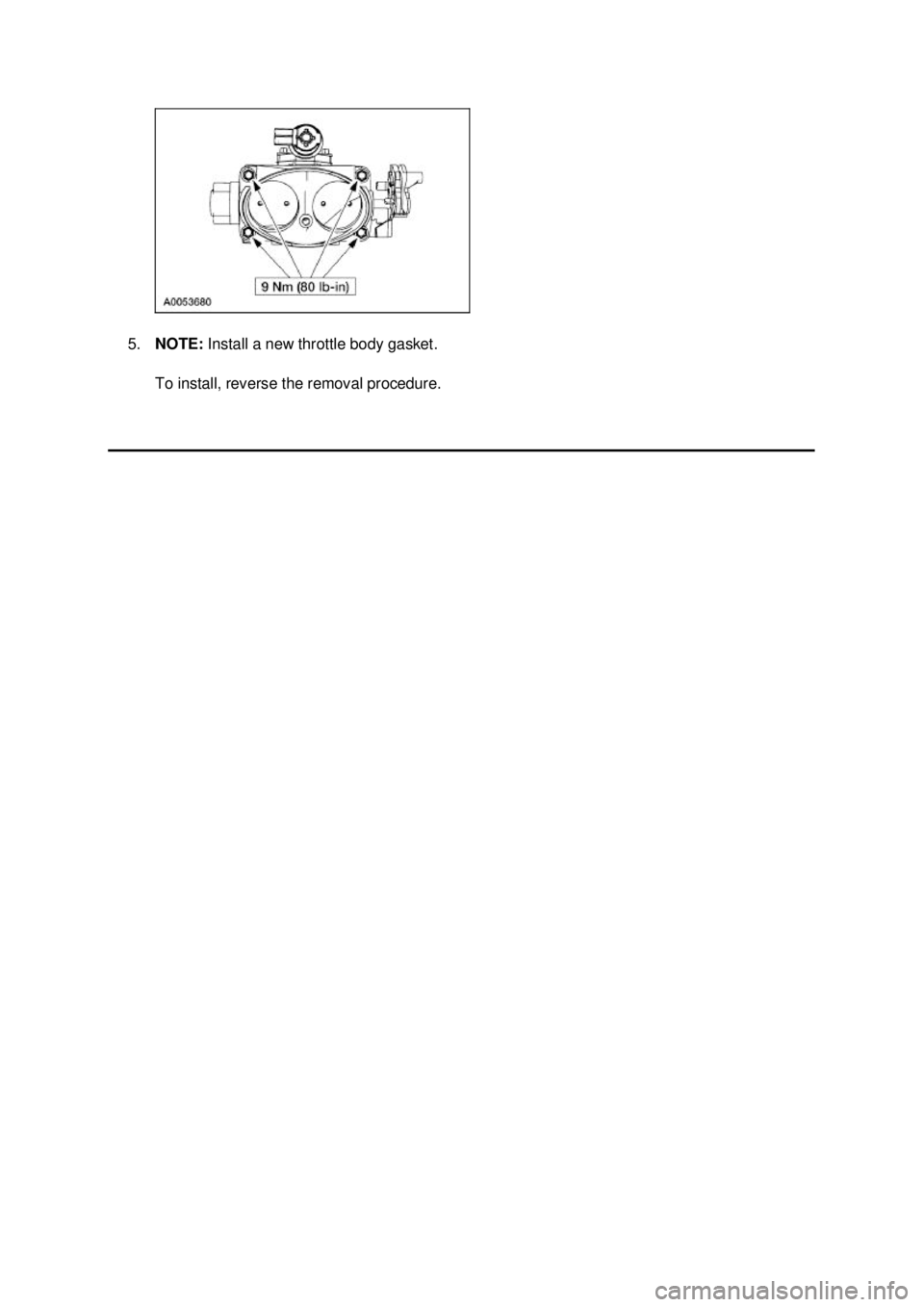

FORD MUSTANG 2003 Workshop Manual 5. NOTE: Install a new throttle body gasket. To install, reverse the removal procedure. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S

Page 1971 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Fuel Charging Wiring Harness Removal and Installation WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related co

Page 1972 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Remove the PCV valve. 7. Disconnect and remove the PCV hose. 8. Disconnect the camshaft position (CMP) sensor electrical connector. 9. Disconnect the engine coolant temperature (ECT) sensor elec

Page 1973 of 4378

FORD MUSTANG 2003 Workshop Manual 10. Remove the fuel charging wiring harness bracket bolt. 11. Disconnect the following: �zThe 42- pin engine bulkhead electrical connector. �z The 16- pin electrical connector. 12. Separate the wi

Page 1974 of 4378

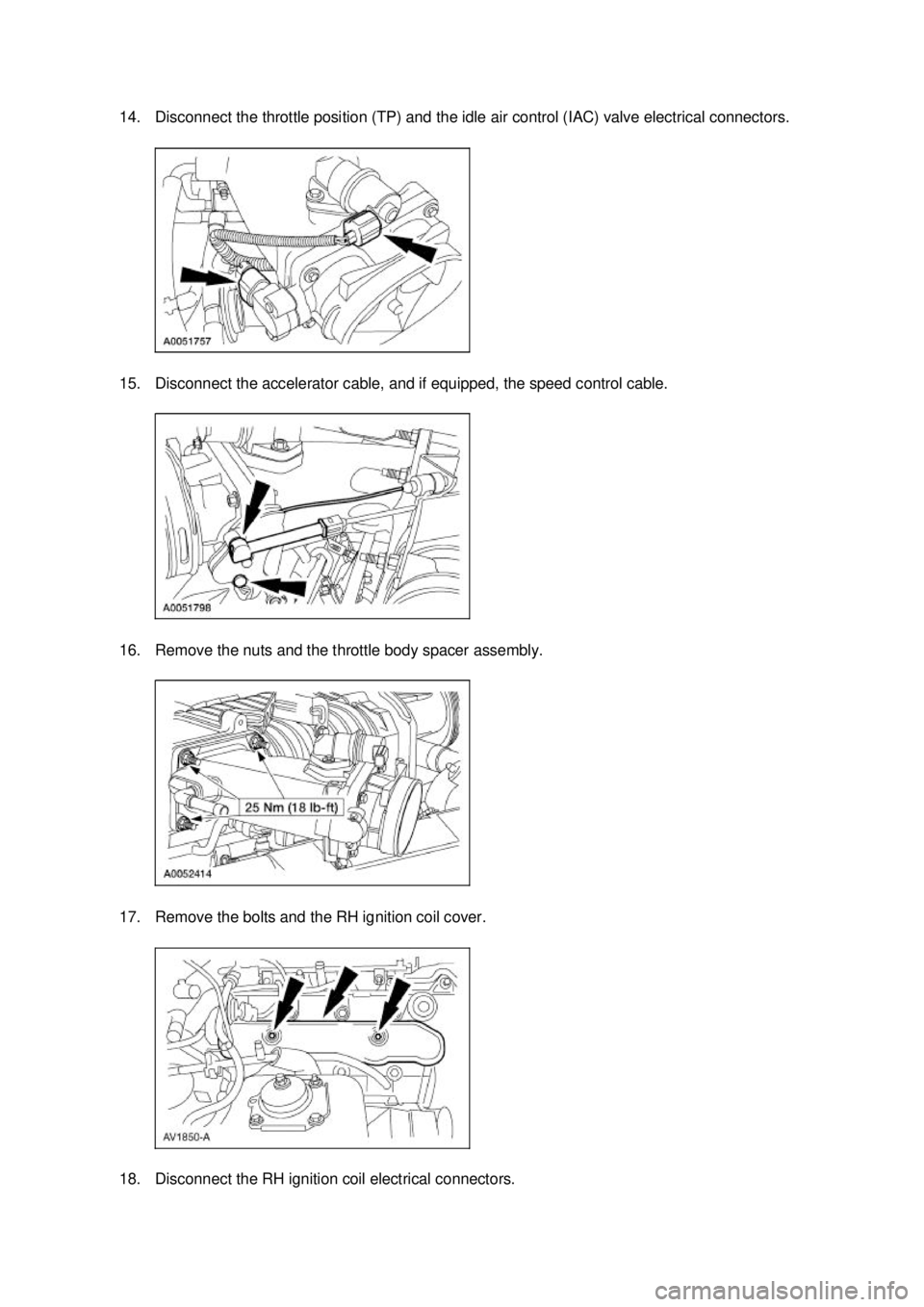

FORD MUSTANG 2003 Workshop Manual 14. Disconnect the throttle position (TP) and the idle air control (IAC) valve electrical connectors. 15. Disconnect the accelerator cable, and if equipped, the speed control cable. 16. Remove the n

Page 1975 of 4378

FORD MUSTANG 2003 Workshop Manual 19. Disconnect the transmission main control harness electrical connector. 20. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 21. Disconnect the RH heated o

Page 1976 of 4378

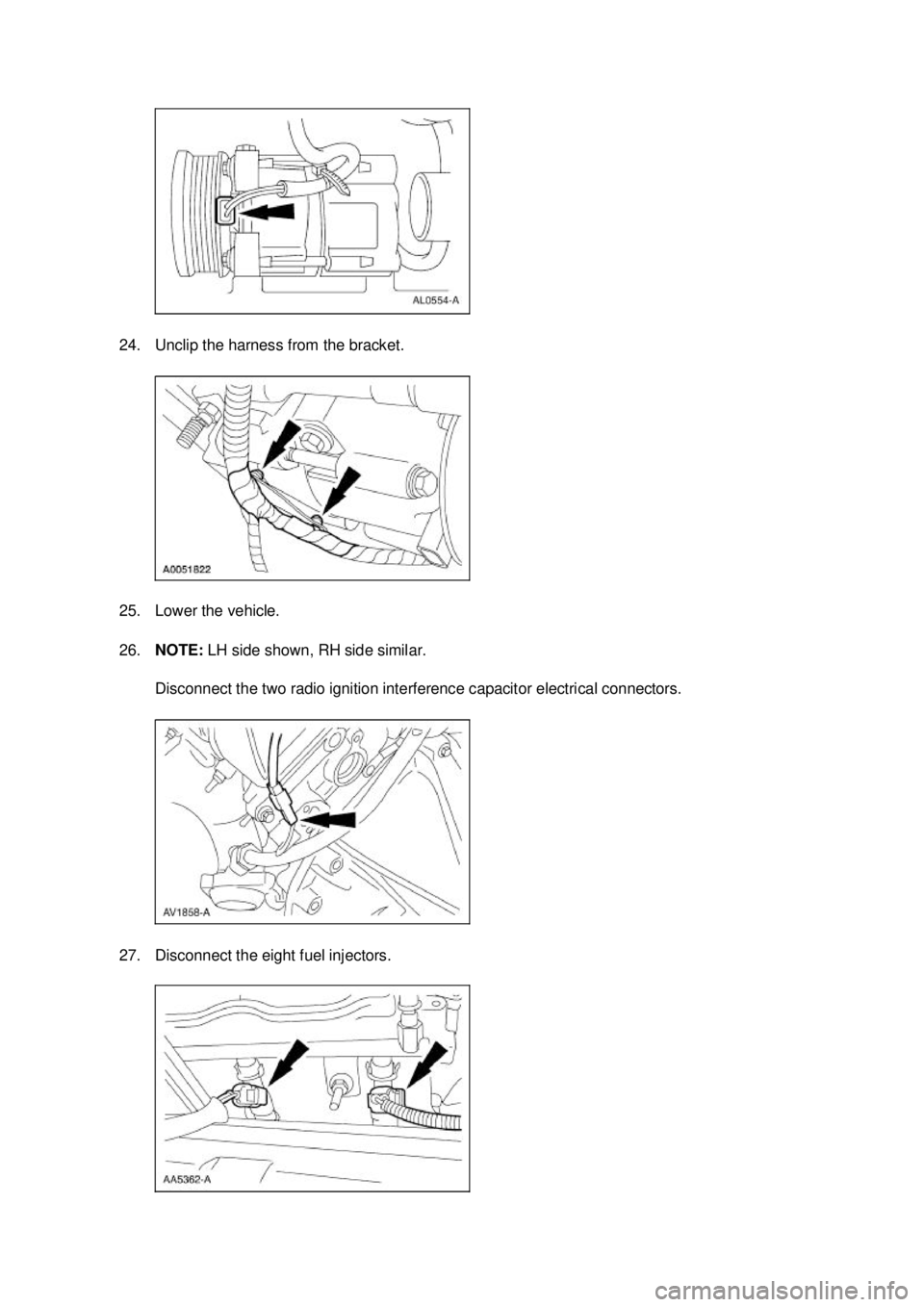

FORD MUSTANG 2003 Workshop Manual 24. Unclip the harness from the bracket. 25. Lower the vehicle. 26. NOTE: LH side shown, RH side similar. Disconnect the two radio ignition interference capacitor electrical connectors. 27. Disco
