Page 3441 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3442 of 4378

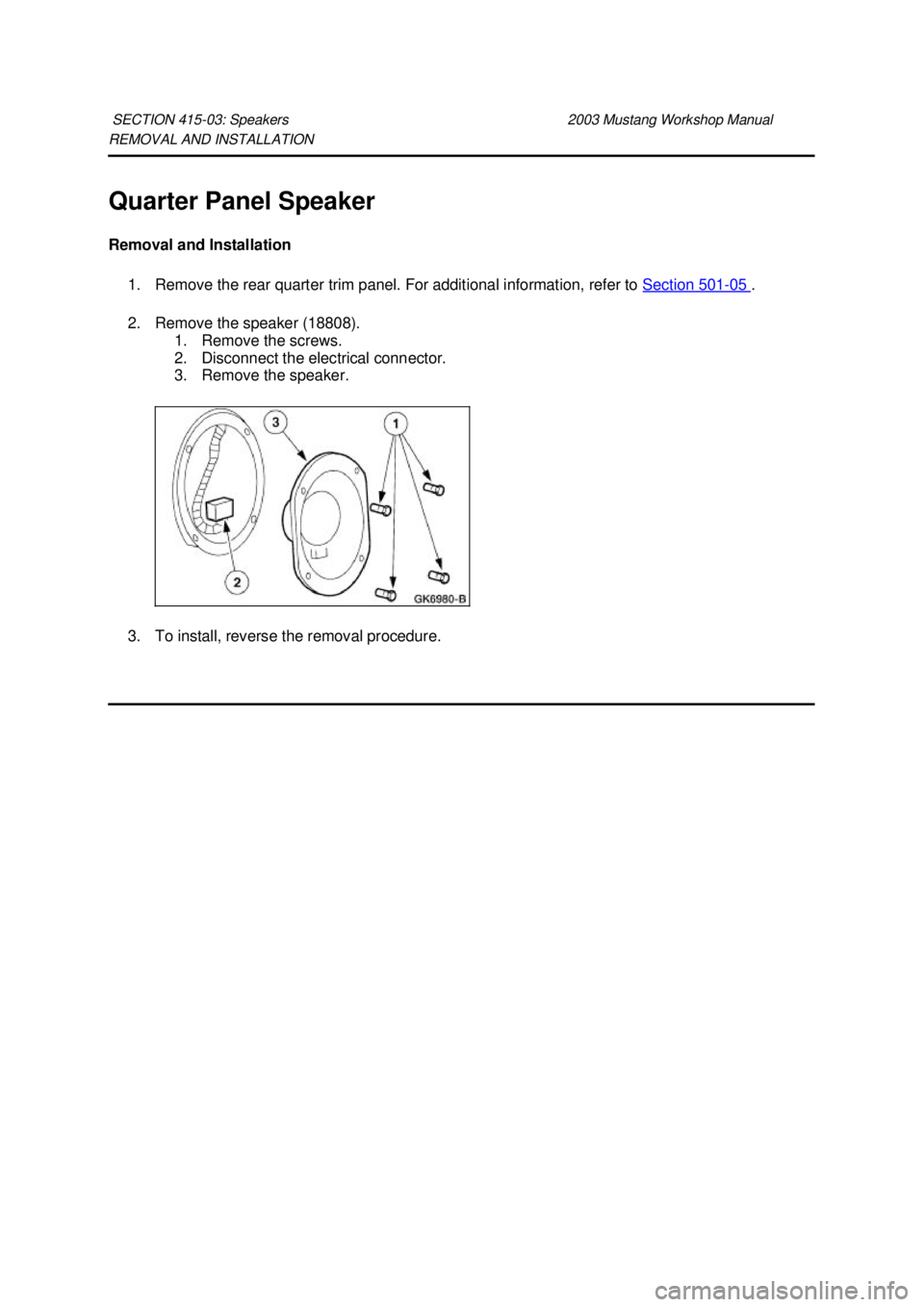

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Quarter Panel Speaker Removal and Installation 1. Remove the rear quarter trim panel. For additional information, refer to Section 501 - 05 . 2. Remove the speaker (1880

Page 3443 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 417- 01: Exterior Lighting 2003 Mustang Workshop Manual Torque Specifications Description Nm lb- in Battery ground cable bolt 10 89 Rear lamp nuts 6 53 Klj . 1

Page 3444 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Exterior Lighting The exterior lighting system consists of the following components: �zheadlamps (13008) �z parking lamps �z rear lamps (13404) �z high mounted stoplamp

Page 3445 of 4378

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Headlamps Refer to Wiring Diagrams Cell 85 , Headlamps for schematic and connector information. Inspection and Verification 1. Verify the customer concern by operating the

Page 3446 of 4378

FORD MUSTANG 2003 Workshop Manual Pinpoint Tests PINPOINT TEST A: BOTH HEADLAMPS ARE INOPERATIVE �z The high beams are inoperative �z Central junction box (CJB) fuse 38 (20A). �z Circuitry. �z Multifunction switch. �z Go To

Page 3447 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST B: THE LOW BEAMS ARE INOPERATIVE �z Measure the resistance between headlamp switch C205 Pin H, Circuit 15 (RD/YE), harness side and multifunction switch C202a Pin 15, Circuit 15 (RD/Y

Page 3448 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST C: THE HIGH BEAMS ARE INOPERATIVE �z Are the voltages greater than 10 volts? B2 CHECK CIRCUIT 13 (RD/BK) FOR OPEN �z Disconnect: Multifunction Switch C202a. �z Measure the resistance
