Page 3145 of 4378

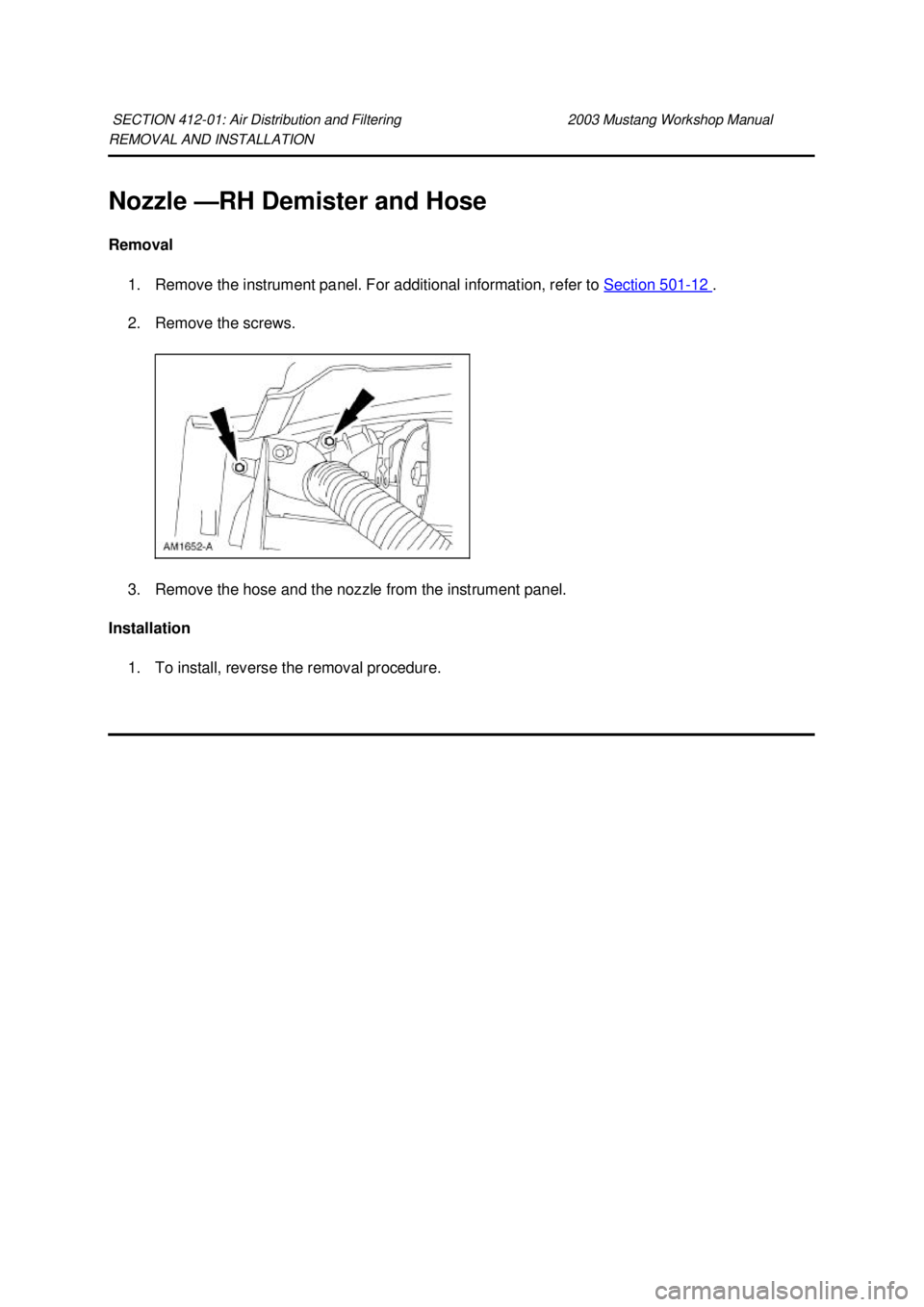

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Nozzle — RH Demister and Hose Removal 1. Remove the instrument panel. For additional information, refer to Section 501 - 12 . 2. Remove the screws. 3. Remove the hose

Page 3146 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Duct — Floor Removal 1. Remove the evaporator core housing. For additional information, refer to Section 412 - 02 . 2. Remove the screws and remove the heater outlet f

Page 3147 of 4378

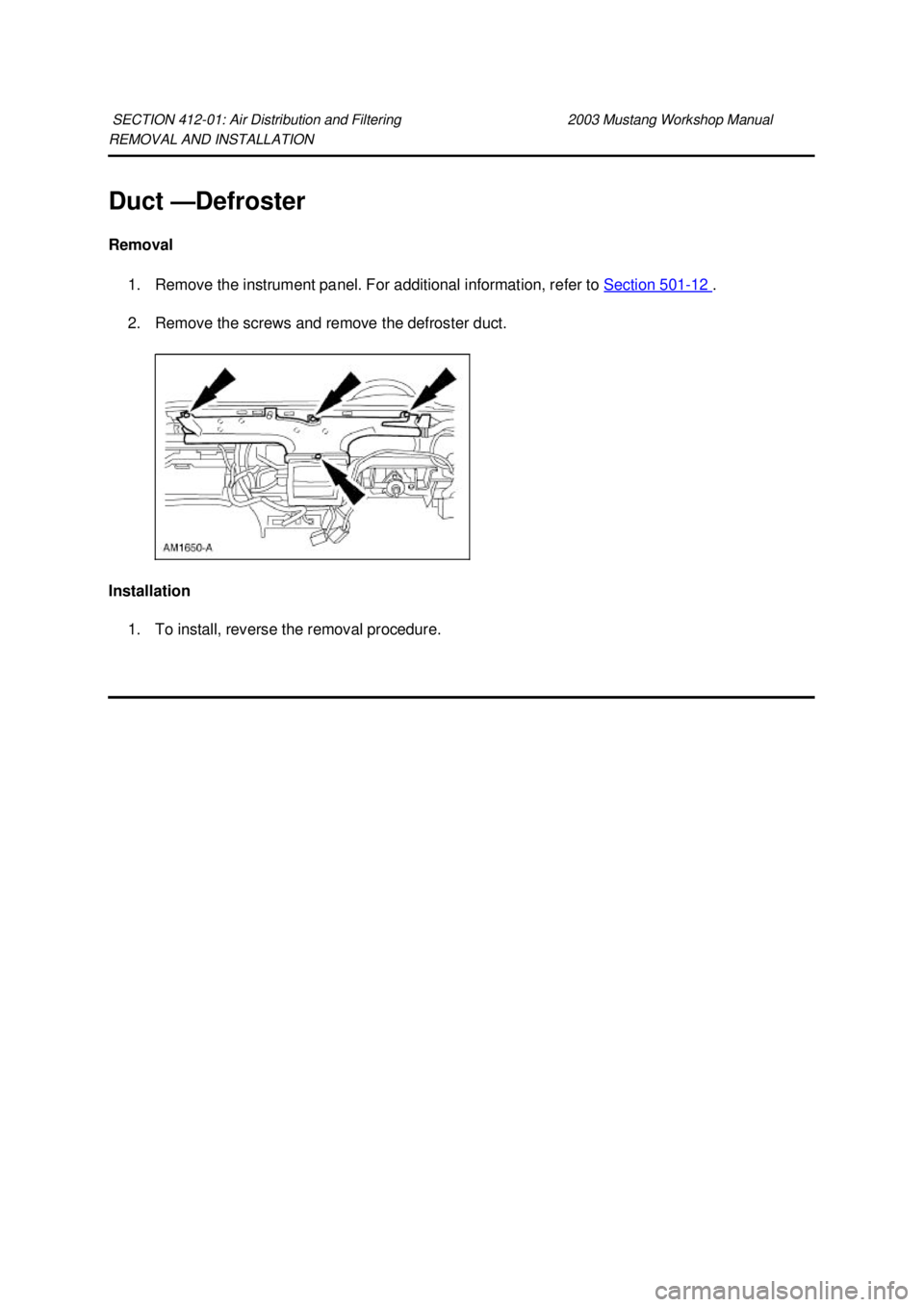

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Duct — Defroster Removal 1. Remove the instrument panel. For additional information, refer to Section 501 - 12 . 2. Remove the screws and remove the defroster duct. I

Page 3148 of 4378

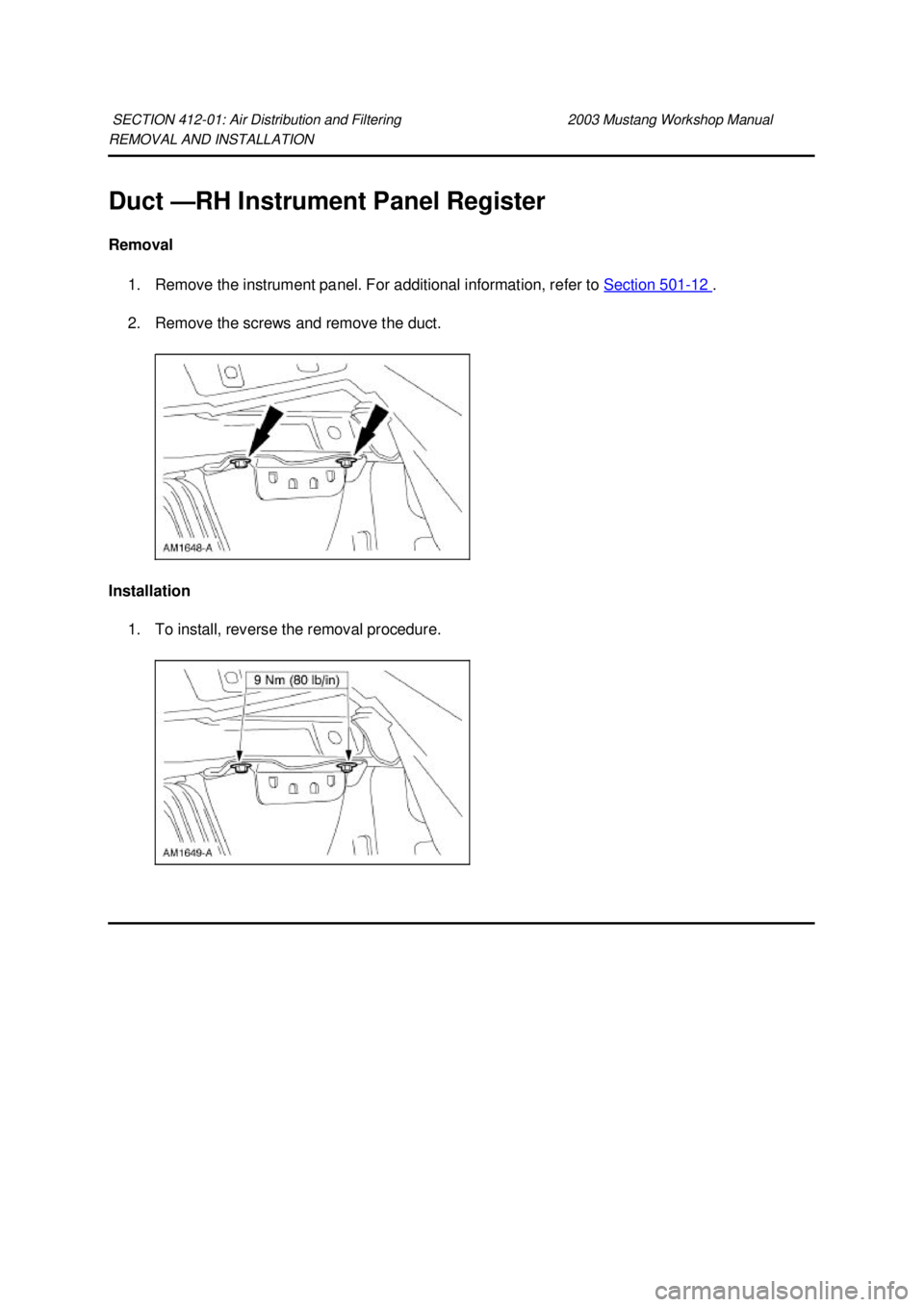

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Duct — RH Instrument Panel Register Removal 1. Remove the instrument panel. For additional information, refer to Section 501 - 12 . 2. Remove the screws and remove the

Page 3149 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 3150 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Plenum Chamber Removal 1. Remove the instrument panel. For additional information, refer to Section 501 - 12 . 2. Remove the audio unit. For additional information, refe

Page 3151 of 4378

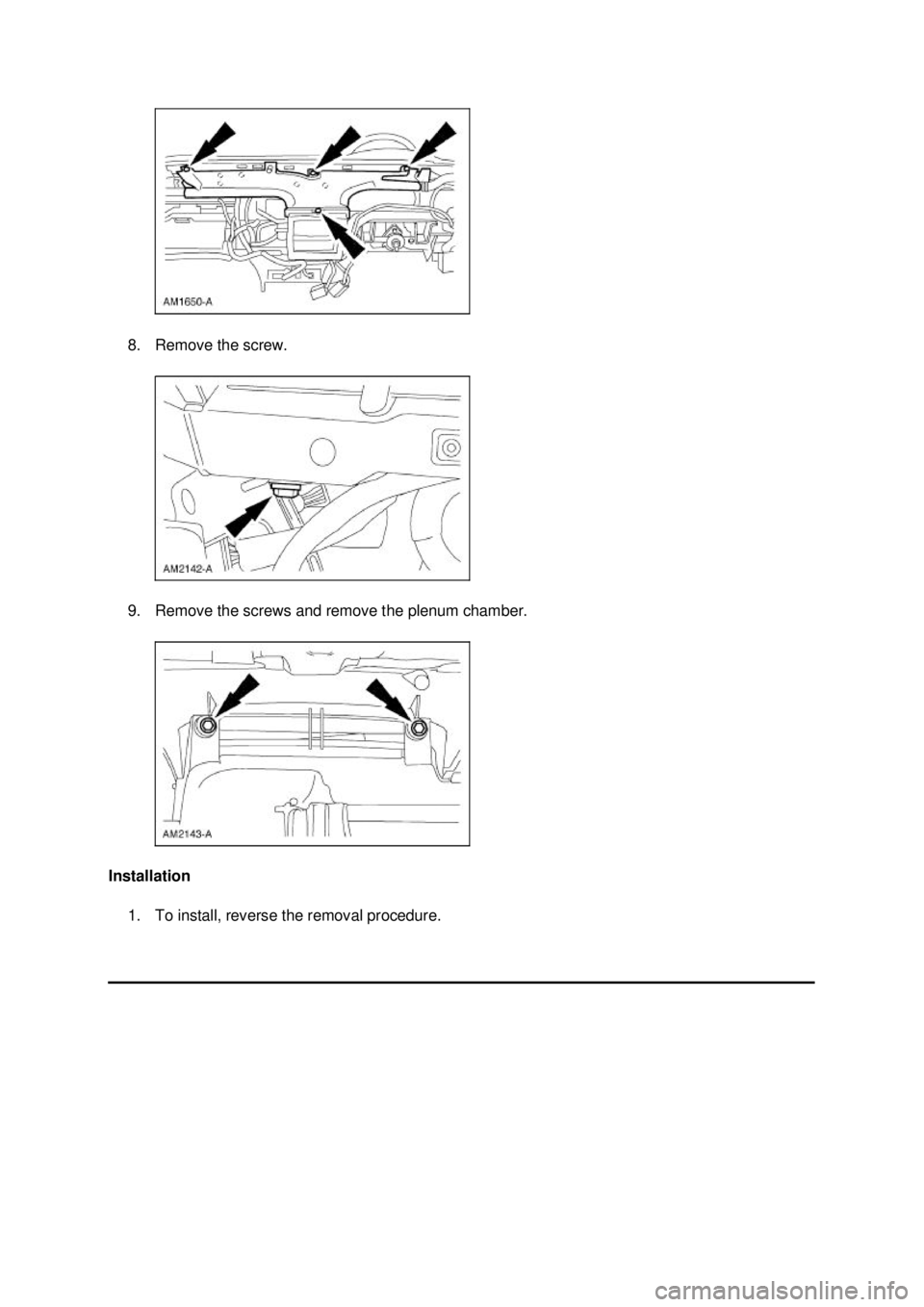

FORD MUSTANG 2003 Workshop Manual 8. Remove the screw. 9. Remove the screws and remove the plenum chamber. Installation 1. To install, reverse the removal procedure. Klj . 2 ba 32003 Mustang Workshop Manual 18. 11. 2011fil

Page 3152 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
