Page 2425 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2426 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Main Control Valve Body Removal 1. Drain transmission fluid and remove the transmission fluid pan and filter. For additional information, refer to Fluid Pan, Gasket and Filter

Page 2427 of 4378

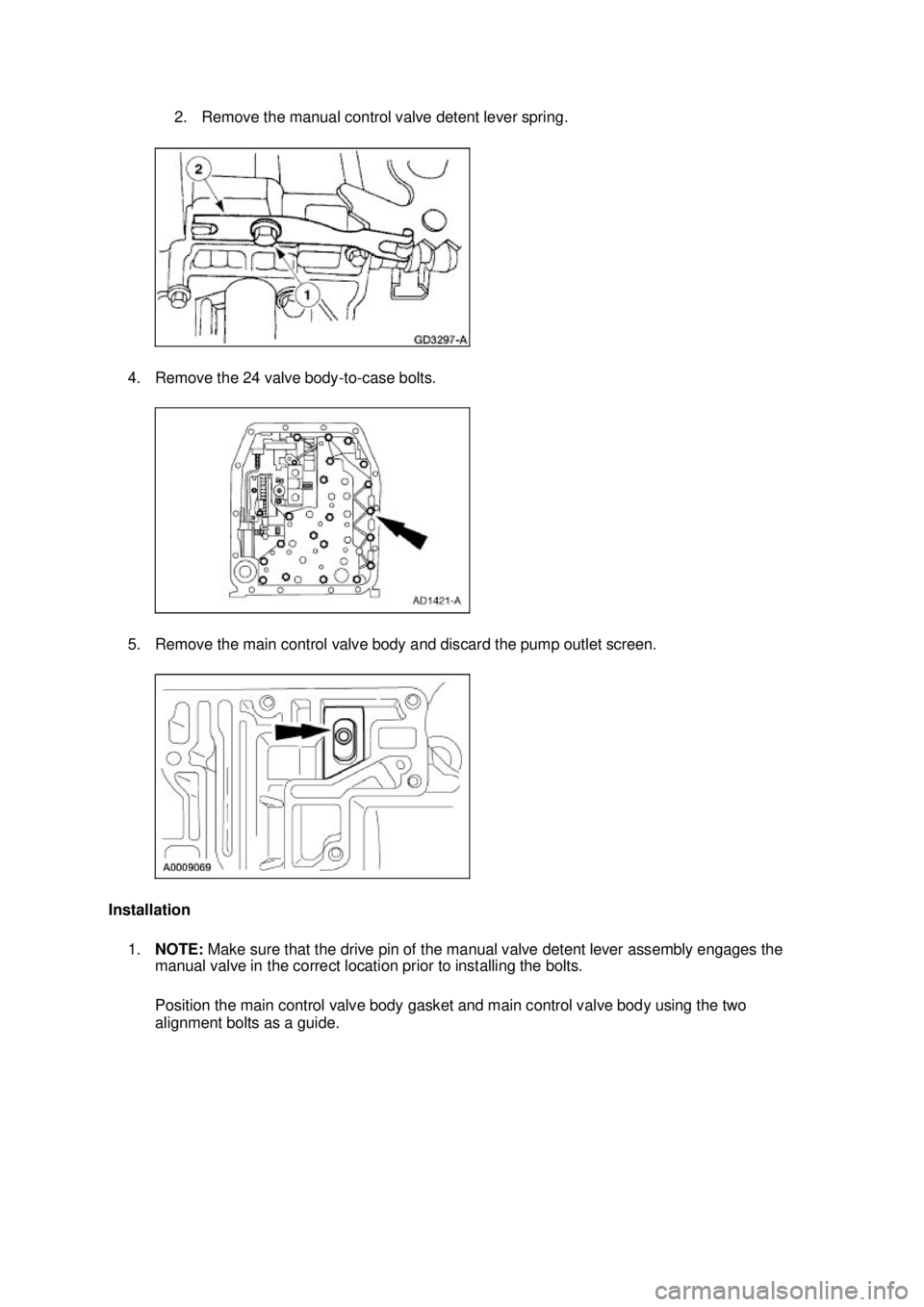

FORD MUSTANG 2003 Workshop Manual 2. Remove the manual control valve detent lever spring. 4. Remove the 24 valve body- to-case bolts. 5. Remove the main control valve body and discard the pump outlet screen. Installation 1. NOTE:

Page 2428 of 4378

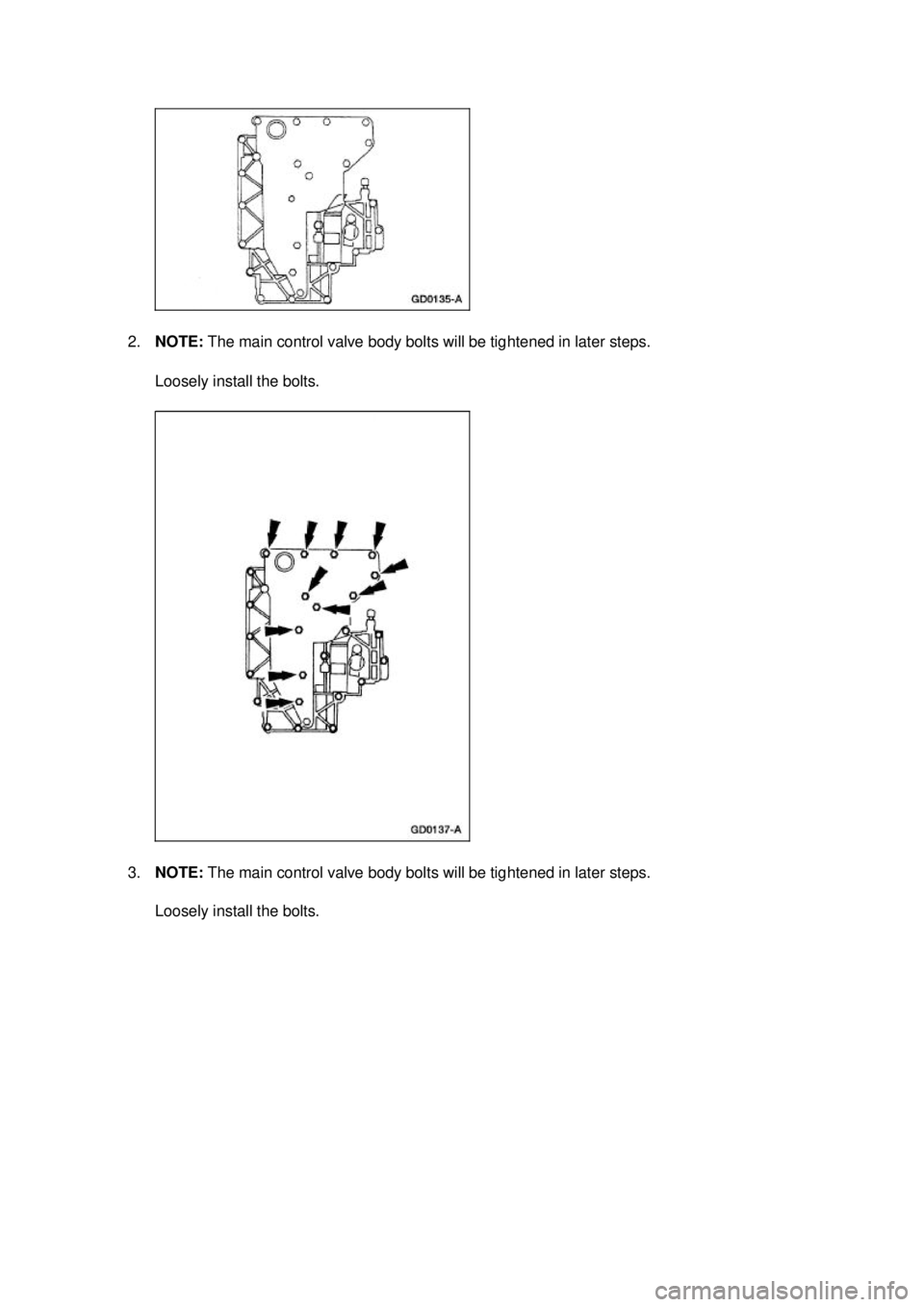

FORD MUSTANG 2003 Workshop Manual 2. NOTE: The main control valve body bolts will be tightened in later steps. Loosely install the bolts. 3. NOTE: The main control valve body bolts will be tightened in later steps. Loosely instal

Page 2429 of 4378

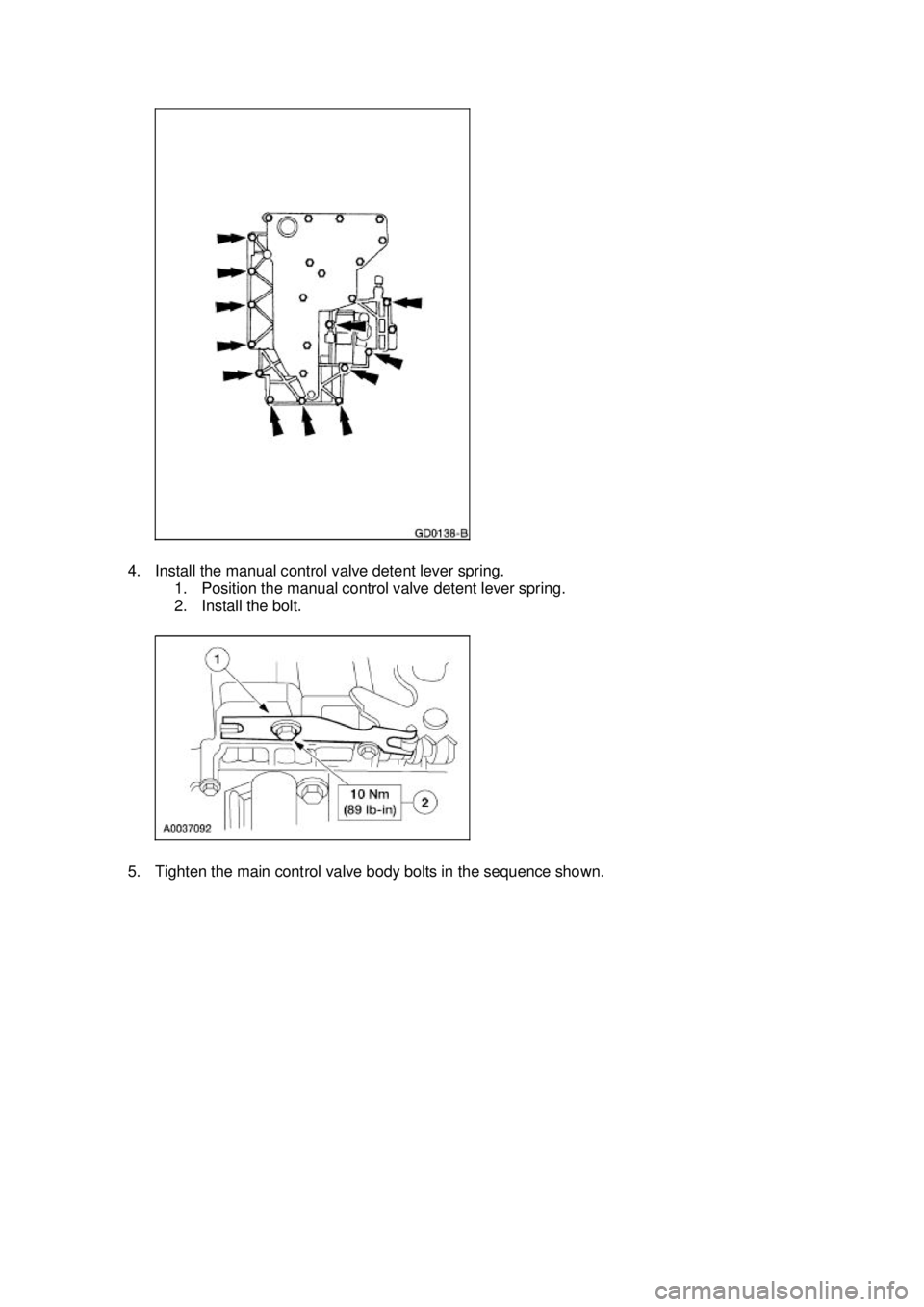

FORD MUSTANG 2003 Workshop Manual 4. Install the manual control valve detent lever spring. 1. Position the manual control valve detent lever spring. 2. Install the bolt. 5. Tighten the main control valve body bolts in the sequence

Page 2430 of 4378

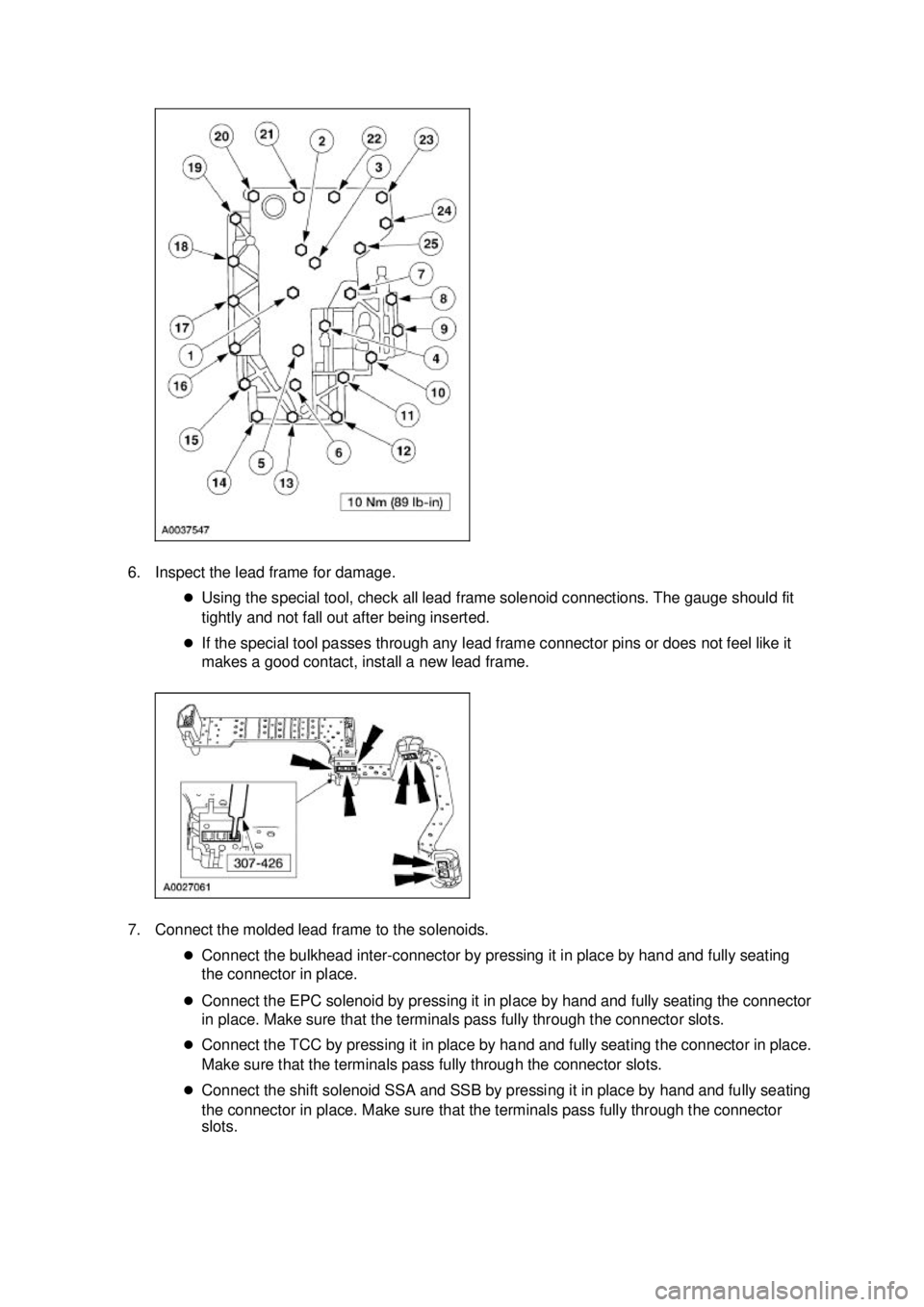

FORD MUSTANG 2003 Workshop Manual 6. Inspect the lead frame for damage. �zUsing the special tool, check all lead frame solenoid connections. The gauge should fit tightly and not fall out after being inserted. �z If the special tool

Page 2431 of 4378

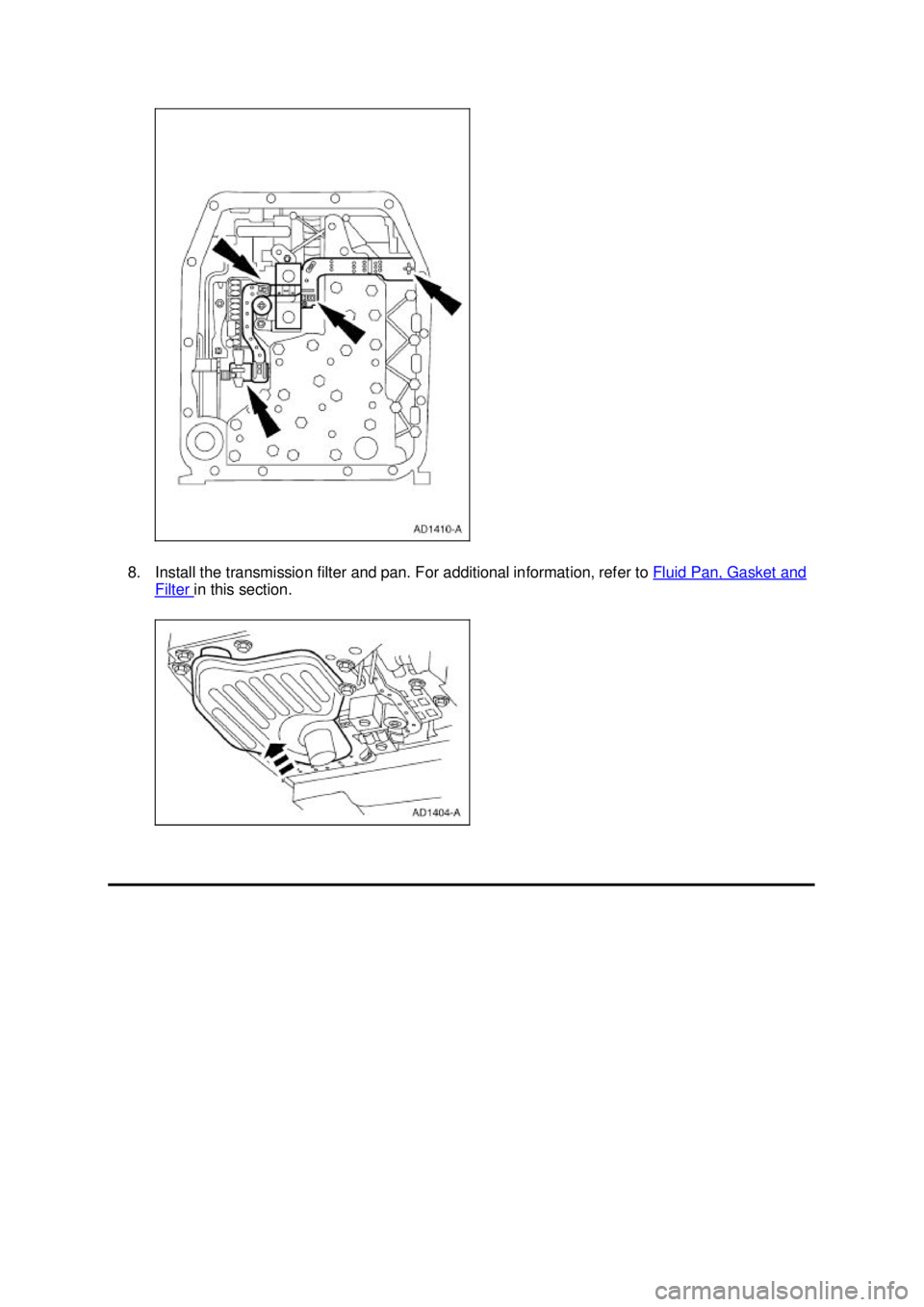

FORD MUSTANG 2003 Workshop Manual 8. Install the transmission filter and pan. For additional information, refer to Fluid Pan, Gasket and Filter in this section. Klj . 6 ba 72003 Mustang Workshop Manual 18. 11. 2011file:///C

Page 2432 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 7 ba 72003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
