Page 3793 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Instrument Panel Removal CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result. 1. Remove the driver air

Page 3794 of 4378

FORD MUSTANG 2003 Workshop Manual 7. Install the LH front wheel and tire assembly. For additional information, refer to Section 204 - 04 . 8. Remove the floor console. For additional information, refer to Floor Console in this se

Page 3795 of 4378

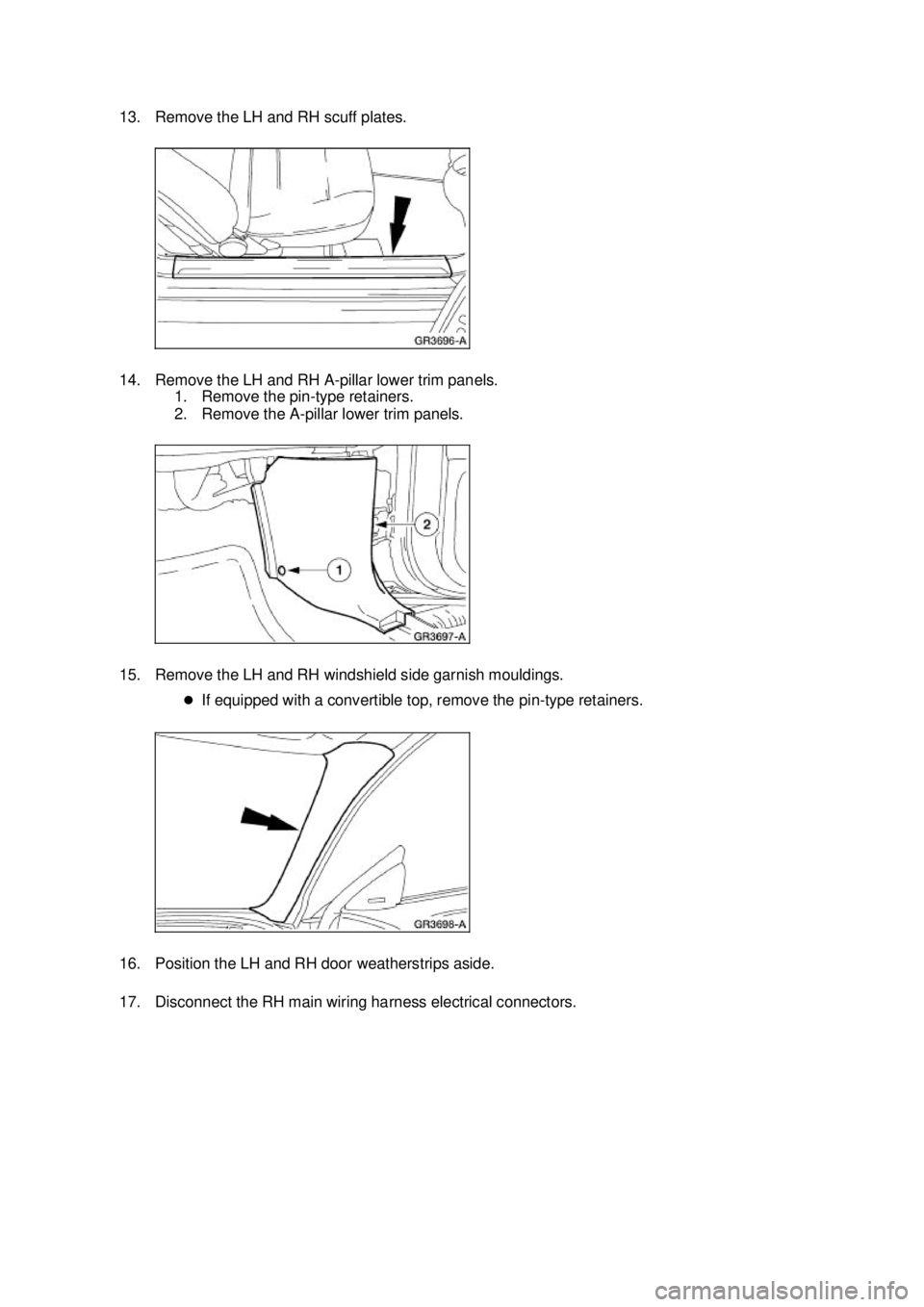

FORD MUSTANG 2003 Workshop Manual 13. Remove the LH and RH scuff plates. 14. Remove the LH and RH A- pillar lower trim panels. 1. Remove the pin- type retainers. 2. Remove the A- pillar lower trim panels. 15. Remove the LH and RH

Page 3796 of 4378

FORD MUSTANG 2003 Workshop Manual 18. Disconnect the climate control wiring harness connector. 19. Remove the instrument panel steering column cover. 1. Remove the screws. 2. Remove the instrument panel steering column cover. 20.

Page 3797 of 4378

FORD MUSTANG 2003 Workshop Manual 2. Separate the intermediate shaft from the steering column shaft. 22. NOTE: The corner of the carpet may have to be pulled back slightly to carry out this step. Disconnect the LH main wiring harne

Page 3798 of 4378

FORD MUSTANG 2003 Workshop Manual 25. If equipped, disconnect the shift interlock assembly from the selector lever. 1. Remove the screw. 2. Remove the R- clip. 3. Disconnect the shift interlock cable. 4. Disconnect the shift inter

Page 3799 of 4378

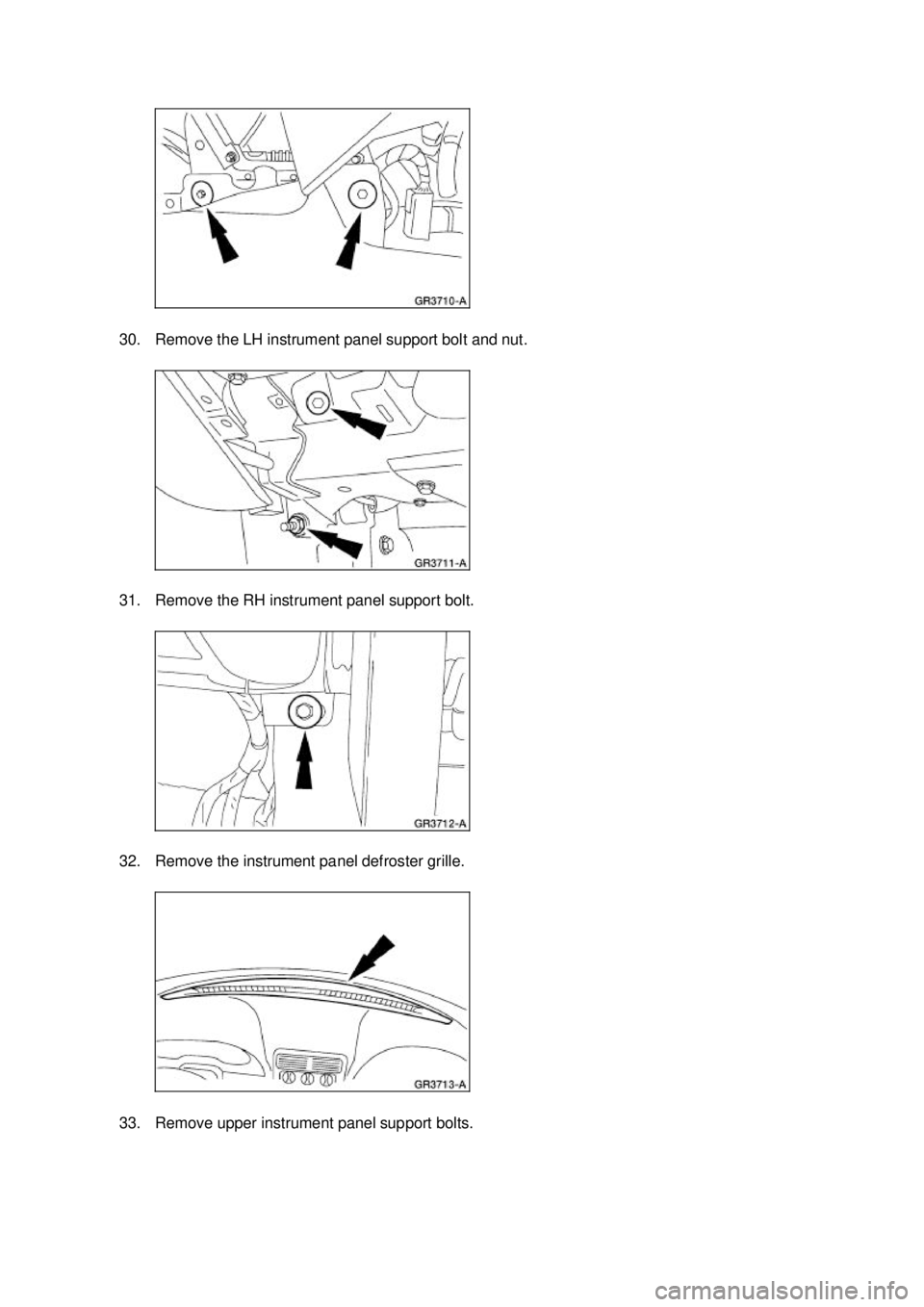

FORD MUSTANG 2003 Workshop Manual 30. Remove the LH instrument panel support bolt and nut. 31. Remove the RH instrument panel support bolt. 32. Remove the instrument panel defroster grille. 33. Remove upper instrument panel support

Page 3800 of 4378

FORD MUSTANG 2003 Workshop Manual 34. NOTE: Two technicians are necessary to carry out this step. Remove the instrument panel. Installation CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to th
