Page 2833 of 4378

FORD MUSTANG 2003 Workshop Manual 28. Install the countershaft. 29. Clean the mating surfaces of the transmission main case and the clutch housing. Apply a bead of silicone rubber to the sealing surface on the clutch housing then in

Page 2834 of 4378

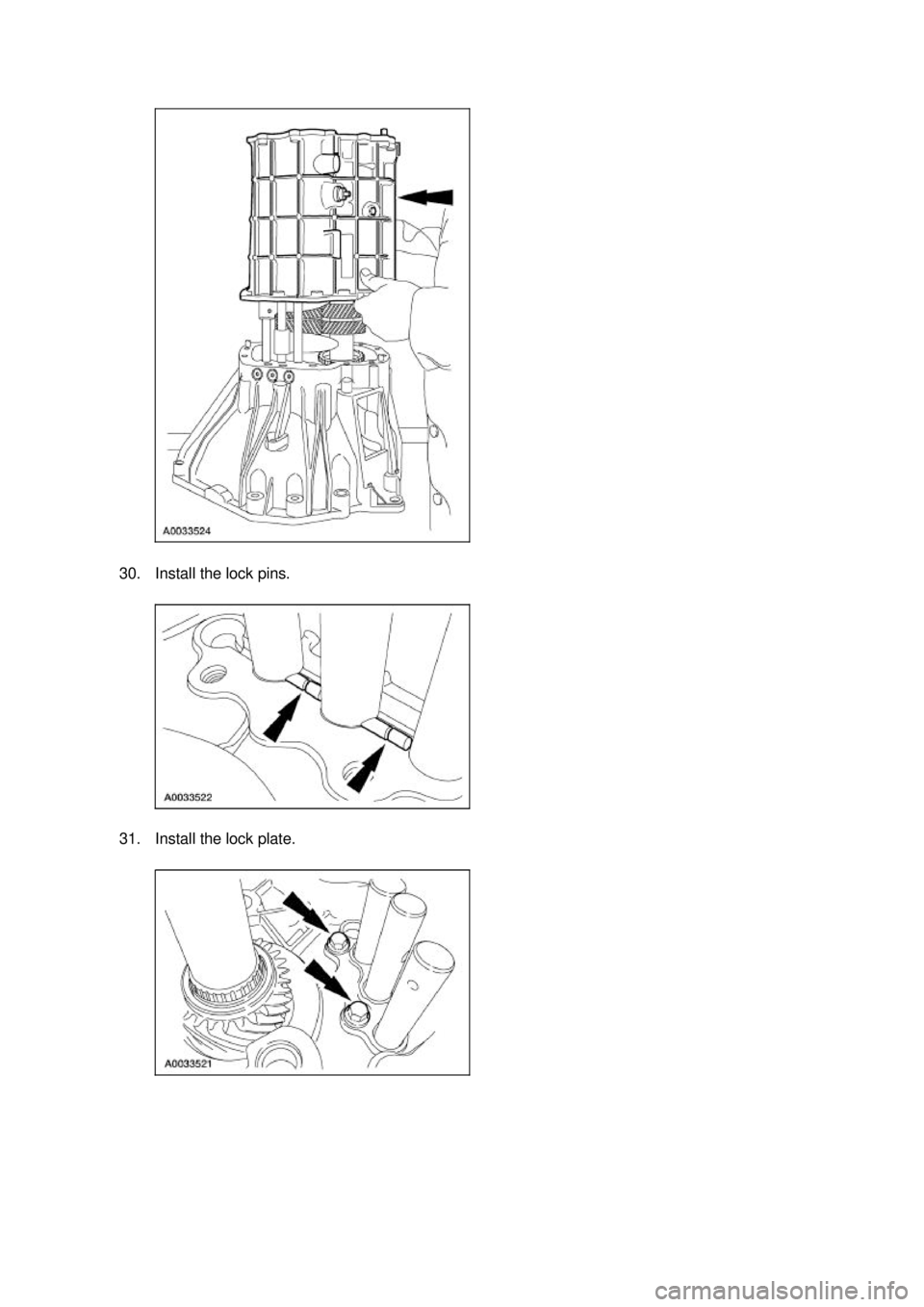

FORD MUSTANG 2003 Workshop Manual 30. Install the lock pins. 31. Install the lock plate. Klj . 11 ba 192003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2835 of 4378

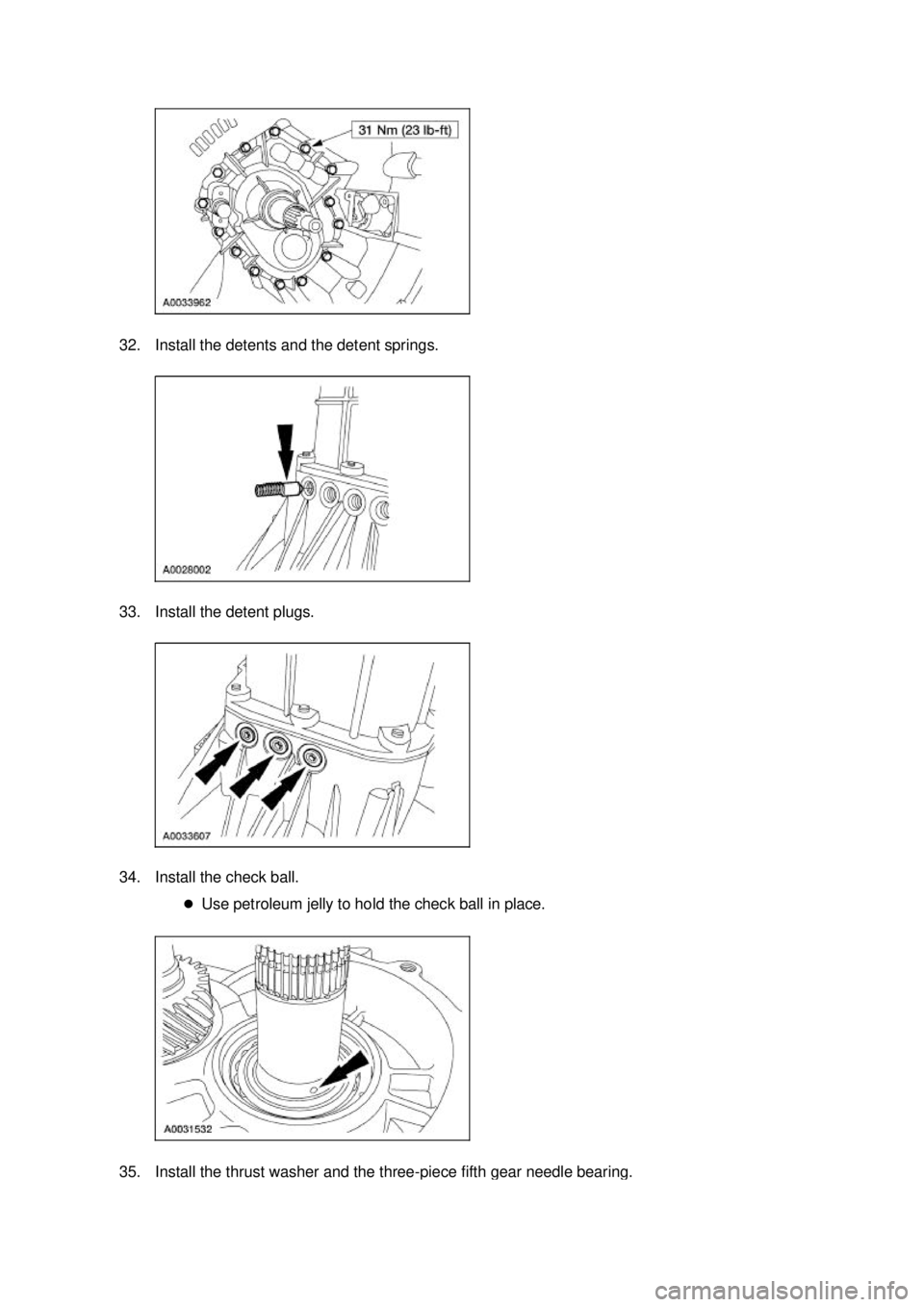

FORD MUSTANG 2003 Workshop Manual 32. Install the detents and the detent springs. 33. Install the detent plugs. 34. Install the check ball. �zUse petroleum jelly to hold the check ball in place. 35. Install the thrust washer and t

Page 2836 of 4378

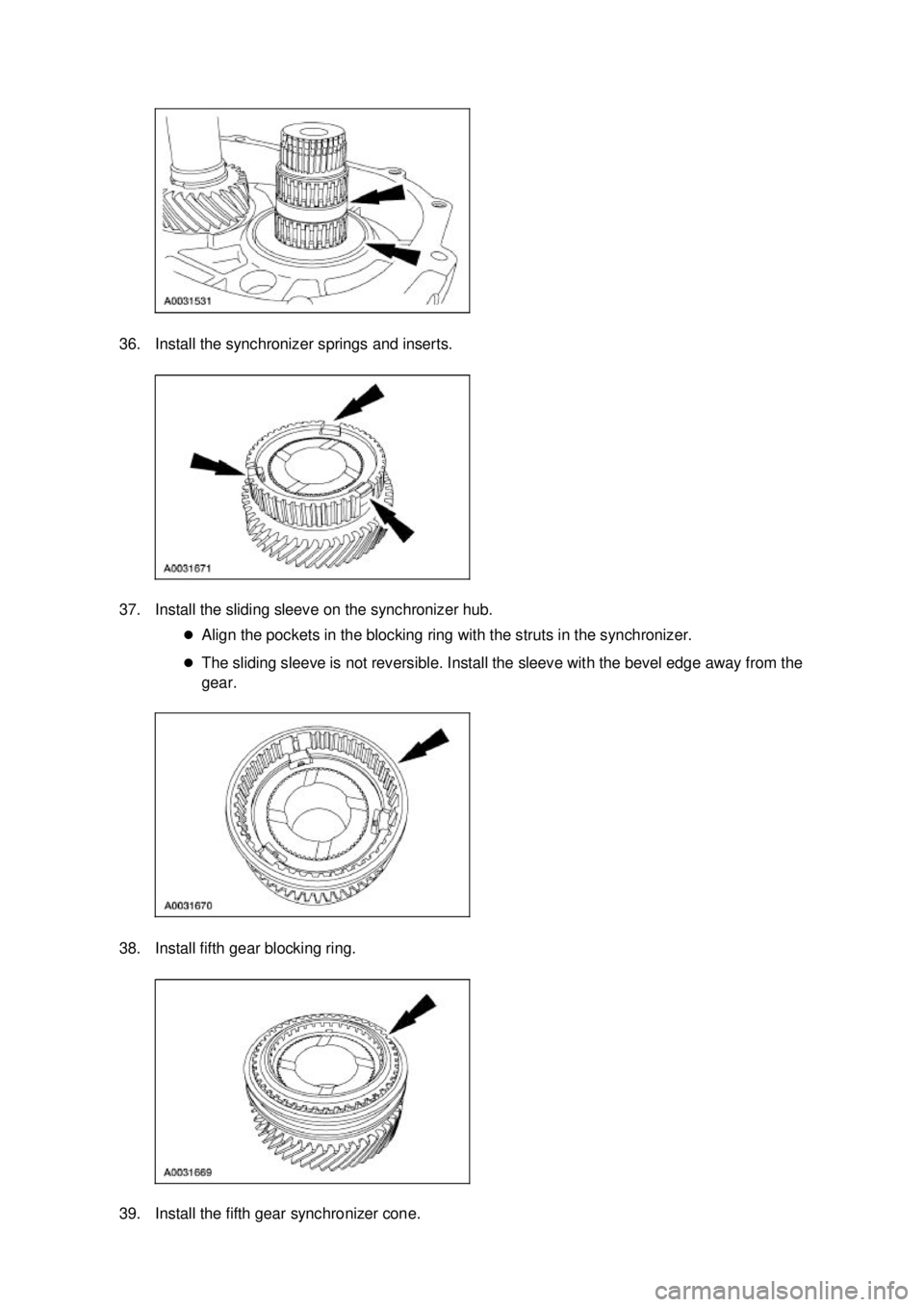

FORD MUSTANG 2003 Workshop Manual 36. Install the synchronizer springs and inserts. 37. Install the sliding sleeve on the synchronizer hub. �zAlign the pockets in the blocking ring with the struts in the synchronizer. �z The slidin

Page 2837 of 4378

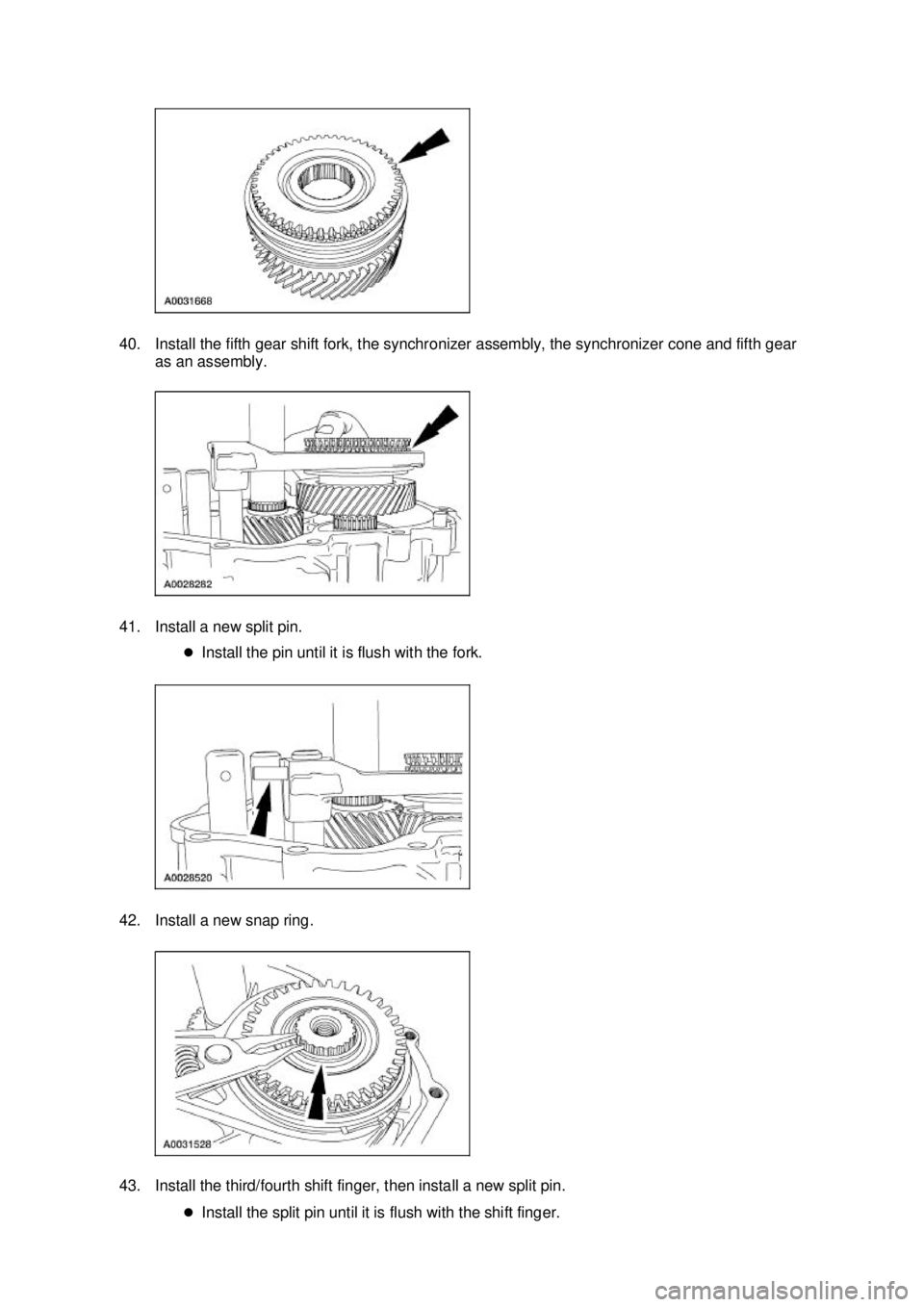

FORD MUSTANG 2003 Workshop Manual 40. Install the fifth gear shift fork, the synchronizer assembly, the synchronizer cone and fifth gear as an assembly. 41. Install a new split pin. �zInstall the pin until it is flush with the fork

Page 2838 of 4378

FORD MUSTANG 2003 Workshop Manual 44. Install the control rail and the plastic spacer, then install the first/second shift finger. Install a new split pin. �zInstall the split pin until it is flush with the shift finger. 45. Instal

Page 2839 of 4378

FORD MUSTANG 2003 Workshop Manual 47. Install a new OSS sensor tone wheel retaining ring. 48. Install the fifth/reverse gear lockout. 49. Install the bolt. 50. Clean the mating surfaces of the transmission main case and the extensi

Page 2840 of 4378

FORD MUSTANG 2003 Workshop Manual 52. Install the shift spring and bracket. 53. Install a new split pin in the gear shift off- set lever. �z The split pin should be flush in the gear shift off- set lever. 54. Seat the extension hou
