Page 2617 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Bezel Removal 1. Remove the shifter top control panel. 2. Disconnect the electrical connectors. 3. Remove the shifter bezel. 4. Remove the bulb from the bezel. SECTION 3

Page 2618 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Disconnect the connector. 6. CAUTION: Extra force may be needed to lift up on the handle. Do not to pull too far or damage to the overdrive cancel button may result, as the wires may be pulled o

Page 2619 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2620 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Bulb Removal and Installation 1. Remove the floor console. For additional information, refer to Section 501 - 12 . 2. Remove the bolts, then position the bezel upward.

Page 2621 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2622 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Knob Removal 1. Remove the shifter top control panel. 2. Disconnect the electrical connectors. 3. Remove the shifter bezel. 4. Remove the bulb from the bezel. SECTION 30

Page 2623 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Disconnect the TCS connector. 6. CAUTION: Extra force may be needed to lift up on the handle. Do not to pull too far or damage to the overdrive cancel button may result, as the wires may be pull

Page 2624 of 4378

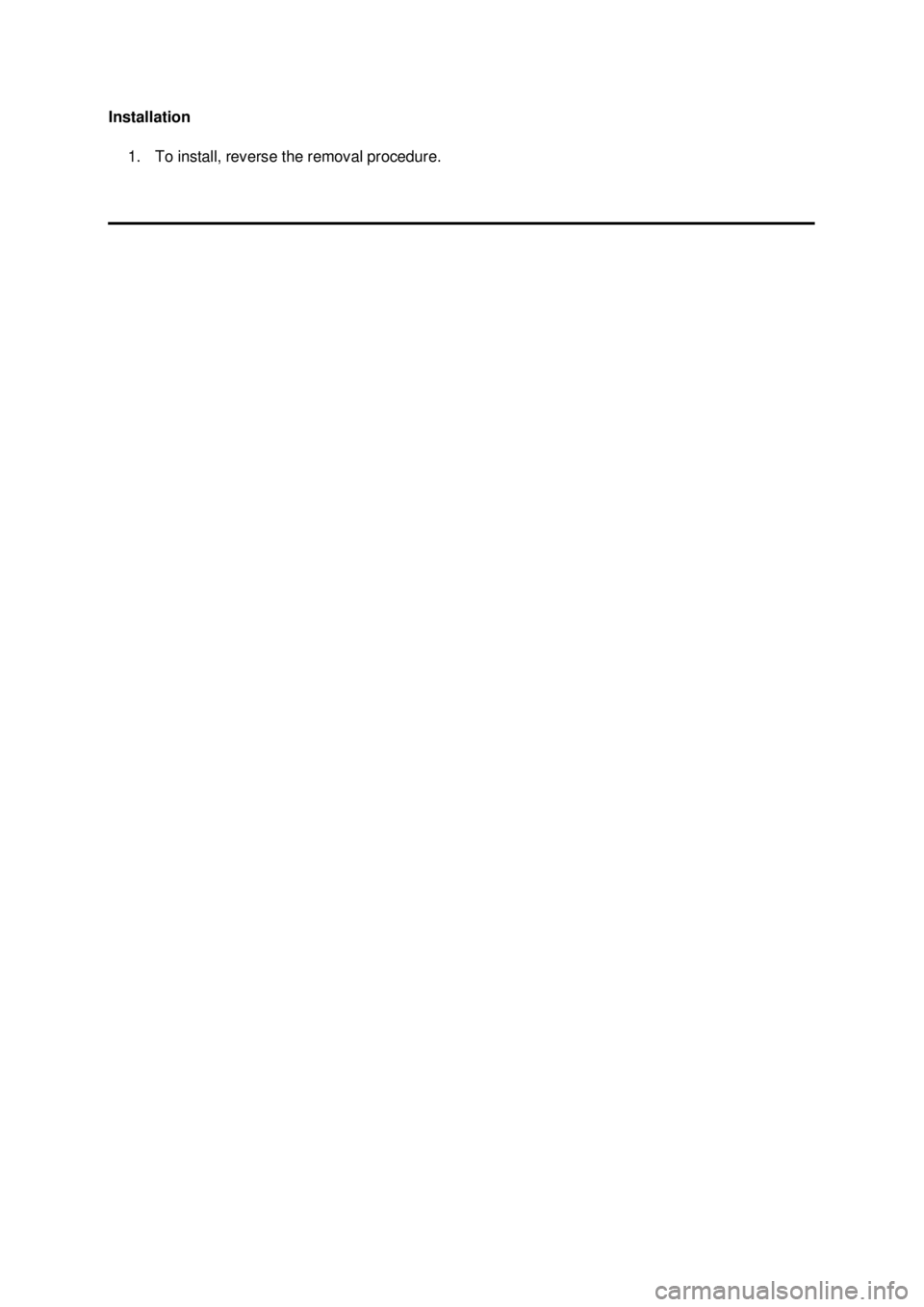

FORD MUSTANG 2003 Workshop Manual Installation 1. To install, reverse the removal procedure. Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
