Page 1961 of 4378

FORD MUSTANG 2003 Workshop Manual 3. Install the EGR to exhaust manifold tube. For additional information, refer to Section 303 - 08 . 4. NOTE: The engine is removed for clarity. Position the EVR bracket and tighten the bolts. 5

Page 1962 of 4378

FORD MUSTANG 2003 Workshop Manual 8. Connect the fuel pressure sensor electrical connector and the vacuum hose. 9. NOTE: Make sure the locking clips are fully engaged into the bracket. Reposition the accelerator cable and the speed

Page 1963 of 4378

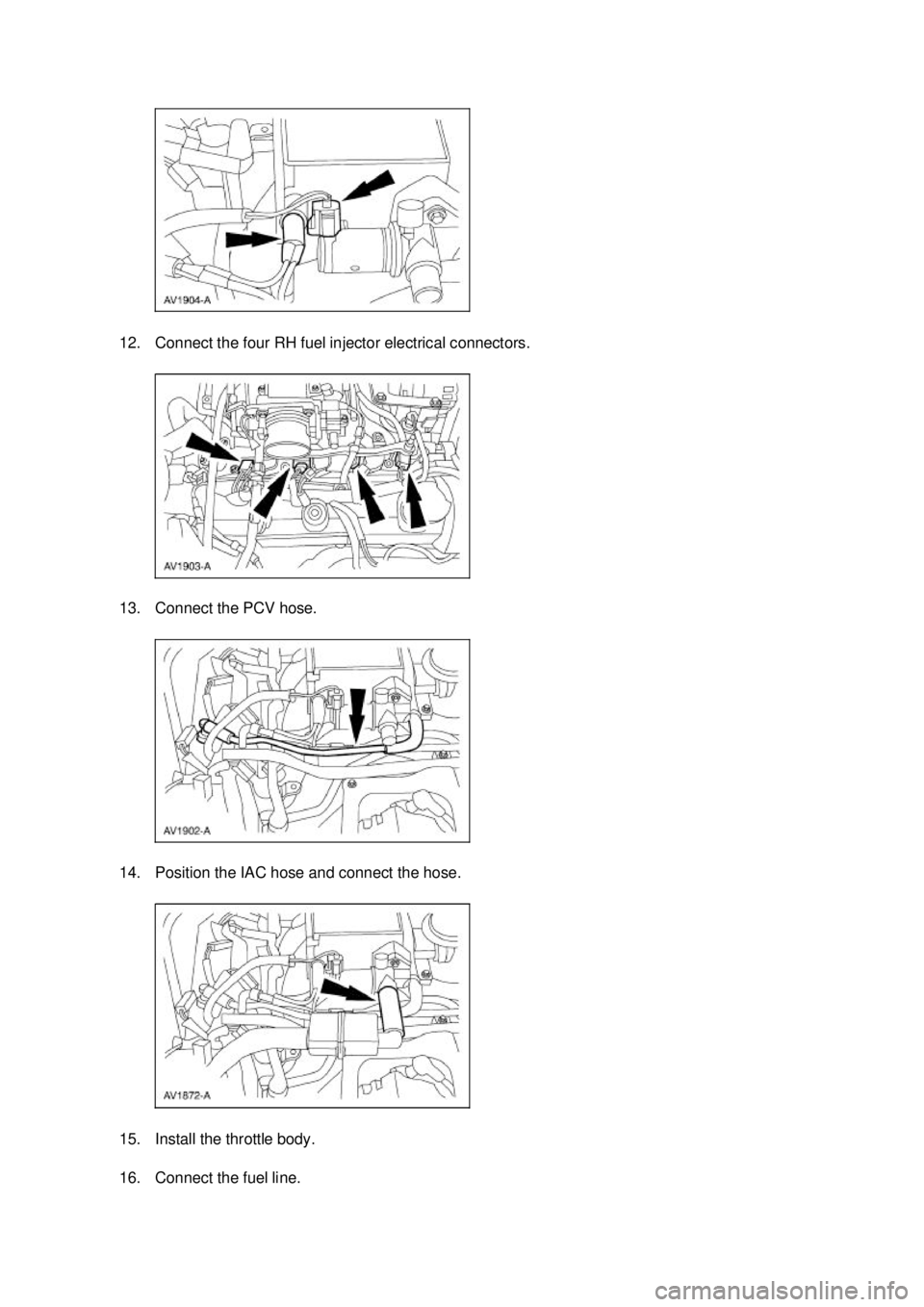

FORD MUSTANG 2003 Workshop Manual 12. Connect the four RH fuel injector electrical connectors. 13. Connect the PCV hose. 14. Position the IAC hose and connect the hose. 15. Install the throttle body. 16. Connect the fuel line. K

Page 1964 of 4378

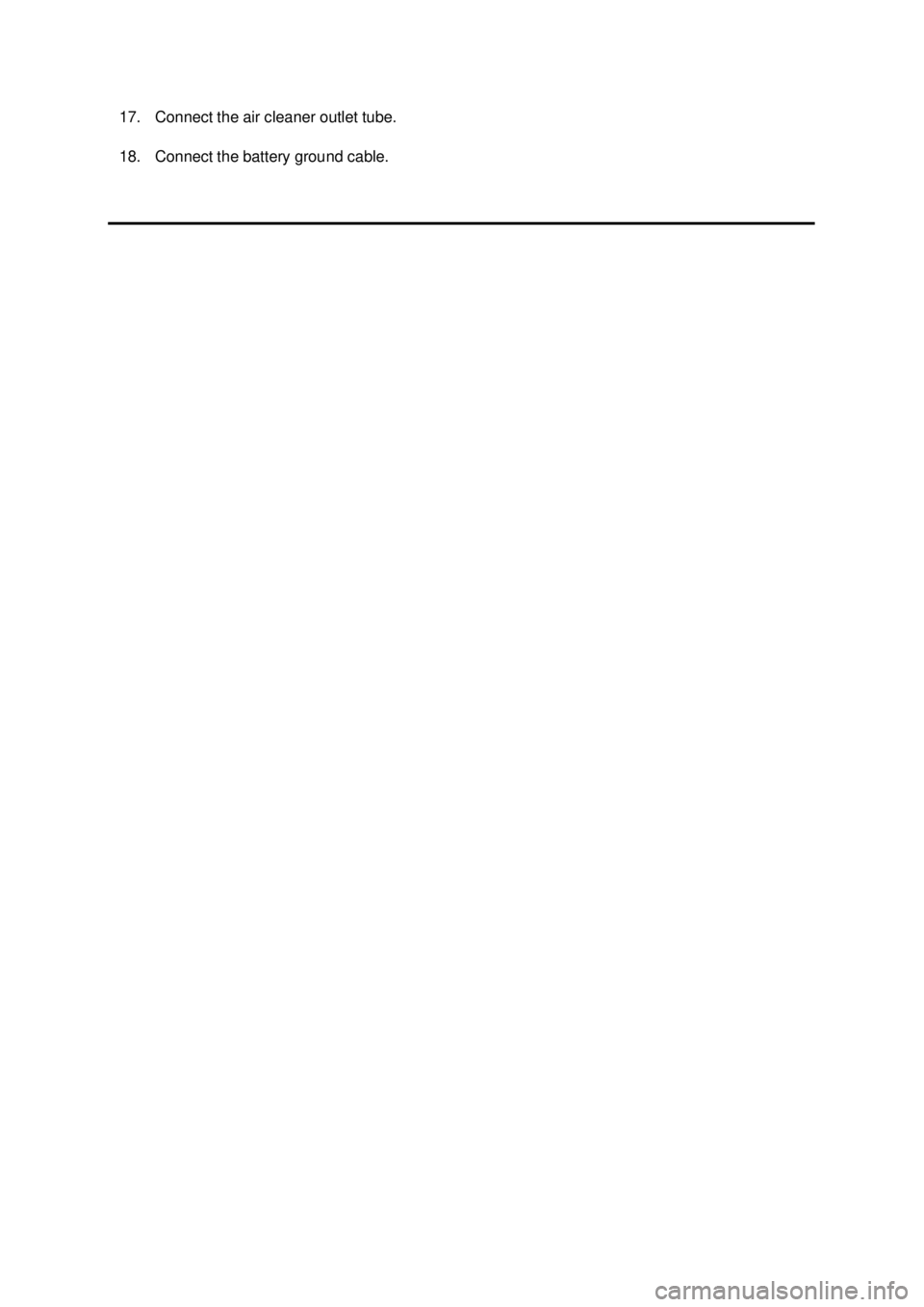

FORD MUSTANG 2003 Workshop Manual 17. Connect the air cleaner outlet tube. 18. Connect the battery ground cable. Klj . 8 ba 82003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~

Page 1965 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 303- 04C: Fuel Charging and Controls — Cobra 4.6L (4V) 2003 Mustang Workshop Manual General Specifications Item Specification Lubricants and Chemicals SAE 5W- 20 Premium

Page 1966 of 4378

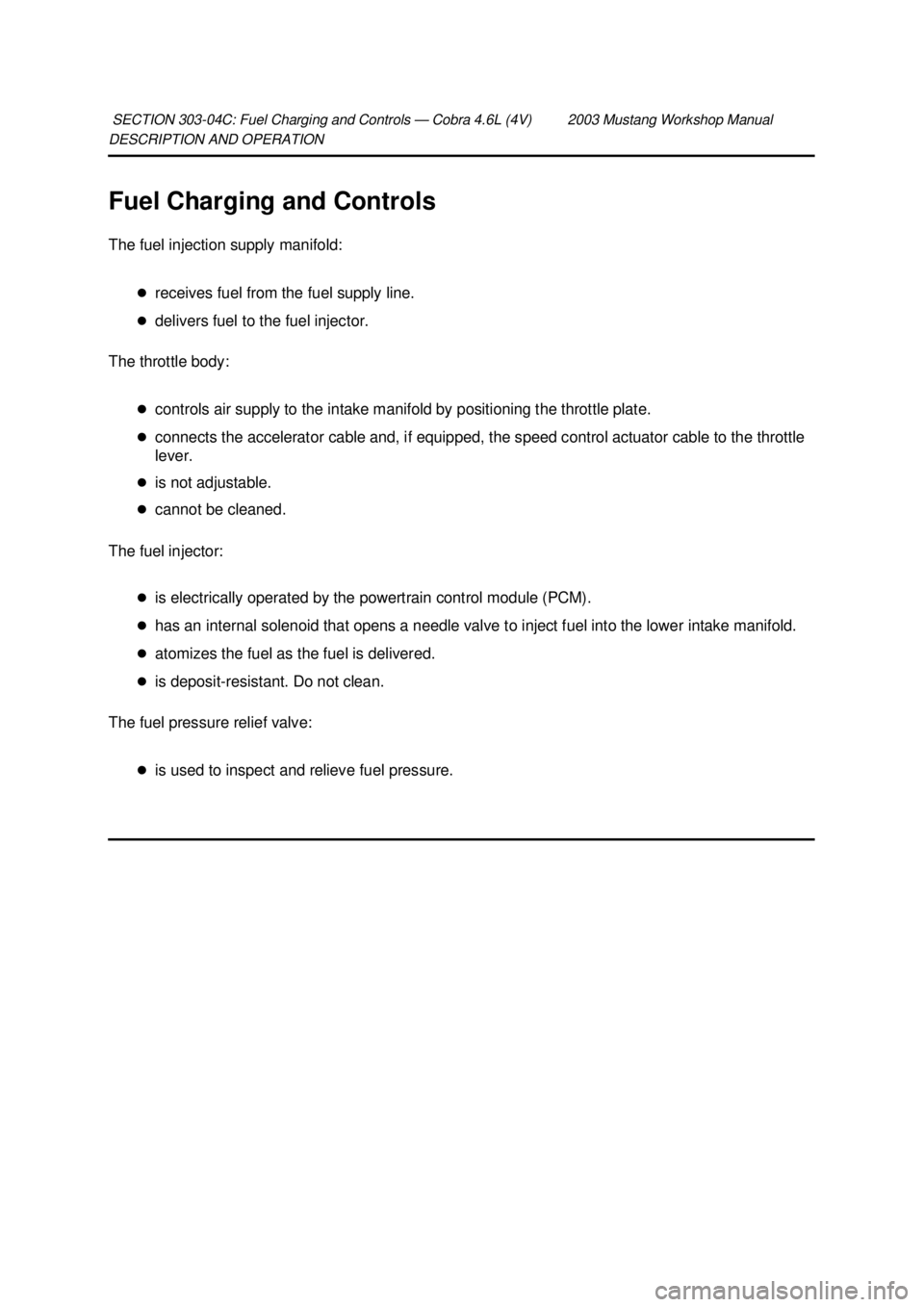

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Fuel Charging and Controls The fuel injection supply manifold: �zreceives fuel from the fuel supply line. �z delivers fuel to the fuel injector. The throttle body: �zco

Page 1967 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1968 of 4378

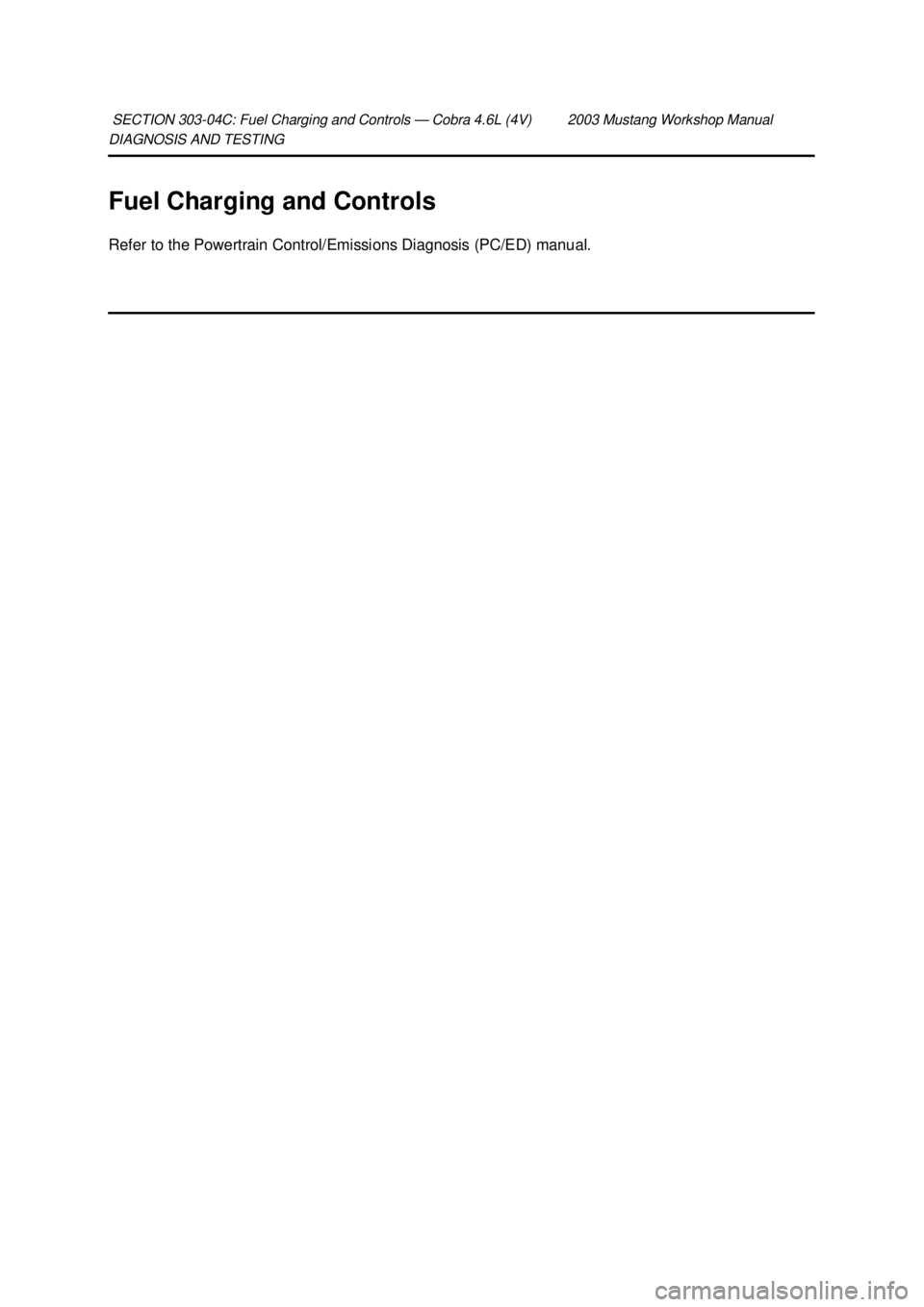

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Fuel Charging and Controls Refer to the Powertrain Control/Emissions Diagnosis (PC/ED) manual. SECTION 303- 04C: Fuel Charging and Controls — Cobra 4.6L (4V) 2003 Mustang Wo
