Page 1569 of 4378

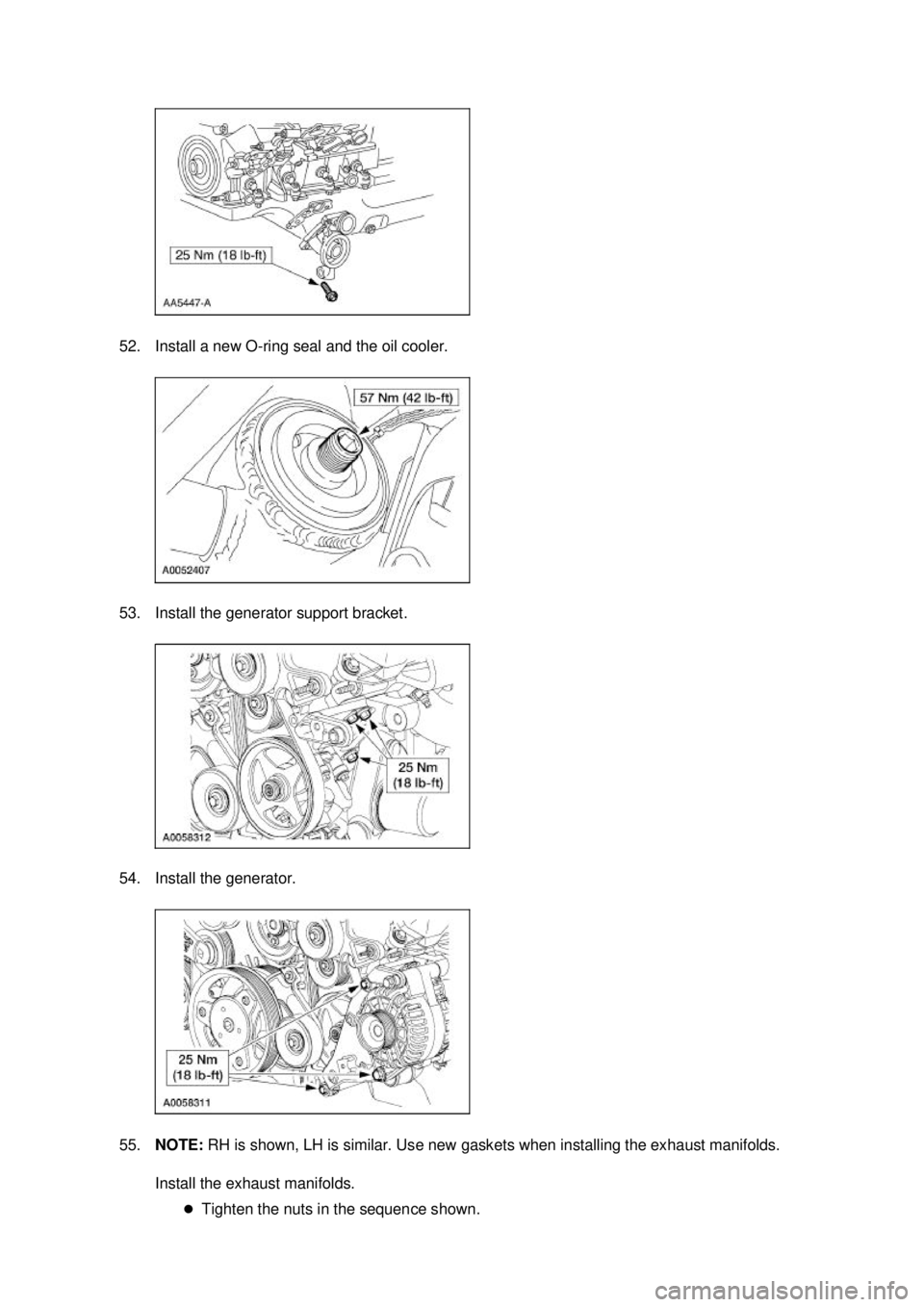

FORD MUSTANG 2003 Workshop Manual 52. Install a new O- ring seal and the oil cooler. 53. Install the generator support bracket. 54. Install the generator. 55. NOTE: RH is shown, LH is similar. Use new gaskets when installing the e

Page 1570 of 4378

FORD MUSTANG 2003 Workshop Manual 56. NOTE: If the valve cover is not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness,

Page 1571 of 4378

FORD MUSTANG 2003 Workshop Manual 58. Lubricate the front oil seal and the engine front cover with clean engine oil. 59. Using the special tools, install the front oil seal. 60. NOTE: If the crankshaft pulley is not installed withi

Page 1572 of 4378

FORD MUSTANG 2003 Workshop Manual 62. Install the crankshaft pulley and tighten the bolt in four stages. �zStage 1: Tighten to 90 Nm (66 lb- ft). �z Stage 2: Loosen the bolt one full turn. �z Stage 3: Tighten to 50 Nm (37 lb- ft).

Page 1573 of 4378

FORD MUSTANG 2003 Workshop Manual 65. Install the supercharger belt idler support bracket assembly. 66. NOTE: Lubricate the O- rings with clean engine coolant. NOTE: LH is shown, RH is similar. Install the coolant bypass tube and

Page 1574 of 4378

FORD MUSTANG 2003 Workshop Manual 68. NOTE: Lubricate the O- ring with clean engine coolant. Install the heater water inlet tube. 69. NOTE: Lubricate the O- rings with clean engine coolant. Install the heater water outlet tube an

Page 1575 of 4378

FORD MUSTANG 2003 Workshop Manual 71. Position the wiring harness onto the engine and attach it to the four fuel supply manifold studs. 72. Connect the eight fuel injector electrical connectors. 73. NOTE: RH is shown, LH is similar

Page 1576 of 4378

FORD MUSTANG 2003 Workshop Manual 75. Clip the harness to the bracket. 76. Connect the A/C compressor electrical connector. 77. Connect the crankshaft position (CKP) sensor electrical connector. 78. Install the fuel charging wiring
