Page 1153 of 4378

FORD MUSTANG 2003 Workshop Manual 32. Remove the generator support brace. 33. Disconnect the electrical connector. 34. Remove the generator. 35. Disconnect the heater hose. Klj . 8 ba 202003 Mustang Workshop Manual 17. 11.

Page 1154 of 4378

FORD MUSTANG 2003 Workshop Manual 36. Separate the engine harness and position it out of the way. 37. Disconnect the water temperature indicator sender. 38. Remove the water outlet connector. 39. Remove the water thermostat and the

Page 1155 of 4378

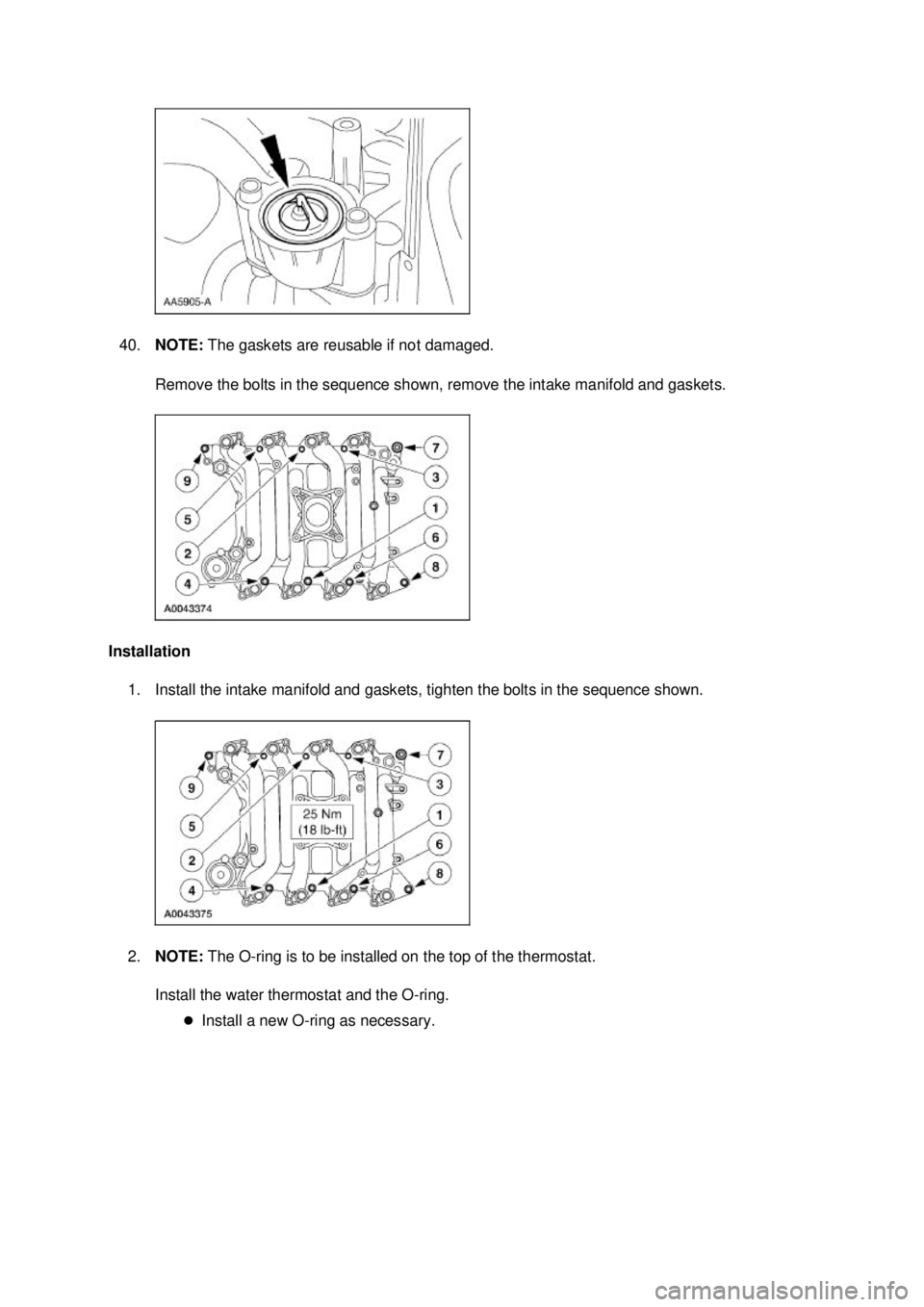

FORD MUSTANG 2003 Workshop Manual 40. NOTE: The gaskets are reusable if not damaged. Remove the bolts in the sequence shown, remove the intake manifold and gaskets. Installation 1. Install the intake manifold and gaskets, tighten

Page 1156 of 4378

FORD MUSTANG 2003 Workshop Manual 3. Install the water outlet adapter. 4. Connect the water temperature indicator sender. 5. Position the engine harness and attach to the intake manifold in two locations. 6. Connect the heater hose

Page 1157 of 4378

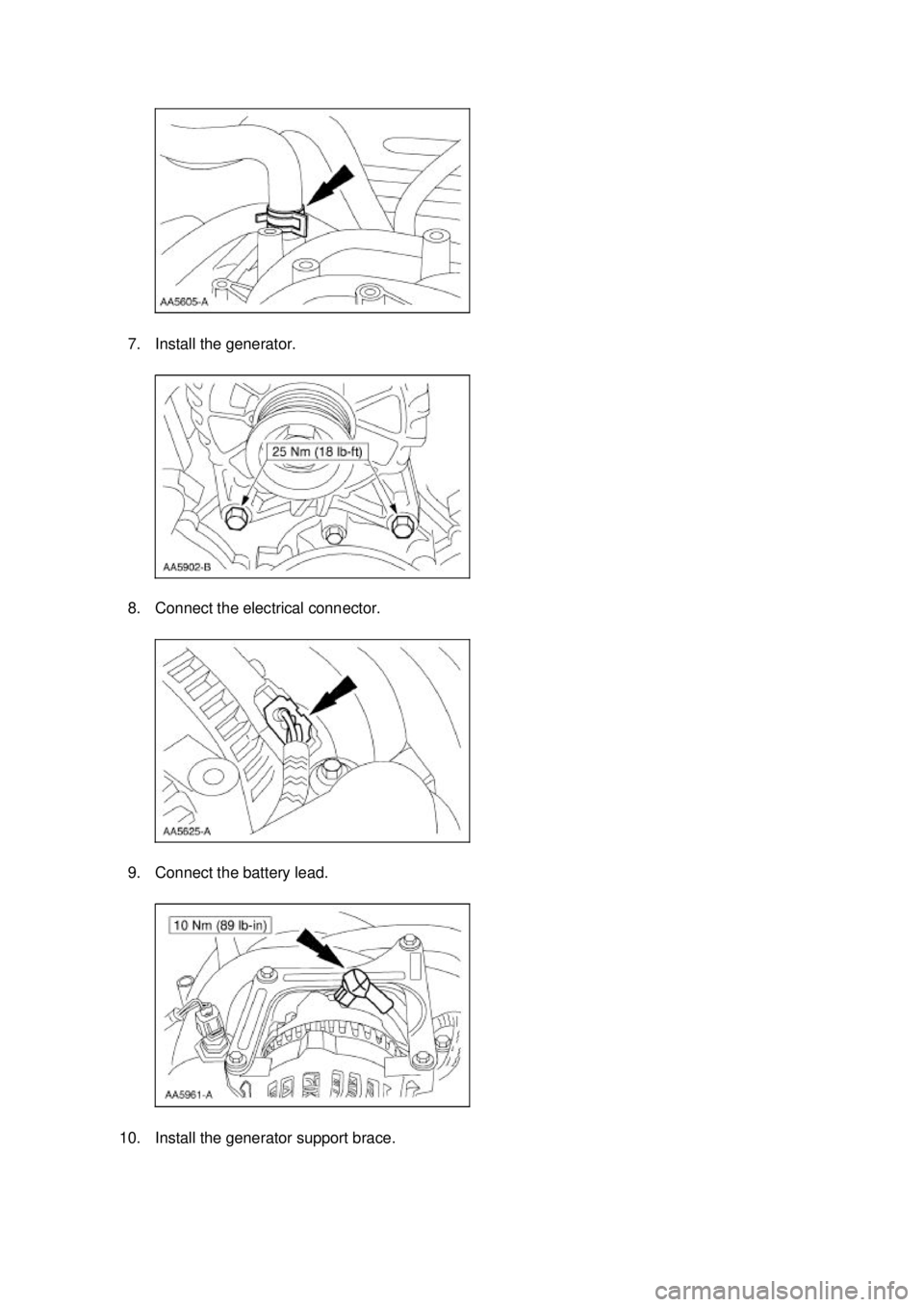

FORD MUSTANG 2003 Workshop Manual 7. Install the generator. 8. Connect the electrical connector. 9. Connect the battery lead. 10. Install the generator support brace. Klj . 12 ba 202003 Mustang Workshop Manual 17. 11. 2011

Page 1158 of 4378

FORD MUSTANG 2003 Workshop Manual 11. Install the ignition coils. 12. Install the fuel injection supply manifold and fuel injectors as an assembly. 13. Install four studs. 14. Position the vacuum harness and connect to the climate

Page 1159 of 4378

FORD MUSTANG 2003 Workshop Manual 15. Connect the ignition coils and the fuel injectors. 16. Connect the fuel charging ground wire. 17. Connect the fuel pressure sensor electrical connector and the vacuum hose. 18. Install the thro

Page 1160 of 4378

FORD MUSTANG 2003 Workshop Manual 19. Tighten the bolts in the sequence shown. 20. Connect the throttle position sensor (TPS) electrical connector. 21. Connect the main vacuum supply to the base of the throttle body adapter. 22. Co
