FORD MUSTANG 2003 Workshop Manual �z
Is the resistance greater than 10,000 ohms? F8 ISOLATE OPEN ON CIRCUIT 85 (BN/LB)
�z
Disconnect: Safety Belt Switch C323.
�z Enter the following diagnostic mode on the diagnostic tool:
GEM PID.

Page 3338 of 4378

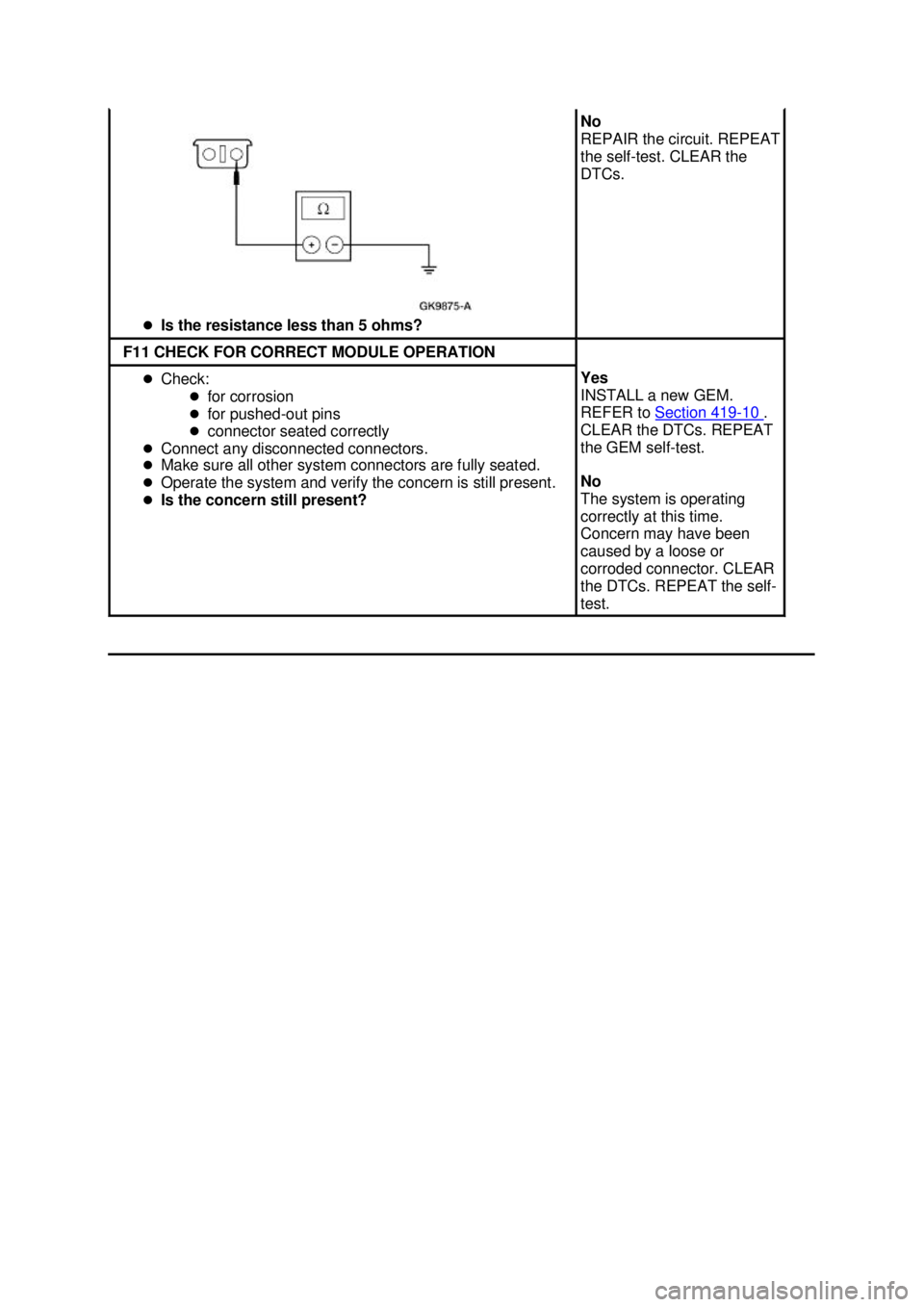

FORD MUSTANG 2003 Workshop Manual �z
Is the resistance less than 5 ohms? No
REPAIR the circuit. REPEAT
the self-
test. CLEAR the
DTCs. F11 CHECK FOR CORRECT MODULE OPERATION
�z
Check:
�zfor corrosion
�z for pushed- out pins
�

Page 3339 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES
Belt Minder Deactivating/Activating
Preparation
1. Before deactivating/activating the belt minder, set the parking brake.
2. Place the gearshift in P (Park) (automatic transmiss

GENERAL PROCEDURES
Belt Minder Deactivating/Activating
Preparation
1. Before deactivating/activating the belt minder, set the parking brake.
2. Place the gearshift in P (Park) (automatic transmission) or the neutral position (manual transmission).
3. Place the ignition switch in the OFF position.
4. Close all the vehicle doors.
5. Unbuckle the driver safety belt.
6. Place the parklamps/headlamps switch in the OFF position. (If the vehicle is equipped with Autolamps, this will not affect the procedure.)
Deactivating/Activating 1. Turn the ignition switch to the RUN position. (Do not start the engine.)
2. Wait until the safety belt warning lamp turns off. (approximately one to two minutes)
3. NOTE: Steps 3 through 5 must be completed within 60 seconds or the procedure must be
repeated.
Buckle then unbuckle the safety belt three times, ending with the safety belt unbuckled. This
portion of the procedure can be done before or during belt minder warning activation.
4. Turn the parklamps/headlamps on then off.
5. Buckle then unbuckle the safety belt three times ending with the safety belt unbuckled. After this step the safety belt warning lamp will be illuminated for three seconds.
6. Within seven seconds of the safety belt warning lamp turning off, buckle then unbuckle the safety belt. This will enable the belt minder if disabled or disable the belt minder if enabled.
7. The following sequence of events confirm the belt minder is enabled: zflashing of the safety belt warning belt lamp four times per second for three seconds
z three seconds with the safety belt lamp off
z flashing the safety belt lamp four times per second for three seconds again
8. The safety belt lamp flashing four times per second for three seconds provides confirmation that the belt minder is disabled. 9. After confirmation, the deactivation/activation procedure is complete. SECTION 413-
09: Warning Devices 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3340 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3341 of 4378

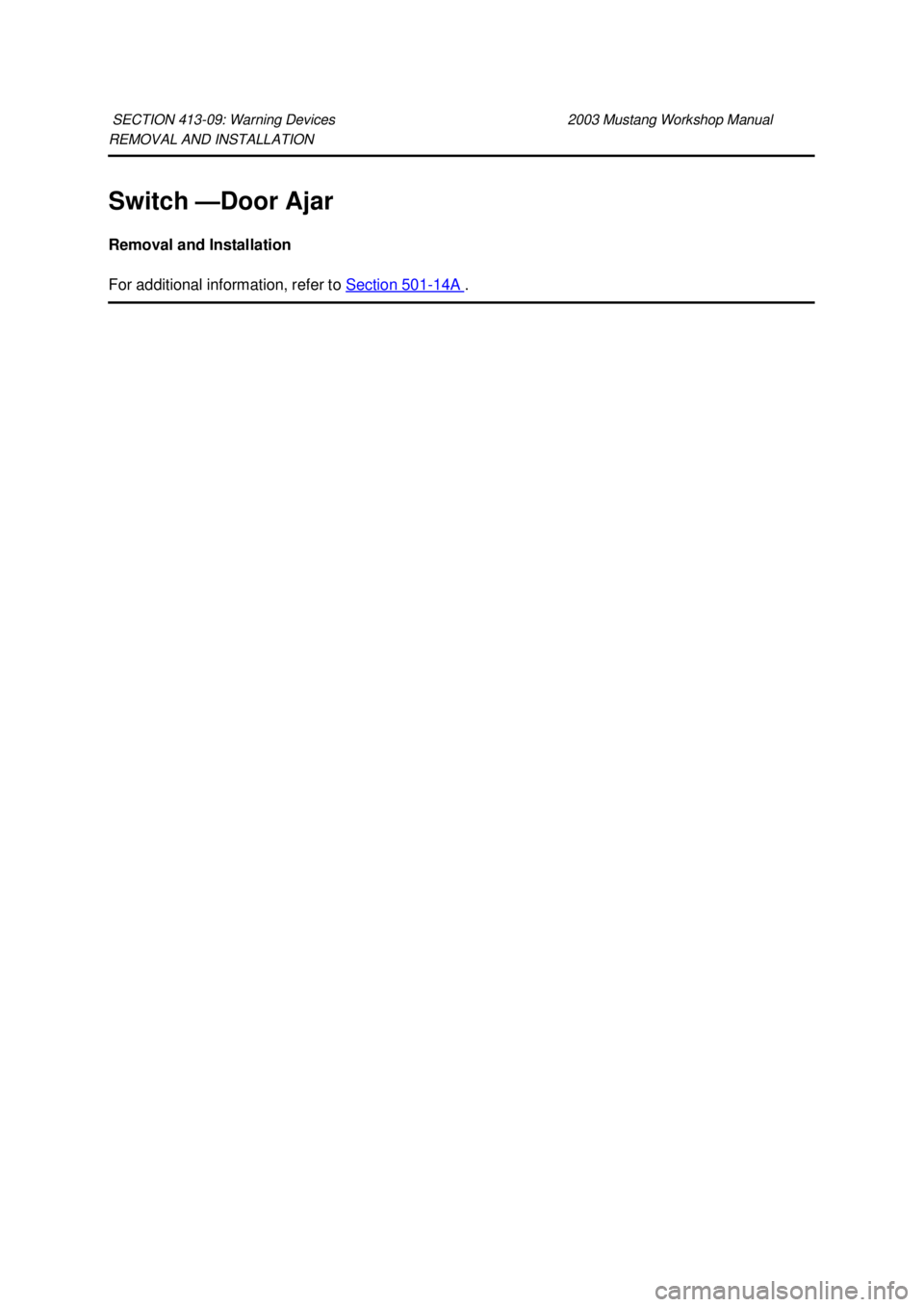

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION
Switch —
Door Ajar
Removal and Installation
For additional information, refer to Section 501 - 14A .
SECTION 413-
09: Warning Devices 2003 Mustang Workshop Manual K

Page 3342 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION
Switch —
Key-In-Ignition Warning
Removal 1. Remove the ignition switch lock cylinder. 1. Insert the ignition key and turn to the RUN position.
2. Insert a punch in the

Page 3343 of 4378

Page 3344 of 4378

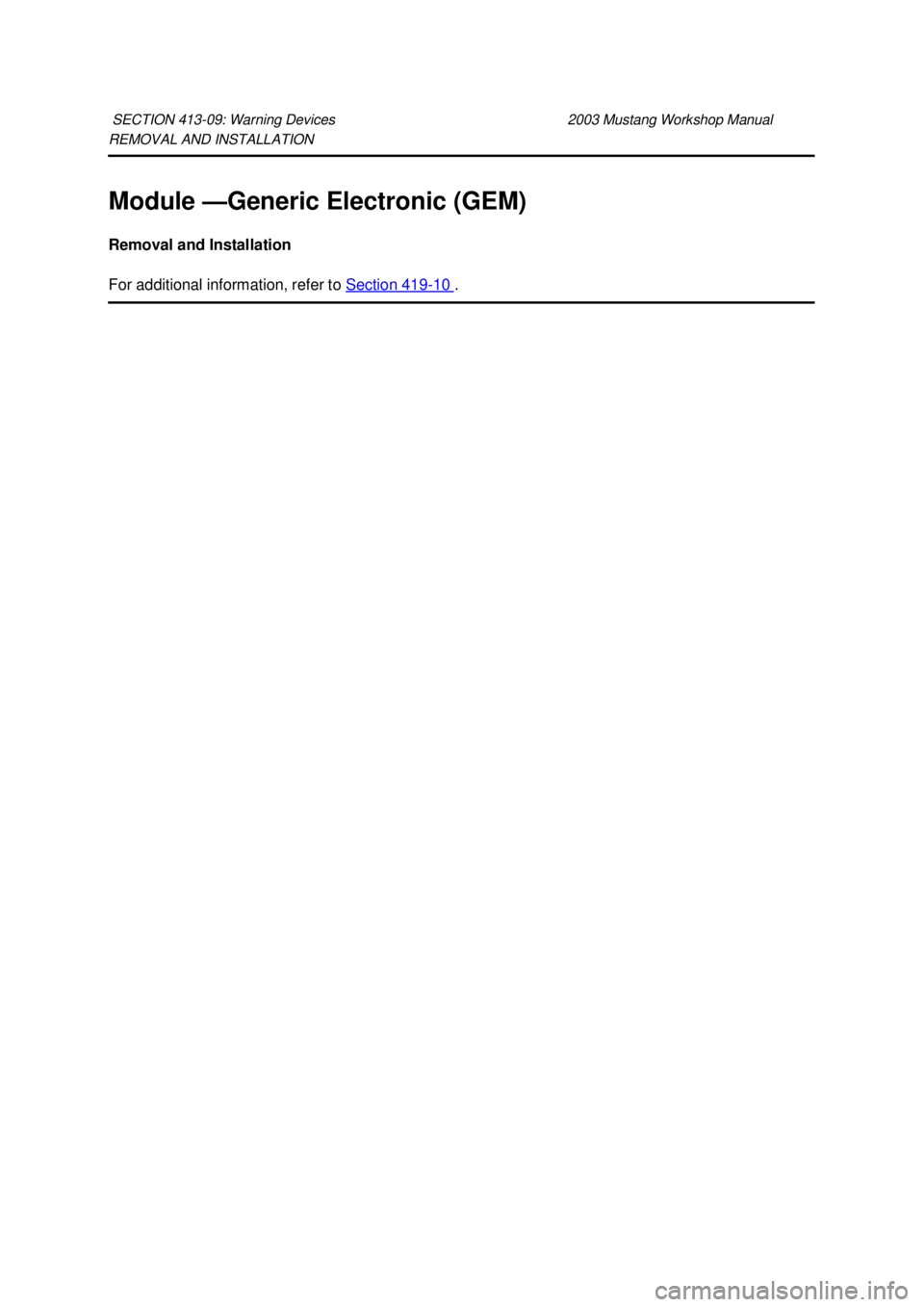

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION
Module —
Generic Electronic (GEM)
Removal and Installation
For additional information, refer to Section 419 - 10 .
SECTION 413-
09: Warning Devices 2003 Mustang Works
