Page 1553 of 4378

FORD MUSTANG 2003 Workshop Manual 4. If oversize bearings are being used, use the procedure in the previous step and the Bearing Select Fit Chart, Oversize Bearings to determine the required bearing grade for each main bearing. 5.

Page 1554 of 4378

FORD MUSTANG 2003 Workshop Manual 7. NOTE: The oil groove on the thrust washer must face toward the front of the engine (against the crankshaft thrust surface). Install the thrust washer to the rear of the No. 5 upper main bearing.

Page 1555 of 4378

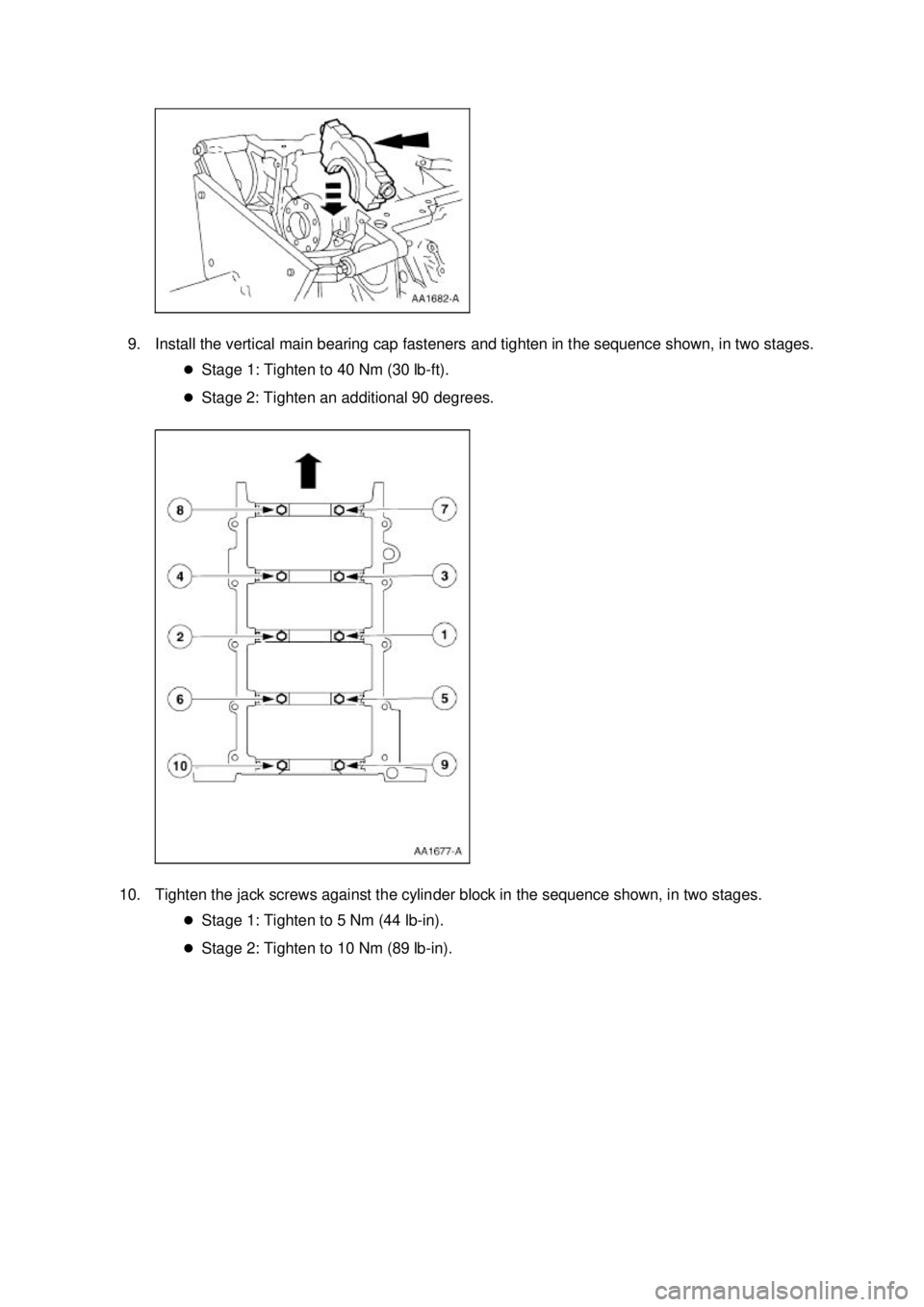

FORD MUSTANG 2003 Workshop Manual 9. Install the vertical main bearing cap fasteners and tighten in the sequence shown, in two stages. �zStage 1: Tighten to 40 Nm (30 lb- ft). �z Stage 2: Tighten an additional 90 degrees. 10. Tight

Page 1556 of 4378

FORD MUSTANG 2003 Workshop Manual 11. Install the side bolts and tighten them in the sequence shown. 12. Check the crankshaft end play. For additional information, refer to Section 303 - 00 . 13. CAUTION: Do not scratch the cylind

Page 1557 of 4378

FORD MUSTANG 2003 Workshop Manual NOTE: Lubricate the piston rings, cylinder walls and connecting rod bearings with clean engine oil. Using the special tool push the pistons through the top of the cylinder block. 14. CAUTION: Do

Page 1558 of 4378

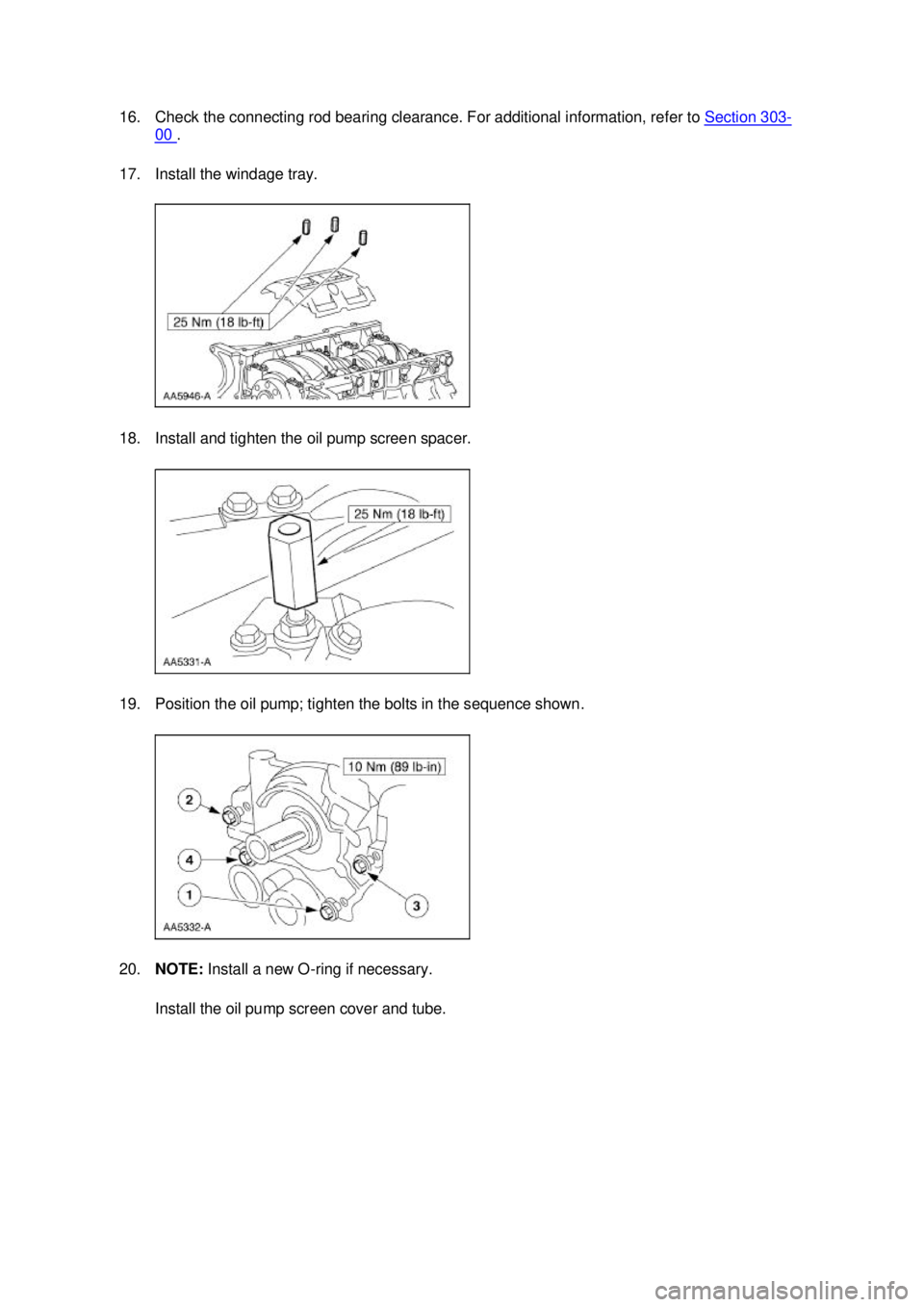

FORD MUSTANG 2003 Workshop Manual 16. Check the connecting rod bearing clearance. For additional information, refer to Section 303 - 00 . 17. Install the windage tray. 18. Install and tighten the oil pump screen spacer. 19. Posit

Page 1559 of 4378

FORD MUSTANG 2003 Workshop Manual 21. Install the cylinder head gaskets. 22. NOTE: Install new cylinder head bolts. NOTE: LH is shown, RH is similar. NOTE: Lubricate the bolt heads and threads. Use clean engine oil. Install the

Page 1560 of 4378

FORD MUSTANG 2003 Workshop Manual Compress the tensioner plunger, using a vise. 24. Install a retaining clip on the tensioner to hold the plunger in during installation. 25. Remove the tensioner from the vise. 26. If the copper lin
